V0-5V/10V to 0-20MA Voltage to Current Module VC-5V20MA 1‑5V to 4‑20MA Module Signal Conversion

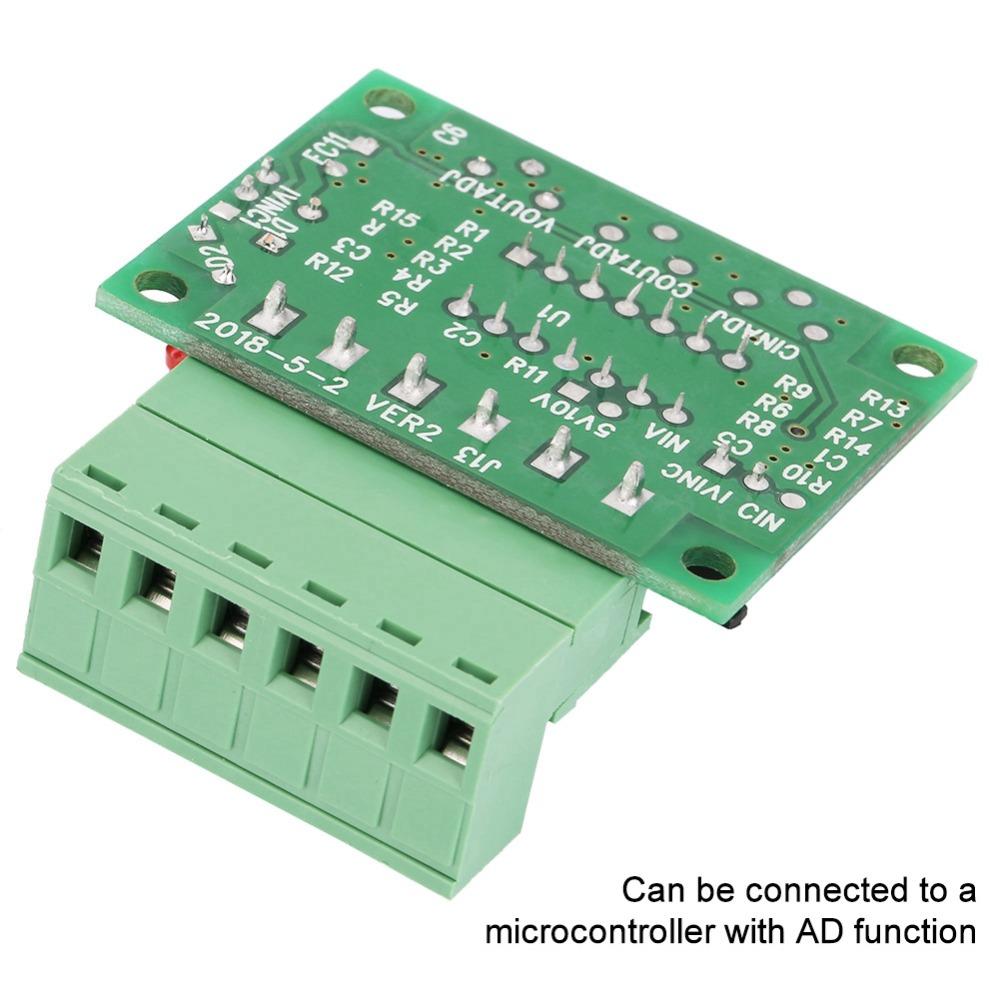

Label:Yes Designed for optimal performance, the module operates within a power supply range of 5-25VDC and supports a maximum operating current of 50 mA, reliability in your applications. Please compatibility with your system's specifications before use, as this module requires careful consideration of input voltage and current parameters. This Voltage Current Module features a small housing that s stable performance, making it ideal for limited installations in various electronic projects. With an internal voltage input signal of 10K and a minimum current input of 1 MA, this module is equipped to handle diverse input requirements efficiently. Effortlessly convert voltage to current with this module, allowing for easy connection to AD converters and microcontrollers for enhanced functionality.

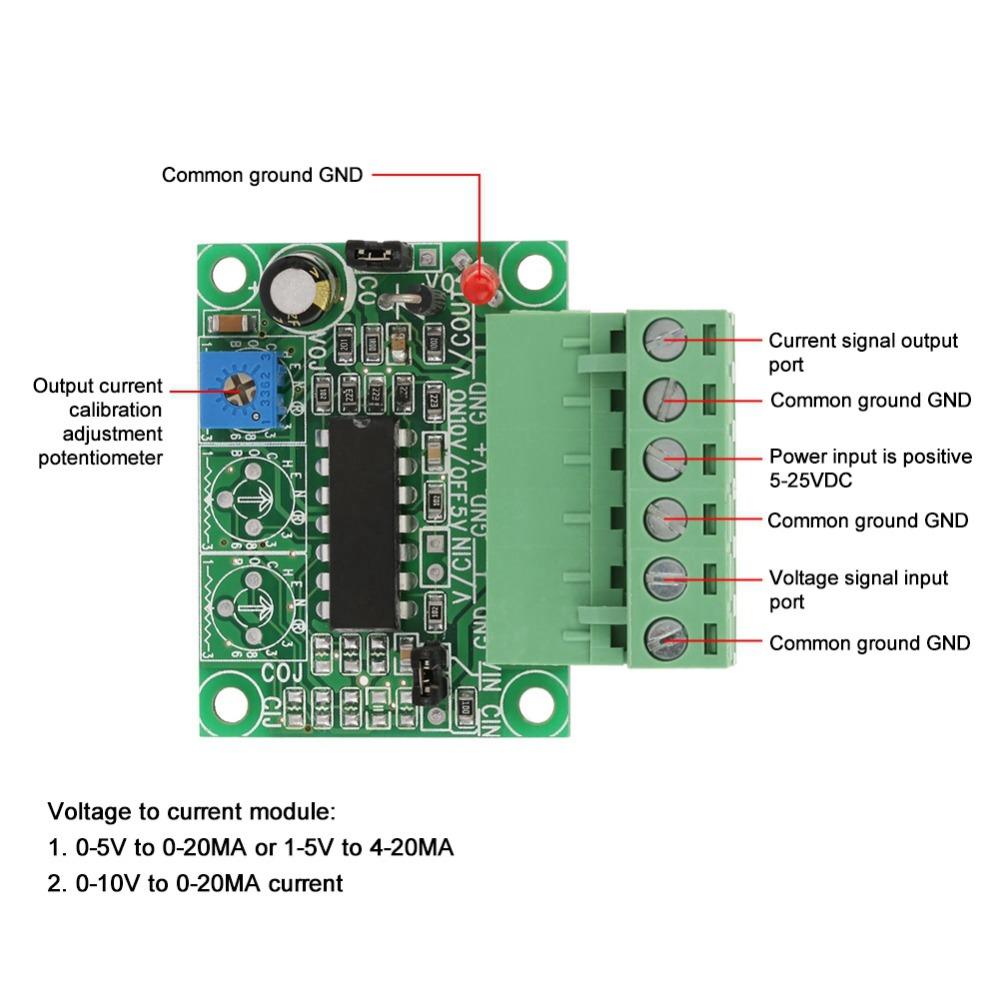

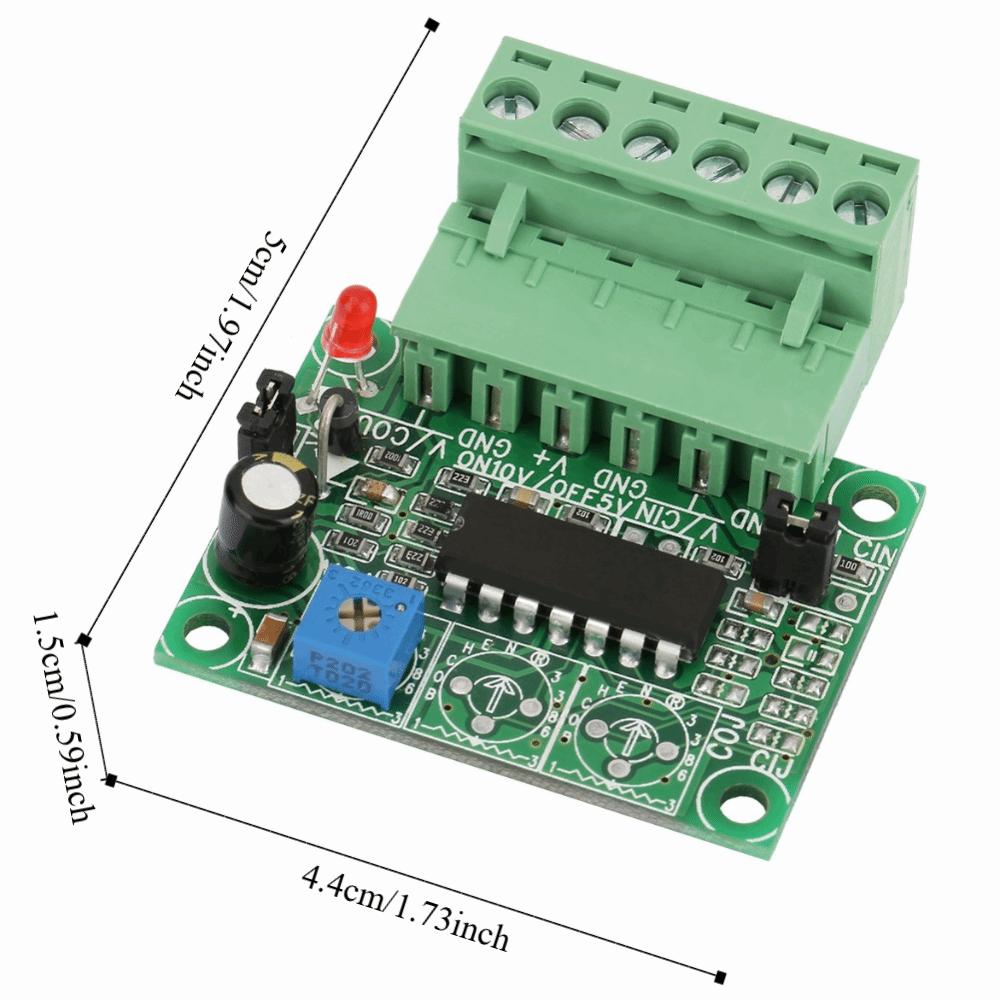

Specification: Module limit power supply is 5-25VDC The maximum operating current of the module does not exceed 50MA The internal resistance of the voltage input signal is 10K The current input by the voltage signal must be at least 1MA or more. The maximum input voltage signal cannot be greater than 11V The maximum voltage signal input ripple cannot be greater than 500 MV VPP. The voltage of the current input signal must be greater than 3V, which is less than the power supply voltage of the power module. Current output capability 1MA-5MA. The output voltage is DC, ripple novel 50MV. Current output signal internal resistance is adjustable Current COUT output is positive: 0-20MA current output positive terminal Current output negative (GND): 0-20MA current output negative terminal Power input positive (V+): 5-25VDC power input positive terminal Power input negative (GND): 5-25VDC power input negative terminal Voltage VIN input is positive: 0-5V or 0-10V voltage input positive terminal Voltage input negative (GND): 0-5V or 0-10V voltage input negative terminal An>): 0-20MA current input negative terminal Color: As picture shown Size: Approx. 44×50×15mm/1.73×1.97×0.59in (including the green terminal block) Weight: Approx. 19g / 0.7oz

Package List: 1 * Voltage to Current Module
