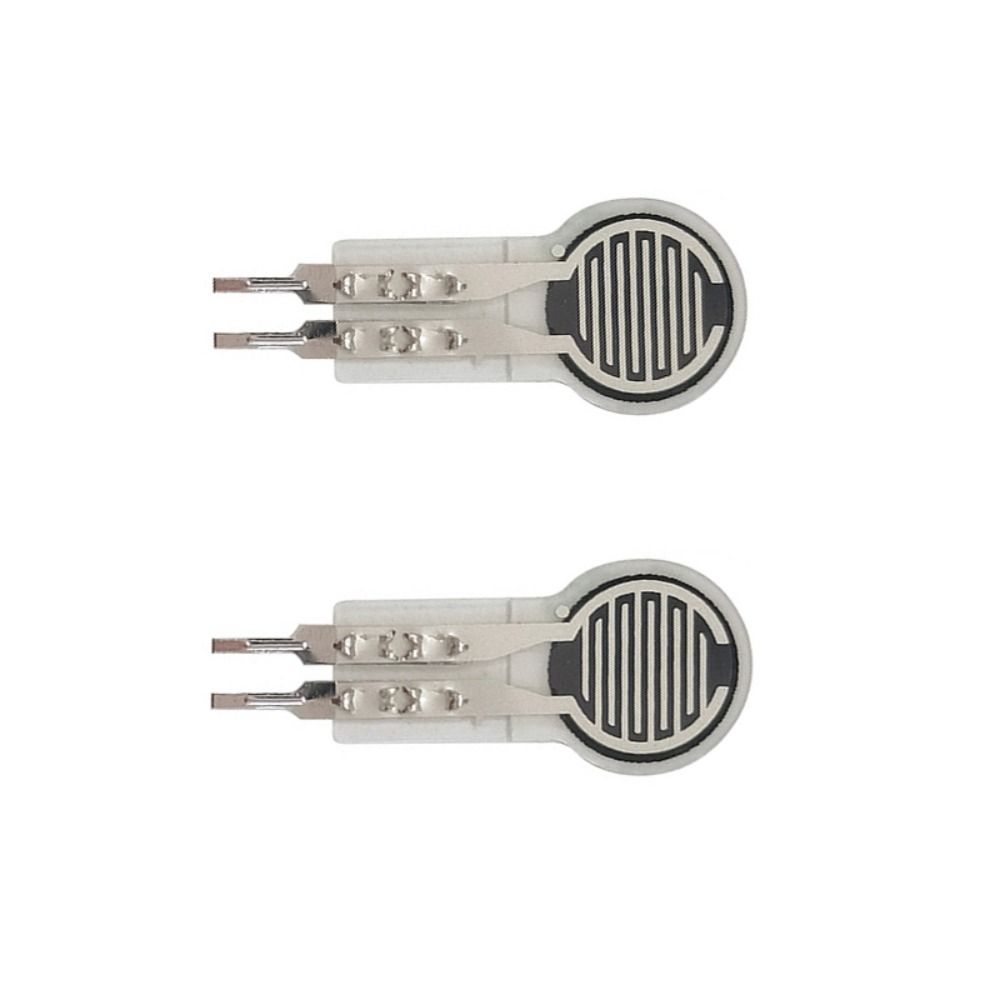

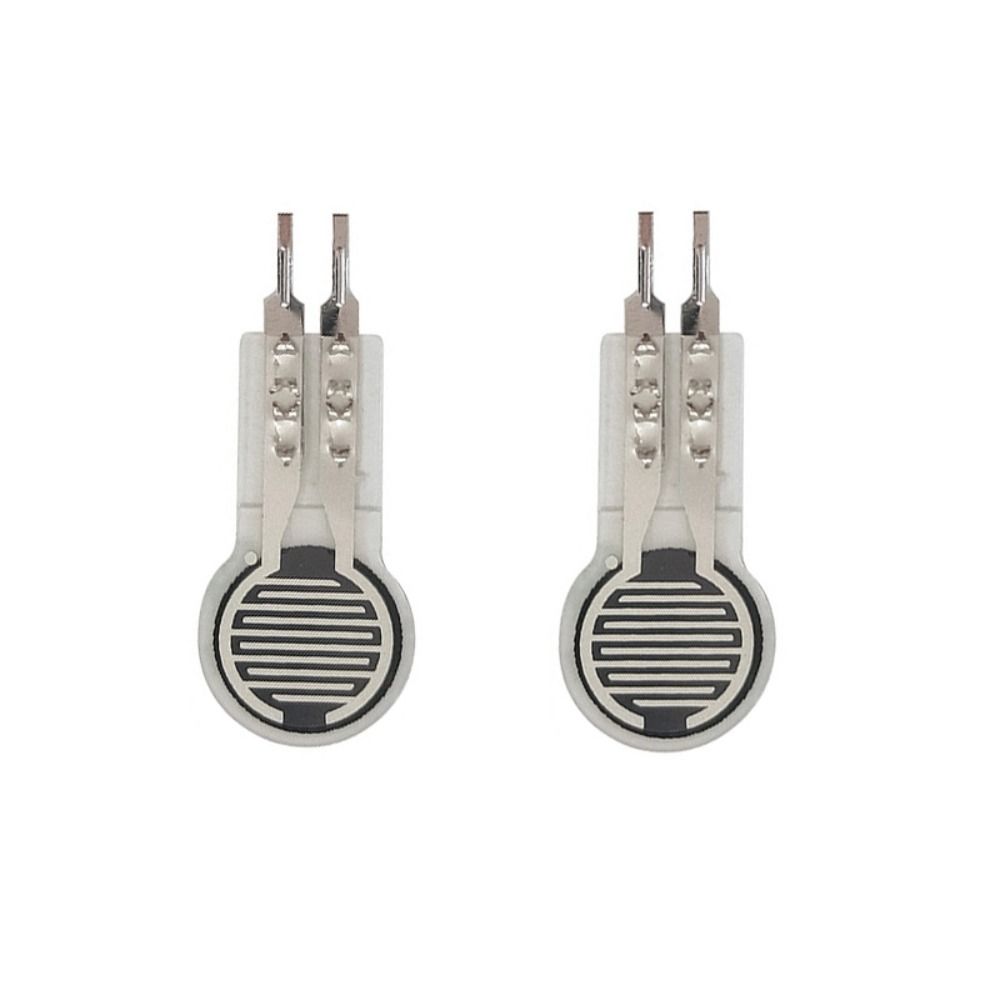

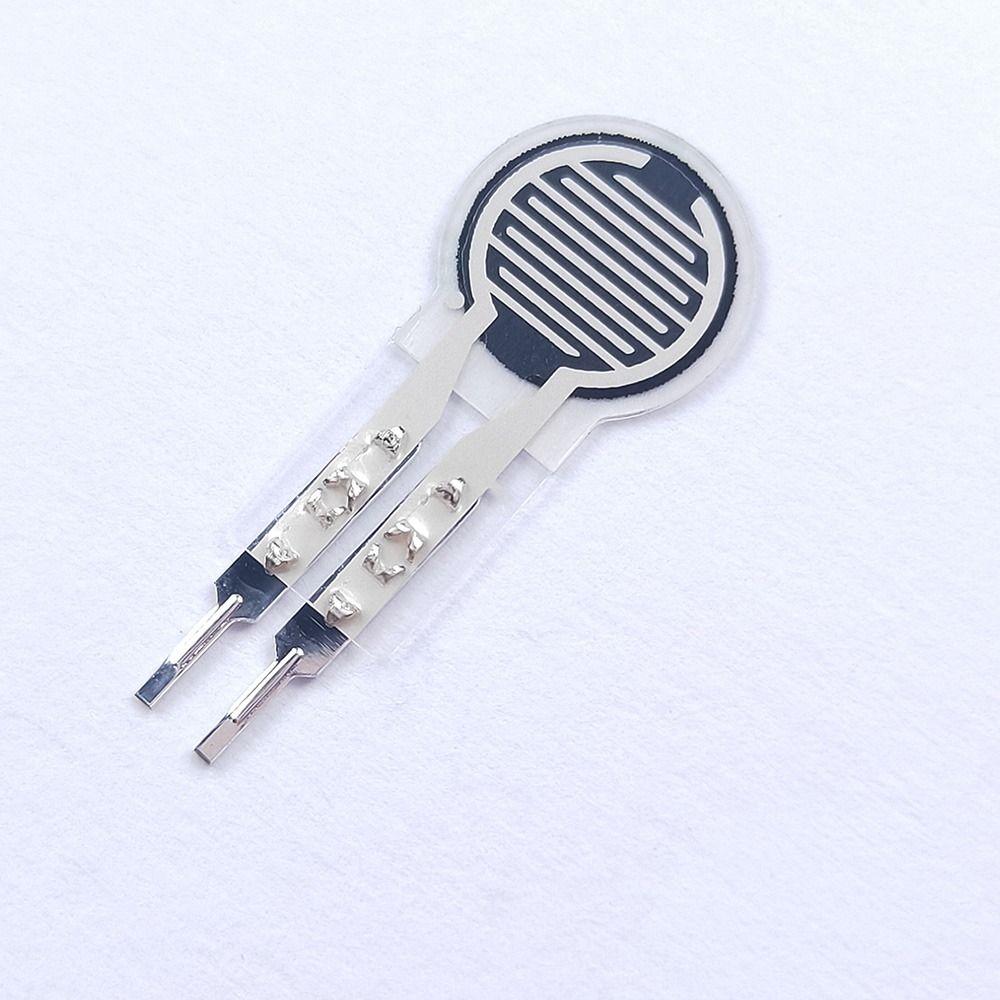

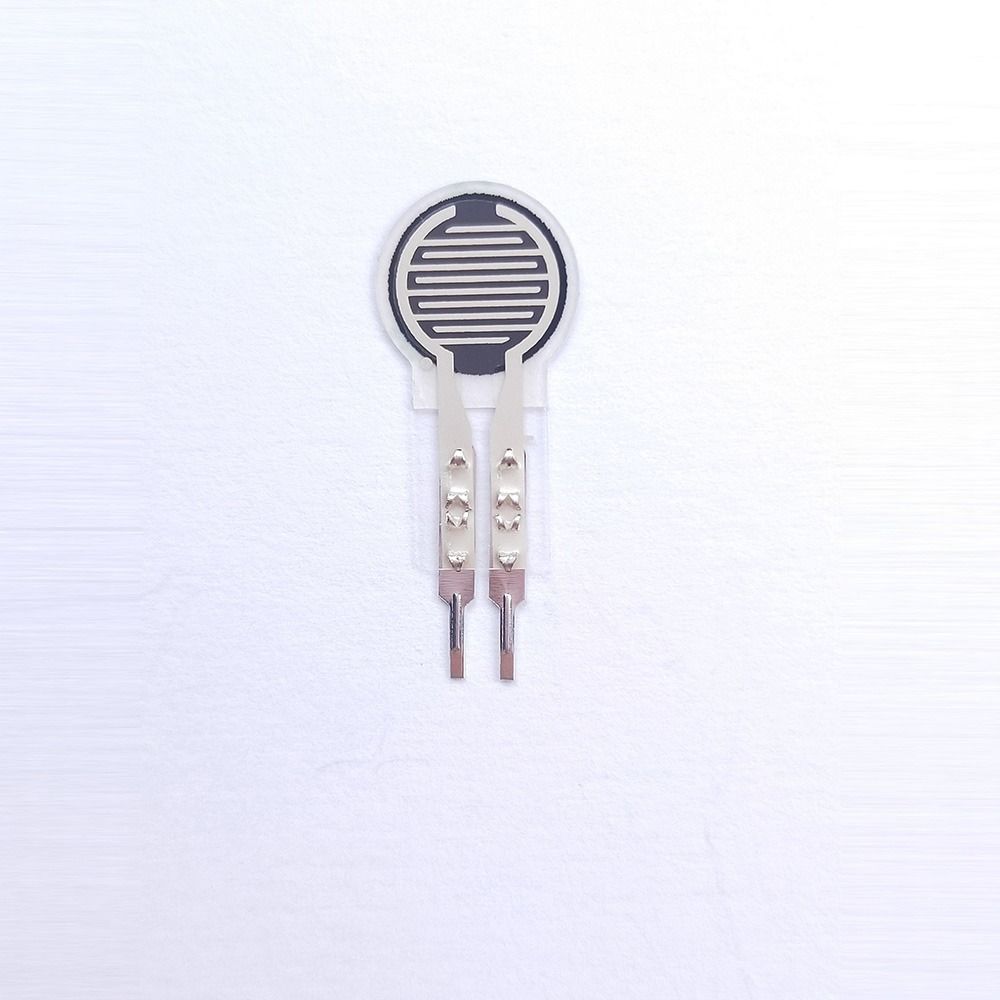

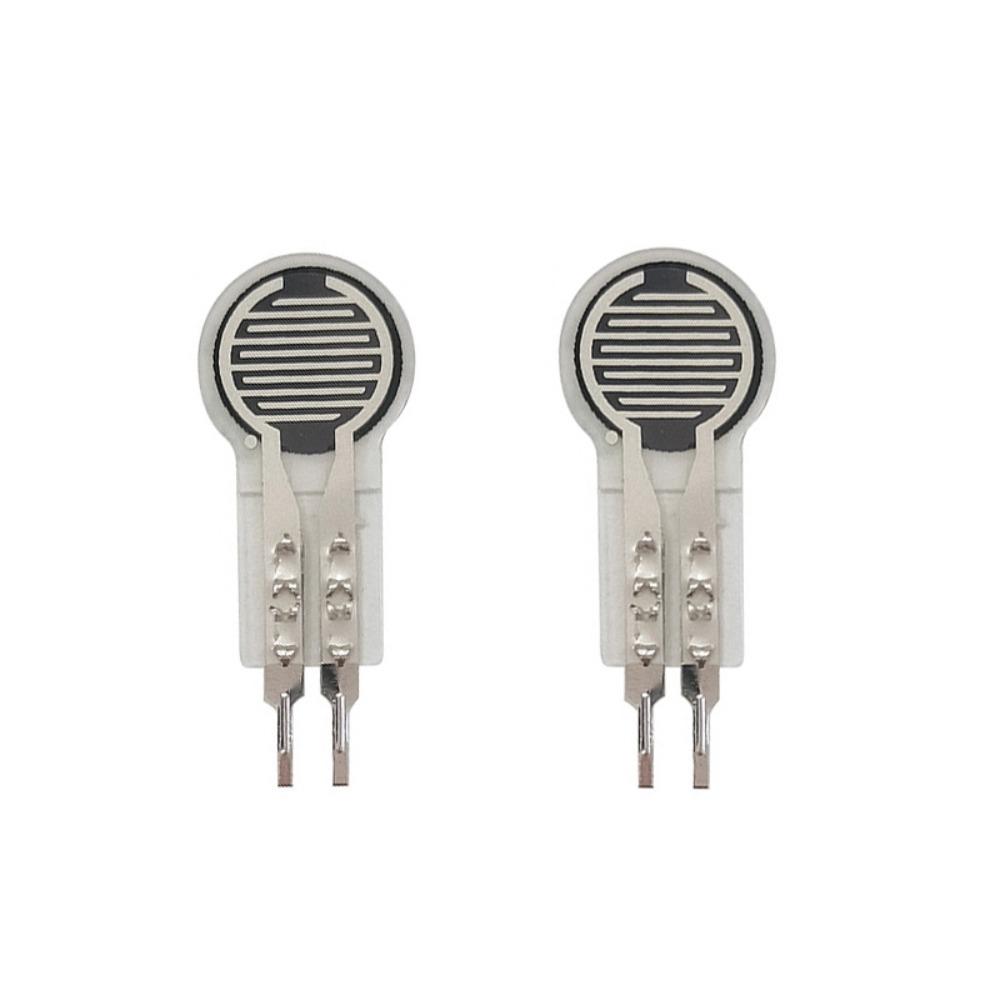

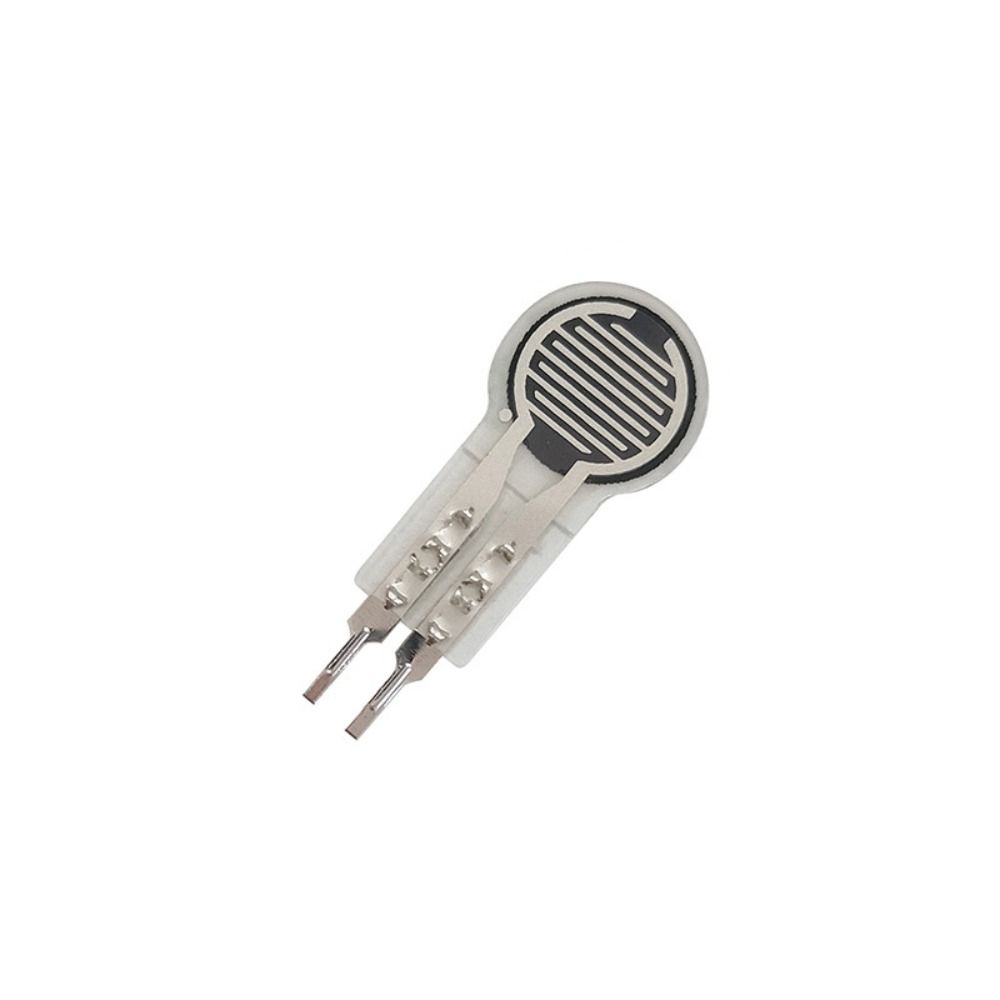

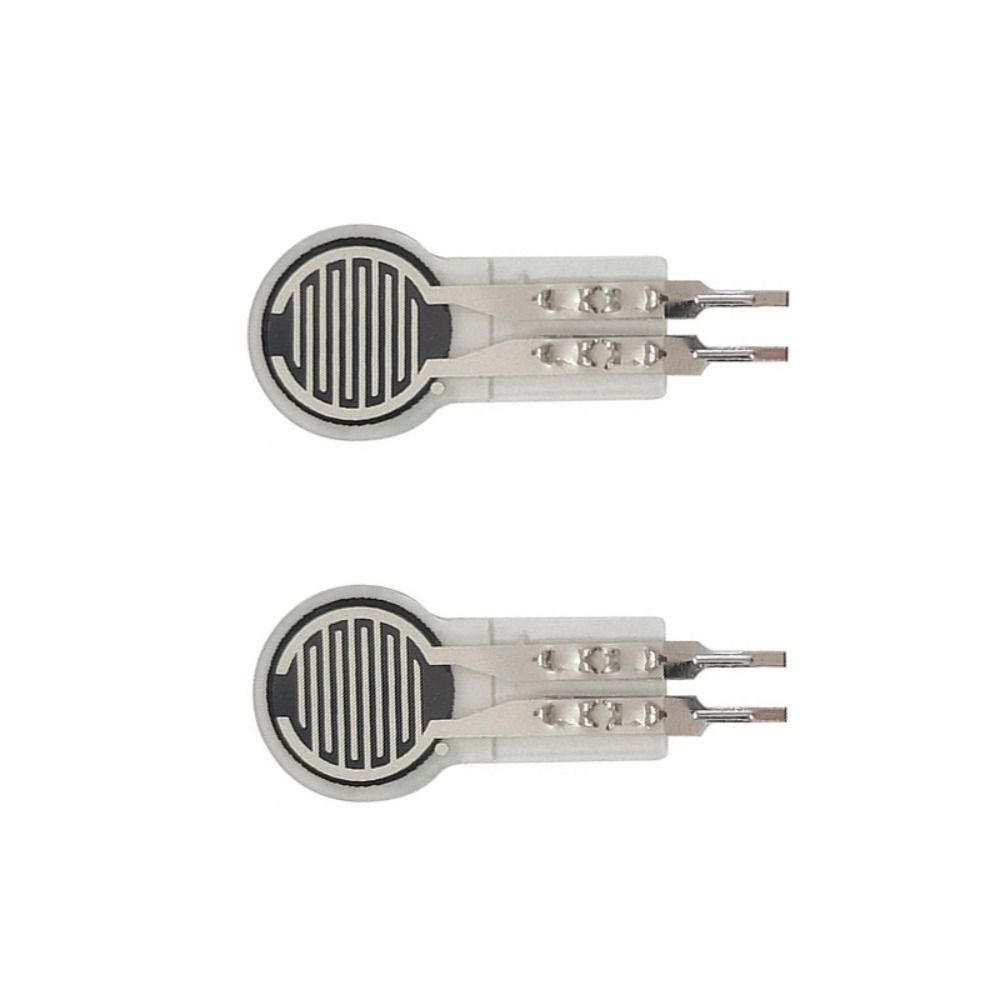

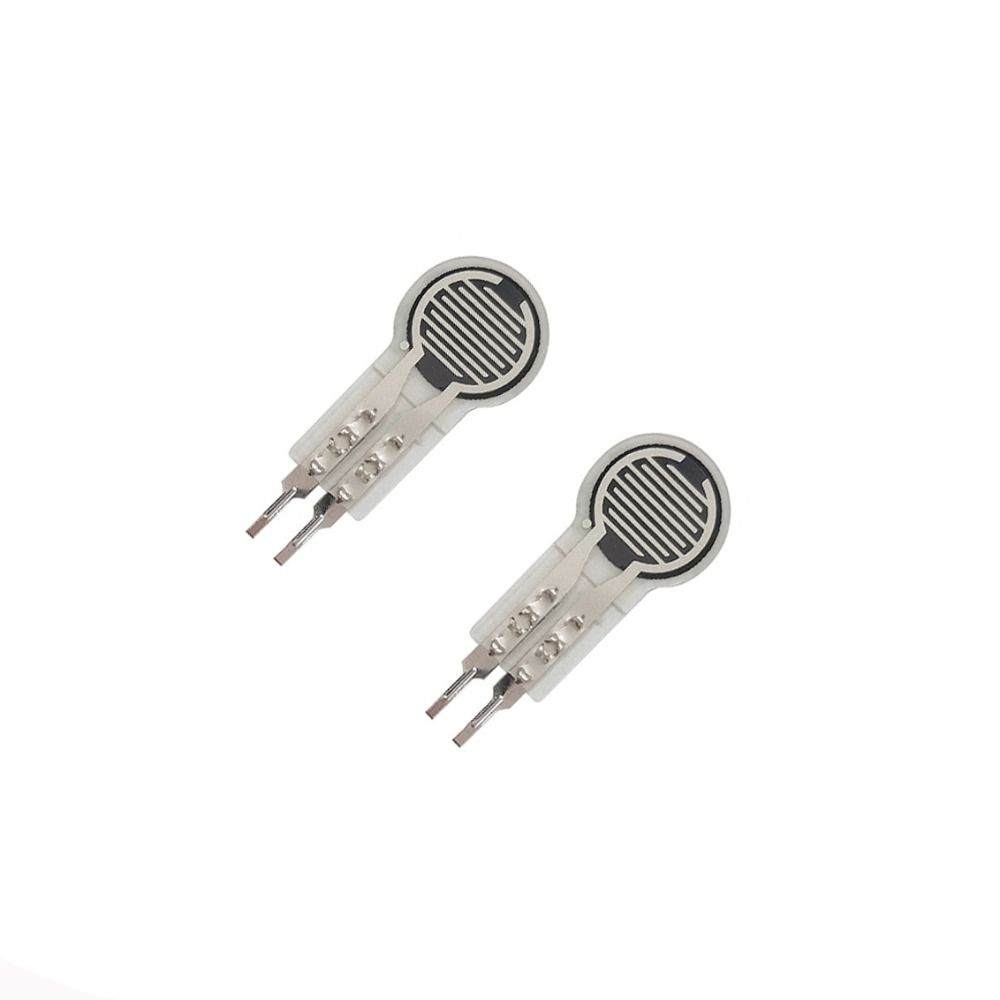

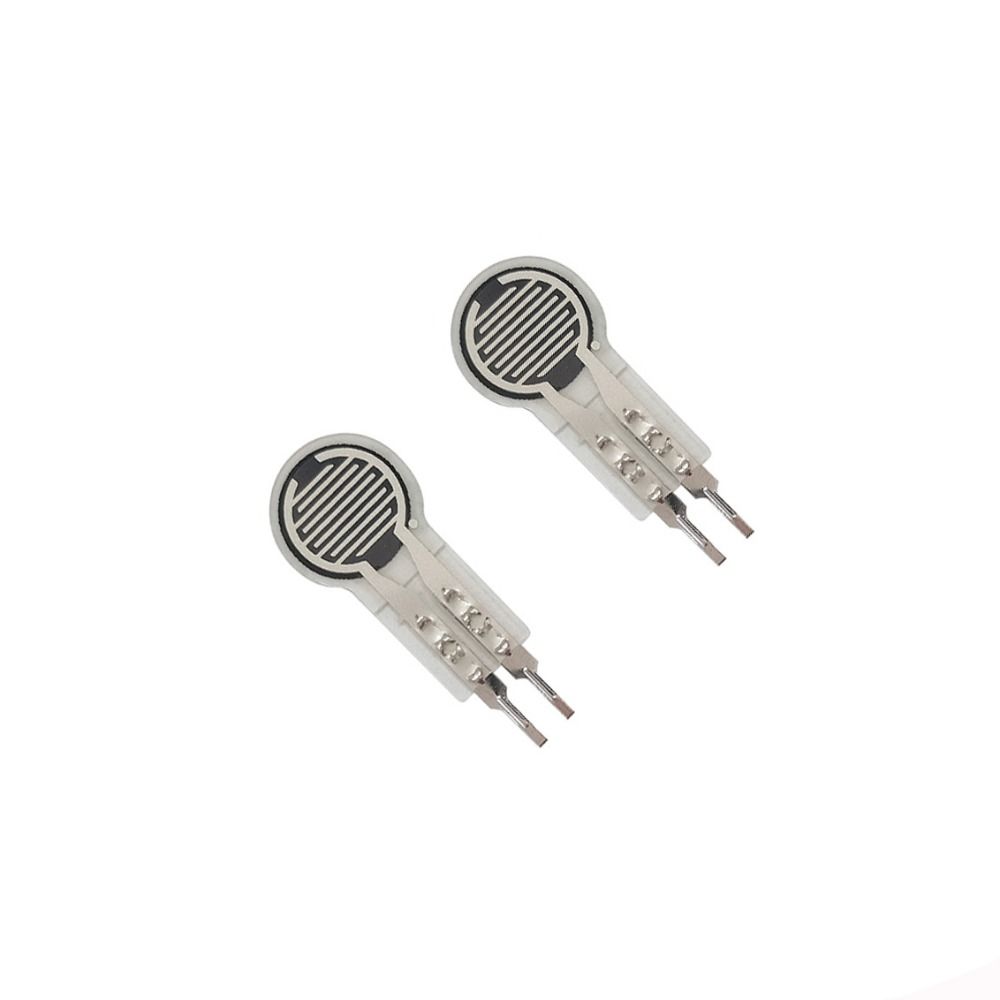

2PCS Flexible Pressure Sensor High Precise Force Sensor Thin Film Pressure Sensor Home Industry

Label:Yes - This pressure sensor supports both static and dynamic pressure sensing and features a fast response speed. - A single sensitive area pressure sensor is equivalent to a two-port variable resistor, where the resistance is controlled by pressure. It also functions as a switch with a specific threshold, which is determined by pressure and equipment parameter settings. - The RP-C resistive pressure sensor is a flexible thin-film sensor whose resistance decreases as pressure increases. - Crafted from good materials, the sensor is durable and boasts a long service life. - Widely applied in bed monitoring, sleep monitoring, smart shoes, smart switches, counters, and medical equipment.

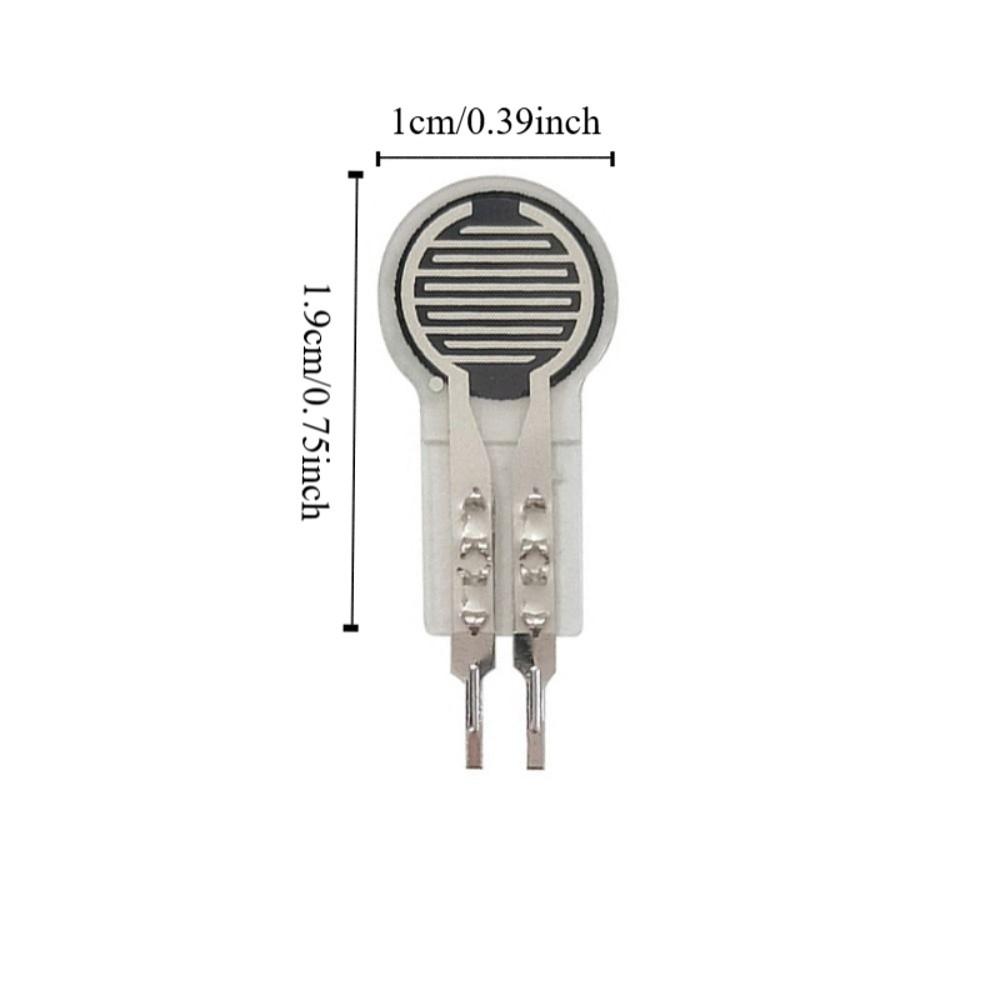

Specification: Thickness: 0.4 mm Size:1.9*1cm(0.75*0.39in) Color:As shown in the figure Trigger force: 20 g, triggered when resistance is less than 200 kohm by default Pressure sensing range: 20 g ~ 2 kg Pressure action mode: Static or dynamic (frequency within 10 Hz) Non-trigger resistance: More than 10 Mohm Activation time: less than 0.01 S Operating temperature: -40 ℃ ~ +85 ℃ Response time: < 10 ms Drifting: <5%, 1Kg force static load 24H The RP-C flexible thin film pressure sensor is composed of polyester film of excellent comprehensive mechanical properties, high conductive material and nano-scale pressure sensitive material; the top is a flexible film and pressure sensitive layer above, the bottom is a flexible film and conductive circuit above.Both are glued by double-sided adhesive and the isolation sensitive zone.When there is pressure on sensitive area, the disconnected circuit on the bottom will be connected by top pressure-sensitive layer, and the output resistance of the port changes along with pressure.

Note: Please allow small size error due to manual measurement. Thanks for your understanding.

Package list: 2 * Pressure Sensors
