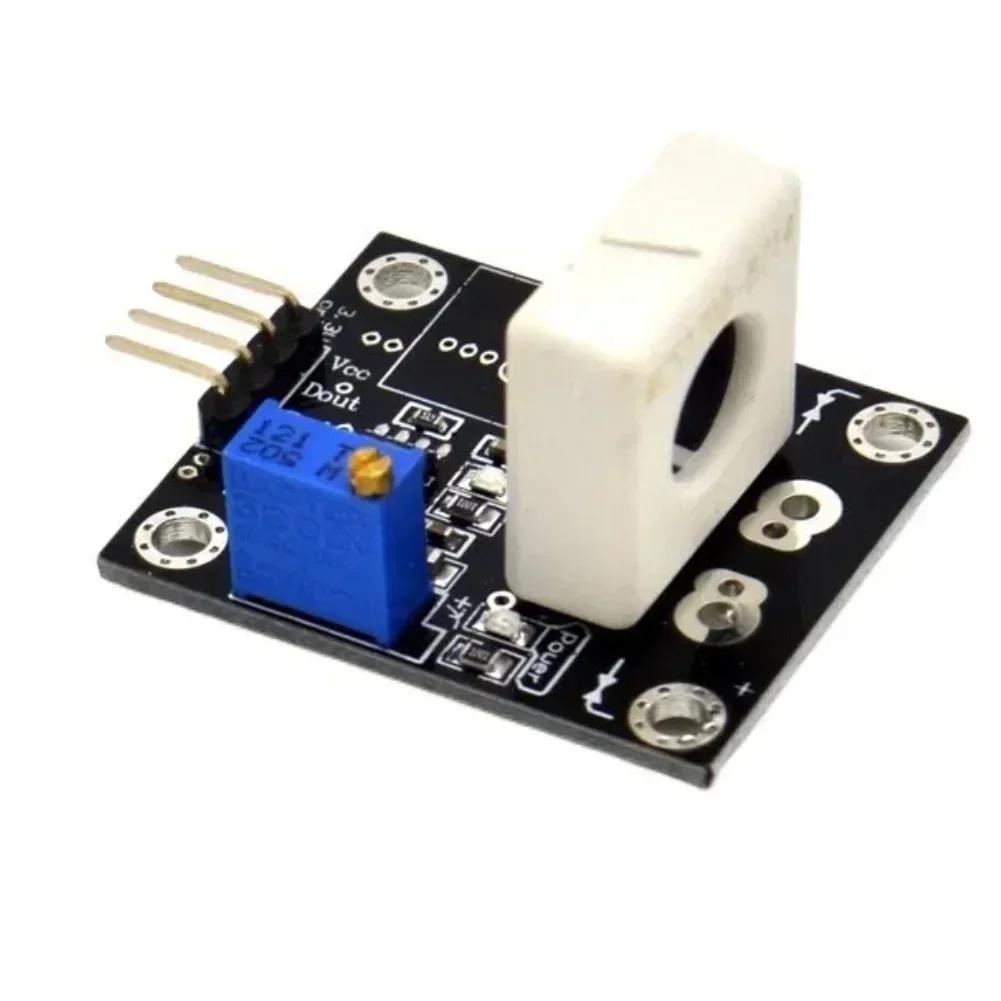

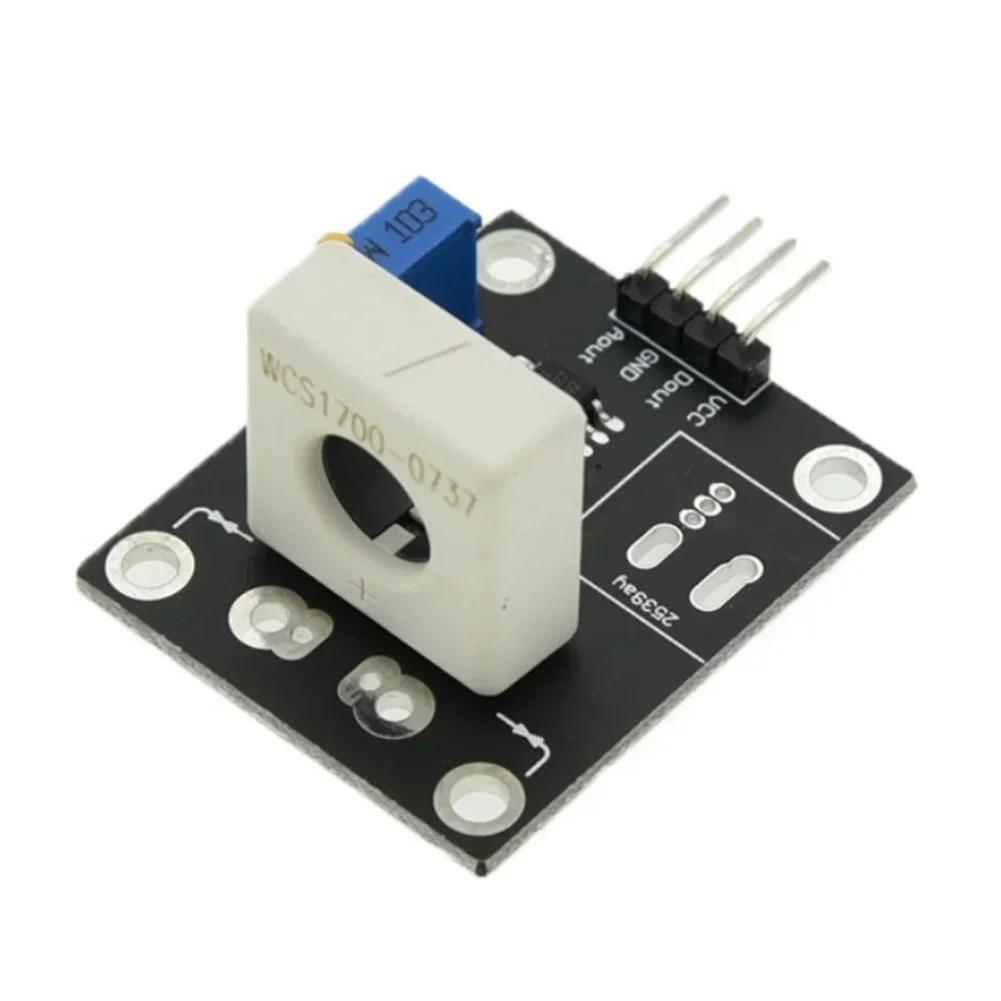

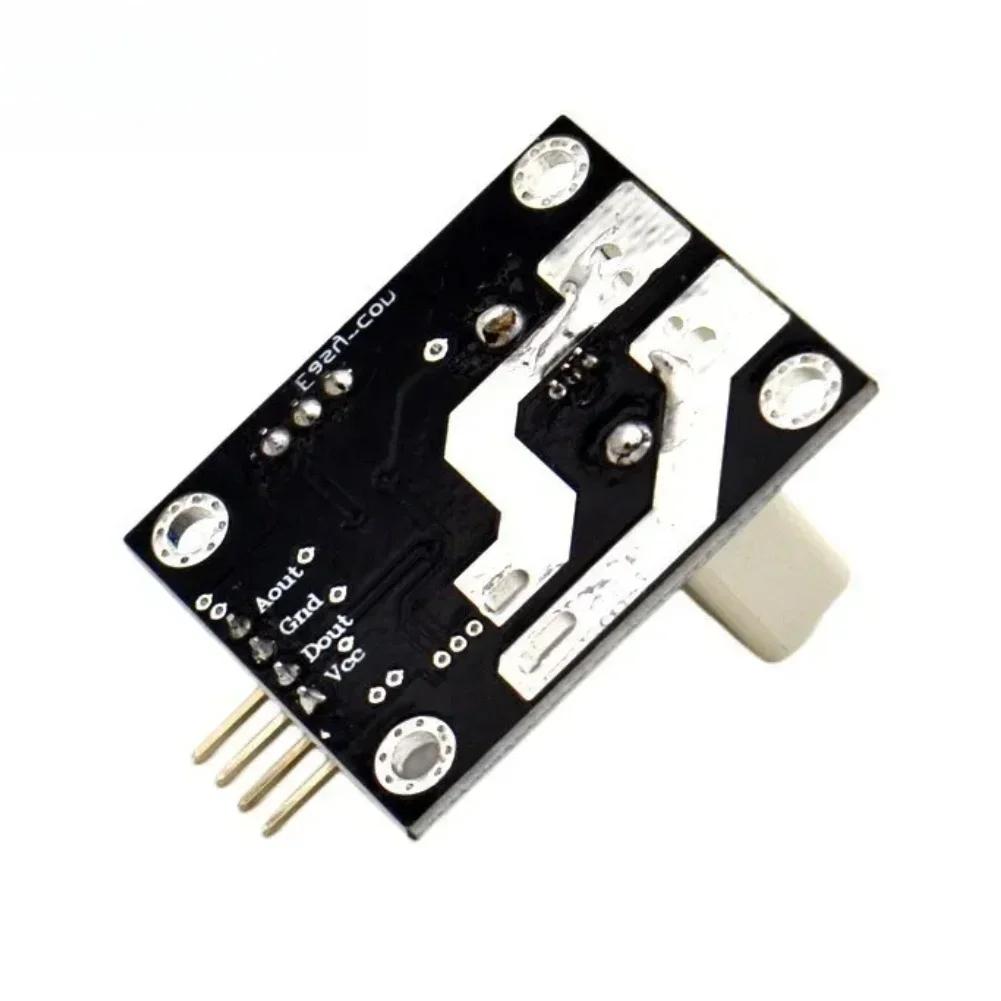

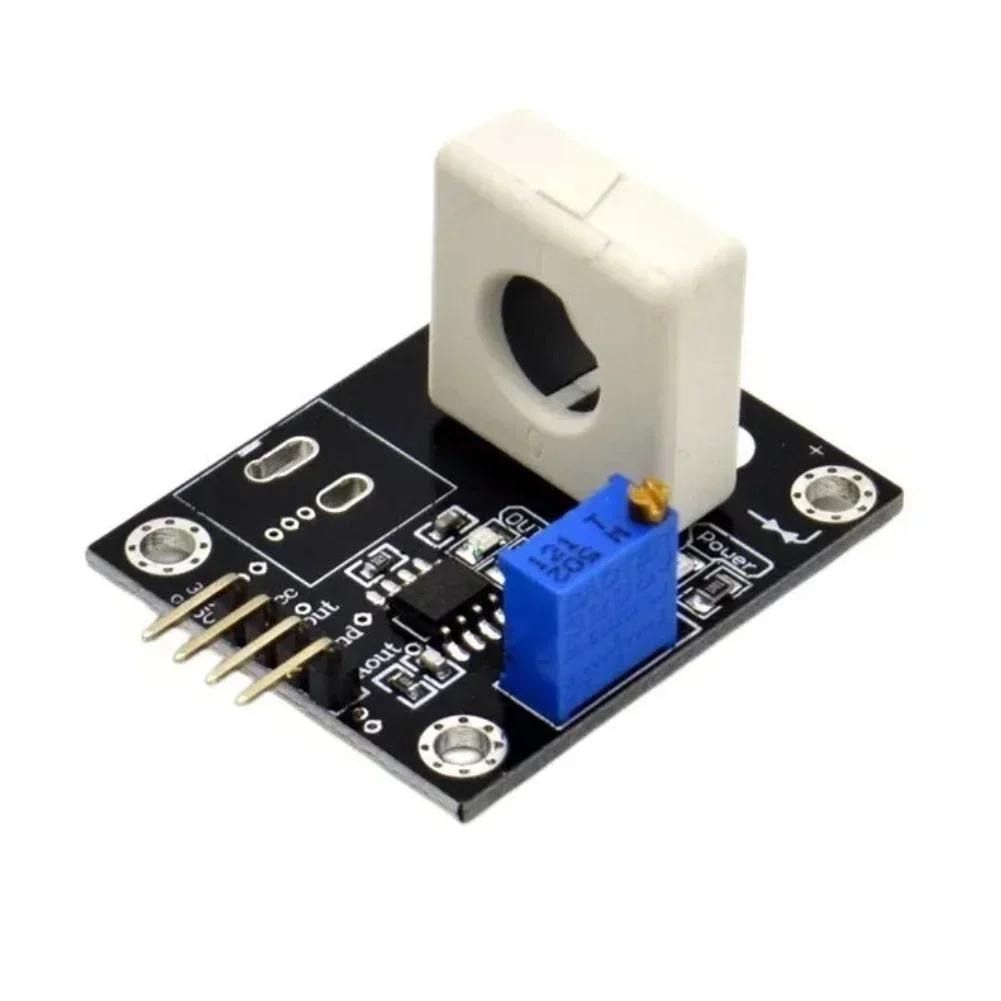

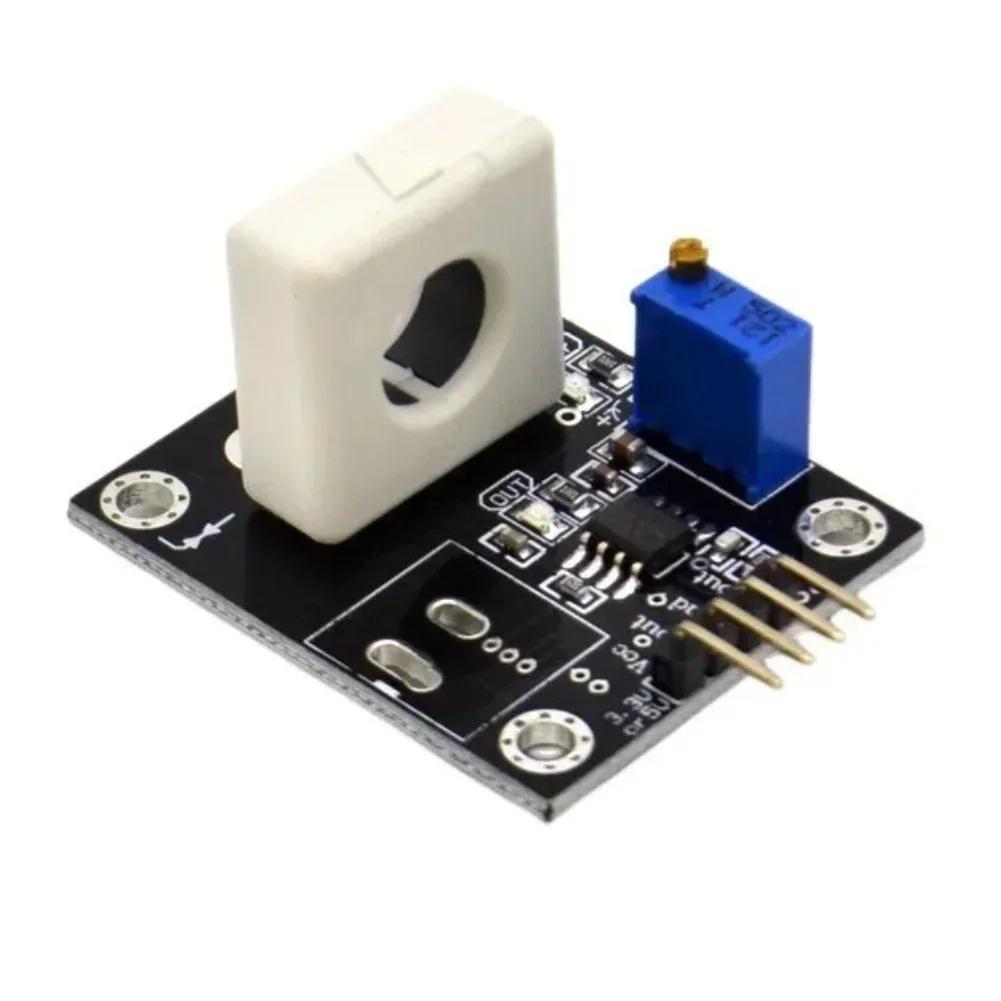

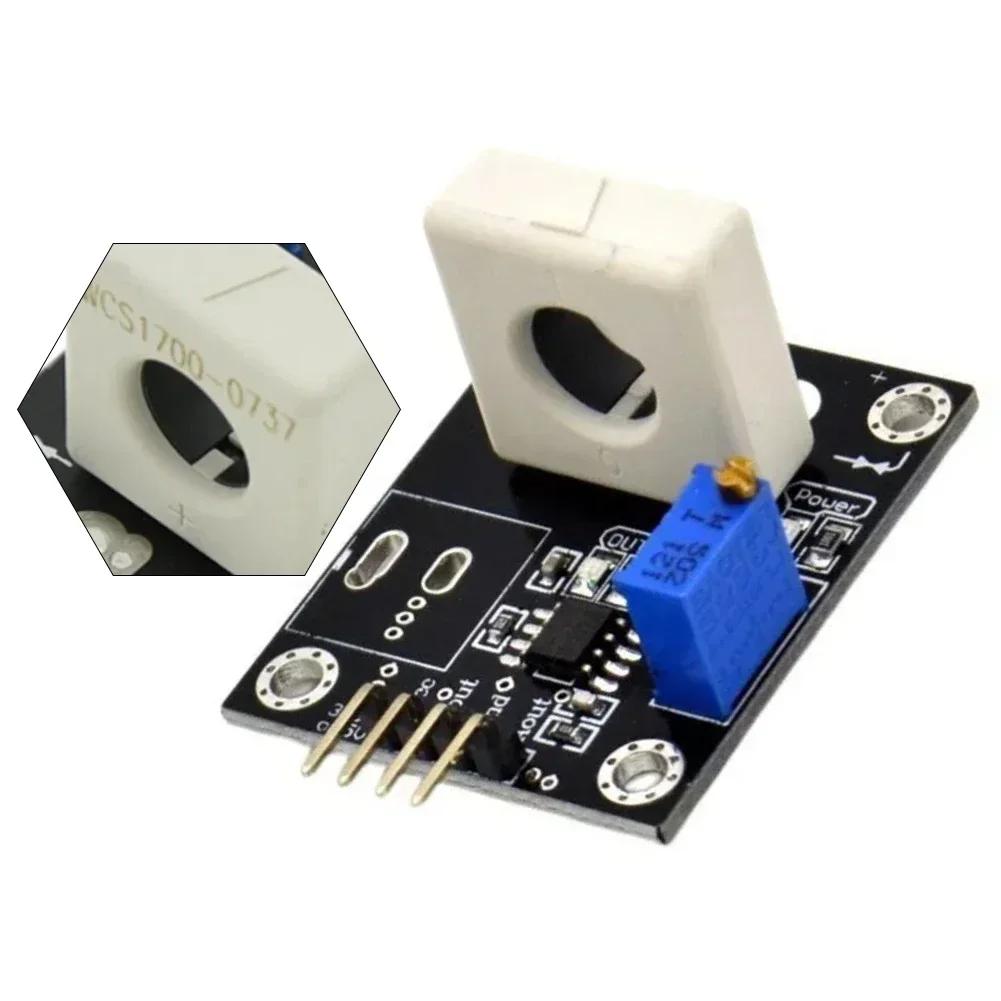

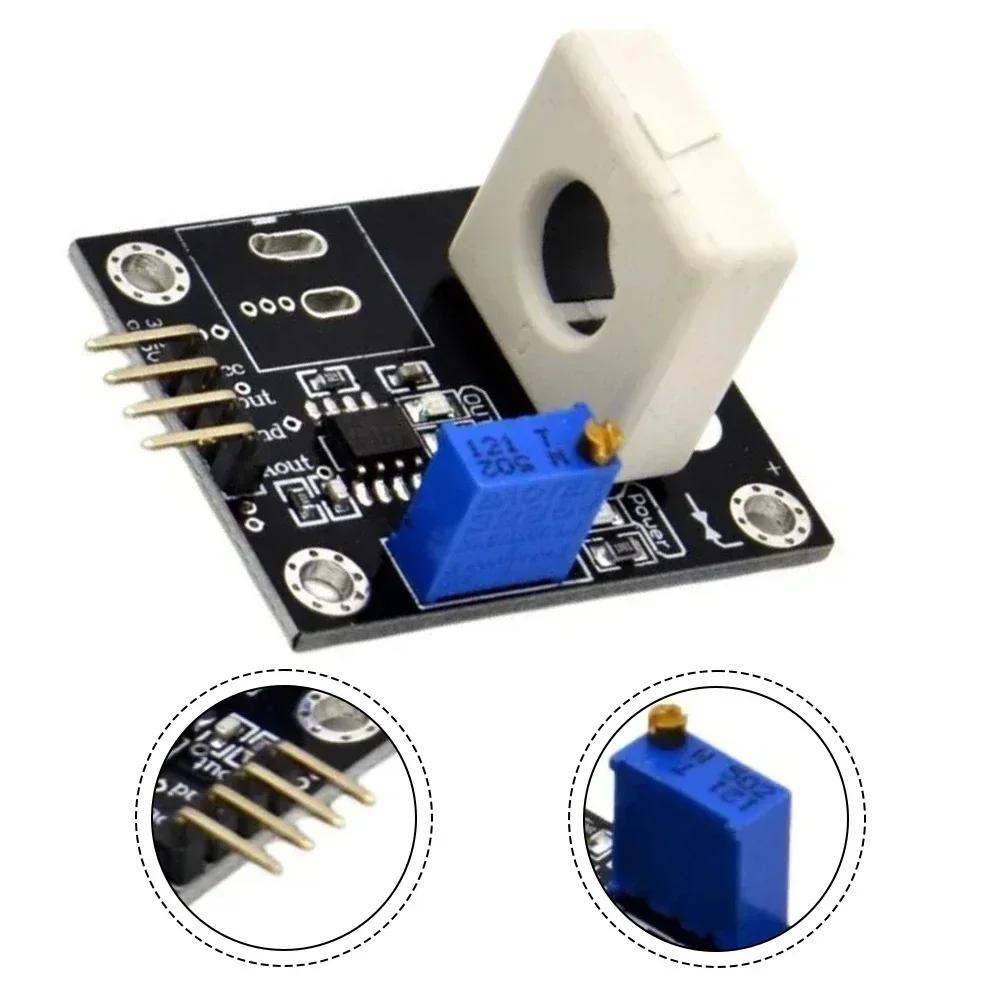

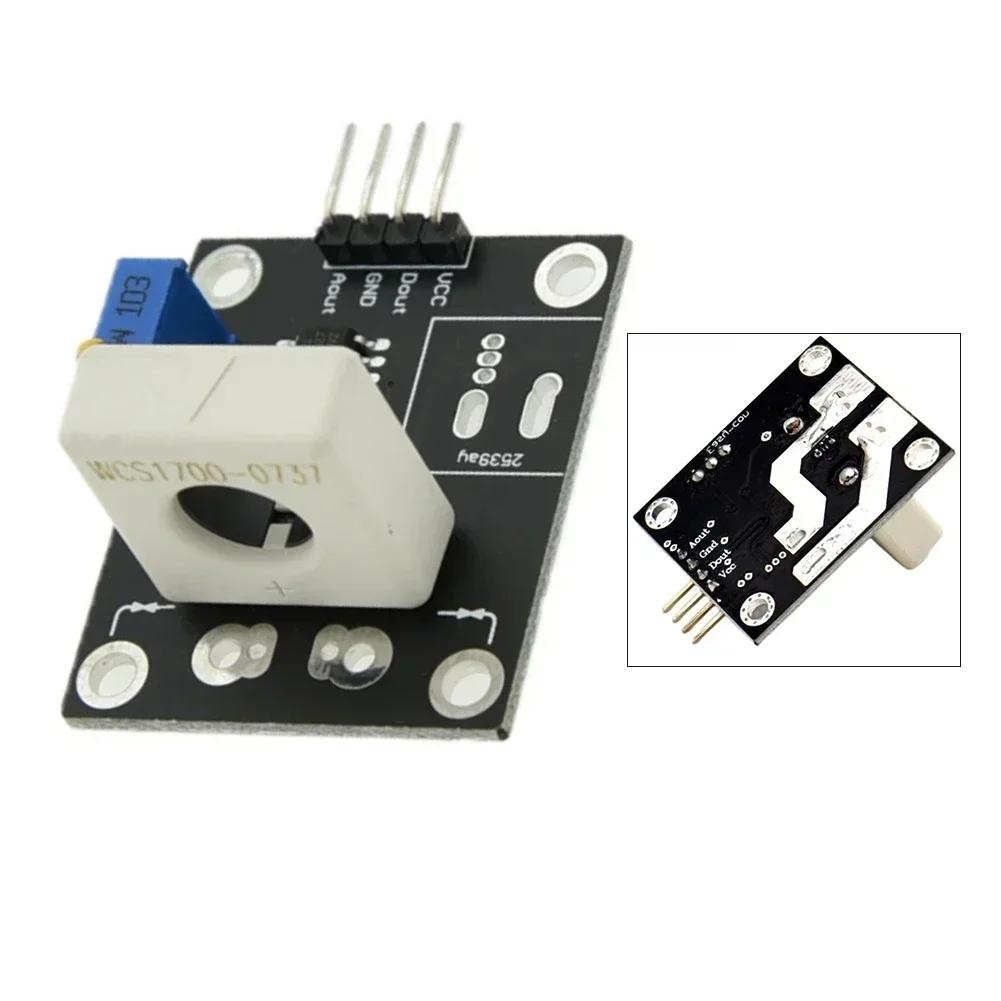

1PC Hall Effect Current Sensor Adjustable Overcurrent Threshold Accurate Overcurrent Detection And Protection Module Parts

Features: *Compact Design: The Hall Current Sensor features a small footprint with dimensions of 37mm L x 31mm W x 16.5mm H, making it easy to integrate into various applications without occupying much space.   *Wide Current Detection Range: Capable of detecting currents from ±70A for DC and up to 50A for AC, this sensor is versatile for a multitude of electrical monitoring tasks.   *Adjustable Overcurrent Threshold: Users can the overcurrent signal threshold with a resolution of 3A, allowing for precise control and protection settings tailored to specific applications.   *Analog and Digital Output Compatibility: The sensor outputs both analog signals and for TTLlevel signals, compatibility with microcontrollers and making it for IDEALfor various projects, including demonstrations and teaching experiments.   *Robust Protection Features: Designed for overcurrent and short-circuit protection, this sensor not only detects but also indicates overcurrent conditions, providing a reliable solution for intelligent vehicle motors and other critical systems.

Specifications:

*Part Name: Hall Effect Current Sensor *Material: None *Size: 37mm L x 31mm W x 16.5mm H *Color: Blue Power Supply Voltage: 3-5V, 5V recommended Power Supply Current: 3.5mA Operating Temperature: -20°C to 125°C Isolation Voltage: 1.5kV Current Limiting Range: WCS1600: 1.5A-100A WCS1700: 1A-70A WCS1800: 0.5A-35A Detection Current Range: WCS1600: 0A-100A WCS1700: 0A-70A WCS1800: 0A-35A Linearity: WCS1600: 22mV/A WCS1700: 33mV/A WCS1800: 66mV/A

Package Content: 1*Hall Effect Current Sensor  Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
