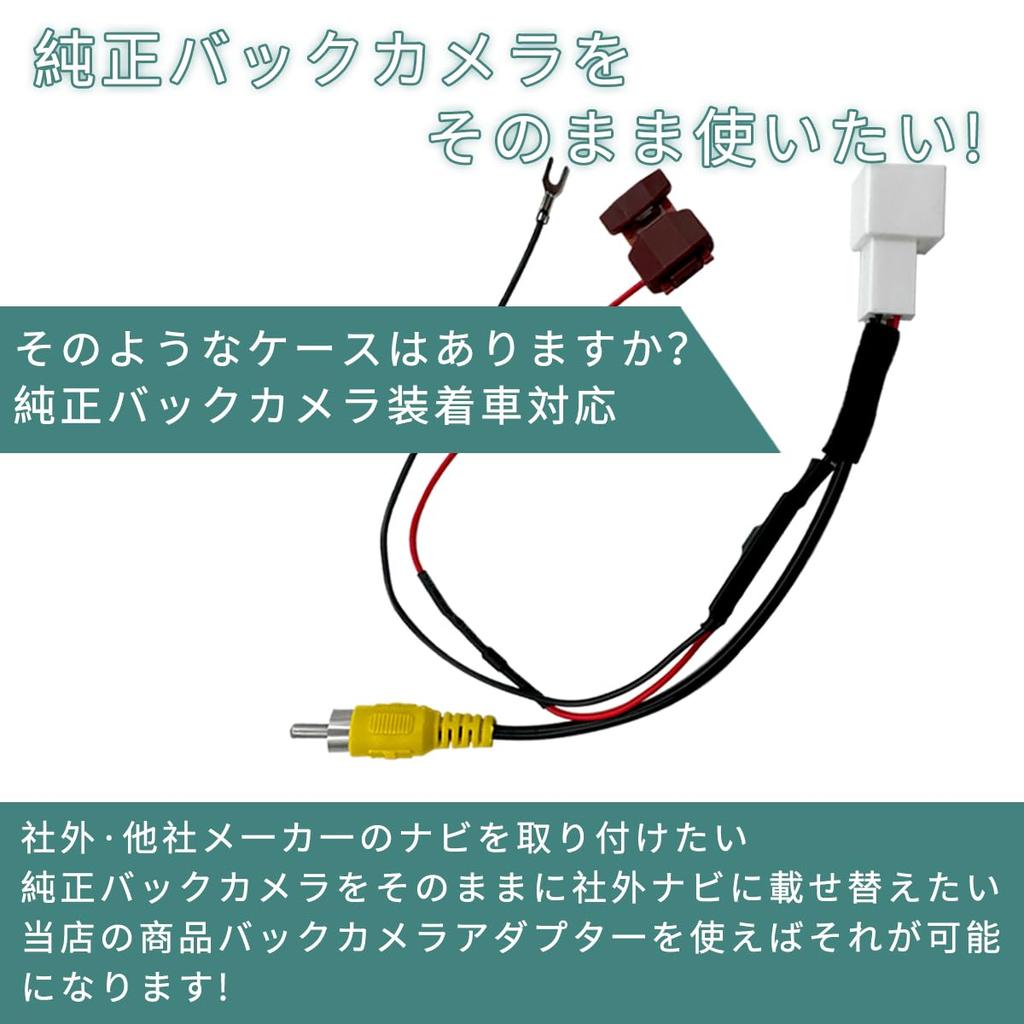

• ▶Product Description: OTORAM compatible/replaceable conversion harness for connecting Toyota/Daihatsu/Eclipse back cameras and external navigation systems.
• ▶Product details: This product is an adapter for converting OTORAM compatible/replaceable Toyota/Daihatsu/Eclipse rear camera couplers to external video output terminals.

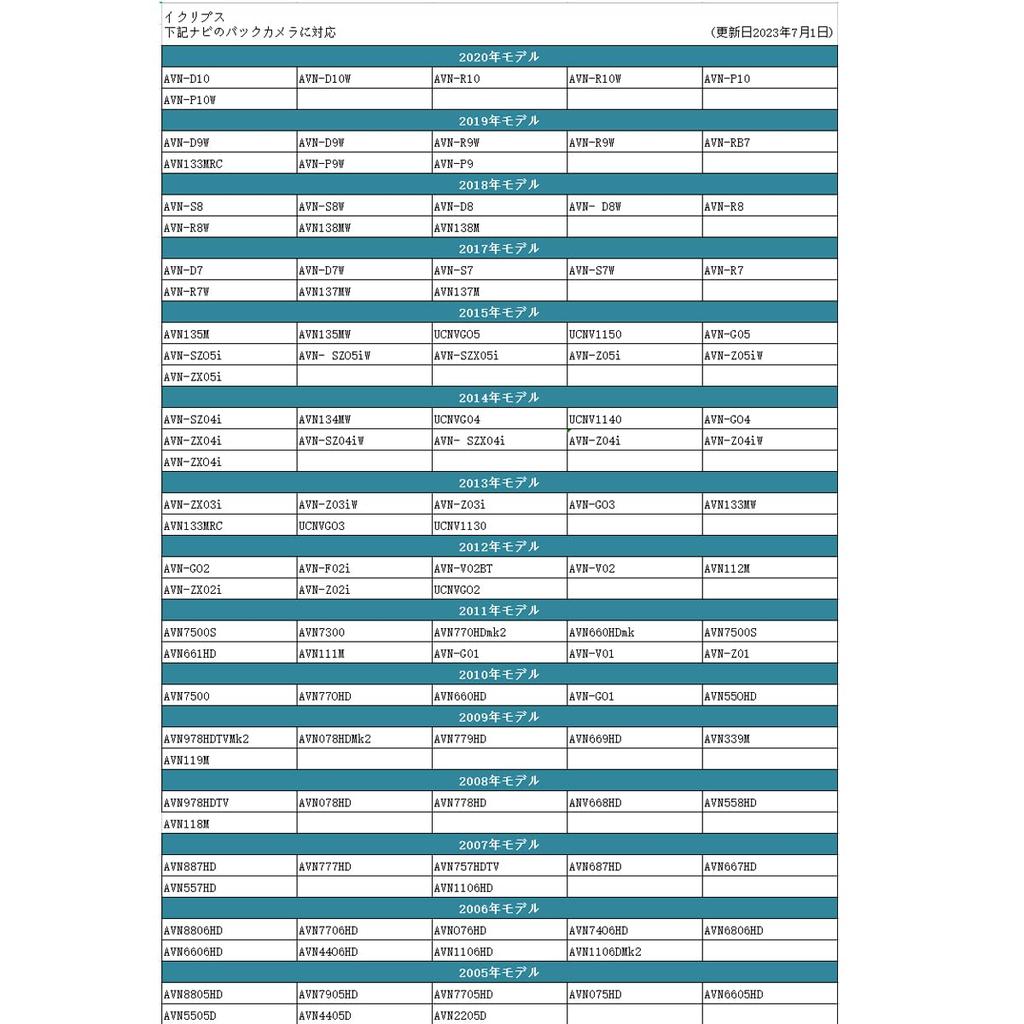

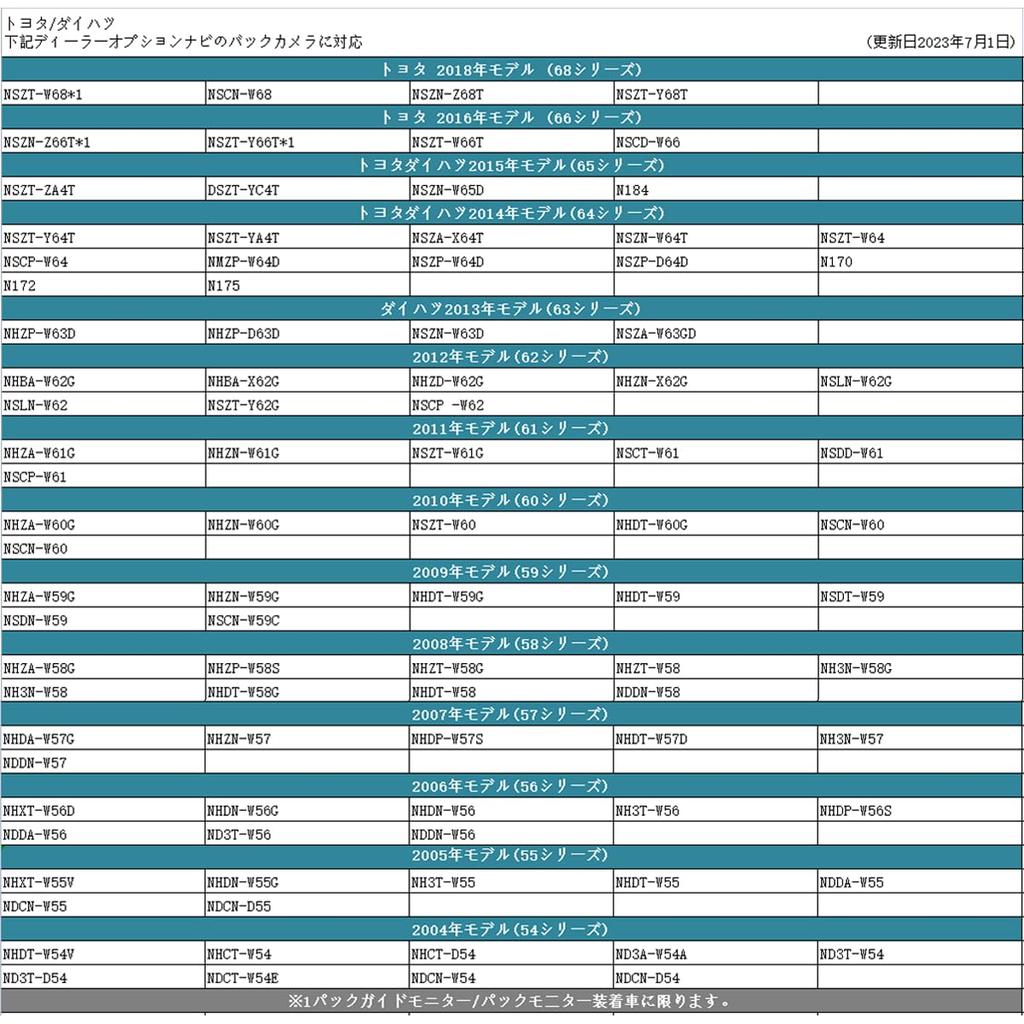

• ▶Applicable car model & navigation part number: Please check the compatibility table for details.
• ▶Installation method: [Rear camera] → [This product] → [External navigation].Utilizing our unique know-how, we have created a dedicated rear camera input harness that allows you to connect the rear (back) camera to a commercially available navigation system.
• ▶Note: ● This product is an adapter for converting the rear camera's dedicated coupler to other video output terminals.● The product number varies depending on the car model (model/year/equipment) and rear camera type.Please be sure to check the latest compatibility table.● Never connect an unsuitable rear camera, as it may damage the connected equipment.● Product specifications, appearance, and set contents are subject to change without notice for improvement.● Car navigation system, rear camera, etc. are not included.
[Product description]
- OTORAM compatible/ideal for those who are replacing their replaceable Toyota/Daihatsu/Eclipse navigation system with an aftermarket navigation system!!
*If you are replacing it with an aftermarket product that has an RCA video input terminal for the rear camera, it will be compatible.

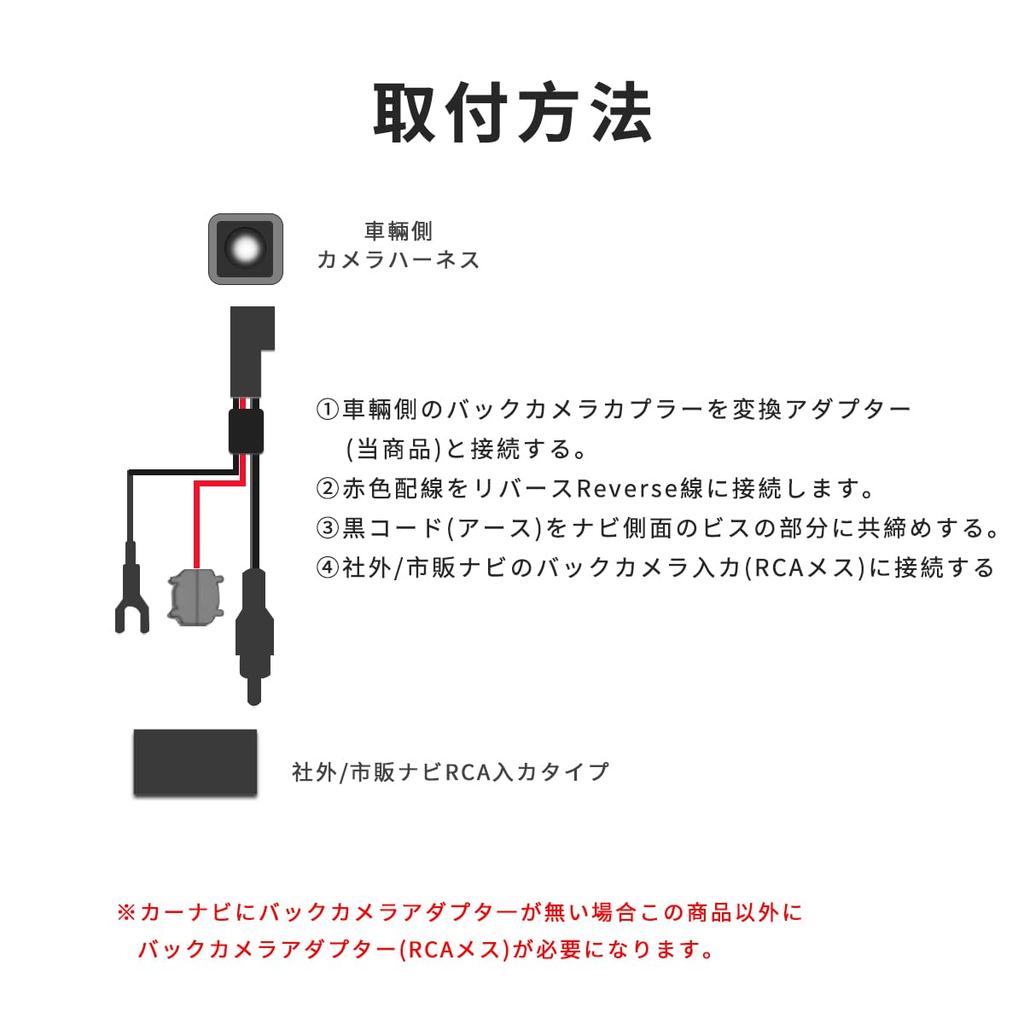

[Installation method]
① Connect this product to the existing coupler
② Connect the back lamp power supply (+12V) to the red wire and the ground to the black wire.
③ Connect the yellow RCA terminal to the back camera input terminal of the external navigation system.

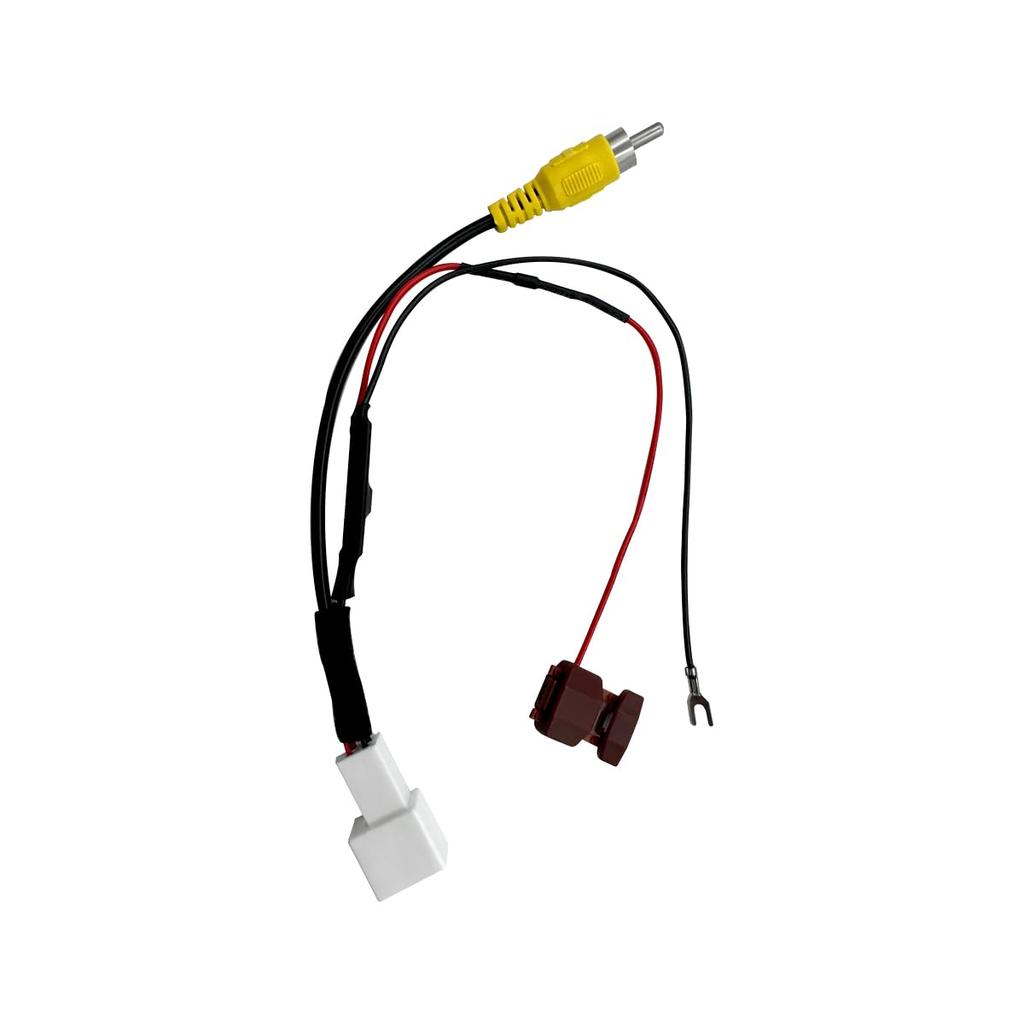

[Product specifications]
●Red wiring: Connect to back lamp power supply (+12V)
●Black wiring: Connect to ground
●RCA video output (male): Connect to the back camera input terminal of car navigation system, etc.
*Compatibility is limited to models with a rear camera input terminal.
●Number of coupler pins: 4 pins

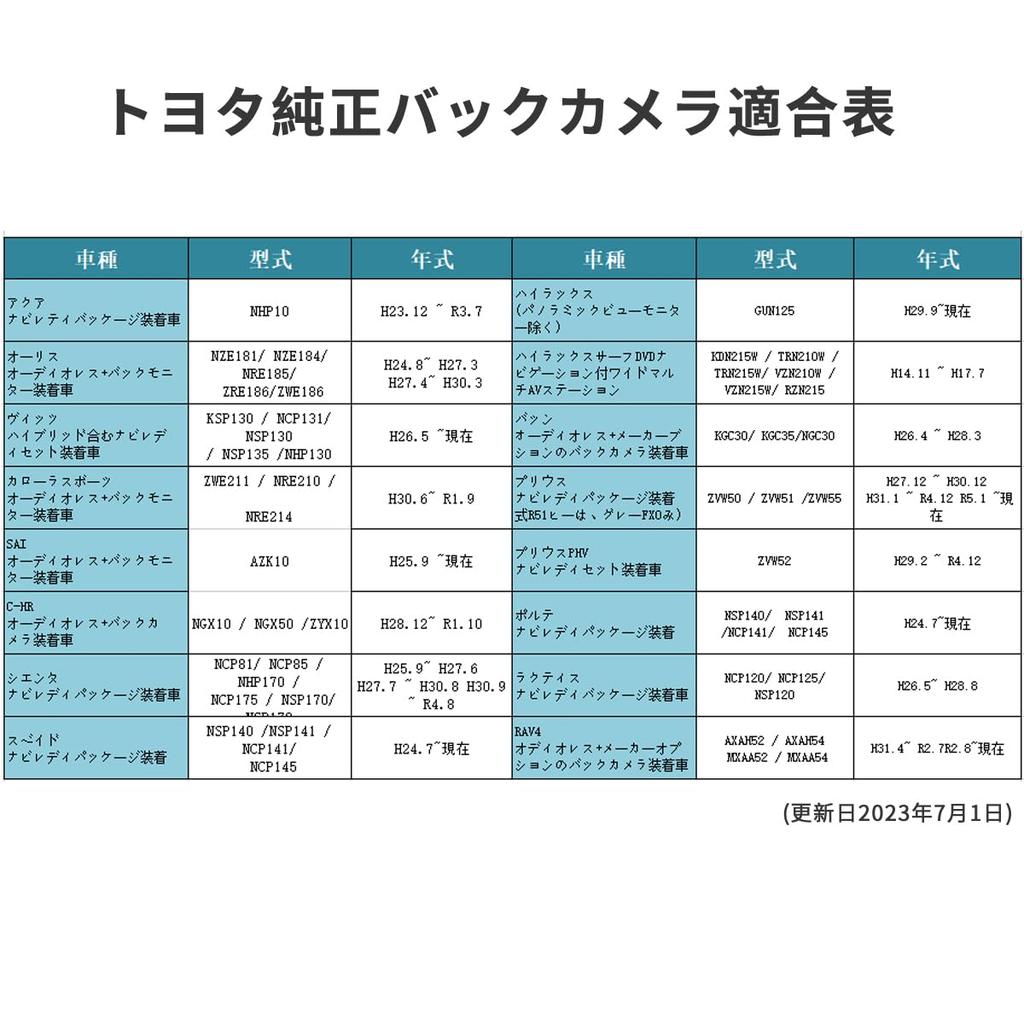

[Compatible models]
The rear camera used in the model listed in the product image is compatible.
[Notes]
● This product is an adapter for converting the rear camera's dedicated coupler to other video output terminals.
● The product number varies depending on the car model (model/year/equipment) and rear camera type.Please be sure to check the latest compatibility table.
● Never connect an unsuitable rear camera, as it may damage the connected equipment.
● Product specifications, appearance, and set contents are subject to change without notice for improvement.
● Car navigation system, rear camera, etc. are not included.
