192*144 IR Resolution Infrared Thermal Imager ‑20 to 350 celsius Temperature Range Handheld Thermal Imaging Device Infrared Thermometer with 4 Pale

High Resolution Image: Our 2.4\ full color display with 192*144 resolution, temperature measurement range: -20 degrees C to 350 degrees C, displays heat detection and visible light images, allowing users to see the full range of images. Choose From 4 Color s: Select the ideal color gradation for your work, four working modes can be set \ , Iron Red, White Hot, Black Hot\ ; Three levels of brightness adjustment \ Low, Middle, High\ ; Set auto shut-off time \ 5 minutes, 15 minutes\ . Easy to Use: This imager can be operated with one hand, with premium accuracy, wide temperature range, and 2 measurement function, including center point, hot and cold spot measurement. Infrared thermal imager can display hot and cold spots on the screen, enabling users to observe the object temperature changes more effectively. It helps you to quickly lock the target area. The standard 8GB memory card can save a large number of images and data and generate high-quality infrared images, which is a useful tool for fault maintenance. Features: High Resolution Image: Our 2.4 full color display with 192*144 resolution, temperature measurement range: -20 degrees C to 350 degrees C, displays heat detection and visible light images, allowing users to see the full range of images. Choose From 4 Color s: Select the ideal color gradation for your work, four working modes can be set , Iron Red, White Hot, Black Hot ; Three levels of brightness adjustment Low, Middle, High ; Set auto shut-off time 5 minutes, 15 minutes . Easy to Use: This imager can be operated with one hand, with premium accuracy, wide temperature range, and 2 measurement function, including center point, hot and cold spot measurement. Easy Carrying: Comes with a small size and lightweight as well, this thermal imaging camera can be easily put in your bag or for convenient use. Wide Application: Widely used in various fields such as power equipment troubleshooting, underfloor heating leakage detection, mechanical equipment maintenance, and automotive industry. Specifications: Model: CH10 Material: ABS Thermal Imaging Resolution: 192*144 Temperature Range: -20 degrees C.+350 degrees C Lens Length: 2.5mm

Indication: Not supported

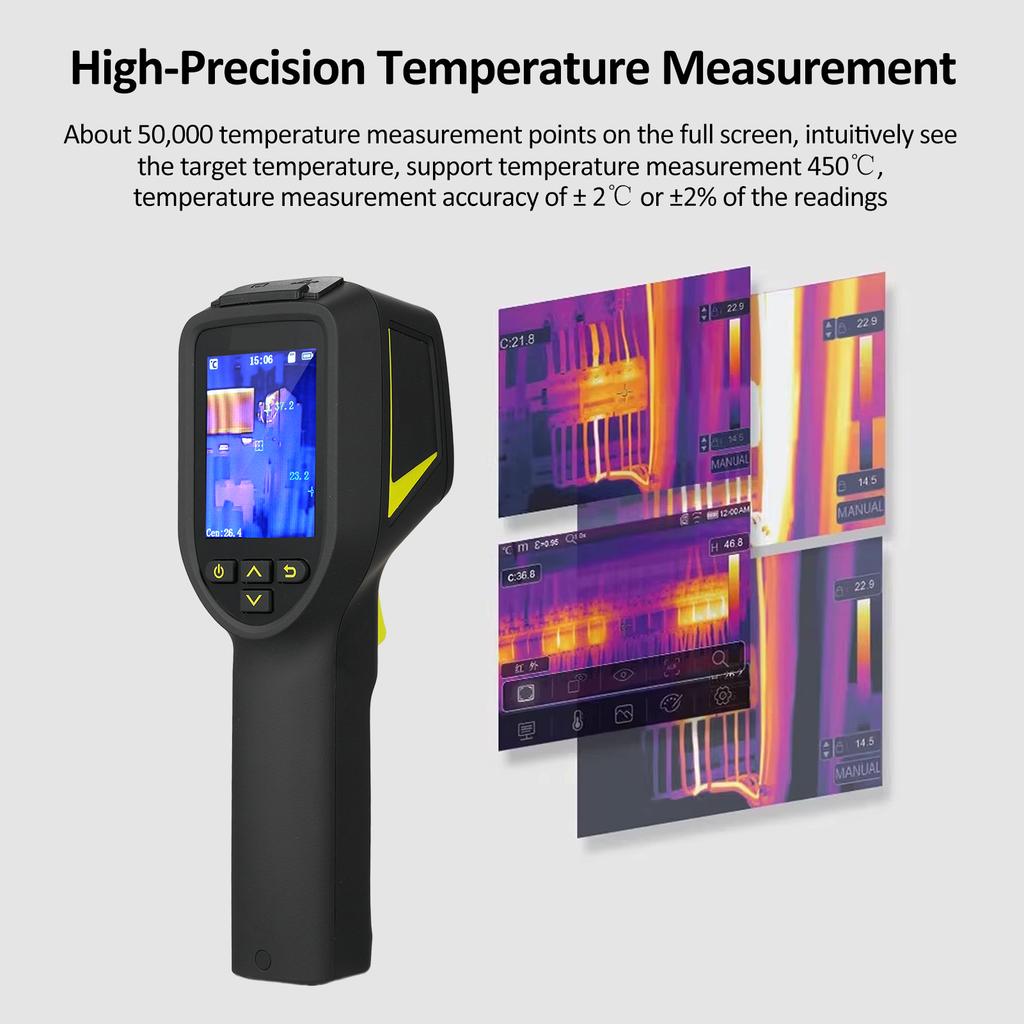

Spot Temperature Measurement: Supported Temperature Measurement : Center point, hot and cold spot Detector Type: Uncooled oxide plane detector Image Size: 12

Range: 8-14 Thermal Sensitivity: less than 40mK@fCelsius1.0 Thermal Imaging Field of View: Horizontal: 37.8 degrees , Vertical: 50.6 degrees Thermal Imaging Mode: Fixed Thermal Imaging Close-up Distance: 0.5m Lens Aperture: F1.0 Thermal Imaging Noise Reduction: 2D noise reductionCelsius3D noise reduction Color : Support white hot, black hot, , iron red 4 kinds of pseudo-color Temperature Measurement Accuracy: +Celsius-2 degrees C or +Celsius-2% of reading Display Size: 2.4 LCD Sound and Light Alarm: Support buzzer sound alarm Alarm Linkage: Support over-temperature alarm linkage buzzer and catch picture Storage Function: Support card storage, maximum 256G Fault Detection: Memory card status detection, storage space detection Hot and Cold Spot Tracking: Supports automatic tracking of the hottest and coldest spots in the whole screen USB Interface: USB Power Supply: 5V or built-in battery power supply Power Consumption: Standby Time: more than 8h Operating Temperature: -20 degrees C.+50 degrees C

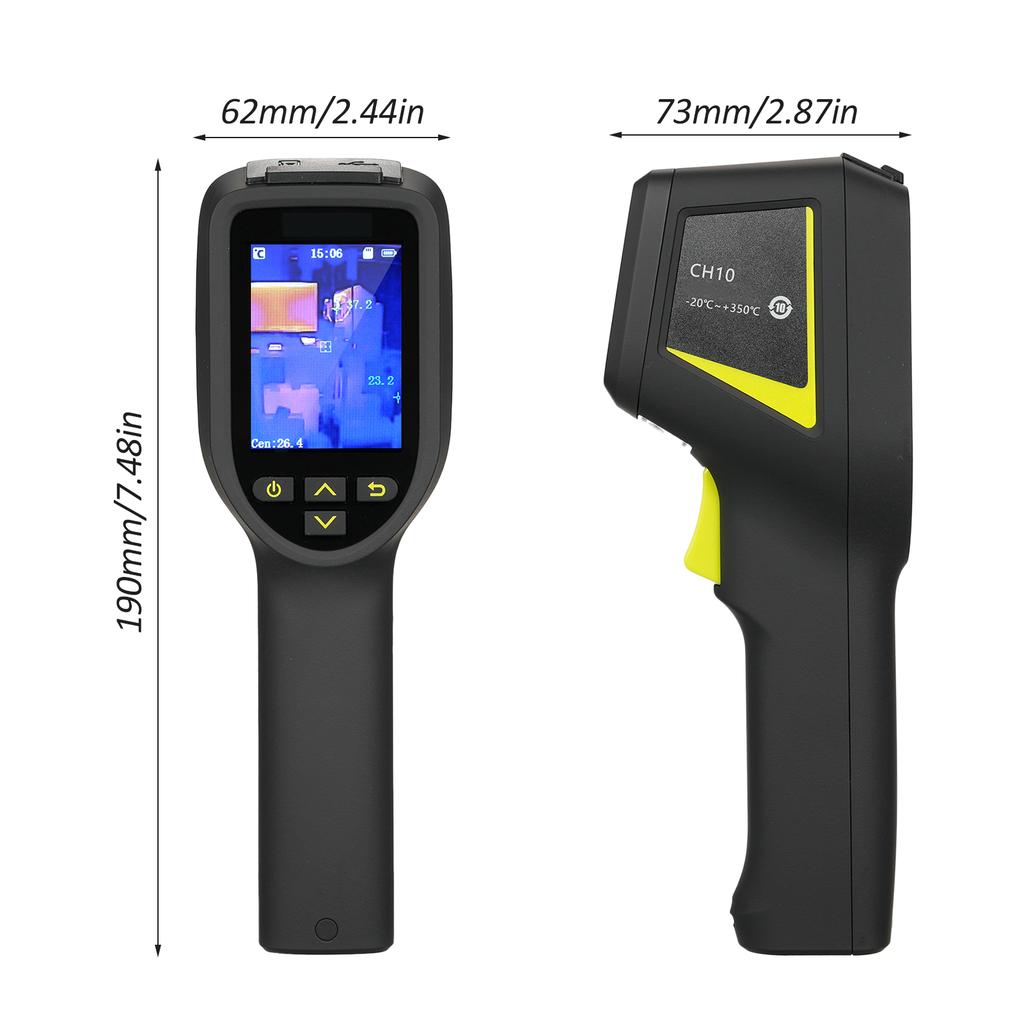

Grade: IP54 Drop Height: 2m bare drop Item Size: 190 * 62 * 73mm Celsius 7.48 * 2.44 * 2.87in Item Weight: 316g Celsius 11.14oz Package Weight: 909g Celsius 32.06oz Package Size: 24 * 15 * 11cm Celsius 9.45 * 5.91 * 4.33in Package List: 1 * Infrared Thermal Imager 1 * 8GB Memory Card 1 * USB Cable 1 * User Manual (English)
