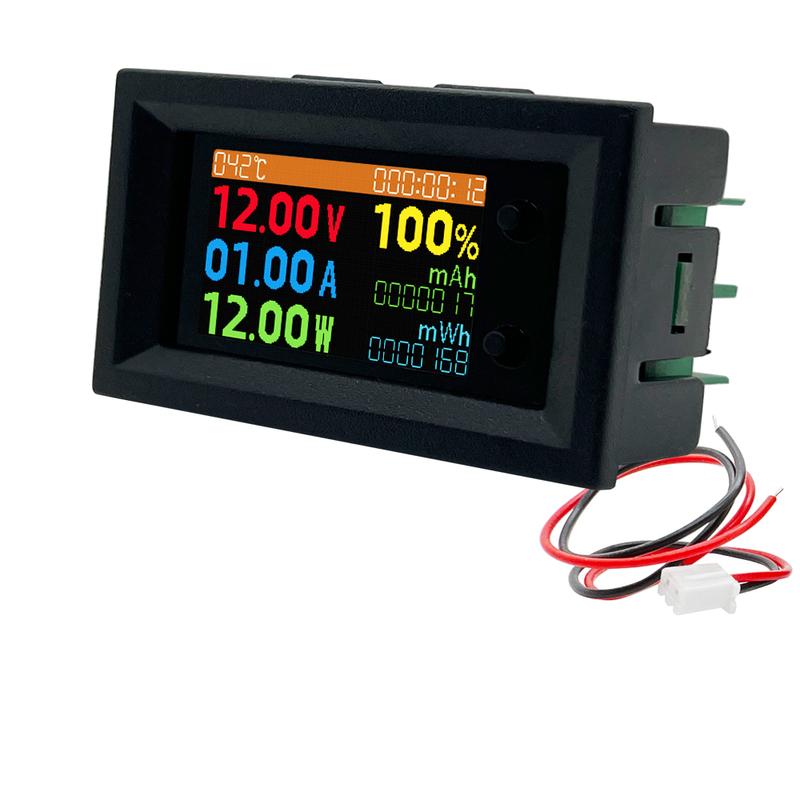

DC 0-200V 20A Digital Voltmeter Ammeter 8in1 Multifunction Tester IPS LCD Voltage Current Power Energy Test Meter

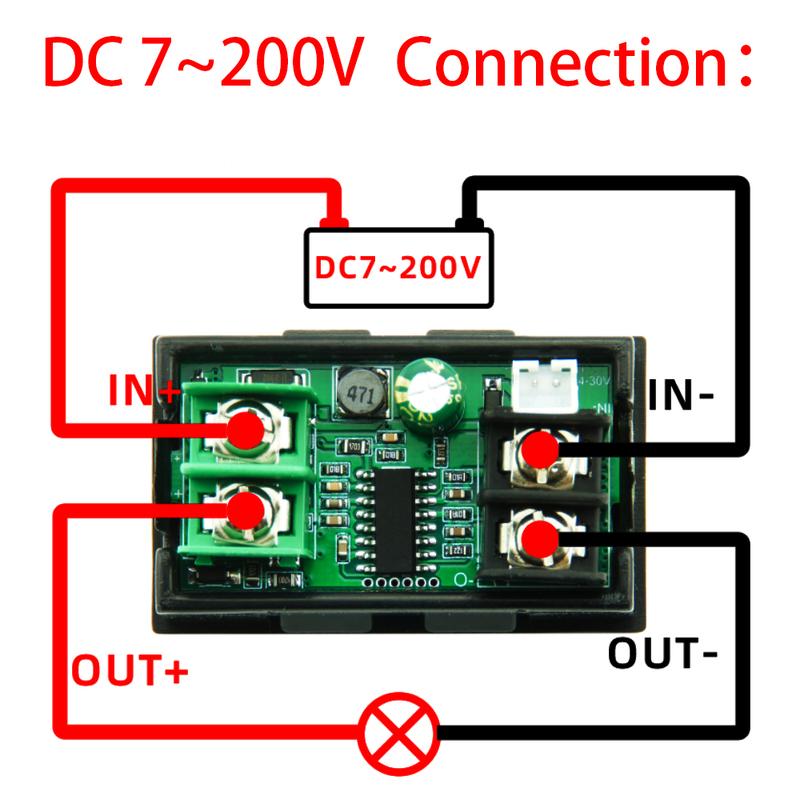

Semi-finishedproduct：Yes Battery Included：no High-concerned chemical：None Voltage range：Other Certification：CE Origin：Mainland China Model Number：Multi-function voltmeter Brand Name：GOOGZON DIY Supplies：Electrical Dimensions：47.59*28.67*25.33mm Operating Temperature：0-99 Accuracy Class：High Power Supply：DC Display Type：Digital Only Input/output interface:：20A high current 2P wiring terminal Instrument working voltage:：Red Black wire independent power supply DC6-30V/ Shared power supply DC7-200V Voltage measurement range:：DC0-200V (separate power supply is required for voltages below 7V) Current measurement range: 0.00A~20.00A：0.00A-20.00A Power measurement range:：00.00-4000W Capacity measurement range:：0-9999.99Ah Electricity metering range:：0~9999.99Wh Temperature measurement range:：0-99c (measurement feedback instrument temperature, does not support measuring external temperature) Time measurement range:：0-999:59:59 (hour: minute: second) Data Zeroing: Supported：Supports Zeroing without load:：Supports Voltage trimming:：Supports Current fine tuning:：Supports Percentage battery display:：Supports /Manual settings required Installation hole:：45*26mm

Semi-finishedproduct: Yes Battery Included: no High-concerned chemical: None Voltage range: Other Certification: CE Origin: Mainland China Model Number: Multi-function voltmeter Brand Name: GOOGZON DIY Supplies: Electrical Dimensions: 47.59*28.67*25.33mm Operating Temperature: 0-99 Accuracy Class: High Power Supply: DC Display Type: Digital Only Input/output interface:: 20A high current 2P wiring terminal Instrument working voltage:: Red Black wire independent power supply DC6-30V/ Shared power supply DC7-200V Voltage measurement range:: DC0-200V (separate power supply is required for voltages below 7V) Current measurement range: 0.00A~20.00A: 0.00A-20.00A Power measurement range:: 00.00-4000W Capacity measurement range:: 0-9999.99Ah Electricity metering range:: 0~9999.99Wh Temperature measurement range:: 0-99c (measurement feedback instrument temperature, does not support measuring external temperature) Time measurement range:: 0-999:59:59 (hour: minute: second) Data Zeroing: Supported: Supports Zeroing without load:: Supports Voltage trimming:: Supports Current fine tuning:: Supports Percentage battery display:: Supports /Manual settings required Installation hole:: 45*26mm
