100% Brand New and Hight Quality！
Introduction:

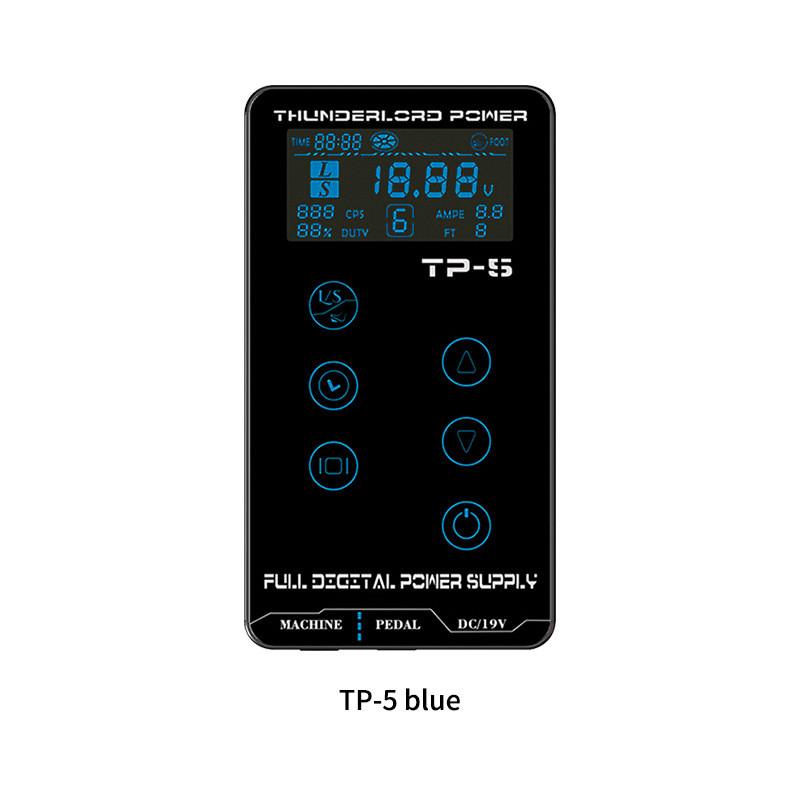

Professional Tattoo Power Supply HP-5 Power Supply
Moodel: Thunerlord TP-5
Material: Plastic Shell

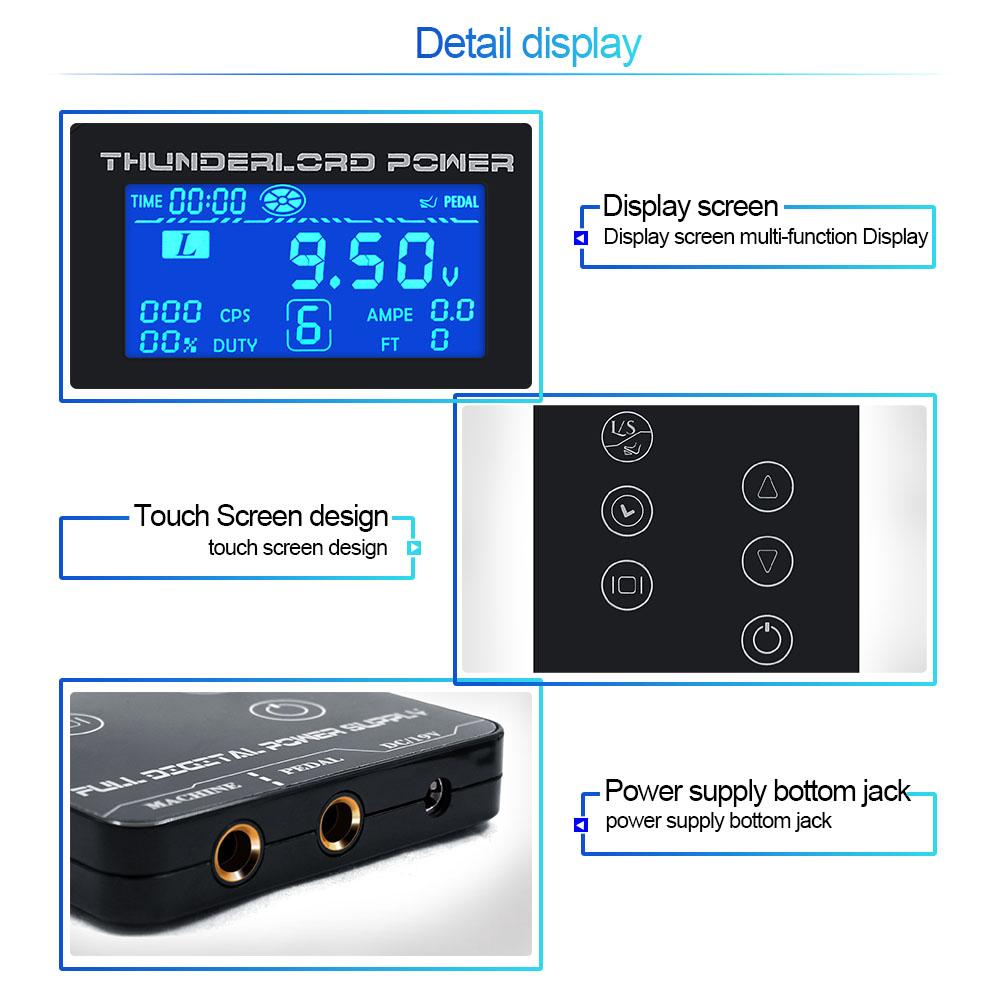

Display: LCD Digital
Unit Weight: 650g
Input voltage: 110V-240V, AC50/60Hz.
Output Voltage: 3~18v
Output Power: 0.3-45W
Rating Current: 0-2A.
Operating Temperature: 5 ~ +45
Relative humidity 30%~75%.
Operating Air Pressure: 900-1060 HPA

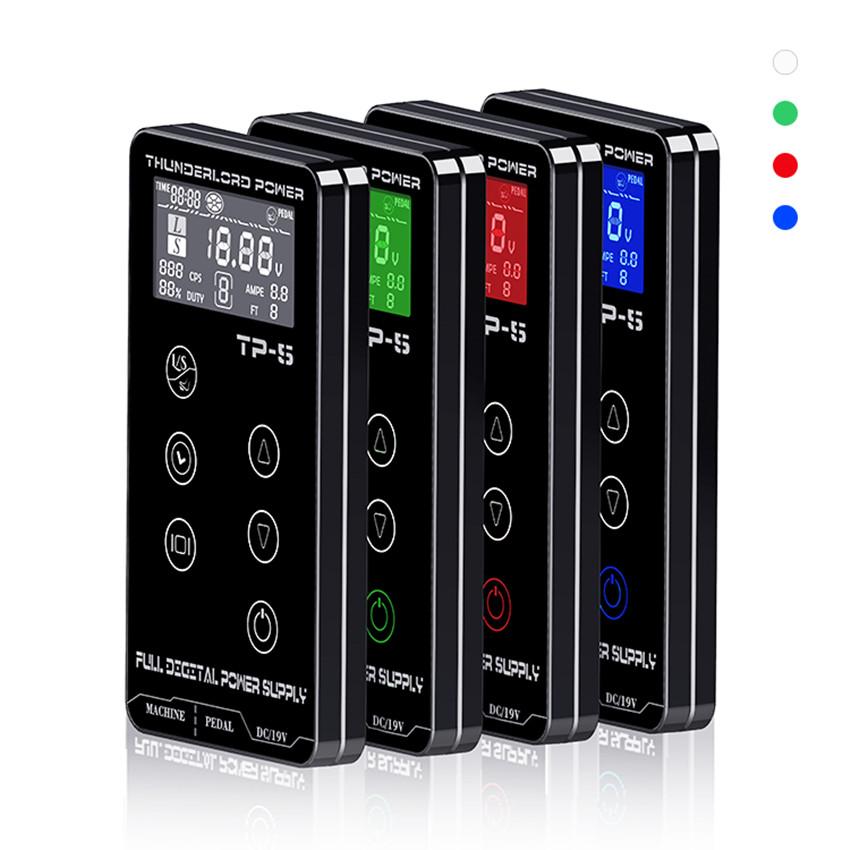

Color: Blue, White, Red, Green
--Liner/ Shader presets with memory modes.
--Momentary(conventional) or Maintained(push on push off) foot switch modes. Easy one button toggle
--Non volatile memory (holds time and presets even when power is removed)
--Wireless foot switch ready (foot switch under development)
--Volts, Amps, Speed (hz), Duty Cycle (%), ans STL(similar to follow through)
--Wipe down quality
--Easily bagged with typical machine or bottle baggies
--Power supply includes one universal mount
Advantages:
--Fully digital microprocessor control
--Precision regulated set point voltage 3-18VDC
--Plugin the power: Please use standard adapter connect to power supply through"DC/19" socket
Switch ON/OFF and START/STOP functions:
A; When plugged into the power supply, press"POWER BUTTON" for 3 seconds to switch on, or another 3 seconds to switch off.
B: 5 seconds press on foot pedal to switch on, when switch on, touch "POWER BUTTON"" to start/stop the power
Adjust the output voltage:
when switched on, touch "VOLTS+" "VOLTS-" to adjust the voltage output

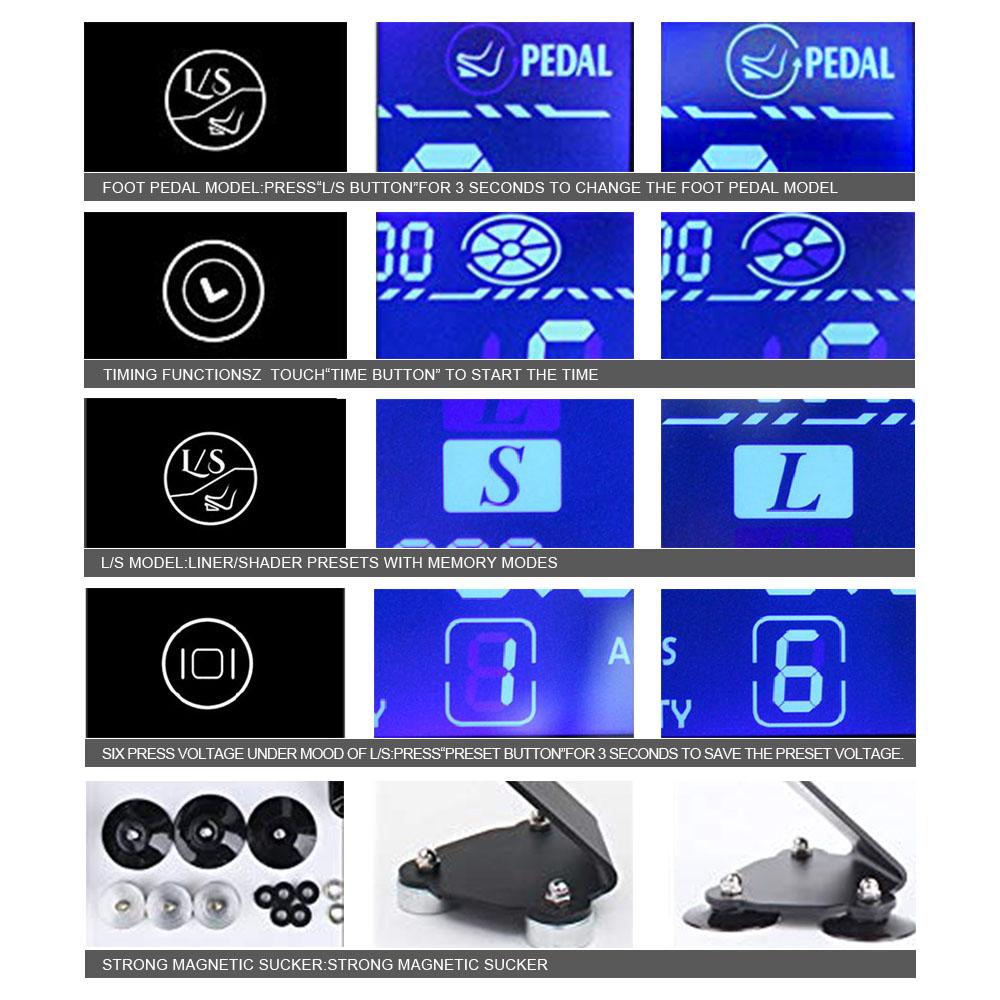

L/S & Foot Pedal Moodle:
When switched on, touch "L/S BUTTON" switch to L/S model, when switch to L model, L be lighted, switch to model S will be lighted.
when switched on, press "L/S BUTTON" for 3 seconds to change the foot pedal model
--This machine offer two kinds of foot pedal mood, one is contineous output mood, another is inching output mood
Preset voltage:
This machine provides 6 preset voltage under mood of L/S, the factory settings:
L1-5V/L2-6V/L3-7V/L4-8V/L5-9V/L6-9.5V
S1-6V/S2-6.5V/S3-7.5V/S4-8.5V/S5-9.5V/S6-10V
touch "PRESET BUTTON" swith successively to preset voltage, to adjust the preset voltage, touch "PRESET BUTTON" to adjust the voltage gears. Touch "VOLTS+" "VOLTS-" to adjust voltage, then press "PRESET BUTTON" for 3 seconds to save the preset voltage.
Timing functions:
Touch "TIME BUTTON" to start the time, there will show the working time on the screen, long press "TIME BUTTON" to reset the total working time.

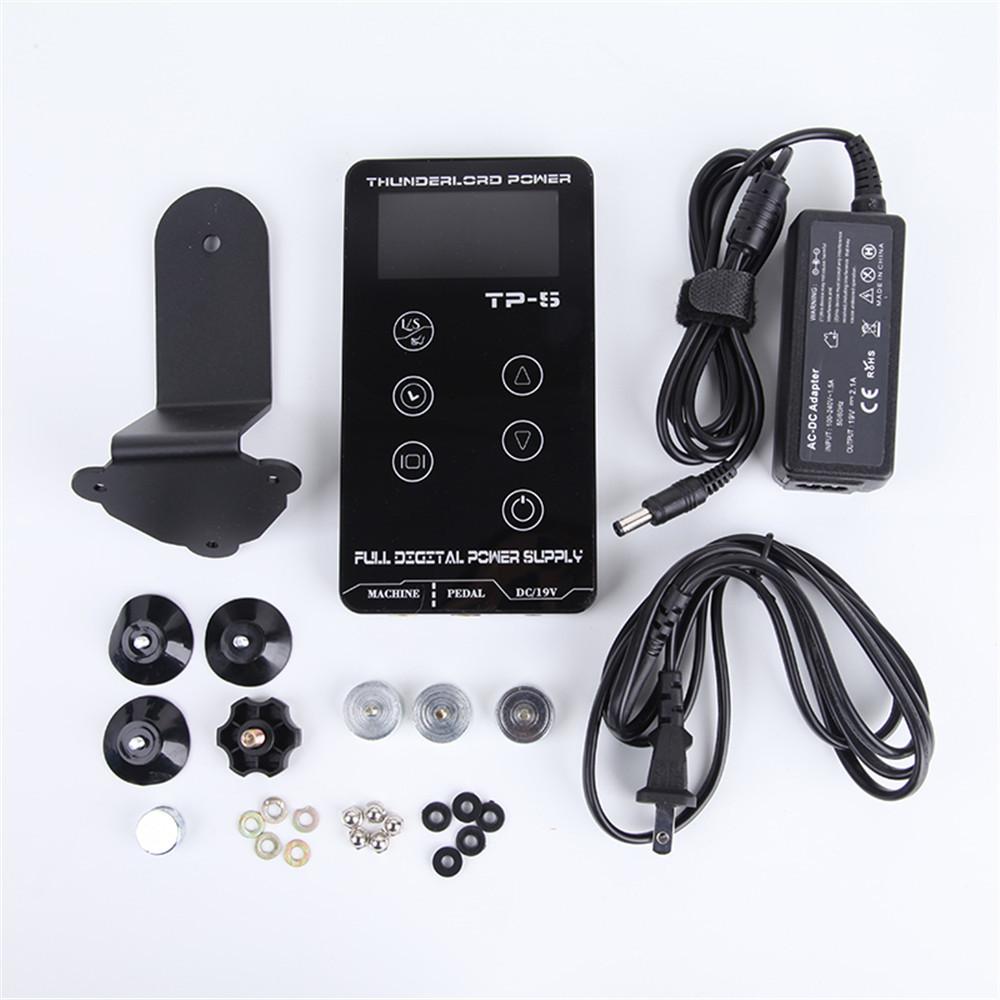

Package include:
1 x HP-5 Power Supply set
