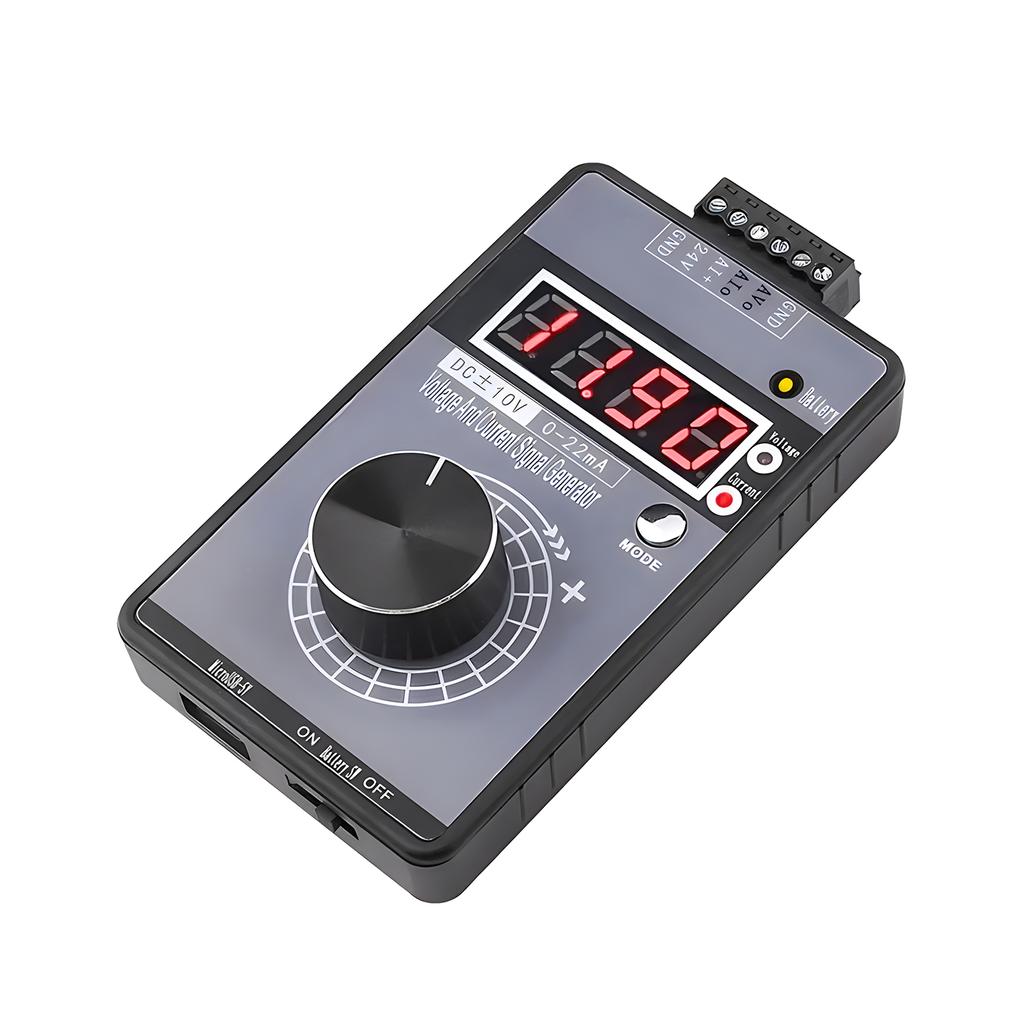

High Precision DC 0-10V 4-20mA Analog Signal Generator Adjustable Voltage Current 0-5V/3V/1V 0-22mA Debugging Source Calibrator

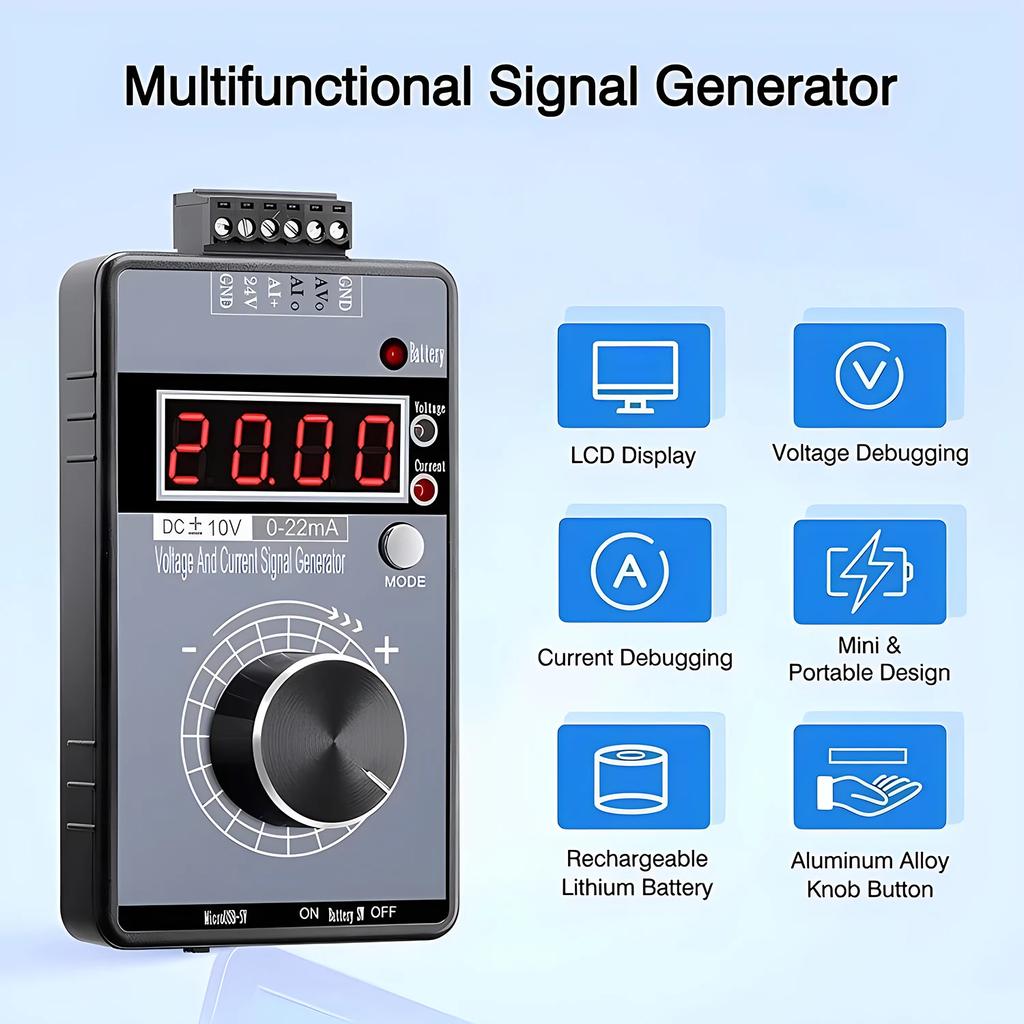

Product Feature:

Multiple output ranges can be set (factory default 0-10V/0-20mA)

A variety of display methods can be set;

Current output 2, 3, 4-wire system passive and active are fully compatible;

Output with short circuit protection, power supply with reverse polarity protection;

3 power supply modes: external DC15-30V/USB-5V/built-in power management (optional):

Voltage and current adjustment one-key switching, independent wiring, simultaneous output:

Coarse adjustment fine adjustment dual mode, the number of adjustment turns can be set custom quick adjustment mode;

Battery charge and discharge overcurrent protection, automatic charging management, power indication:

4-bit high-brightness digital tube, 0.01 precision adjustment, output calibrateable;

Ultra-thin matte anti-slip shell, high-grade aluminum alloy knob, electroplated buttons, comfortable to hold, beautiful and generous

10V can be set to facilitate debugging forward and reverse;

0V output can definitely reach 0V, the performance far exceeds that of single-power products, the control dimmer can not be lit at all, and the motor speed regulation can be completely stationary;

The software can customize the quick adjustment function, and can be set to output only a few values, which is convenient for rapid commissioning of production

Product Parameters:

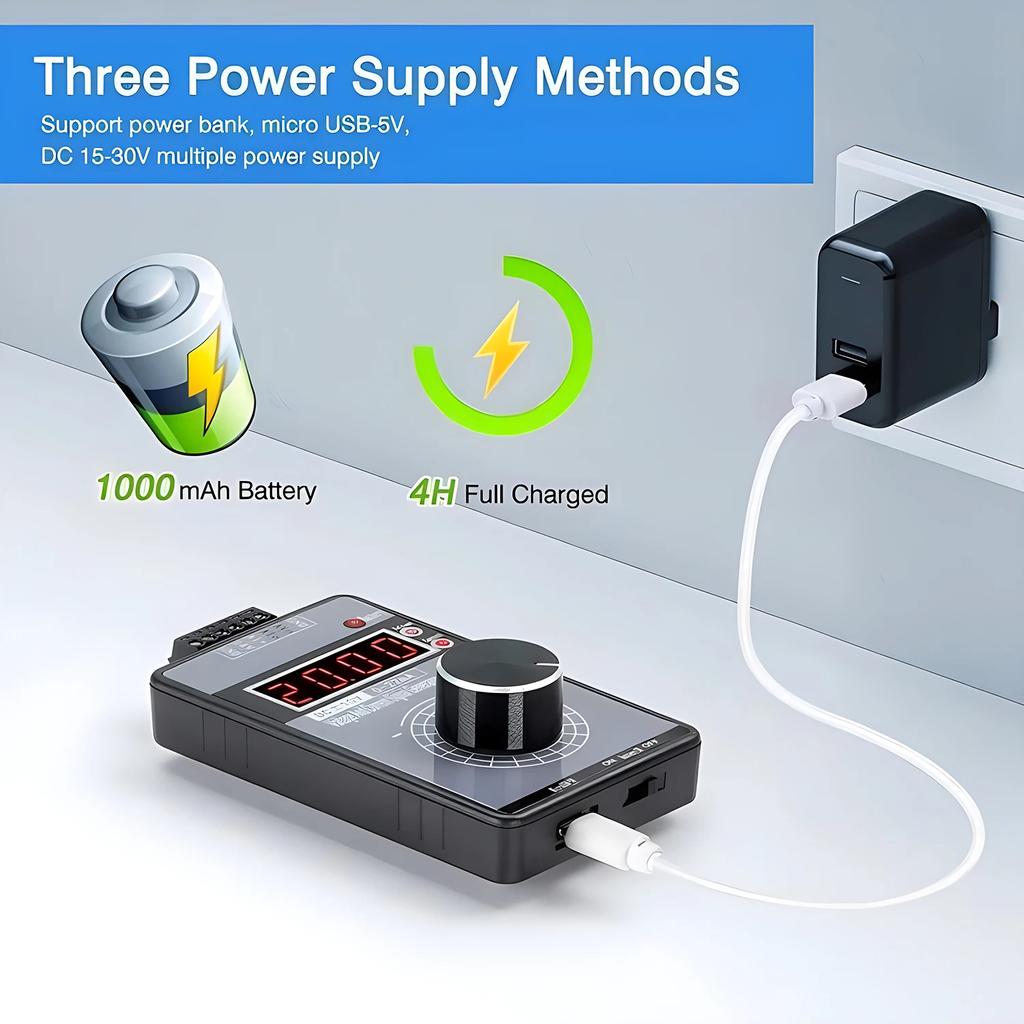

three power supply modes ,using the mobile phone charger or external 24V can charge/work:

External wiring terminal power supply DC15-30V 1W(without charging)/4W(charging)

External MicroUSB-5V current 0.2a (no charge)/0.8A(charge);

(Optional) The built-in 3.7V lithium battery(1000mah), the maximum charging current is 0.6A, Generally, it takes more than 4 hours to fully charge. It can be used for 1-5 hours

The voltage output is adjustable + 10V, Error <0.05V after calibration, and the driving current <20mA

The current output is adjustable 0-22ma,Error <0.05mA after calibration, and the sampling resistance is <500Ω,

working environment: 0-40 C,

relative humidity < 80%;

Size (cm): Shell =100*60*20mm ,The plug protruding 9cm,The knob protruding 15cm Product Usage:

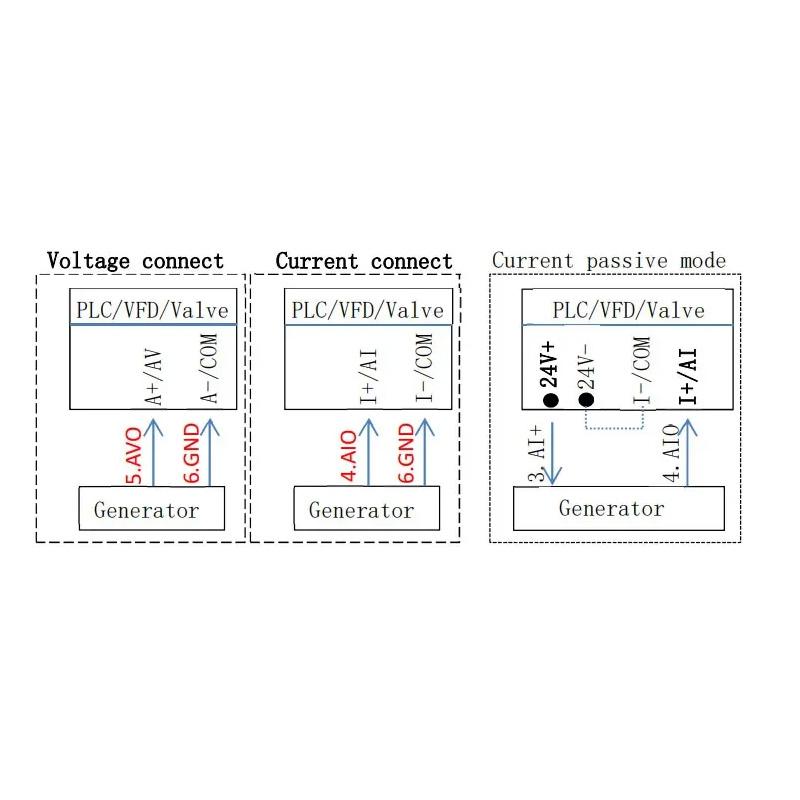

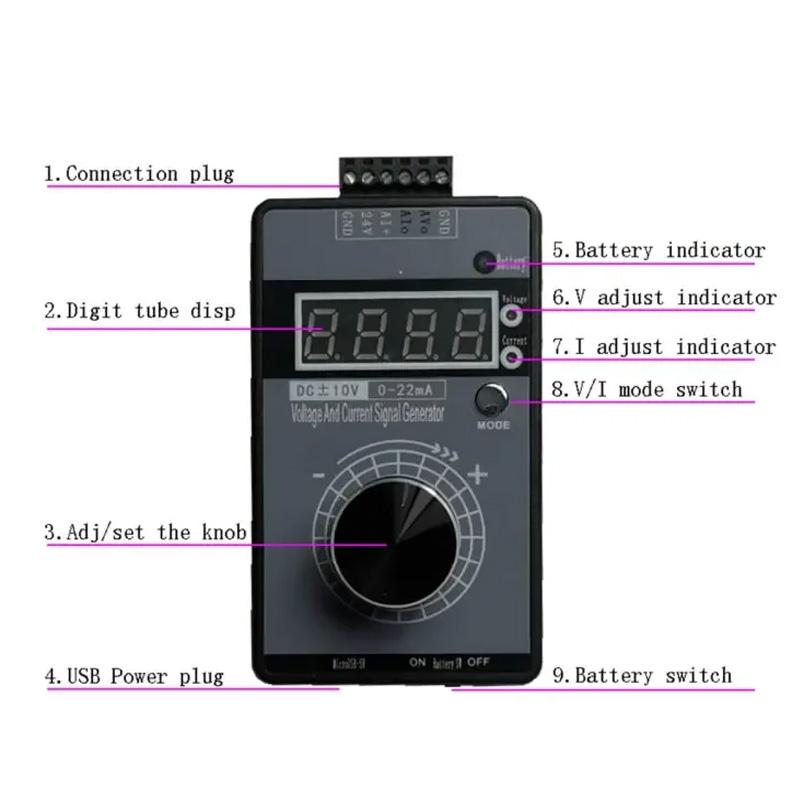

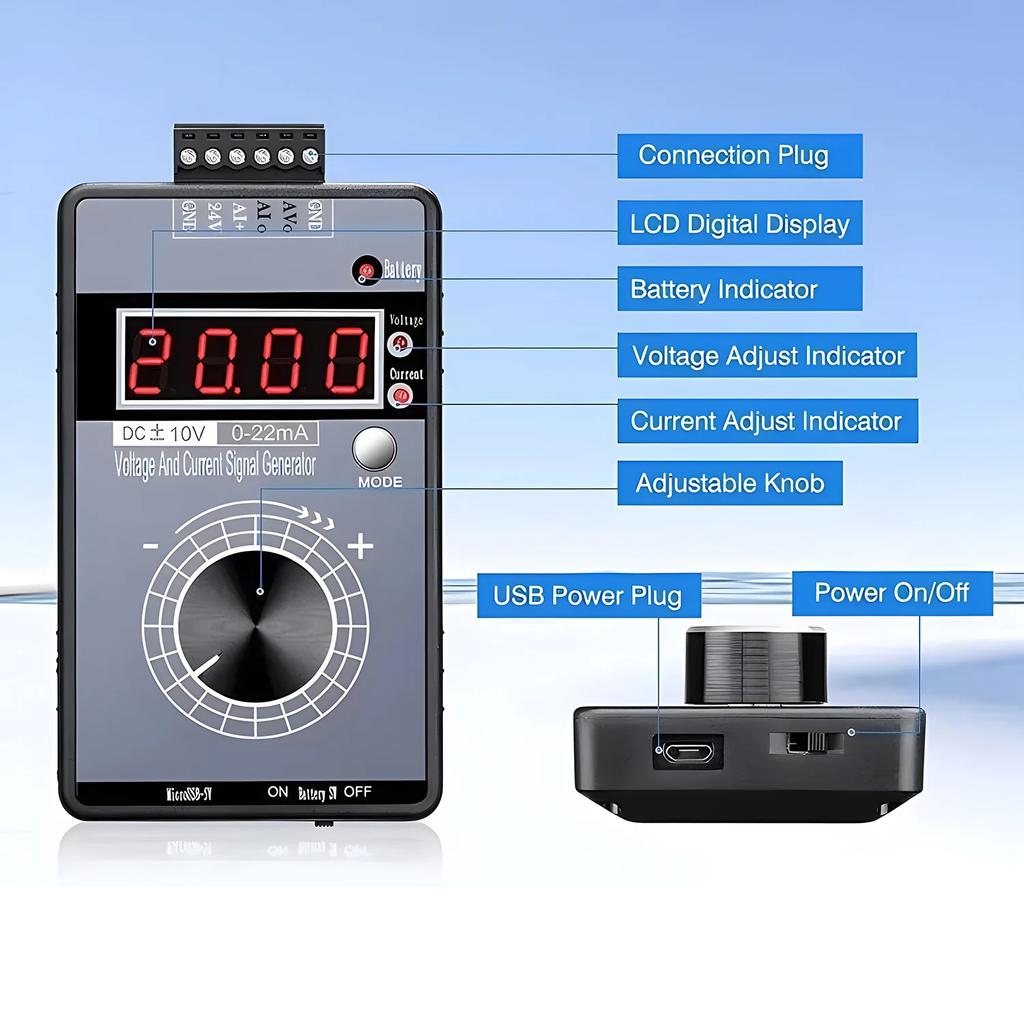

Terminal blocks from left to right 1-6

1——Power supply negative (input)

2——Power supply positive (input)

3——Current passive mode 24V+ input

4——Current signal output

5——Voltage signal output

6——Signal ground (connect 1-GND)

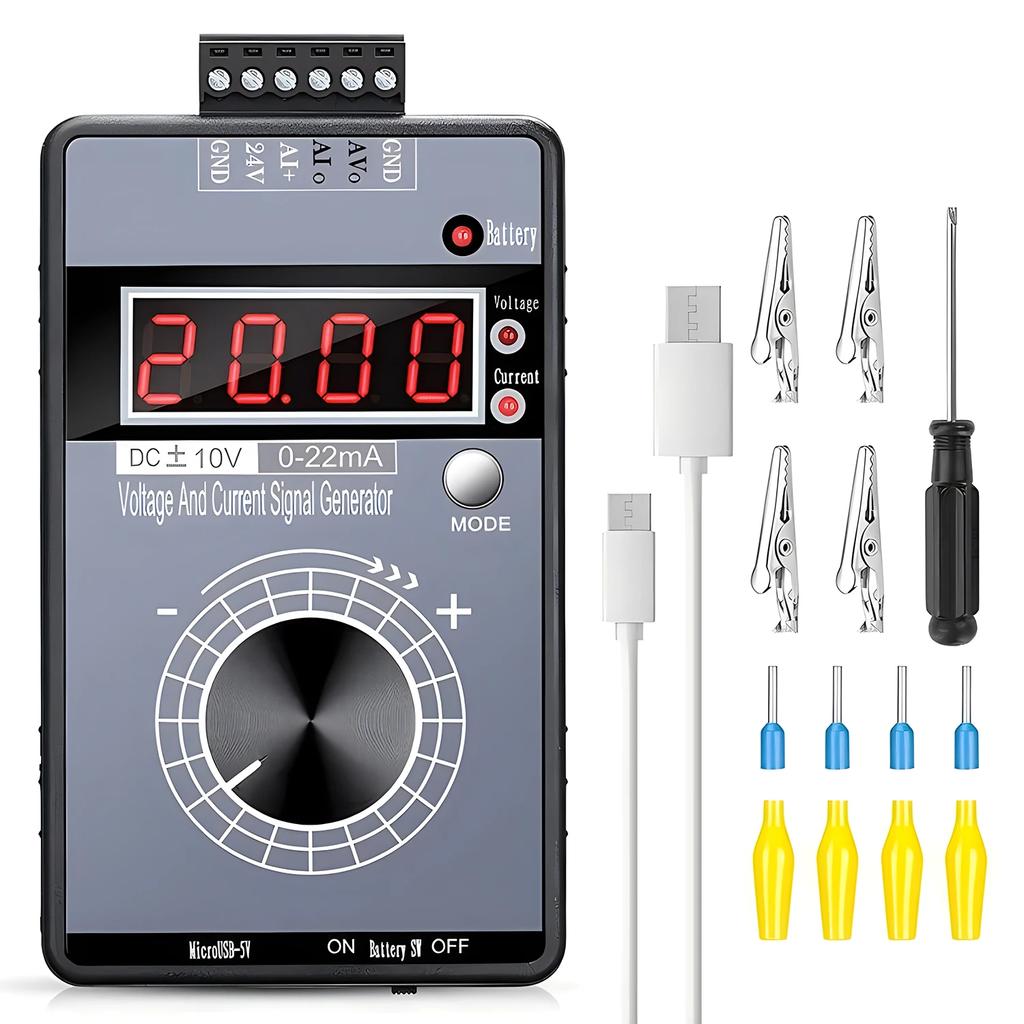

Accessories:

Android microUSB charging cable

Crocodile clip

2.5mm slotted screwdriver

Cold pressed terminal connector
