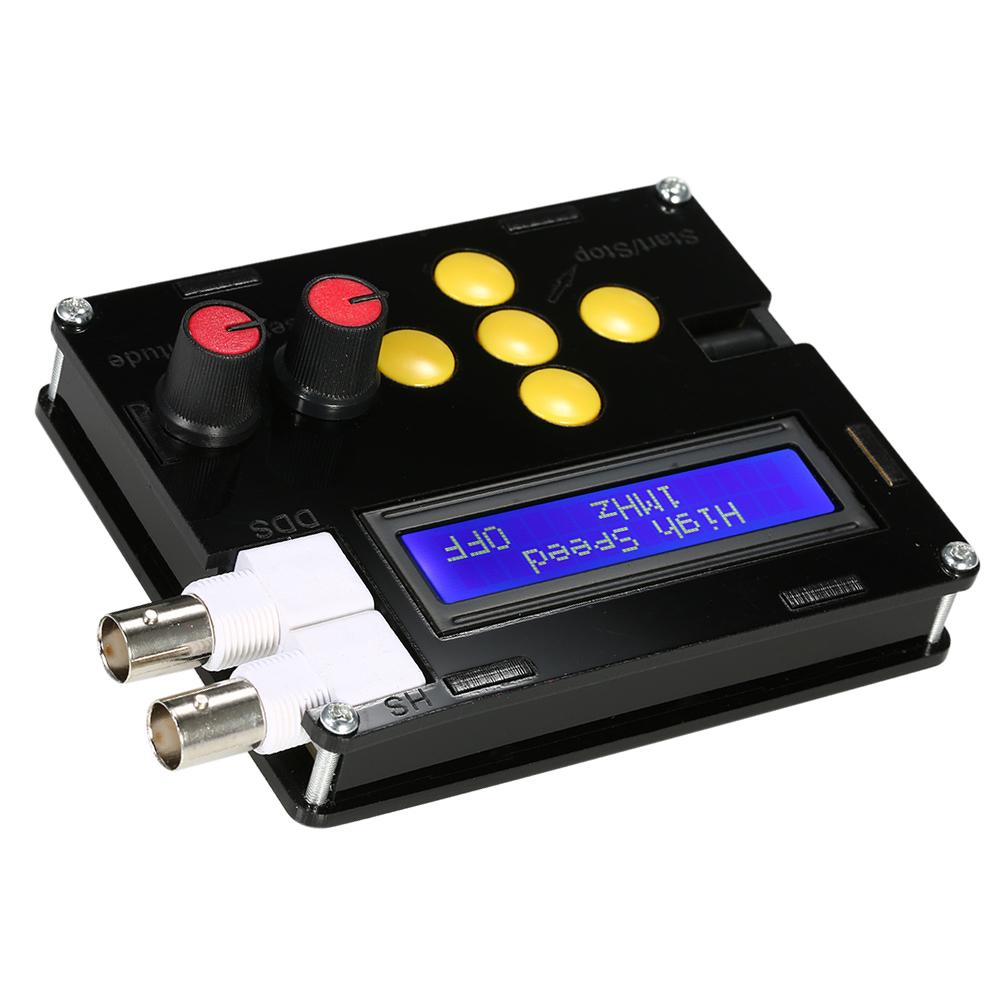

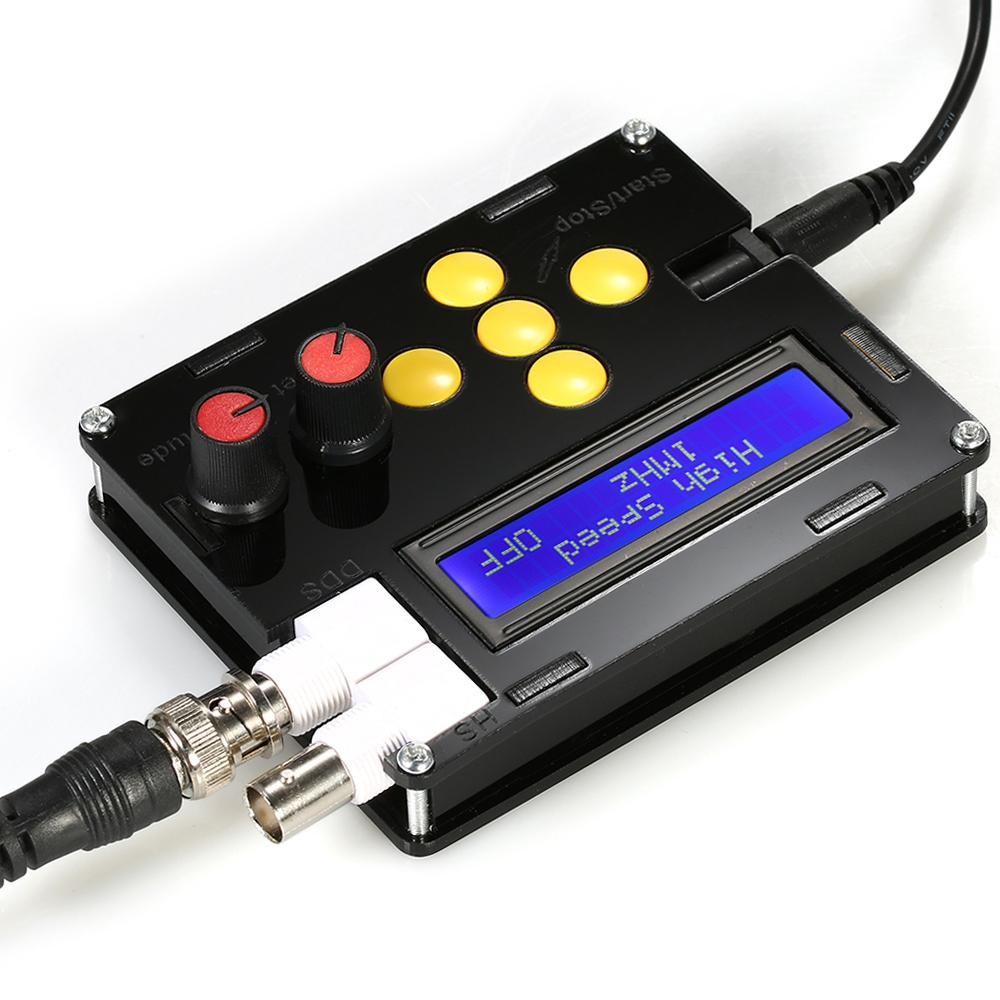

This Low Frequency Signal Generator is a professional product to generate sinetrianglesquareforward and reverse sawtooth wave.
Features:
Output Waveform: can output sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave, noise wave. Highspeed square wave.
Current: 160mA when the voltage is 5V.
DDS Frequency Range: sine wave 1Hz500kHz (the output amplitude will decrease with the further increase of frequency), other waveforms 1Hz100kHz (but the upper limit of adjustable frequency is not limited, if the distortion and shaking requirements are not high, use the frequency can be further increased).
Highspeed frequency (HS) output up to 16MHz, Can choose 1MHZ, 2MHZ, 4MHZ, 8MHZ, 16MHZ.

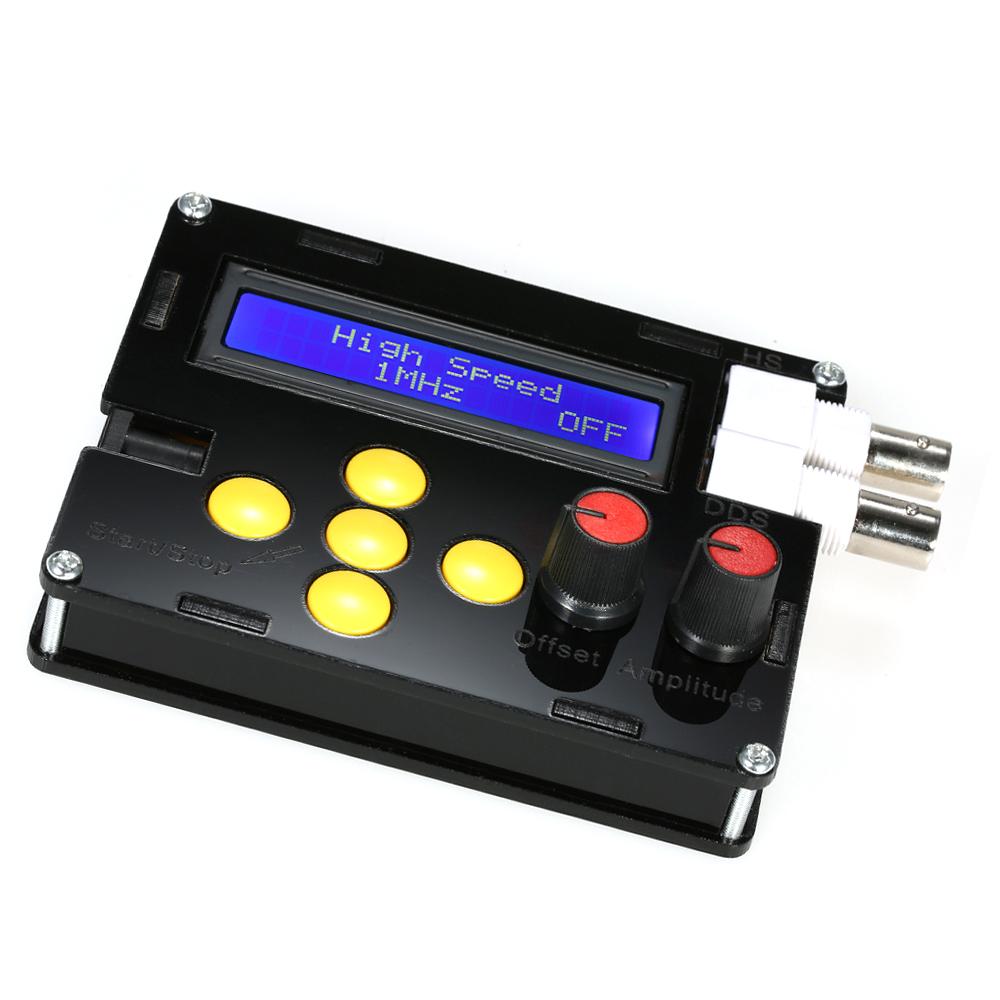

DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
All setting parameters can be saved, the power will restore the last used configuration automatically.
Can section into the value: 1, 10, 100, 1000, 10000Hz.
Comes with an USB cable for power supply.
LCD display to indicate the data accurately.
Specifications:
Material: FR4 + Acrylic
Operating Voltage: DC4~10V
DDS Frequency Range: 1Hz500kHz
Resolution: 1Hz
Sine Wave Distortion: less than 1% below 1kHz, less than 0.5% above 1kHz
Output Amplitude: maximum + 10V (PP)
Output Impedance: 50ohms
DC Offset: maximum + 10V

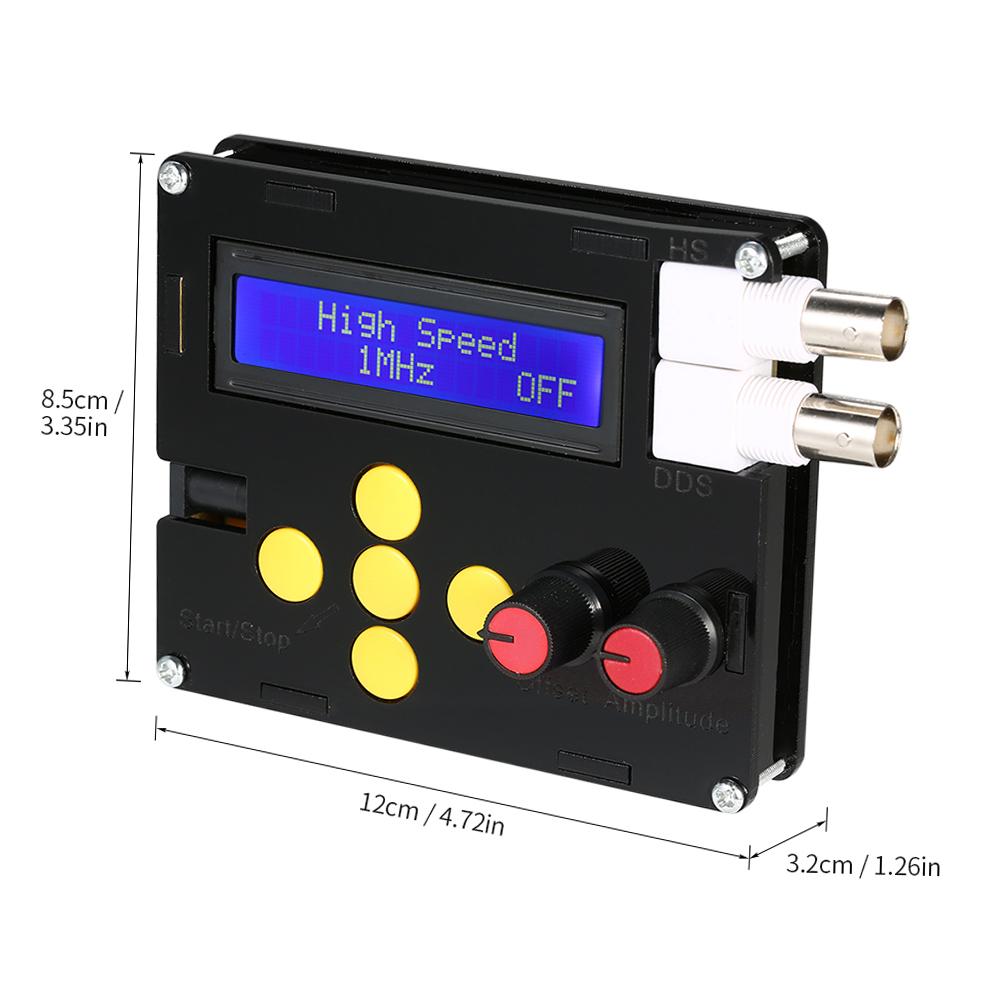

Item Size: Approx. 12 * 8.5 * 3.2cm 4.72 * 3.35 * 1.26in
Item Weight: 147g 5.19oz
Package Size: Approx. 16 * 11 * 5cm 6.30 * 4.33 * 1.97in
Package Weight: 272g 9.59oz
Note:
The instrument will be damaged if the voltage is higher than 10V.
Package List:
1 * Signal Generator

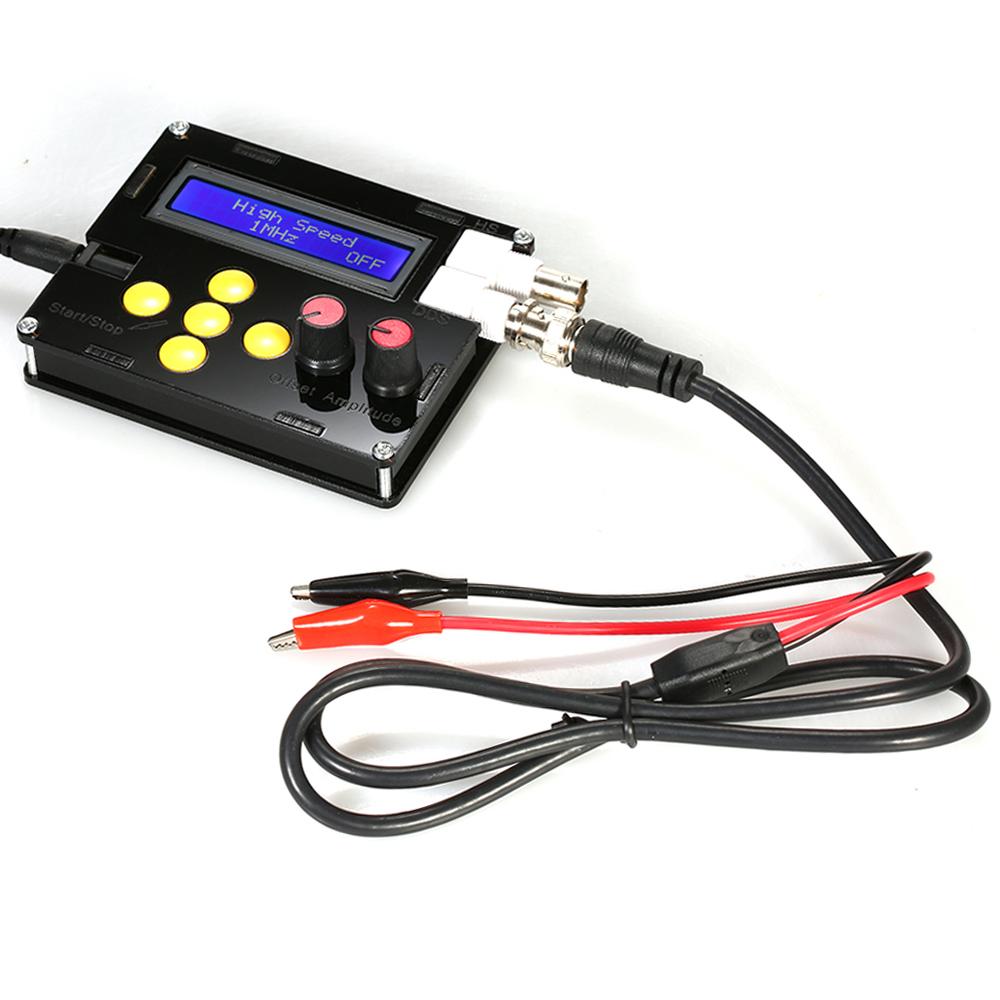

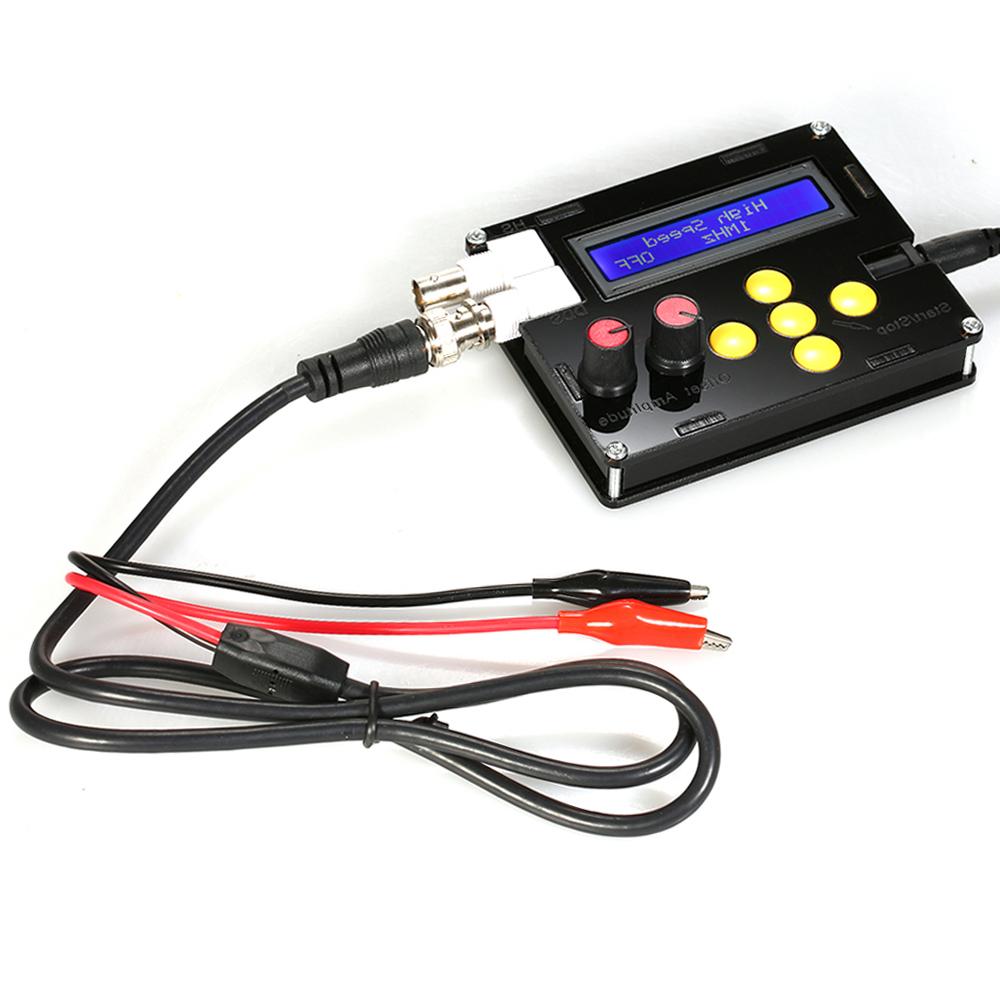

1 * Crocodile Clip Test Line
1 * USB Cable
1 * User Manual(English)
