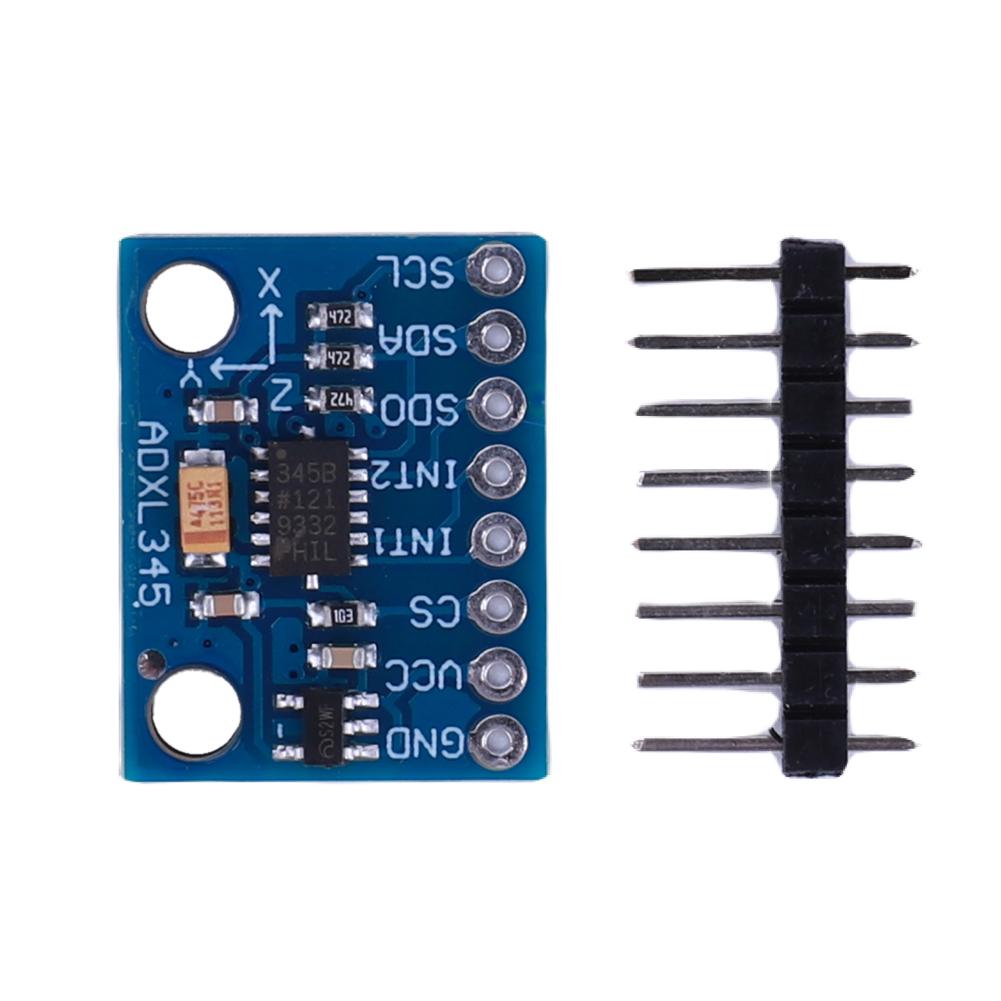

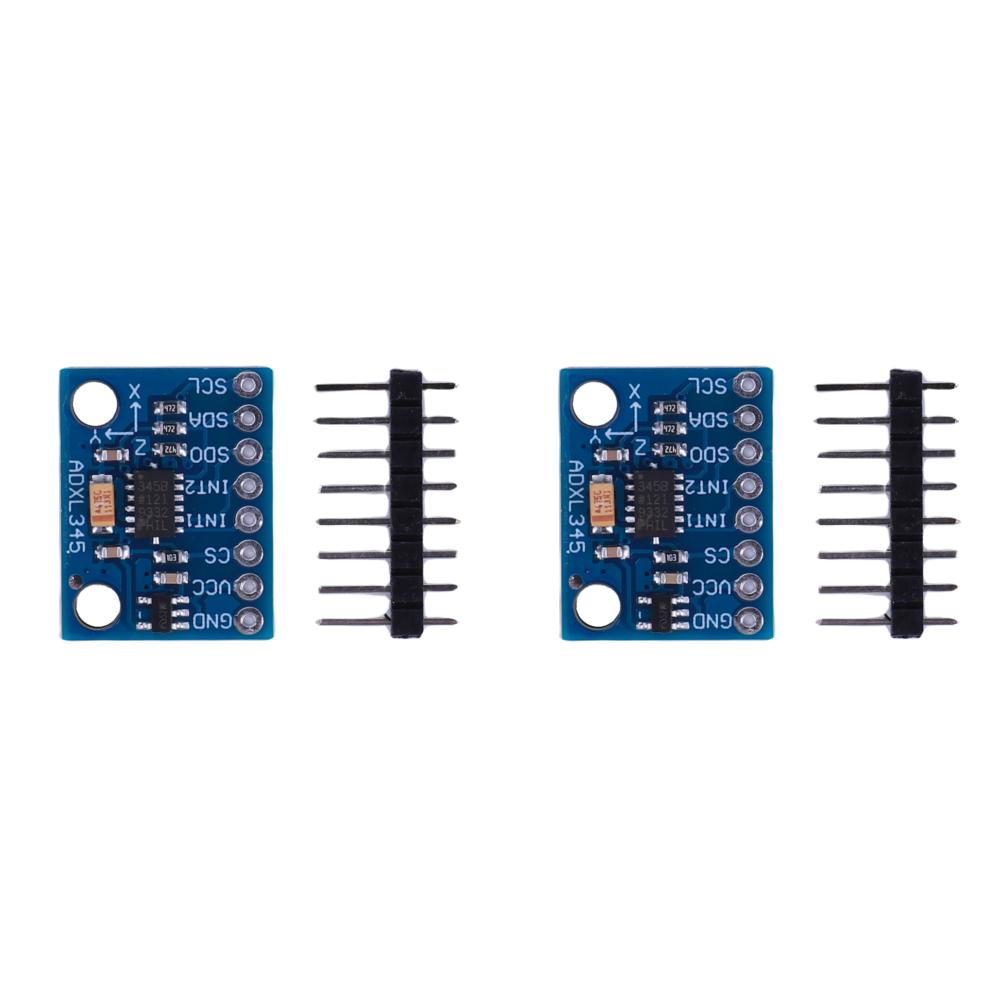

Specification:
Origin: Mainland China
Type: Module
Condition: New
Power supply voltage: DC3-5V
Supply current: 400uA
Output: X, Y, Z
Working temperature: -40℃-85℃
Pin description:
GND: power ground
VCC: power supply range DC3-5V
CS:film selection
INT1: Interrupt 1
5NT2: Interrupt 2
SDO:SPI data output/IIC address setting
SDA: SPI data I/O, IIC data line (compatible with 5V level)
SCL: SPI clock line, IIC clock line (compatible with 5V level)
Product size: 21.00x17.00x3.00mm
Product size: 0.83x0.67x0.12inch
The ADXL345 is a small, thin, ultra-low power 3-axis accelerometer with high resolution (13 bits) and a measurement range of ±16g.
The digital output data is in 16-bit two's complement format and can be accessed through SPI (3-wire or 4-wire) or IIC digital interface;
The ADXL345 is suitable for mobile device applications. It can measure static gravity acceleration in tilt detection applications,
Dynamic acceleration due to movement or impact can also be measured. It has high resolution (4mg/LSB),
Capable of measuring tilt angle changes of 0.25°. When using the ADXL345 digital output acceleration, there is no need to
analog conversion, thereby saving system cost and circuit board area.
Features:
Chip used: ADXL345 (three-axis gravity acceleration);
Communication method: IIC/SPI communication protocol;
Measuring range: ±2g-±16g;
The IIC/SPI interface is reserved for easy access to other main control boards;
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
