Feature:
1. QUIET OPERATION: Volumetric diaphragm pump, capable of dry operation, with a working noise of around 55?60 decibels, quiet and stable.
2. SPECIFICATIONS: The pump has a lift of 3 meters, a maximum flow of 5.1LPM, and a pressure of 160psi, ensuring high efficiency operation.
3. COPPER MOTOR: The pump adopts all copper motor with strong power and no leakage, the pressure switch can be replaced, convenient and practical.
4. DUAL PROTECTION: When the pressure increases, the seal pressure switch will automatically shut down the pump. If the motor overheats due to overload, it will automatically stop.
5. WIDE APPLICATION: The diaphragm pump is applicable to marine yachts, motorhomes, automobiles, agricultural spray, trucks, industrial equipment, etc.
Specification:
Item Type: Diaphragm Pump
Product Model: DP 160
Rated Voltage: DC 12V
Rated Current: 9.5 A
Maximum Flow Rate: 5.1LPM
Pressure: 160psi
Product Material: Copper, ABS, Rubber, Iron
Discharge Lift: Approx. 3 meter 9.8ft
Suction Lift: Approx. 100 meter 328.1ft
Ambient Temperature: less than +50 celsius
Liquid Temperature: 0+70 celsius
PH Value of Medium: Between 5.07.5
Volume of Solid Impurities in the Medium: less than 0.1percent , particles not greater than 0.2mm
Port Size: 12in
Application: Marine yacht, motorhome, automobile, household, general industry, agricultural spray, catering service, distillation equipment, ships and trucks..

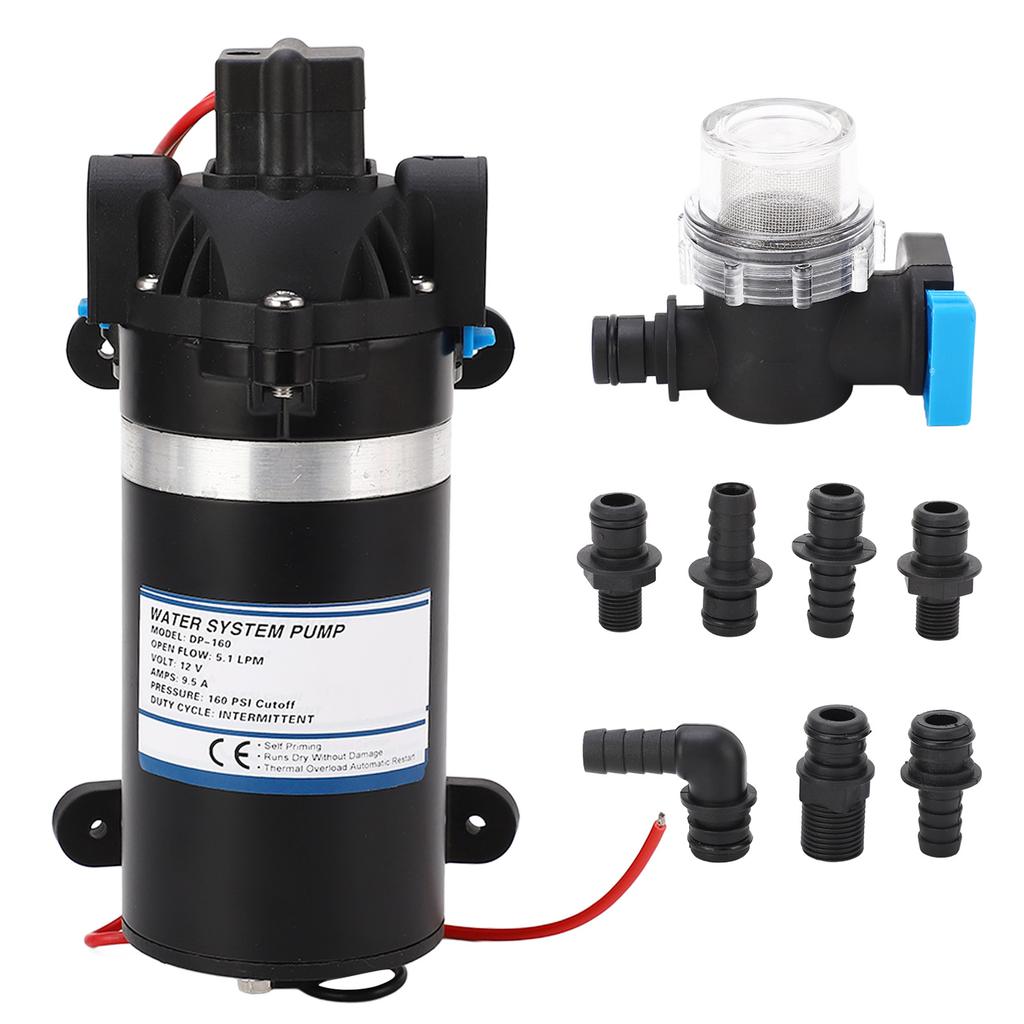

Package List:
1 x Water Pump7 x Connectors1 x Filter AdapterQUIET OPERATION: Volumetric diaphragm pump, capable of dry operation, with a working noise of around 55?60 decibels, quiet and stable.
