Hign-concerned Chemical : None
Model Number : 123
Type : Module
Origin : China
Condition : New
Older models：
1. Support a variety of fast charging protocols:
PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC
2. Function/function of this product:
1. Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts and 12 volts to supply power to routers, light cats, etc.!
2. Turn some traditional DC-powered devices into TYPE-C port power supplies.
3. The size of the decoy board: 23*11.5*4mm
Fourth, remind you:
1. The option of 'decoy board + shell', if the buyer needs to glue the inside of the shell to fix the circuit board before shipping, please leave a message to note the required voltage value when placing an order, thank you!

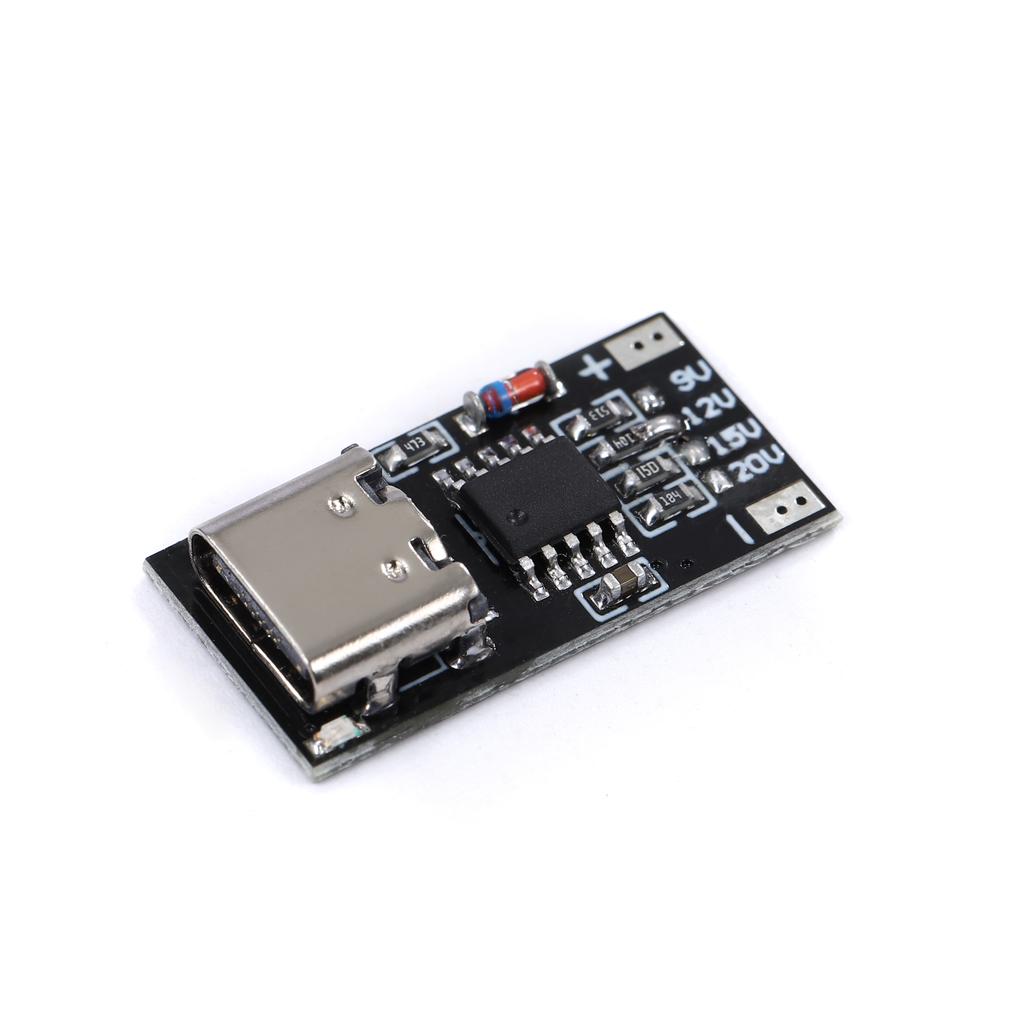

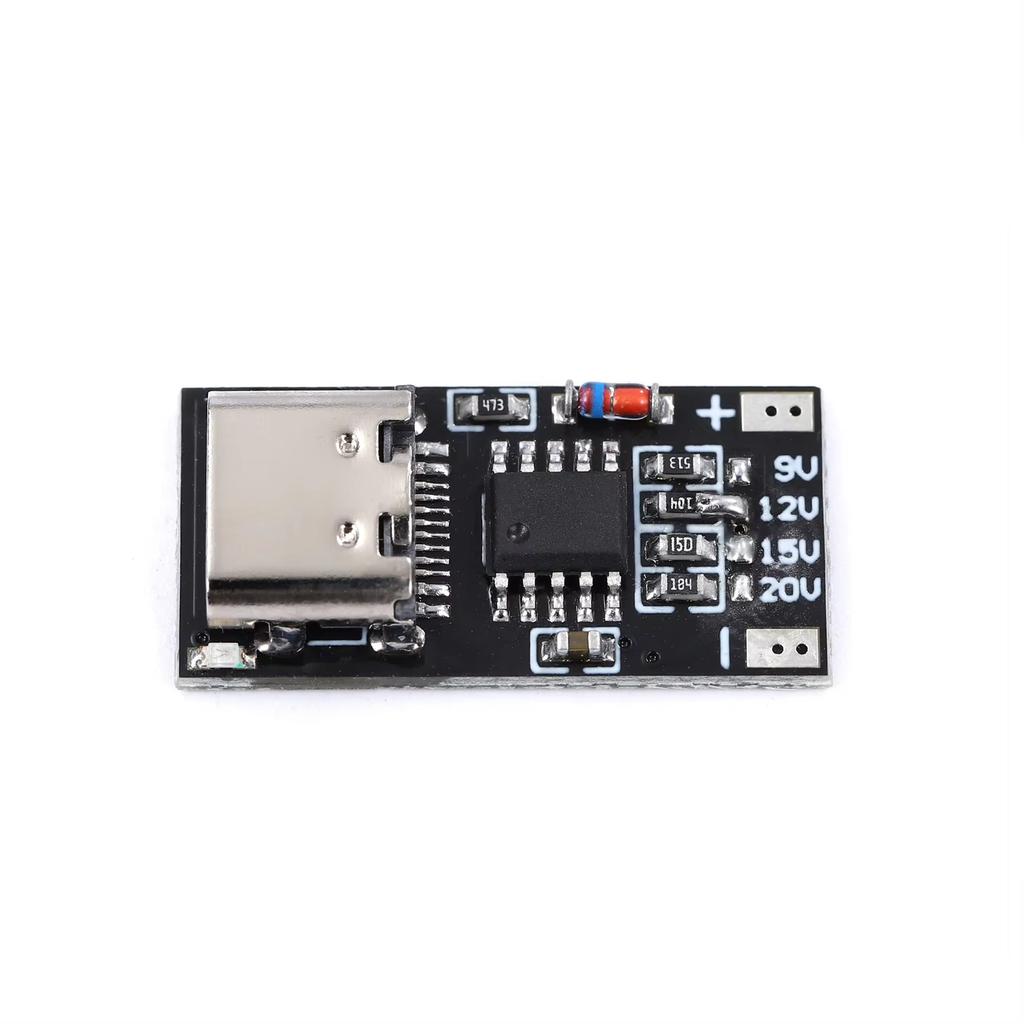

2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.
3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.
4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
5. The mobile phone charger must first support PD/QC and other fast charging in order to deceive the voltage.
Upgraded version.
High current multi-protocol

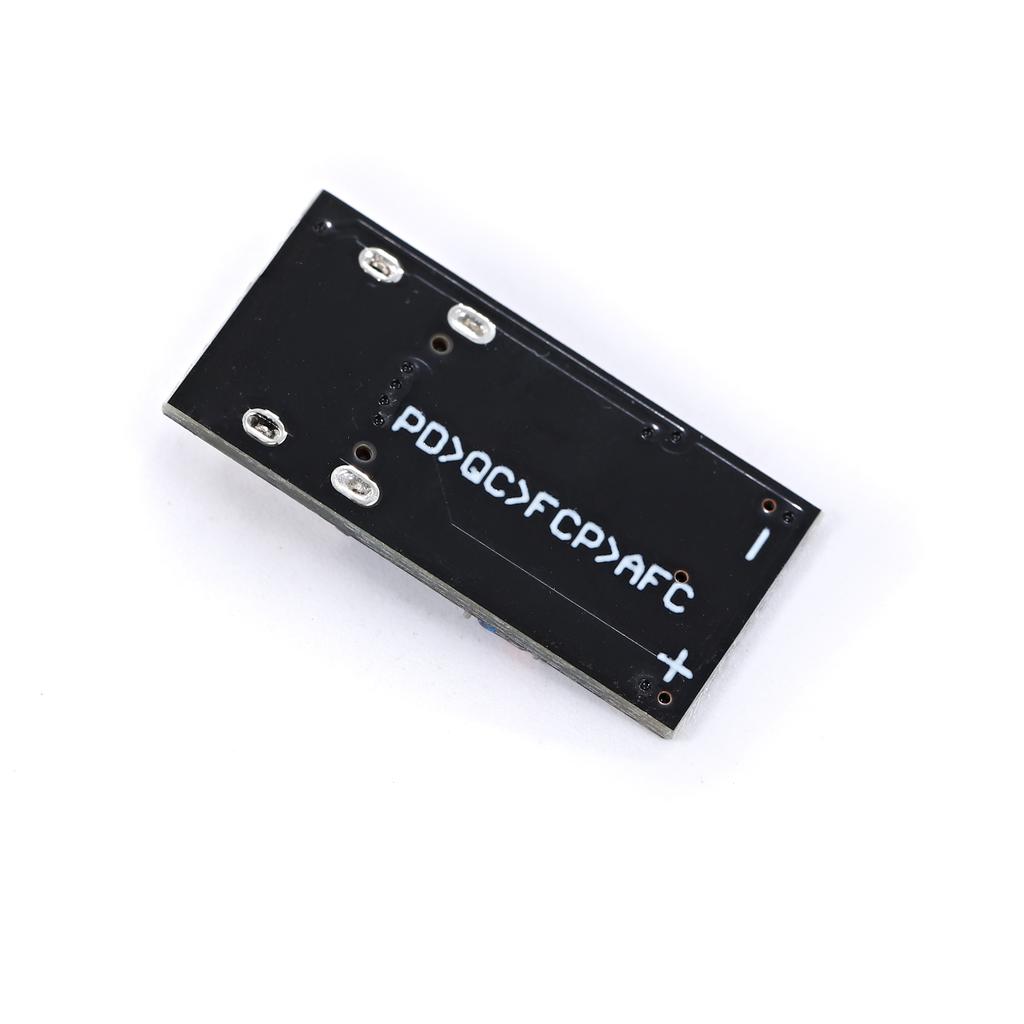

Supports PD>QC>FCP>AFC protocols
Supports 9V/12V/15/20V voltages
Can automatically step down the voltage block according to the power supply voltage output capability (20V decoy can successfully decoy a power supply with a maximum output of 12V to output 12V)
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
