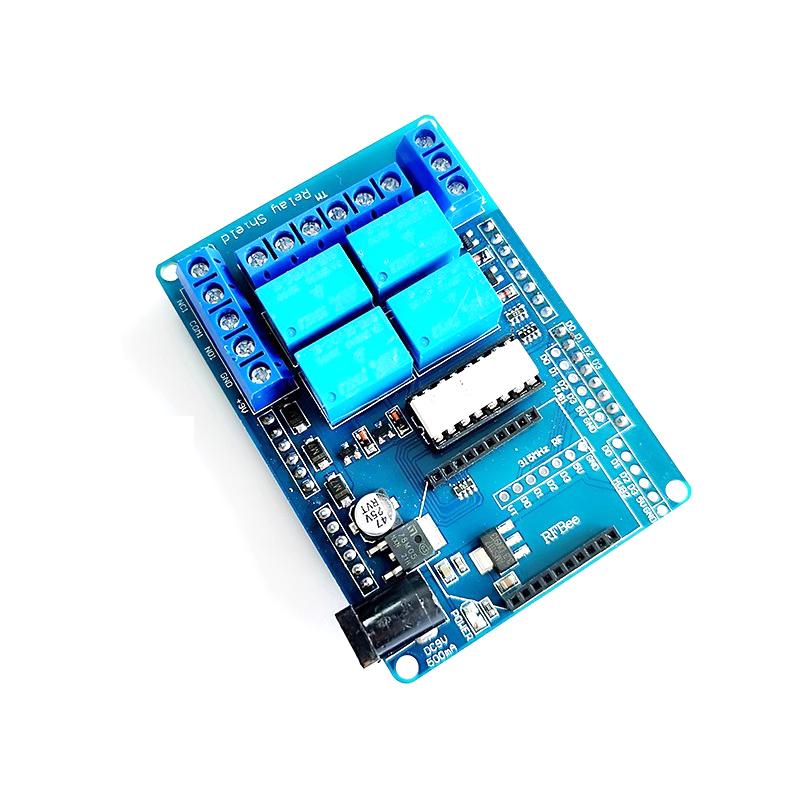

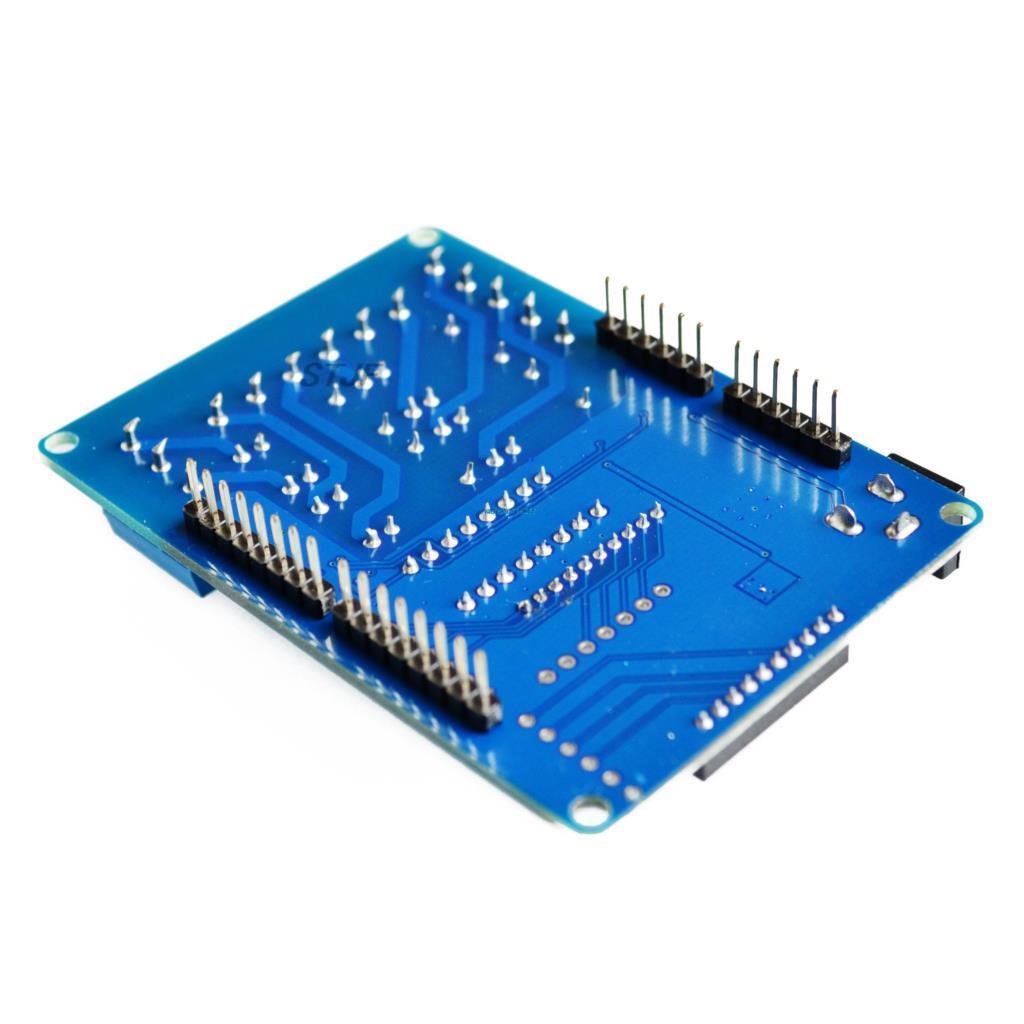

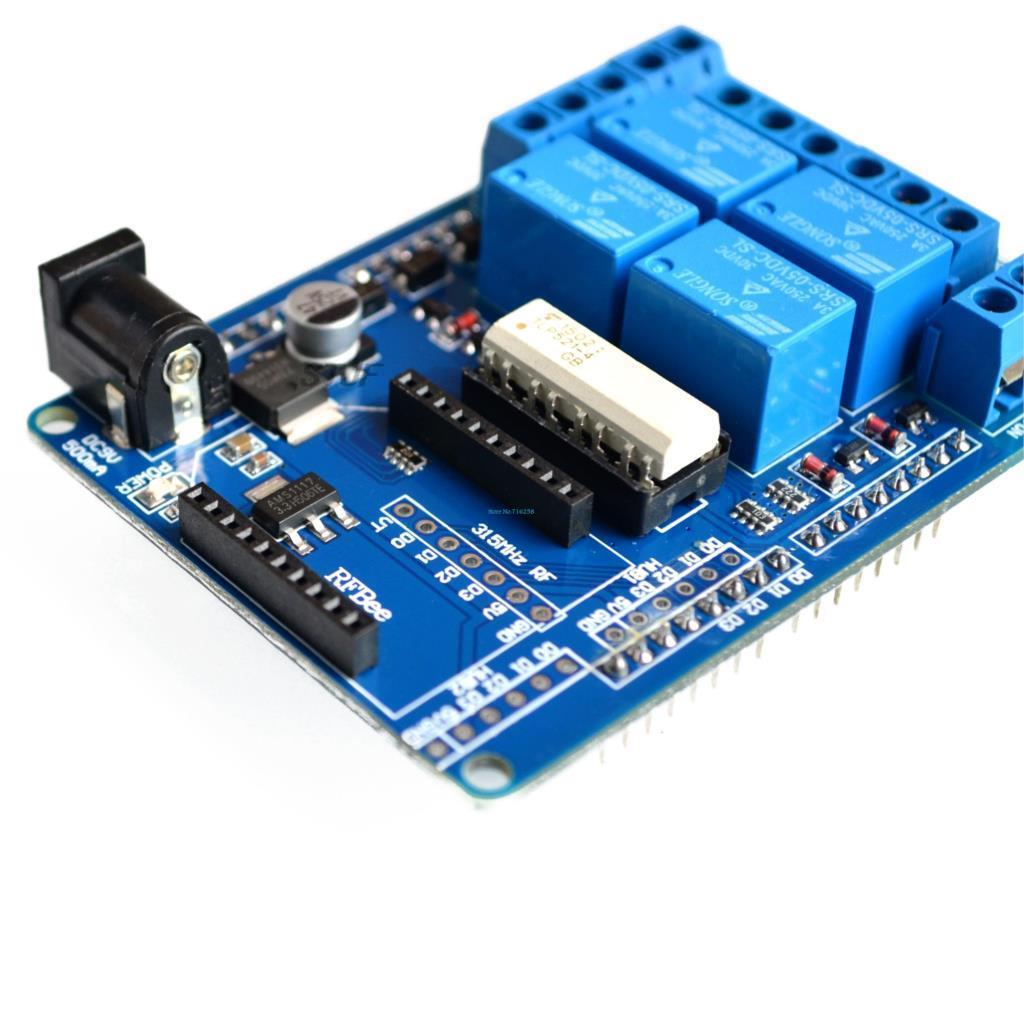

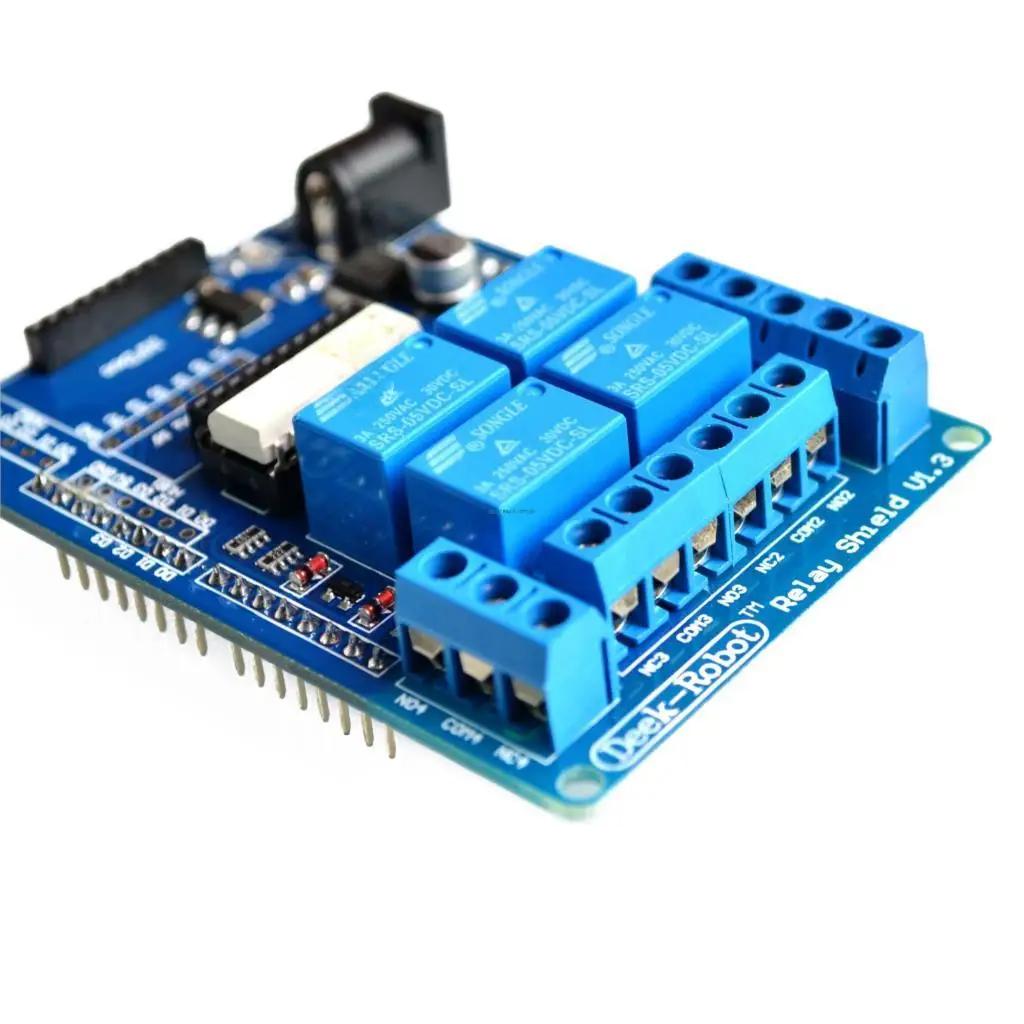

Four-way 5V Relay Expansion Board Relay Shield V1.3

Hign-concerned Chemical : None Package : DIY Module

Model Number : Four-way 5V relay expansion board Dissipation Power : ... Supply Voltage : 7-12V Application : Computer Type : Voltage Regulator

Operating Temperature : -40℃~+80℃ Origin : China Condition : New Functions : Electronic Module Range of application : Switch And Sensor For Arduino STM

For dedicated Relay shields,support 4 channel 3A relay control,xbee wireless module and so on.Independent external power supply and opto-isolator.Effective to avoid being accused of electromagnetic interference of the device. Specification: Power apply:7V-12V(>200mA) Relay Max Switching Voltage : 240VAC/60VDC Relay Max switching current : 5A Contact load capacity: 1A 250VAC, 3A 120VA/24VDC Wireless output interface: xbee/ Bluetooth Bee/ Wireless Programming Module Size: 8x 5.5x 2.8cm Package Included: 1PCS*70W DC 4-Mechanical Relays shield 9V For UNO R3 XBEE 315 433MHz RF
