Feature:
1. Accurate Position Detection: The thin film sensing resistor offers excellent position sensing capabilities. It responds to external pressure with a linear output voltage change, allowing for accurate detection of position changes across its sensing area. The output voltage (V1) ranges linearly from 0V to V+ as pressure is applied, making it suitable for applications requiring accurate position tracking.
2. Robust Mechanical Performance: Constructed with high performance polyester film and green materials, this thin film force sensing resistor boasts excellent mechanical durability. The use of conductive materials and graphene pressure sensitive components enhances its responsiveness and reliability, ensuring optimal performance in various conditions.
3. User Friendly Installation: The force sensitive resistor pressure transducer features a double sided adhesive backing, simplifying installation processes. This allows users to securely attach the sensor to different finishes without the need for complex mounting hardware, making it suitable for various applications and environments.
4. Versatile Applications: The thin film bend sensor is highly adaptable, making it suitable for a range of applications, including position sensing, potentiometers, detent switches, and other position detection scenarios. Its simple circuit design ensures easy integration into various systems, providing versatility across industrial and consumer uses.
5. Long Lifespan And Fast Response Time: The thin film force sensor pressure resistor is designed for longevity with a high durability rating, ensuring prolonged use without degradation in performance. Its quick response time enables real time position detection, making it an excellent choice for applications that demand immediate feedback and high accuracy.
Specification:

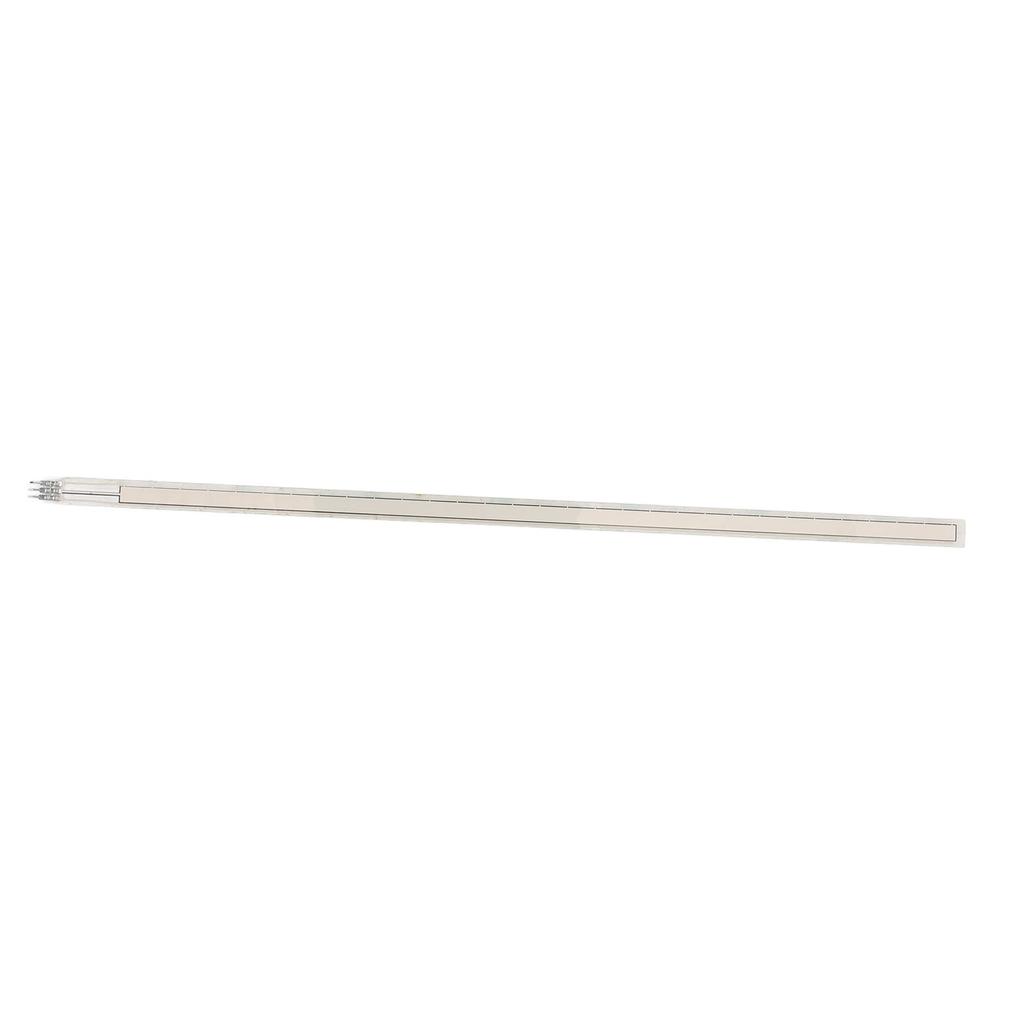

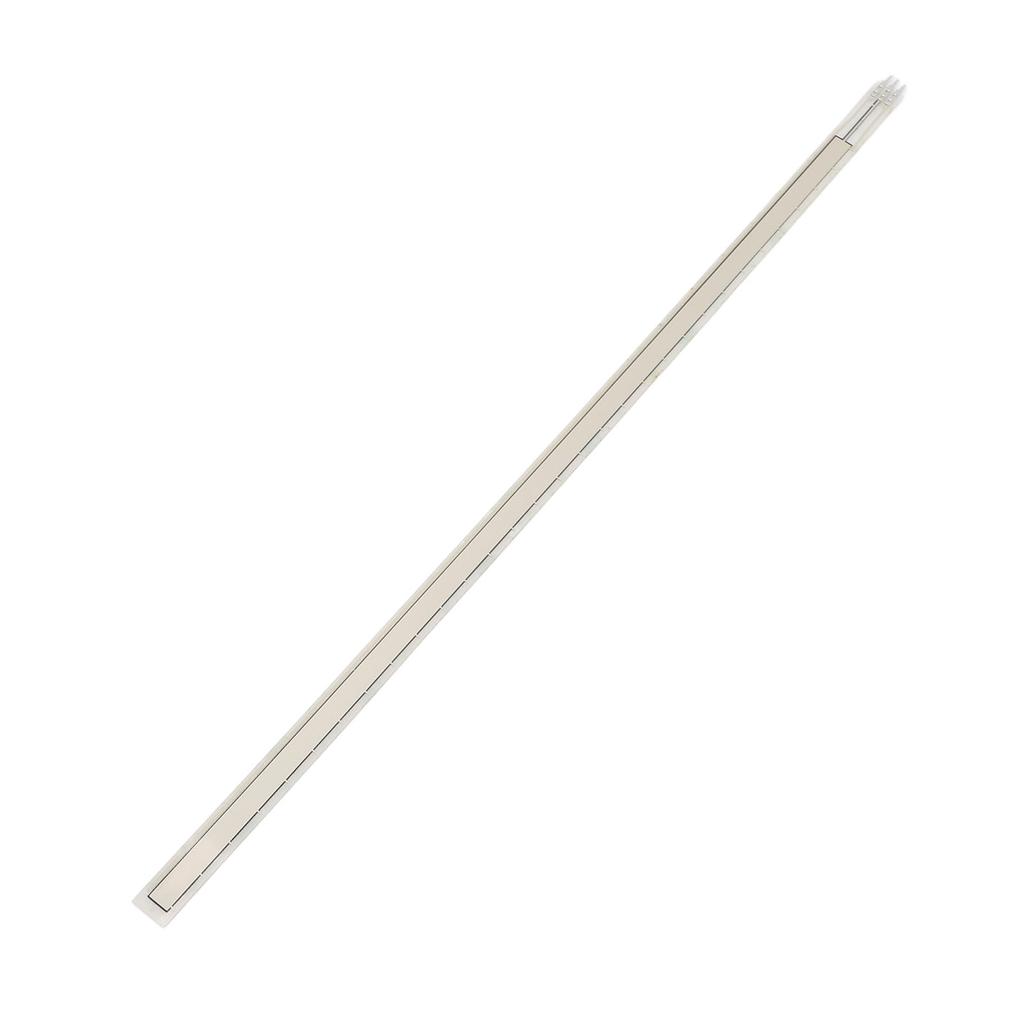

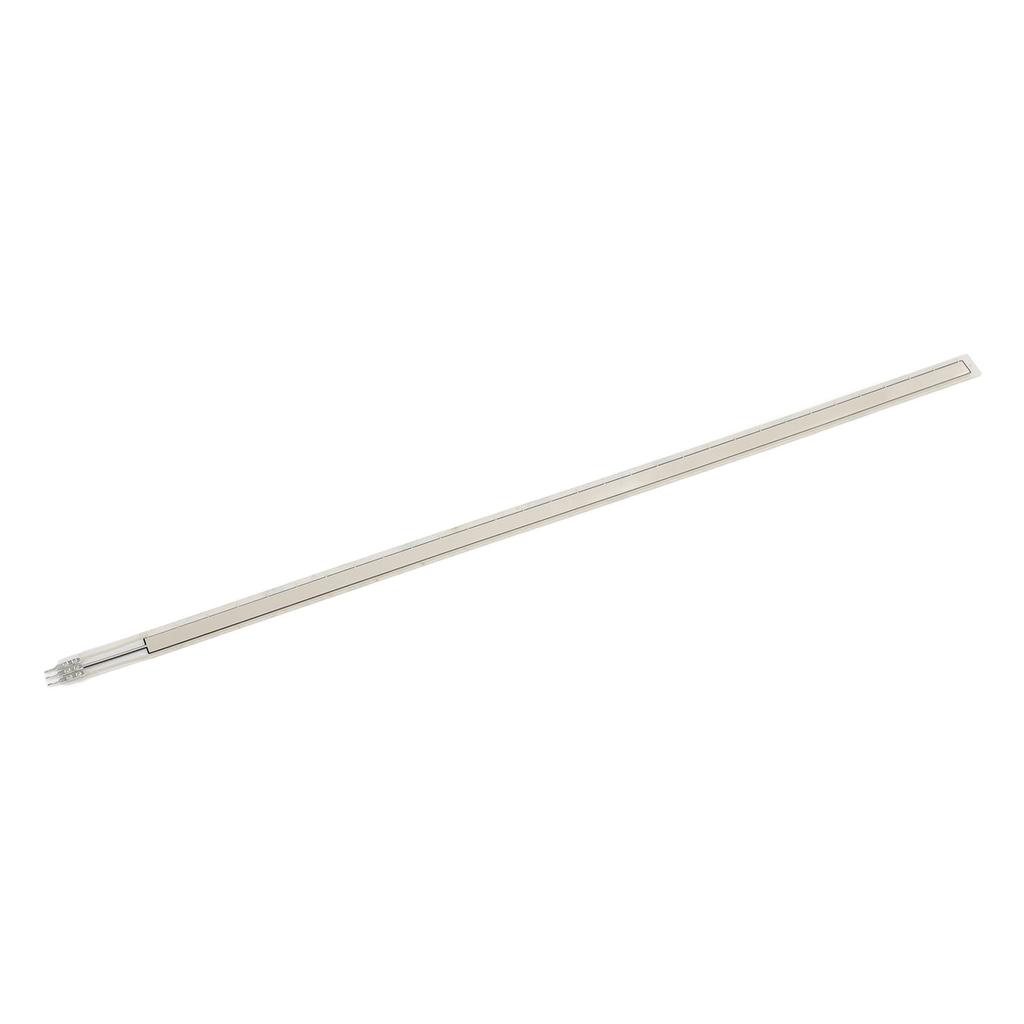

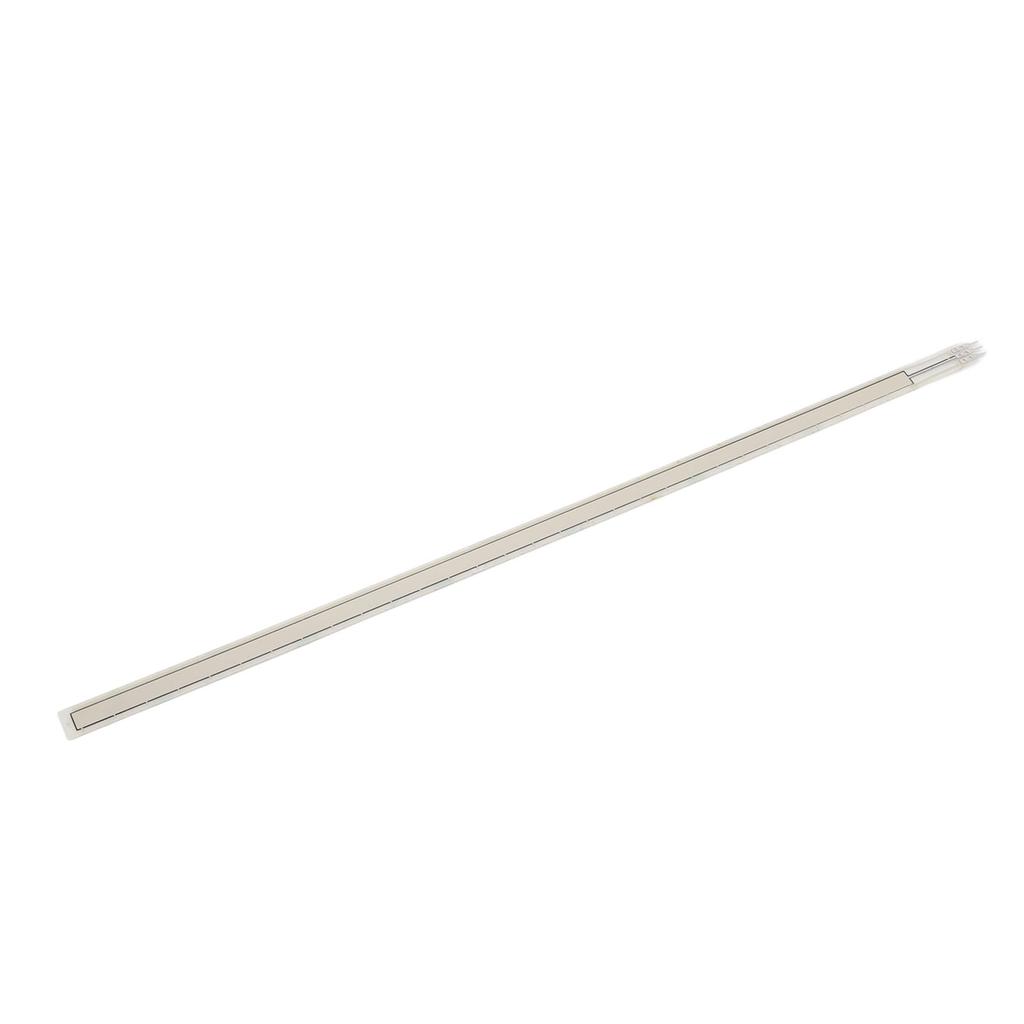

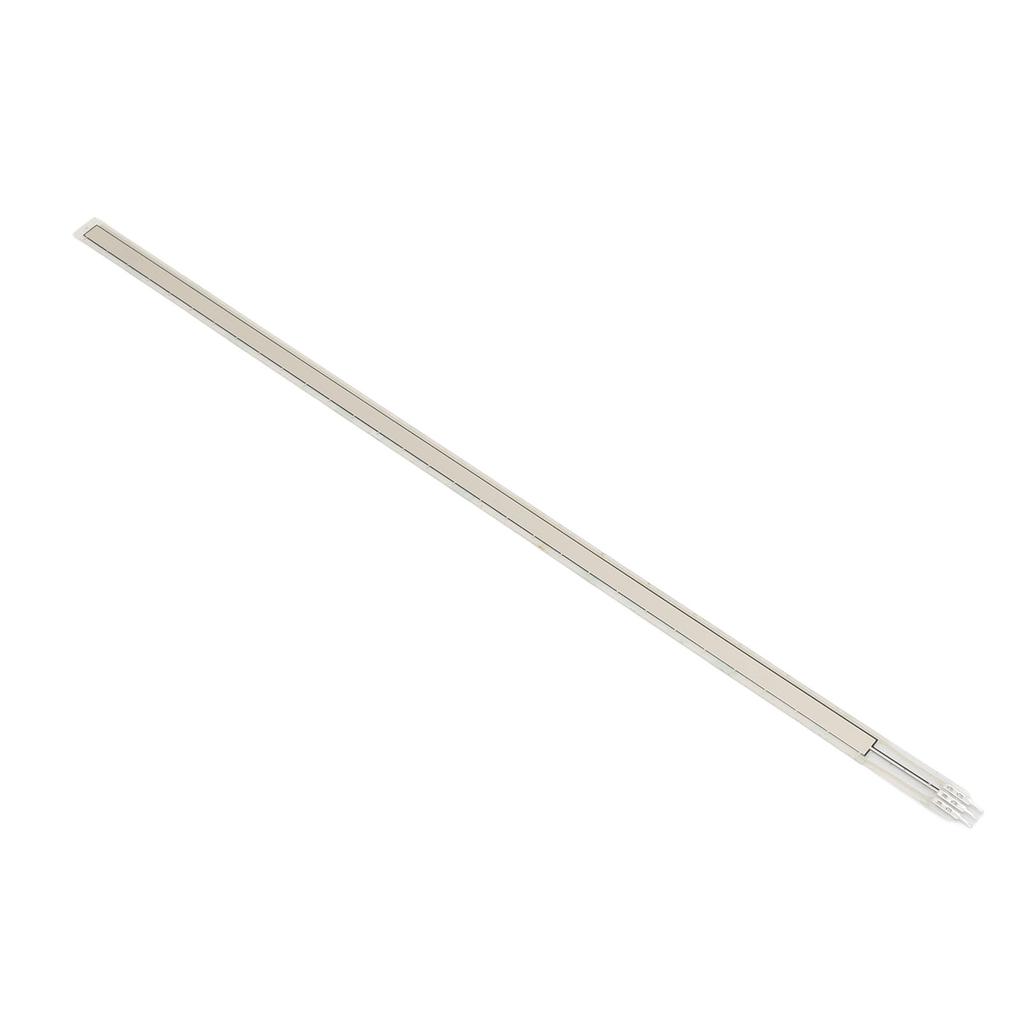

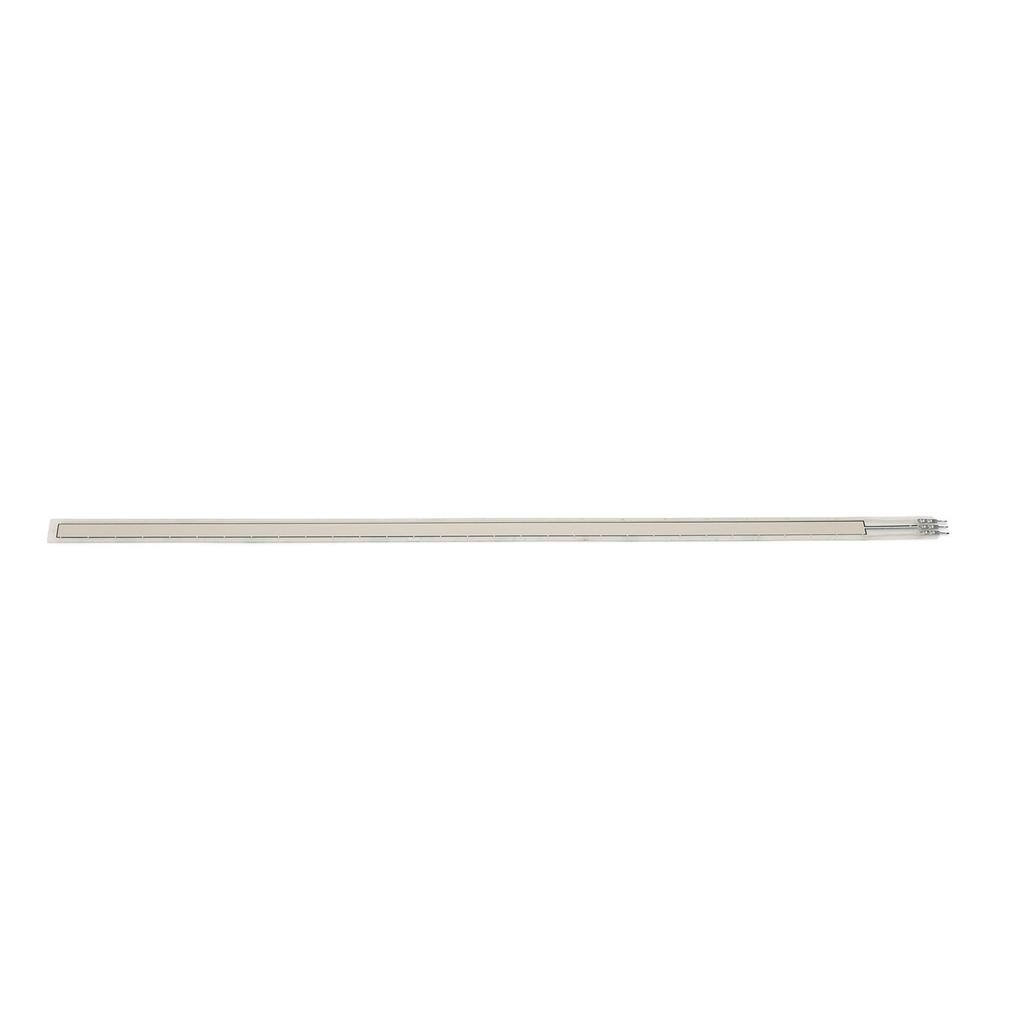

Item Type: Thin Film Pressure Sensor
Material: Polyester Film, Highly Conductive Materials, Graphene Pressure Sensitive Materials
Thickness: Approx. 0.4mm 0.016in
Style: Rectangular
Trigger Force: 20g50g
Recommended Pressure: 20g200g
Recommended Pressure Head: Arc Shaped Leaf Spring, D3 Plastic, Rubber Ball
Conductive Contacting Resistor: Less than 10 Ohm
Pressure Application Method: Leaf Spring, Spring, Weight Block
Unactivated Resistor: Infinite (V1V0, V1V+)
Activation Time: Less than 0.01S
Operating Temperature: 20 celsius +65 celsius
Durability: Over 1 Million Times (Normal Flexible Pressing)
Initial Resistor: 30K, Customizable
Response Time: <1ms
Rain Proof : No
Dust Proof: Yes
Electromagnetic Interference EMI: No
Electrostatic Discharge EDS: No.
Package List:
1 x Thin Film Pressure SensorAccurate Position Detection: The thin film sensing resistor offers excellent position sensing capabilities. It responds to external pressure with a linear output voltage change, allowing for accurate detection of position changes across its sensing area.
