Feature:
1. 4 Pole Rotor Design: 4092 brushless motor has strong torque and stable output power, low friction, low noise and high accuracy.
2. Reliable Performance: High hardness aluminum CNC shell, high temperature resistant copper coil 0.2mm thick silicon steel sheet, high permeability, high silicon content, good insulation and heat resistance.
3. Rotor Output Shaft and Bearing: Explosion proof rotor, high toughness stainless steel output shaft, high accuracy bearing make the 4092 1450KV brushless motor super durable.
4. Detachable Structure: The detachable structure design is convenient for cleaning and maintenance, effectively extending the service life of the motor and improving the working efficiency.
5. Waterproof 50A ESC: The all weather waterproof and dustproof design of 150A ESC is specially designed for RC model cars, with excellent starting, accelerating and linear functions.
6. Multiple Protection Functions: Low voltage cut off protection of lithium or nickel battery, ESC overheat protection, motor overheat protection, throttle signal loss protection, motor locked rotor protection.
7. Compatible With: Built in switch mode 6.1V 5A or 7.4V 5A (switching mode), compatible with high torque and high voltage servo. Easy to program and compatible with pocket size program cards.
Specification:

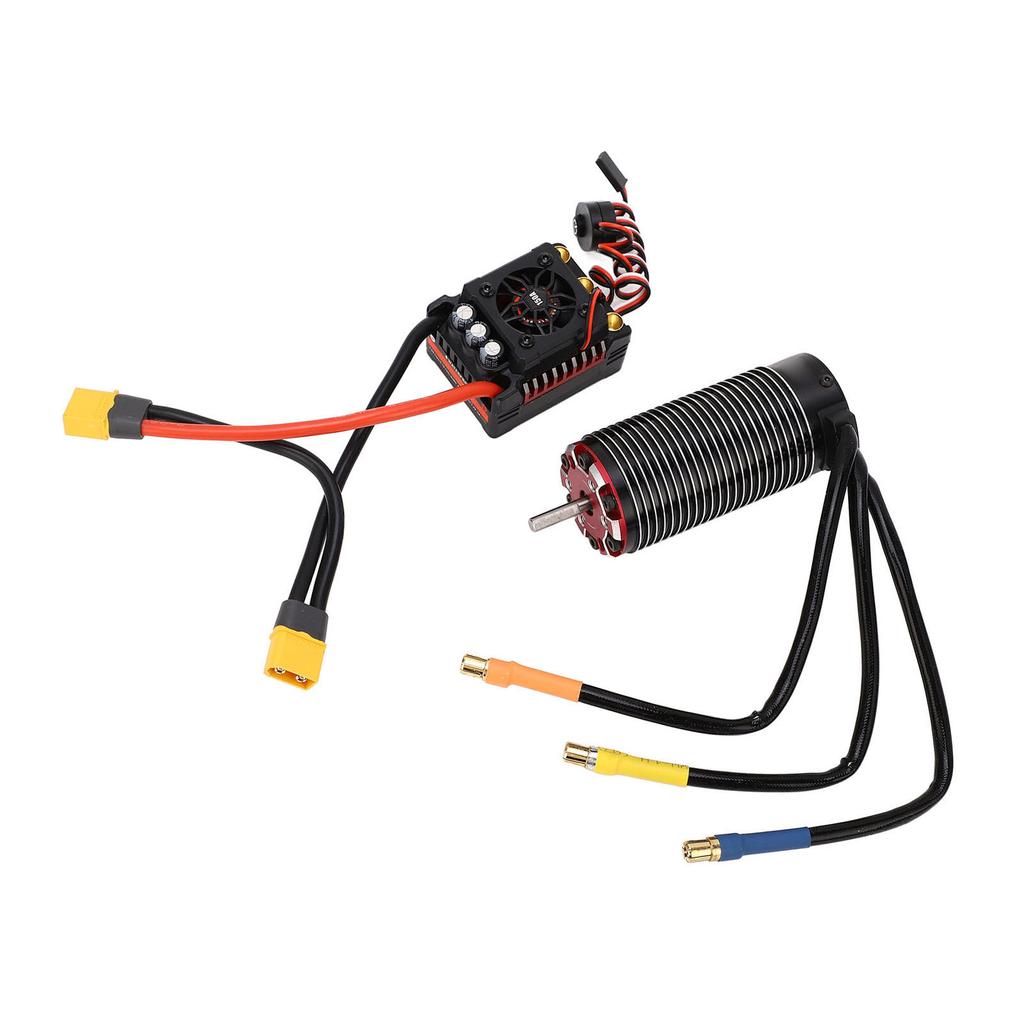

Item Type: 4092 Brushless Motor and 150A ESC
Material: Aluminum Alloy, Plastic, Copper, Steel
Color: Black
Model: 4092
Weight: Approx. 737g / 26.0oz
KV(RPM/V): 1450KV
Output Power: 4200W
Maximum Speed: 50000
Maximum Voltage: 28V
Maximum Current: 150A
Number of Motor Poles: 4
Motor Diameter: Approx. 40mm / 1.6in, 42mm / 1.7in
Motor Length: Approx. 92mm / 3.6in (Excluding Shaft)
Shaft Diameter: Approx. 5mm / 0.2in
Shaft Length: Approx. 20mm / 0.8in
Gold Plated Joint: Approx. 6.5mm / 0.3in
150A ESC:
Continuous Current, Burst Current: 150A, 1080A
Motor Type: Non Inductive Brushless Motor
4S Lipo or 12S NiMH:
1. Sports Car: 42xx Motor KV2. Off Road/Truck: 42xx Motor KV6S Lipo or 18S NiMH:
1. Sports Car: 42xx Motor KV2. Off Road/Truck: 42xx Motor KVInternal Resistance: 0.00028ohm
Battery: 3~6S Lipo, 9~18S NiMH
BEC Output: 6.1V/5A or 7.4V/5A (Switching Mode)
ESC Size: Approx. 57.5x45x37mm / 2.3x1.8x1.5in (Excluding Line)
Applicable for Arrma for?Traxxas Losi 1/8 1/7 Series 6S Models:
1. for Arrma 1/7 Mojave Short Course
2. for ZD Racing 1/7
3. for Arrma 1/8 Typhon
4. for Arrma 1/7 FIRETEAM
5. for?Traxxas 1/7 UDR
Package List:
1 x 4092 Brushless Motor
1 x 150A ESC
Note:
1. Due to manual measurement, please allow 1?3mm error, thank you!
2. Due to the difference between different displays, the picture may not reflect the actual color of the item.
3. Please unload the cooling fan before using this ESC in water and clean and dry after use to avoid connector rust.
