Feature:

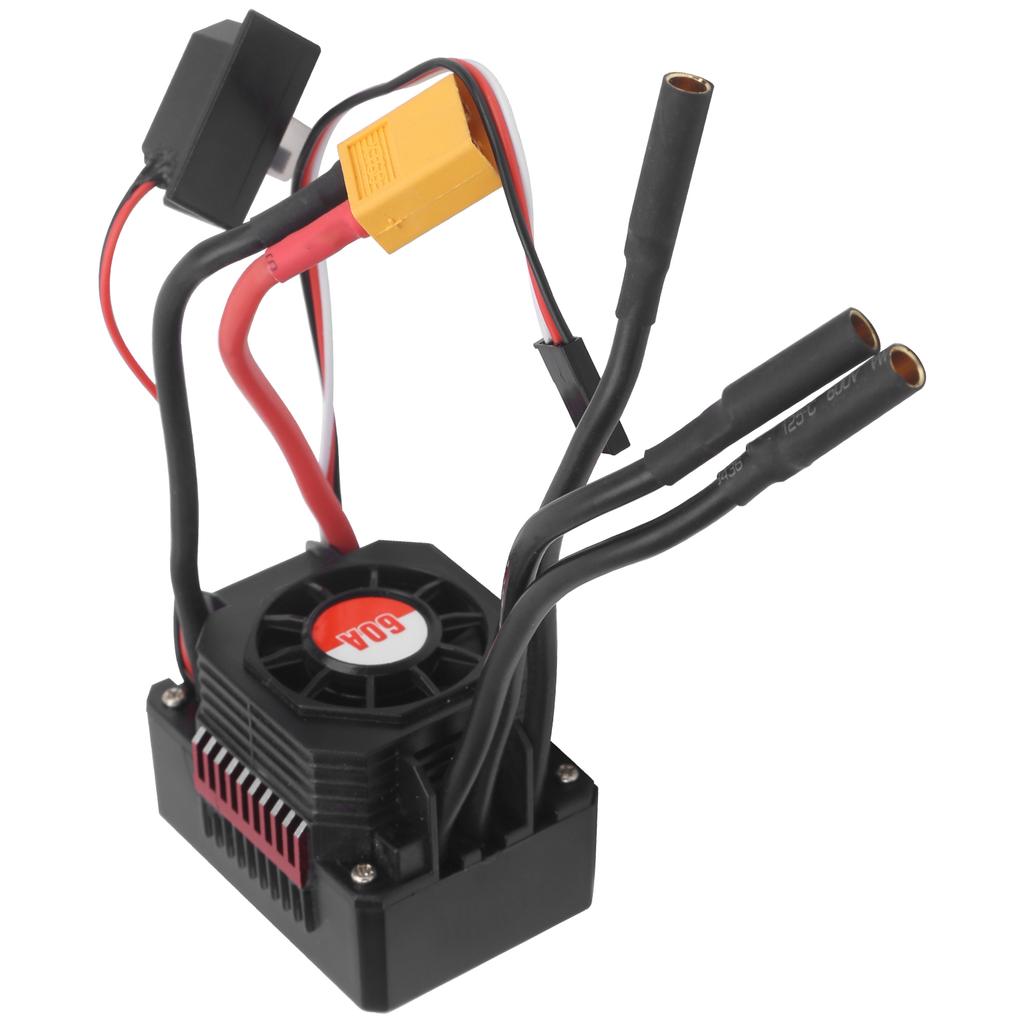

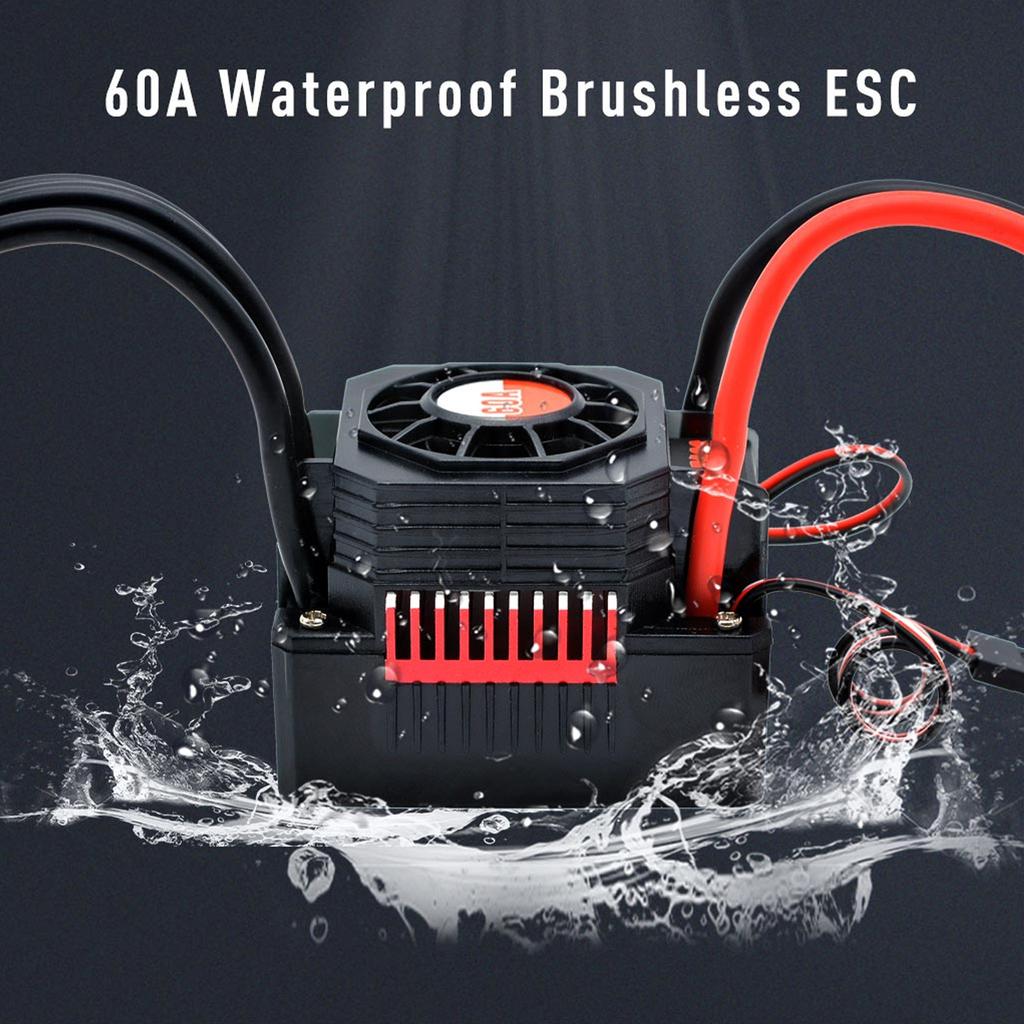

1. 60A Waterproof brushless ESC with XT60 plug special designed for 1/10 RC car model vehicle.
2. With excellent start, acceleration and linear characteristics, designed for remote?controlled car
3. Battery low voltage cut off protection, overheating signal loss protection, motor blocking protection, multiple protection functions.
4. Excellent heat dissipation, strong current resistance, easy to program and compatible with pocket programming card.
5. Made of high quality plastic and alloy materials, waterproof and dustproof, durable.
Specification:
Item Type: 60A ESC
Material: Plastic + Alloy?
Color: Red Black?
Continuous Current: 60A
Maximum Current: 360A
Motor Type: Sensorless brushless motor
For Lipo 2S or 6 NiMH cells:
1. Highway: 2. Off-road: < 4000KV 3660 engines or smaller
For Lipo 3S or 9 NiMH cells:
1. Highway: < 4000KV 3660 engines or smaller
2. Off-road:
?
Resistance: 0.0007 ohm
Battery: 2-3S lipid / 4-9 battery NiMH
BEC Output: 5.8V / 3A (Switch mode)
Size: Approx. 51.5 x 38.5 x 38.5mm / 2 x 1.5 x 1.5in
Compatibility: Suitable for 1/0 RC car
Instructions:
1.Connect the BEC wire to the receiver.
2.Connect the motor wire with ESC.
3.Turn on the transmitter.
4.Connect the battery pack to the ESC, then turn on E.
5.When the motor is connected to the battery, it makes a beep sound.
6.When the throttle lever is in neutral, the motor will beep again
7.ESC works.
Trouble Removal:?
1.Check the connection between the battery pack and the motor if the motor does not work and no sound is emitted.
2.If the power indicator flashes, check the voltage of the battery pack, which should be 5V-13V.Signal line, etc.Please check the transmitter TH. Adjust until the motor starts beeping again.
3.If the motor makes a beep sound only, check all connections: the BEC wire, the transmitter and the remote control.
4.If it cannot be accelerated, please check the battery, whether the voltage is too low or the electric temperature is too high. If the battery voltage is too low, please replace the battery.If the electrical temperature is too high, check all connections.If not, press the EPA button on your remote control.
5.If the car stops suddenly while in service, check motor connections and roadblocks
6.If the car is going in the opposite direction (a transmitter can be used), exchange two wires between the electric regulator and the motor.
Package List:
1 x 60A Waterproof ESC
1 x Manual
Note:
1. Please allow 1?3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. Remove the cooling fan before using the ESC in water; Clean and dry immediately after use to prevent the connector from rusting.
