Safety Standard Registration Number: SST-AX1000MCGD-A
Color: Black (Lead-free paint)
Maximum DC output: 1000W
Power density: 517W / liter
Load range:
Output +3.3V +5V +12V +5VSB -12V
Maximum current (A) 22A 22A 83.5A 3A 0.3A
Min current (A) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5/-7% ±5% ±5%
Line regulation (%) ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p) 30mV 30mV 70mV 40mV 40mV
+3.3V & +5V Combine: 120W
+12V Combine: 1000W
Input voltage: 90 ~ 264 Vrms
Input Frequency Range: 47Hz ~ 63Hz
PFC: Active PFC (PF>0.9 at full load)

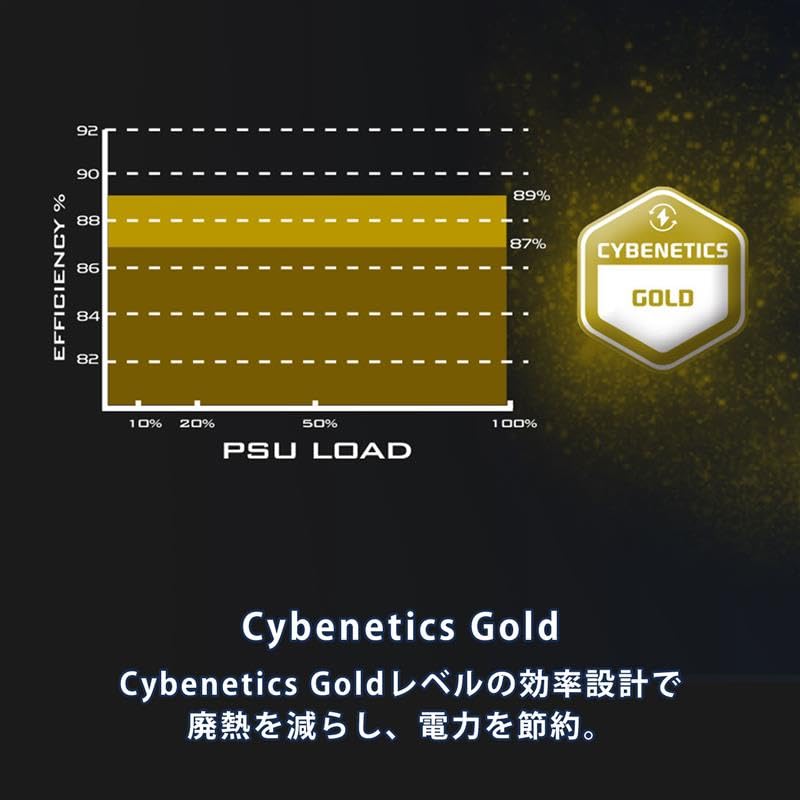

Efficiency: ≥87% & <89% overall efficiency
MTBF: 100,000 hours
Operating Temperature: 0°C ~ 50°C
Connectors:
1 x 24/20 pin motherboard connector
2 x 8/4 pin EPS/ATX 12V connectors
6 x 8/6 pin PCIe connectors
1 x 12+4 pin 12VHPWR connector
12 x SATA connectors
3 x 4 pin peripheral connectors
1 x 4 pin floppy connector
Cooling System: Quiet 135mm FDB fan
Noise Level: 0 dBA (min)
Certification: Cybenetics Gold
Form Factor: ATX (PS2)

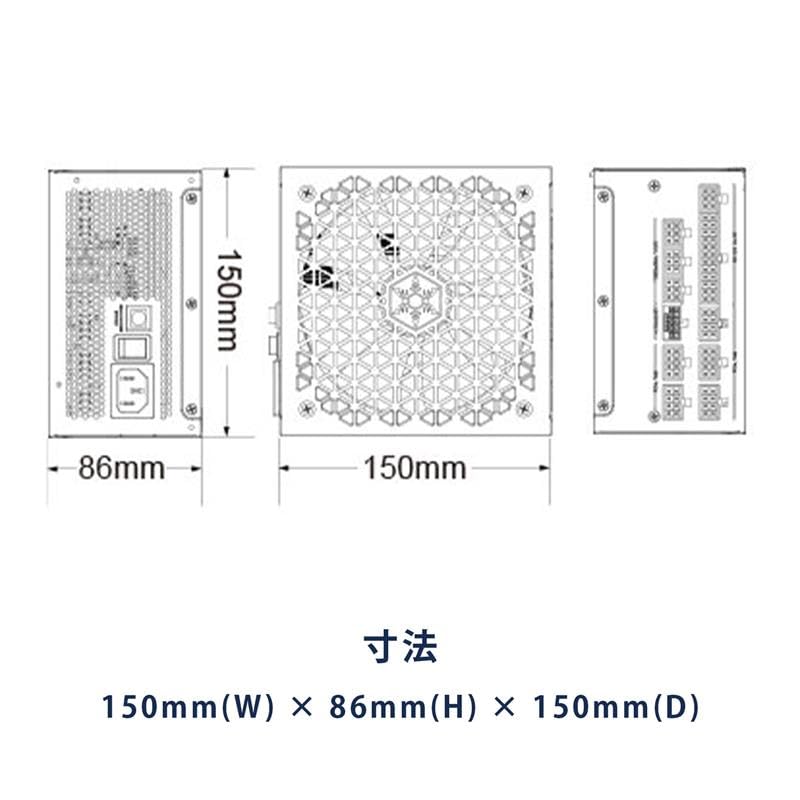

Dimensions: 150mm (W) x 86mm (H) x 150mm (D)
Weight: 2.88 kg

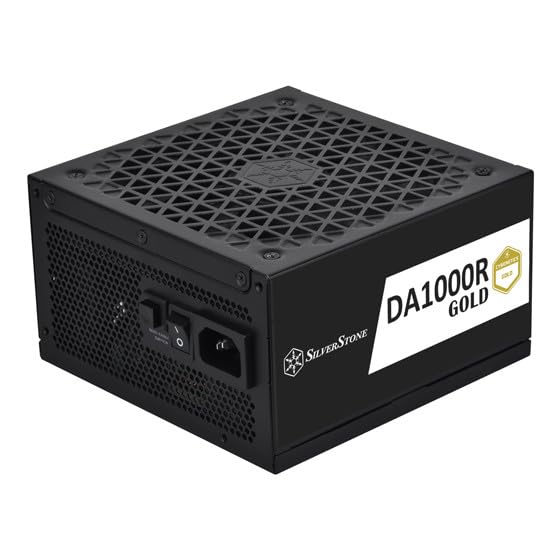

[Decathlon Series] Cybenetics Gold 1000W PCIe 5.0 Fully Modular ATX PSU
Equipped with Gen5 12VHPWR PCIe connector, compliant with Intel ATX 3.0 standard
Cybenetics Gold efficiency certified
1000W continuous output at 50℃ operating temperature
100% modular cable
