12V Noiseless Motorhome Exhaust Fan Energy-saving Cooling Roof Ventilation Vent Silent Fan
Specification:
Model: i91055
Product Name: Caravan exhaust fan
Voltage:12V
Rotating speed: 1800r/min (Low noise type)
Air Volume: 60CFM

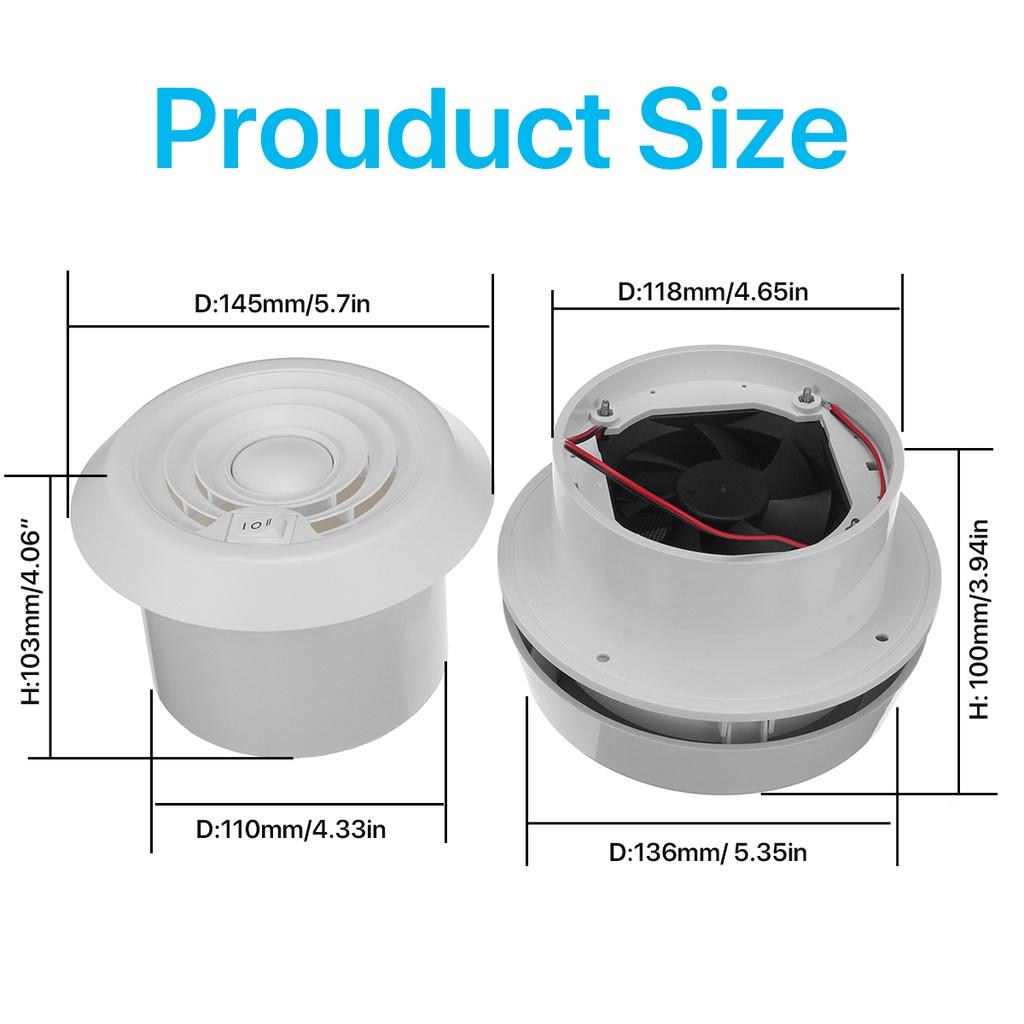

Fan diameter: 136mm / 5.35in

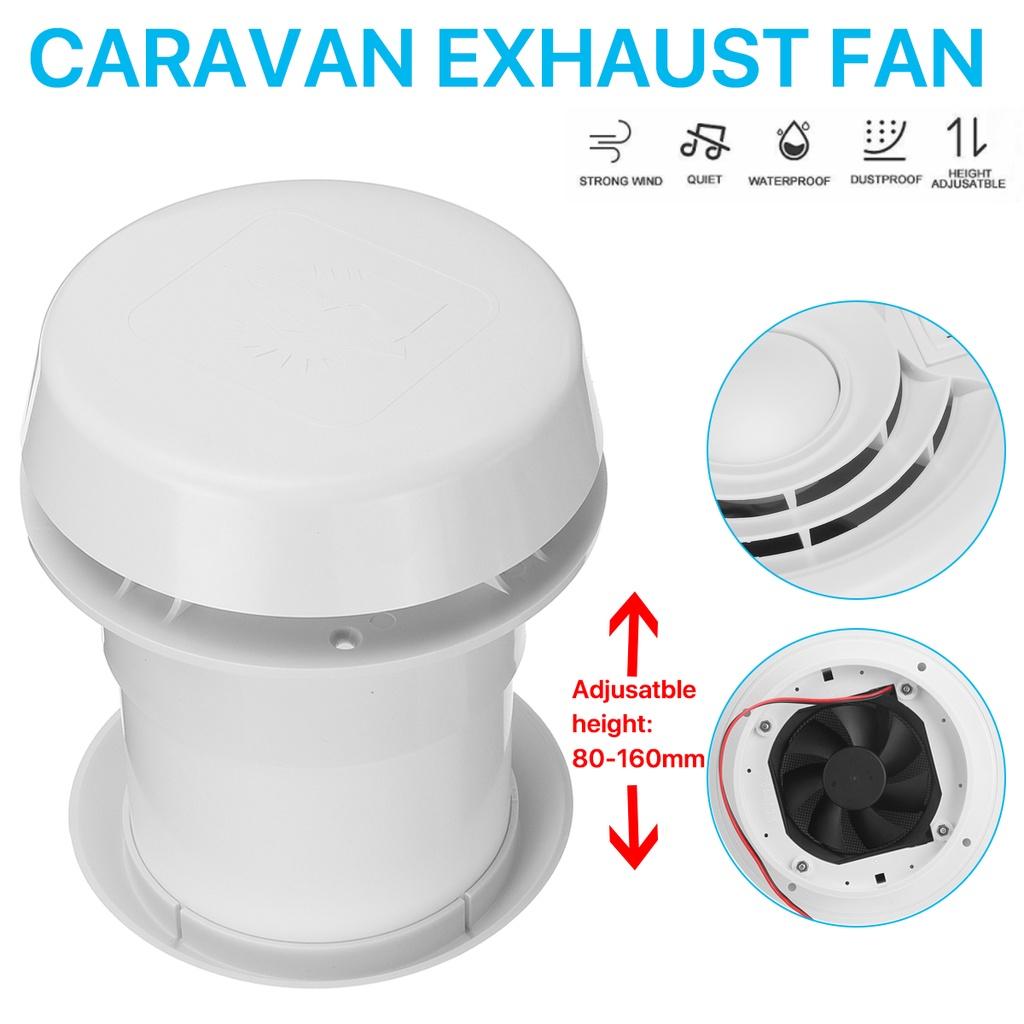

Adjusatble height: 80-160mm / 7.1in-6.3in
Fit hole diameter: 118mm / 4.65in
Inner diameter for extension tub: 120mm (4.72"") or 110mm (4.33"") PVC tube
Above-roof height after installation: 53mm (2.09""); Width: 150mm (5.91"")
Color: White
Material: Plastic
Installation: Roof mounted
Wiring Connection: Black cable - Negative , Red cable-Positive
Features:
- It is applicable for 12V motorhomes, trailers, RVs to use as an exhaust fan.
- Adjusatble height to fit your different installation requirements.
- Top mounting typed,which is space-saving.
- Waterproof,dustproof and energy-saving.
- Strong wind but quiet operation.
- Using the plastic and Metal, the product is lightweight and durable.

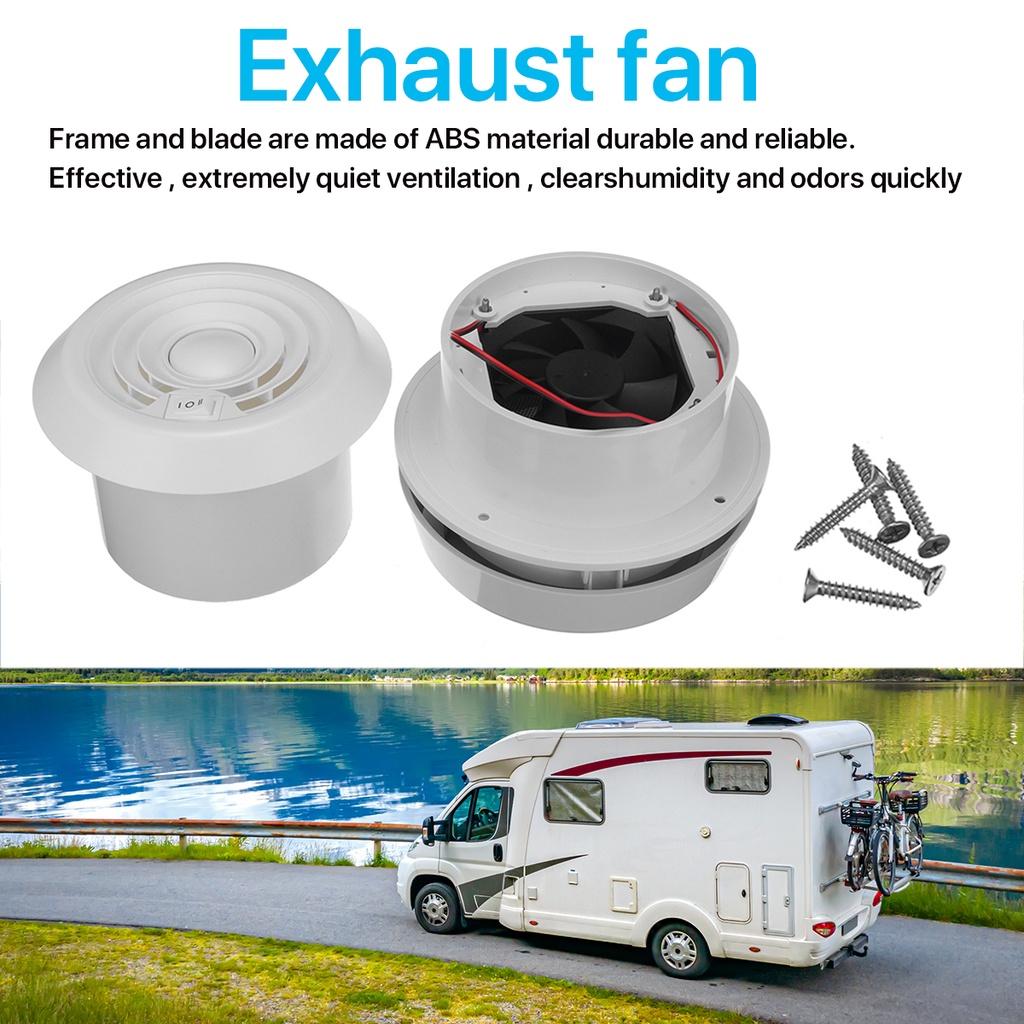

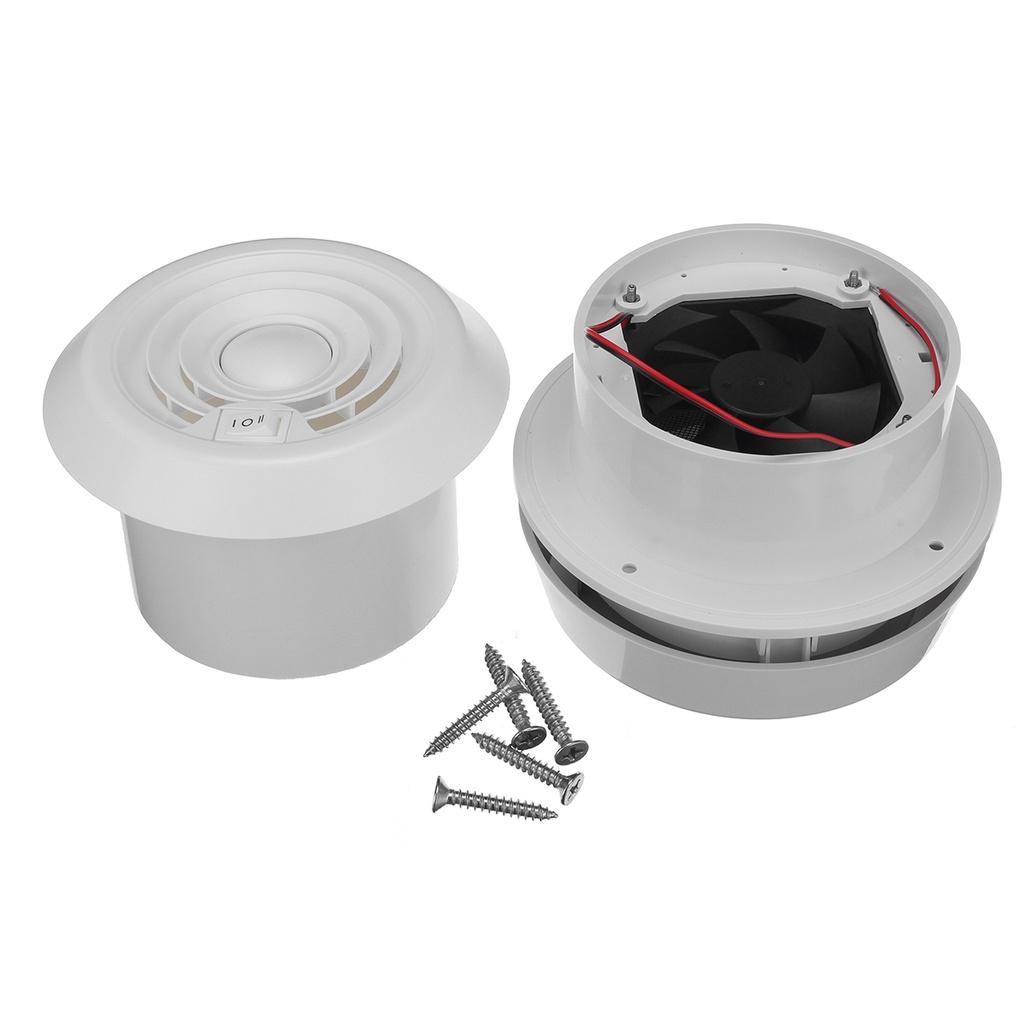

Package Included:
1x Motorhome Roof Vent Ventilation Cooling Exhaust Fan
1x Manual
1 pack of screws
Instructions for use:
1. Power connection: the red wire is the positive pole of the power supply and the black is the negative pole.
2. The height can be adjusted according to your needs. Use a saw to cut off a section along the car mark.
3. This style is silent. It does not involve multiple gears, so the switch on the product defaults that it will not involve multiple gears switching,
and only serves as a switch (ON-OFF). Can be connected or not. Wiring mode: the middle pin is connected to the positive pole of the power supply,
and one of the two pins is connected to the load (red wire of the fan).
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3. Although instruction is included.Professional Installation Is Highly Recommended!
