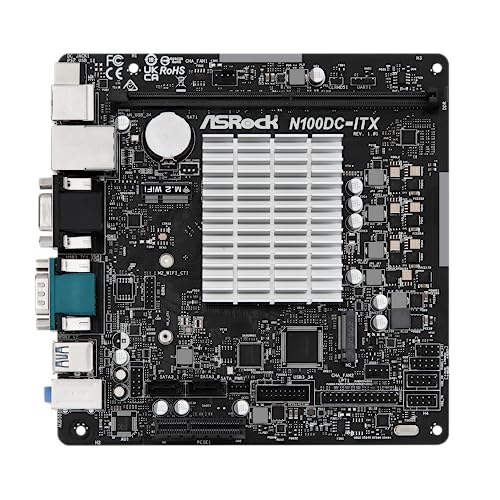

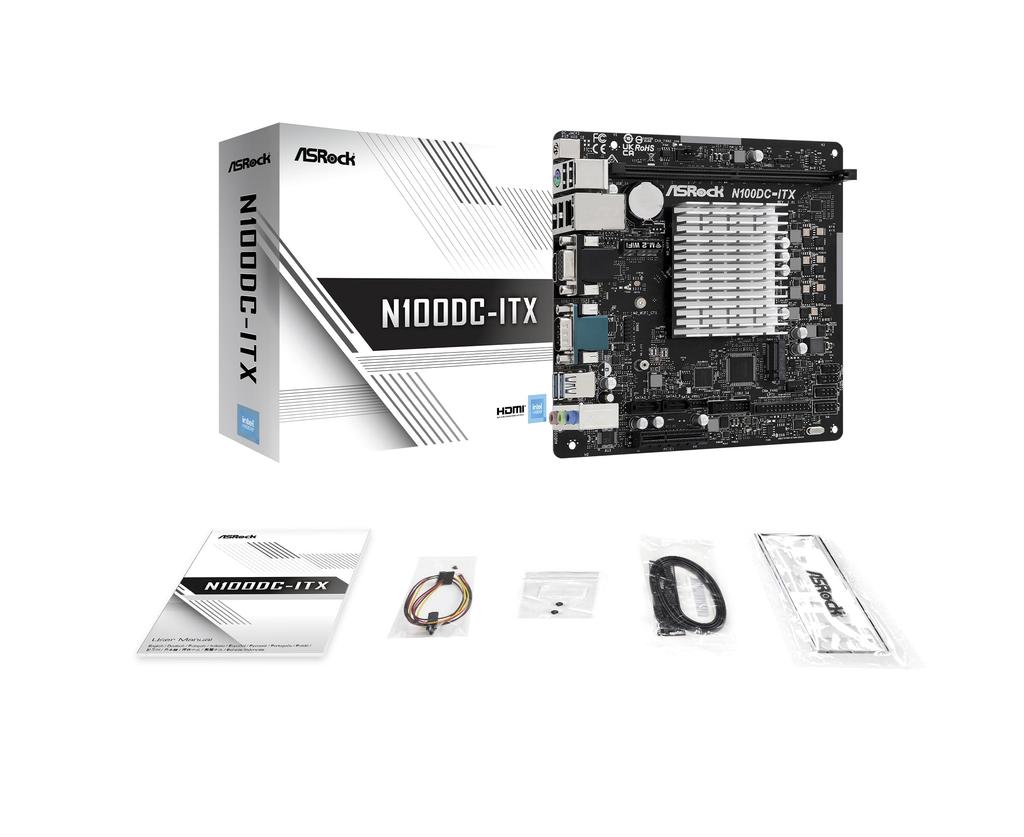

ASRock N100DC-ITX Onboard Fanless Motherboard with Intel N100 CPU, Mini ITX [Official Japanese Retailer Product]

[Socket] - [Chipset] Intel Quad-Core Processor N100 (Up to 3.4 GHz) - Supports Intel Turbo Boost Technology [Form Factor] Mini-ITX [Memory Specification ①] 1 x DDR4 [Memory Specification ②] Supports DDR4 non-ECC, un-buffered memory up to 3200* * Please refer to the Memory Support List on ASRock's website for more information. (http://www.asrock.com/) - Max. system memory capacity: 32GB [Power Phase] 2+1+1 Power Phase [GPU Features] Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Graphics Output: D-Sub, HDMI PCIE: 1 PCIe 3.0 x4 PCIE X1: - OC: - SLI: - CrossFire: - Sound: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) USB 2.0: 8 x USB 2.0 (4 rear, 4 front) USB 3.2 Gen 1 (USB 3.0) 5Gb/s: 4 x USB 3.2 Gen 1 (2 rear, 2 front) USB 3.2 Gen 2/Thunderbolt 3 10Gb/s: - USB 3.2 Gen 2 x 2 Type-C 20Gb/s: - Thunderbolt 4 (USB 4.0): - (br) Thunderbolt 4 Header: - (br) SATA3: 2 M.2 Slot: 1 M.2 (PCIe Gen3 x 2) [M.2 Slot Heatsink] - [M.2 Wi-Fi] 1 M.2 Key E for Wi-Fi [Wireless LAN (Wi-Fi)] - [LAN] Realtek Gigabit LAN [LED] - Equipped with Intel quad-core processor N100 Custom-designed heatsink and ultra-quiet fanless design Supports hardware-accelerated AV1 decoding In addition to the onboard LAN port, wireless connectivity is also possible via the M.2 (Key E) slot Supports 10-bit HEVC & VP9 encoding/decoding
