Features:
3.17 5mm shaft diameter, 4-pole 12-slot high-torque motor design.
High-purity copper windings are precision-engineered for maximum efficiency and energy conversion.
Precisely balanced rotor for maximum reliability and smoothness at maximum RPM.
Multiple protection features: low voltage cut-off protection, overheating protection, throttle signal loss protection, and program card support for adjustments.
Improved throttle response, excellent acceleration, powerful braking, and throttle linearity.
Replacement parts for HSP HPI Wltoys 1:8 / 1:10 remote control cars and boats.
Specifications:

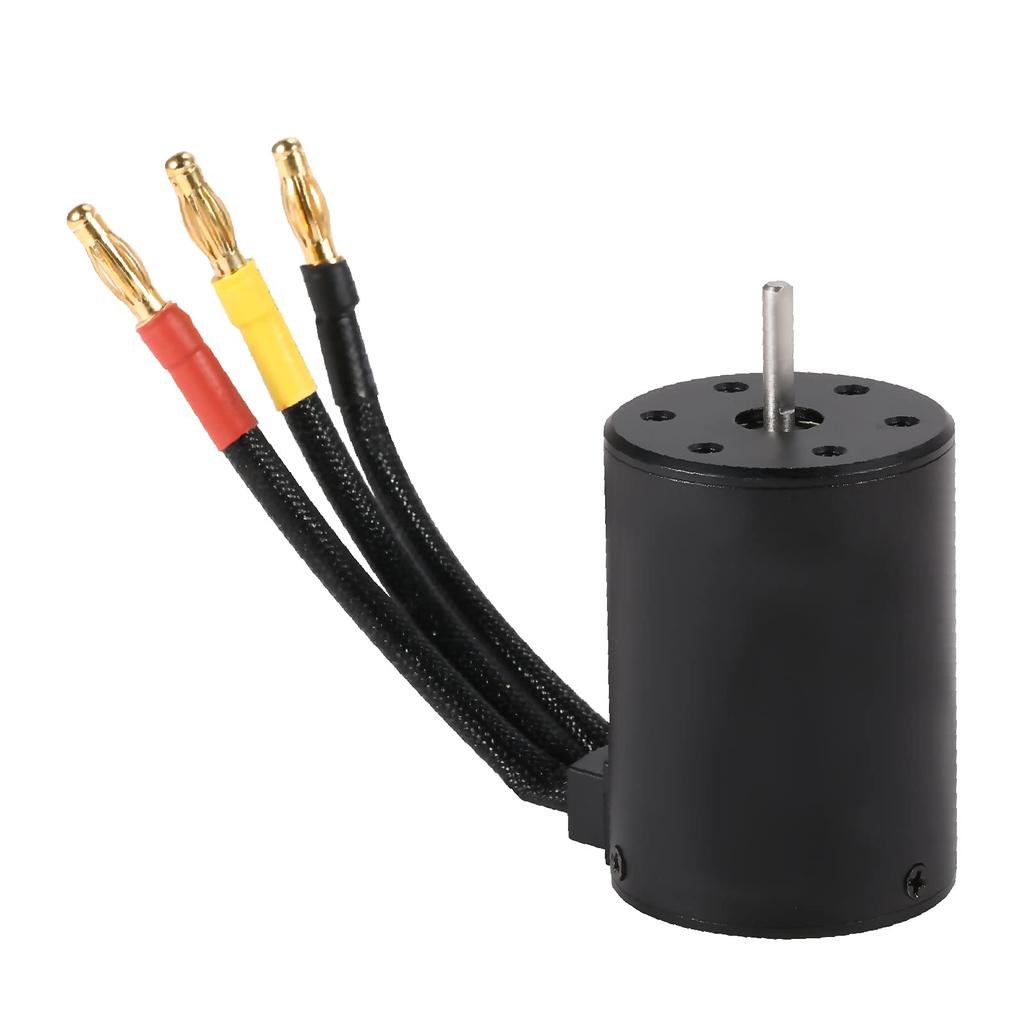

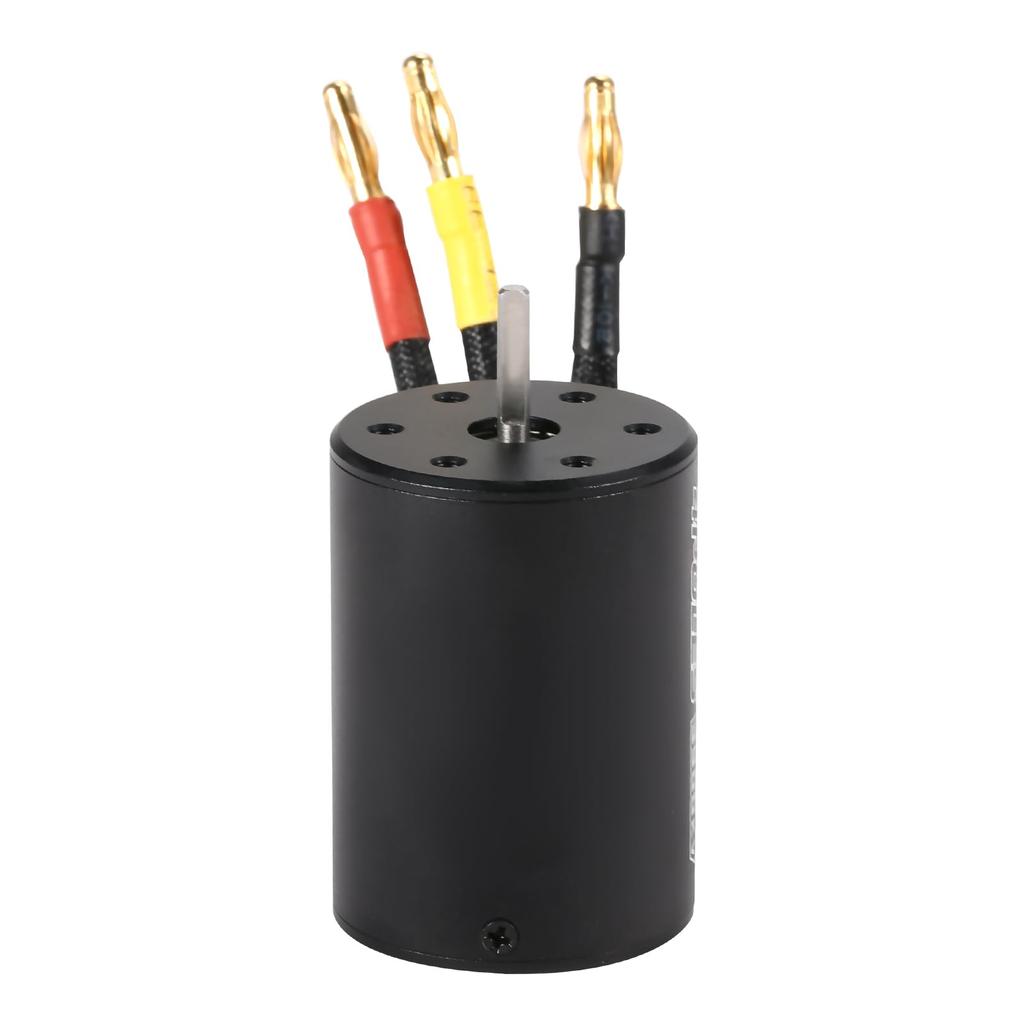

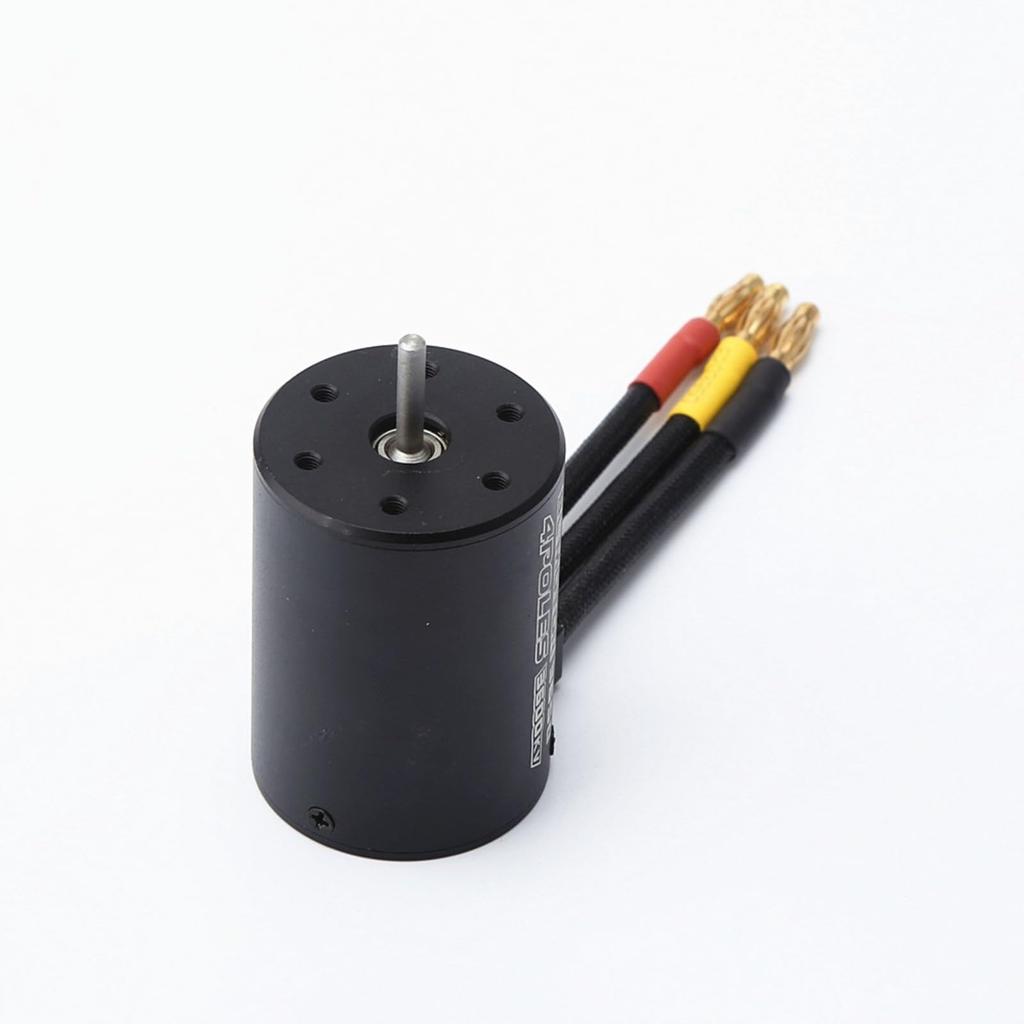

Product Name: 3650 4500KV Brushless Motor
Watts: 900W
Max Voltage: <12V
Max Amps: 75A
KV (RPM/Volts): 4500KV
Max RPM: 50,000
Diameter: 36mm
Length: 50mm
Shaft Length: 15mm
Outer Shaft Diameter: 3.175mm
Inner Shaft Diameter: 5.00mm
Plug Type: 4mm Golden Banana Plug

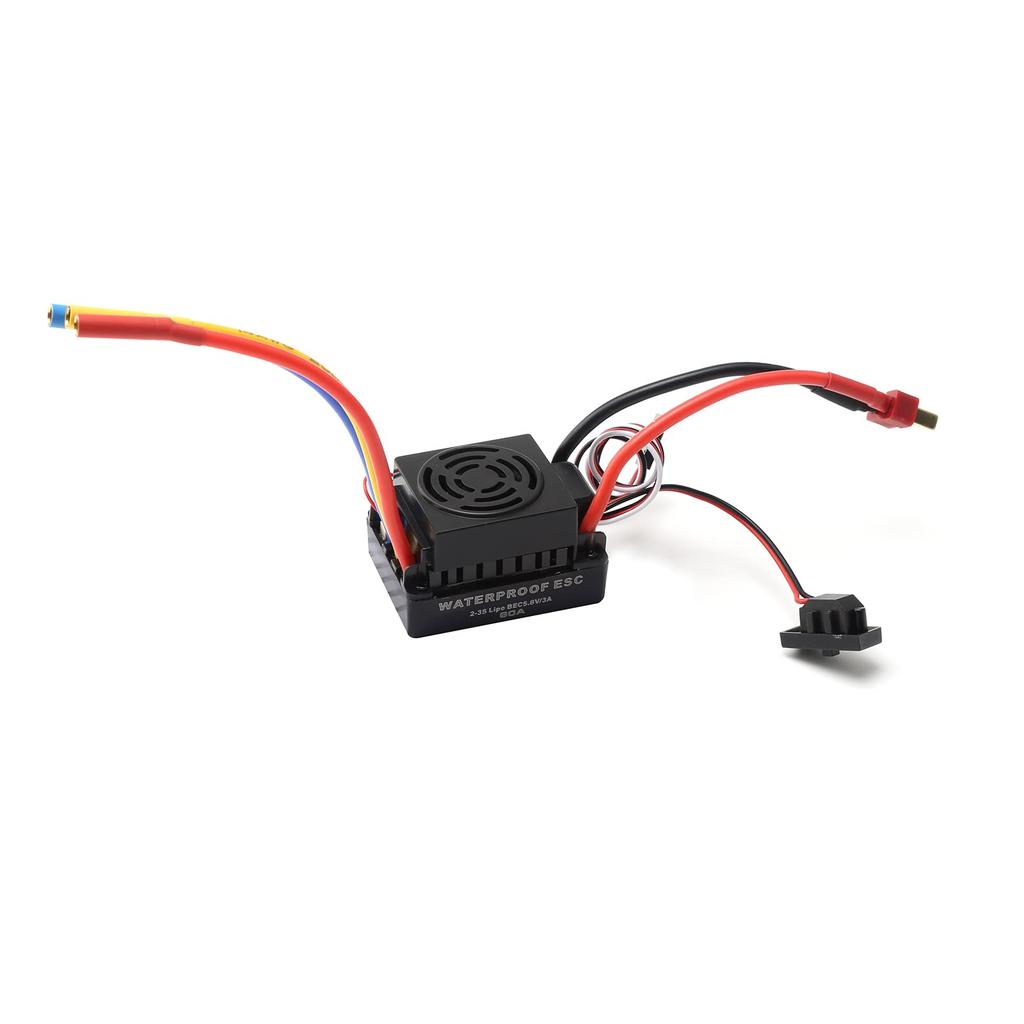

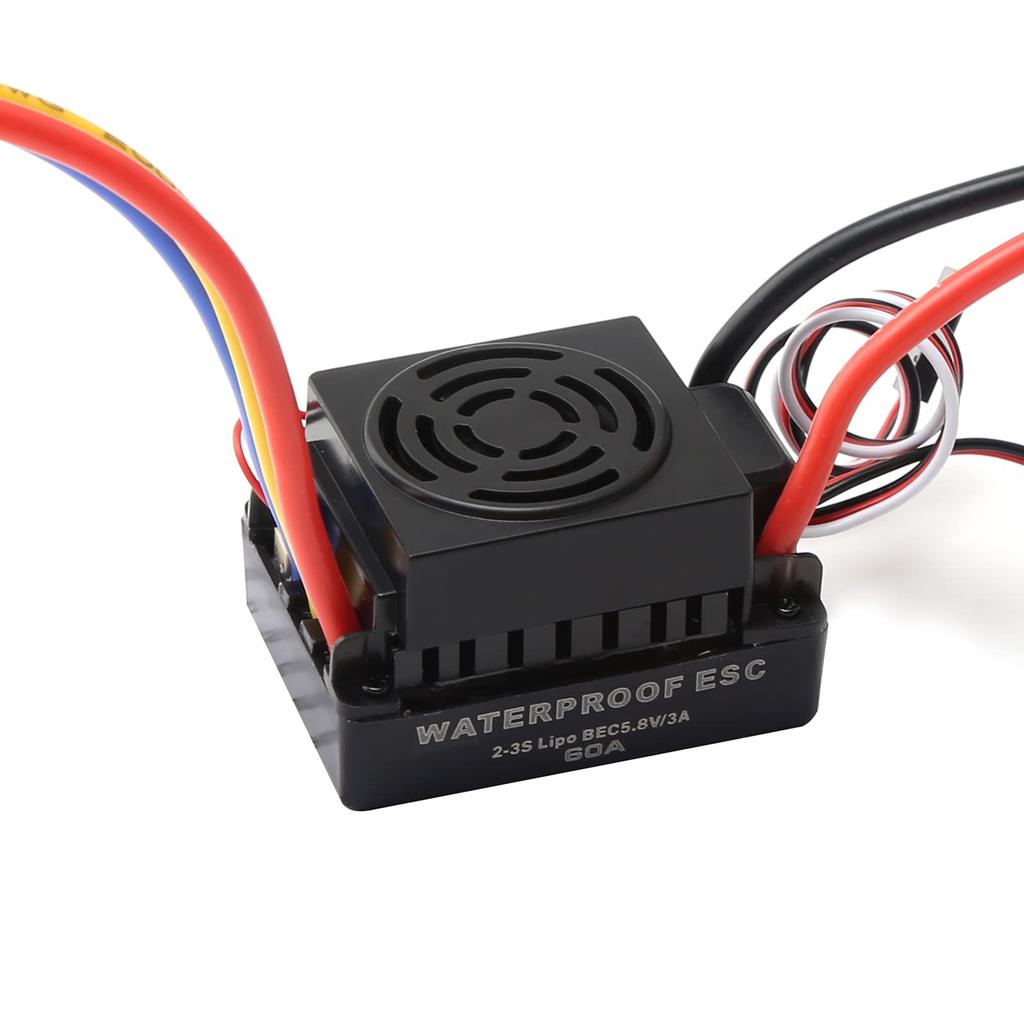

60A Waterproof ESC Specifications:
Product Name: Waterproof ESC
Continuous Current: 60A
Burst Current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh / Ni-Cd
BEC Output: 5.8V/3A
Power Plug: T-Plug Male
Motor Plug: 4mm Banana Plug Female
Dimensions: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (Without cable)
Weight: 82g (including cable)
Programmer Card:
Low Voltage Cutoff: 3.1V/cell, 2.8V/cell, 3.3V/cell, no cutoff
Start Mode: Medium, Soft, Strong
Maximum Brake Force: 25%, 50%, 75%, 100%
Maximum Reverse Force: 25%, 50%, 75%, 100%
Neutral Range: 6%, 9%, 12%, Working
Color: Black
Material: ABS
Size: 8×5.4×1.3cm
Packaging Information:
Package Size: 8*6*5cm
Package Weight: 302g
Gift Box Package

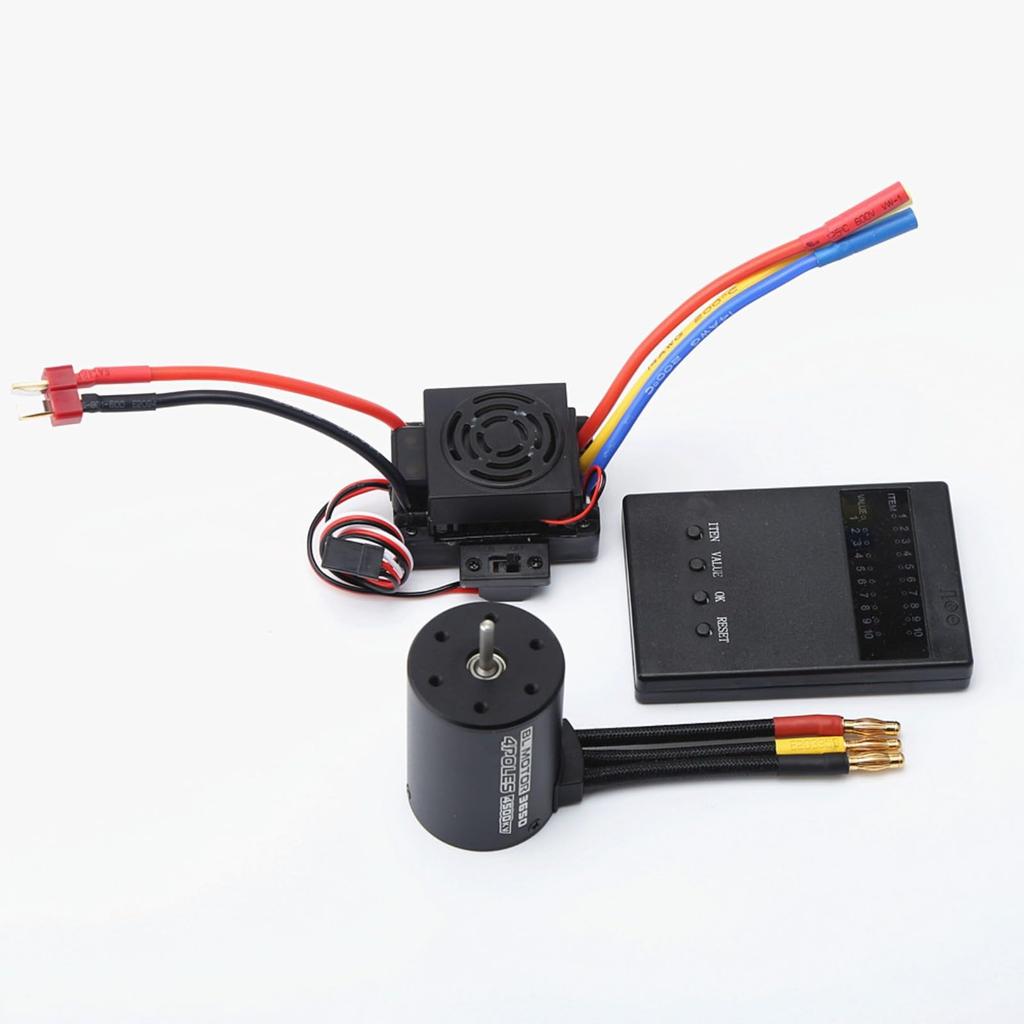

Package List:
1 * 3650 4500KV Brushless Motor
1 * 60A Waterproof ESC
1 * Programming Card
3.17 5mm Shaft Diameter, 4-Pole 12-Slot High-Torque Motor Design. High-purity copper windings are precision-engineered to maximize efficiency and energy conversion.
Precision-balanced rotor for maximum reliability and smoothness at maximum RPM.
Multiple protection features: low-voltage cut-off protection, overheating protection, throttle signal loss protection, and program card support for adjustments.
Enhanced throttle response, excellent acceleration, powerful braking, and throttle linearity.
