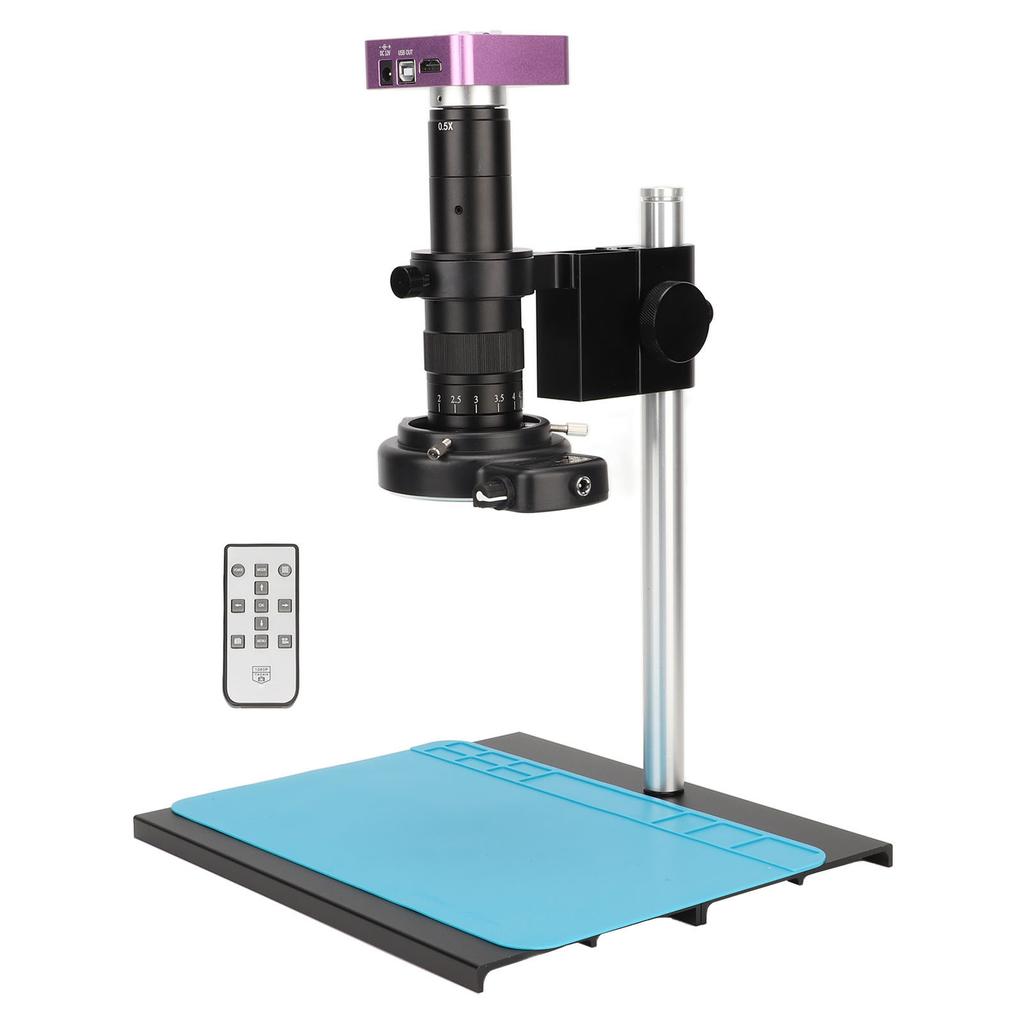

Feature:
1. MICROSCOPE CAMERA: Built in 51MP HD camera image sensor and 1080P video recording make observation easier and more interesting.
2. FLEXIBLE ROTATION: Our microscope has a robust metal bracket that can be rotated by 180 degrees thanks to the rotating shaft design.
3. LED LIGHT: The camera is designed with a LED ring light that made of 144 beads. The light of the lamp is very uniform and soft, without stroboscopic, glare and shadow, providing multi directional lighting.
4. 180X LENS: Target magnification 0.7 to 4.5 times (about 10 to 180 times on the display), antireflective coating, high refractive index, bright and clear image.
5. WIDE APPLICATION: Our microscope can be used in a variety of industries, including microelectronics, mold making, fine equipment, jewelry, clocks, and maintenance school demonstrations.
Specification:

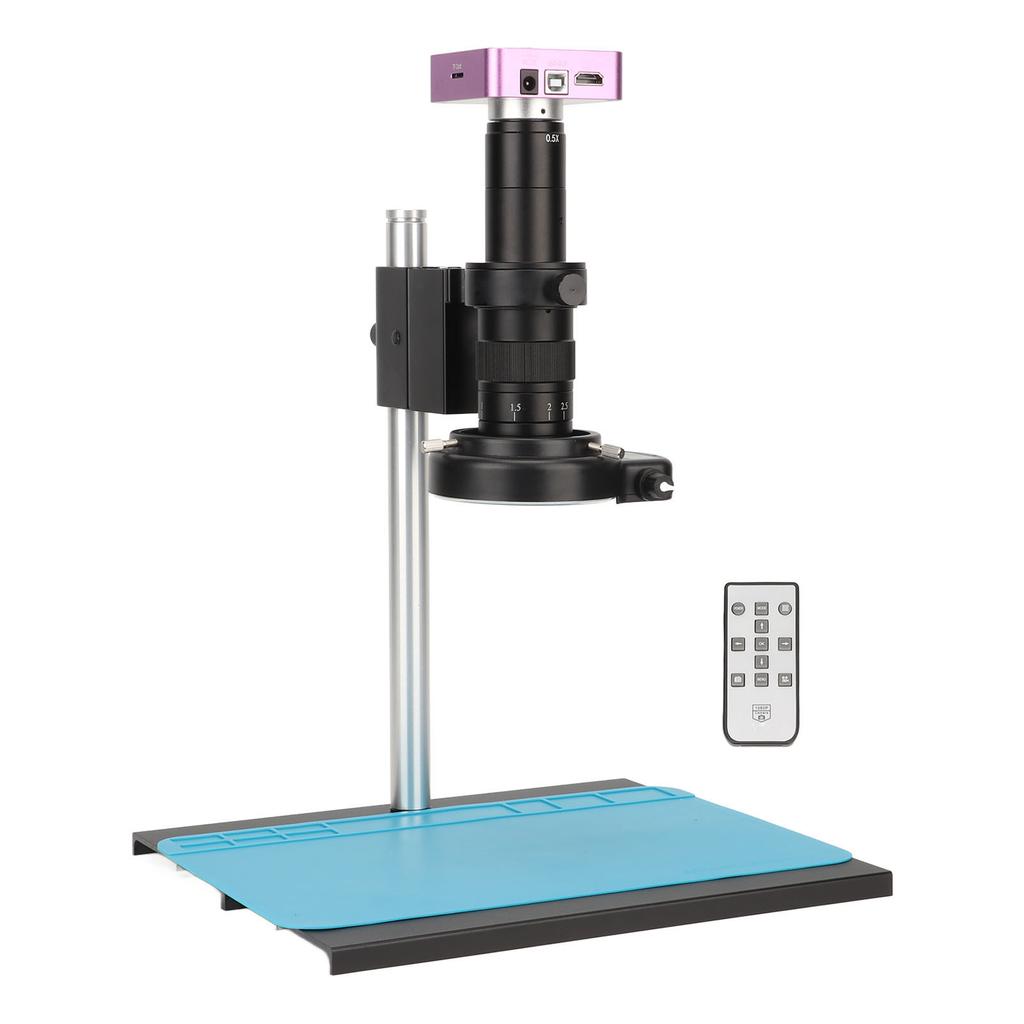

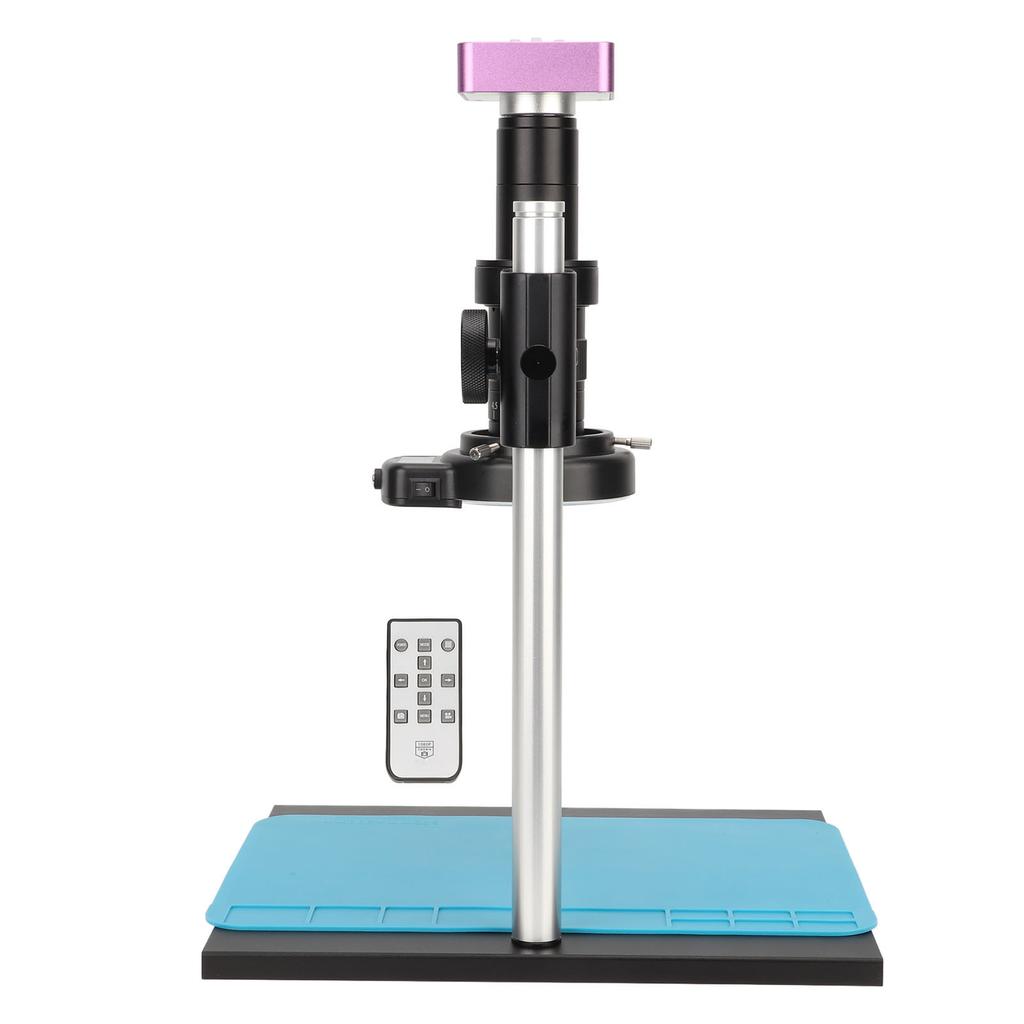

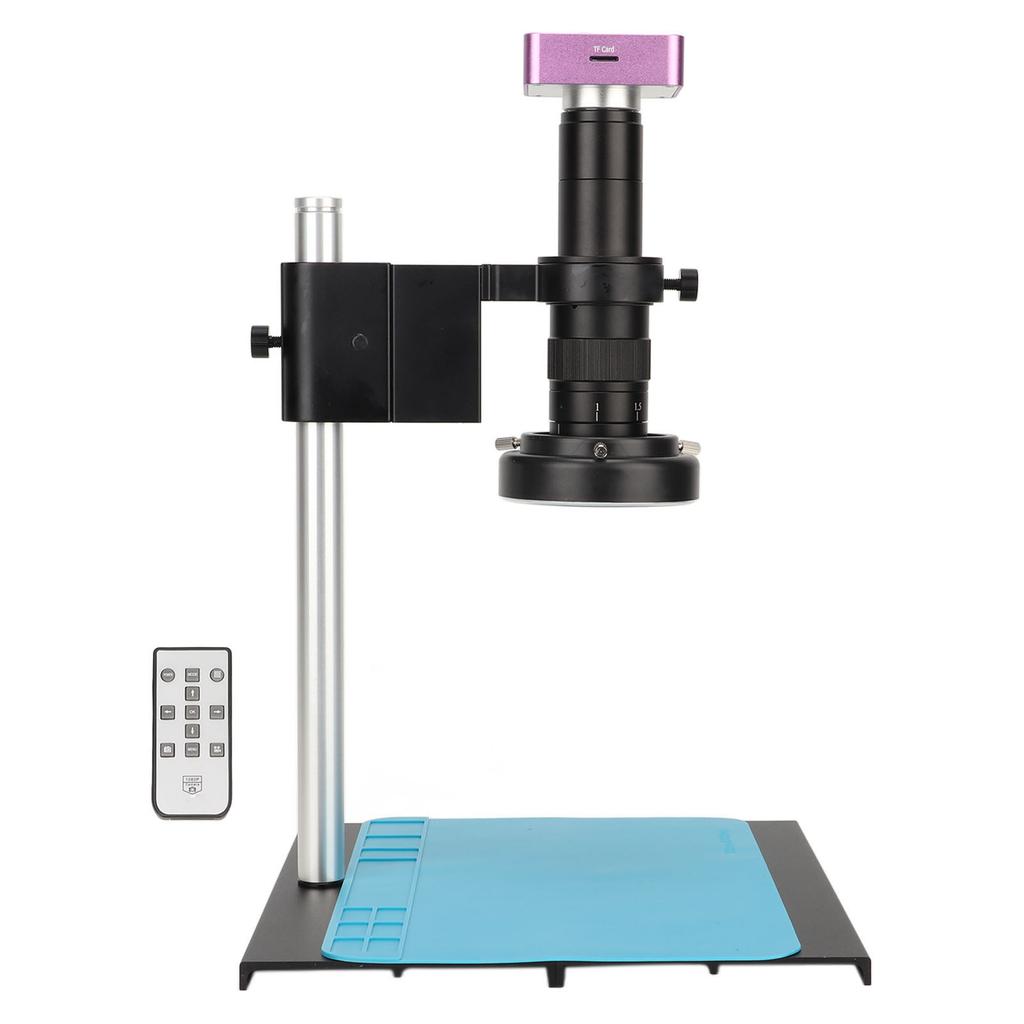

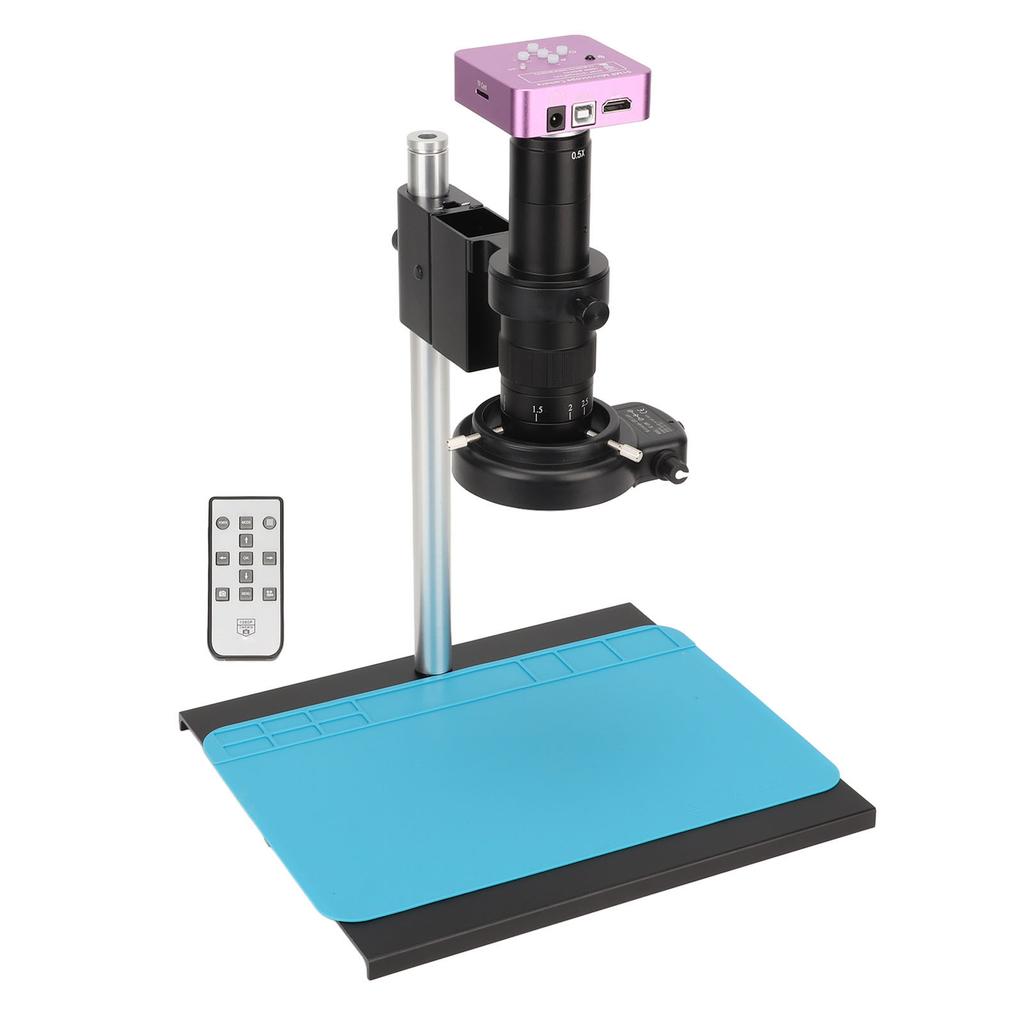

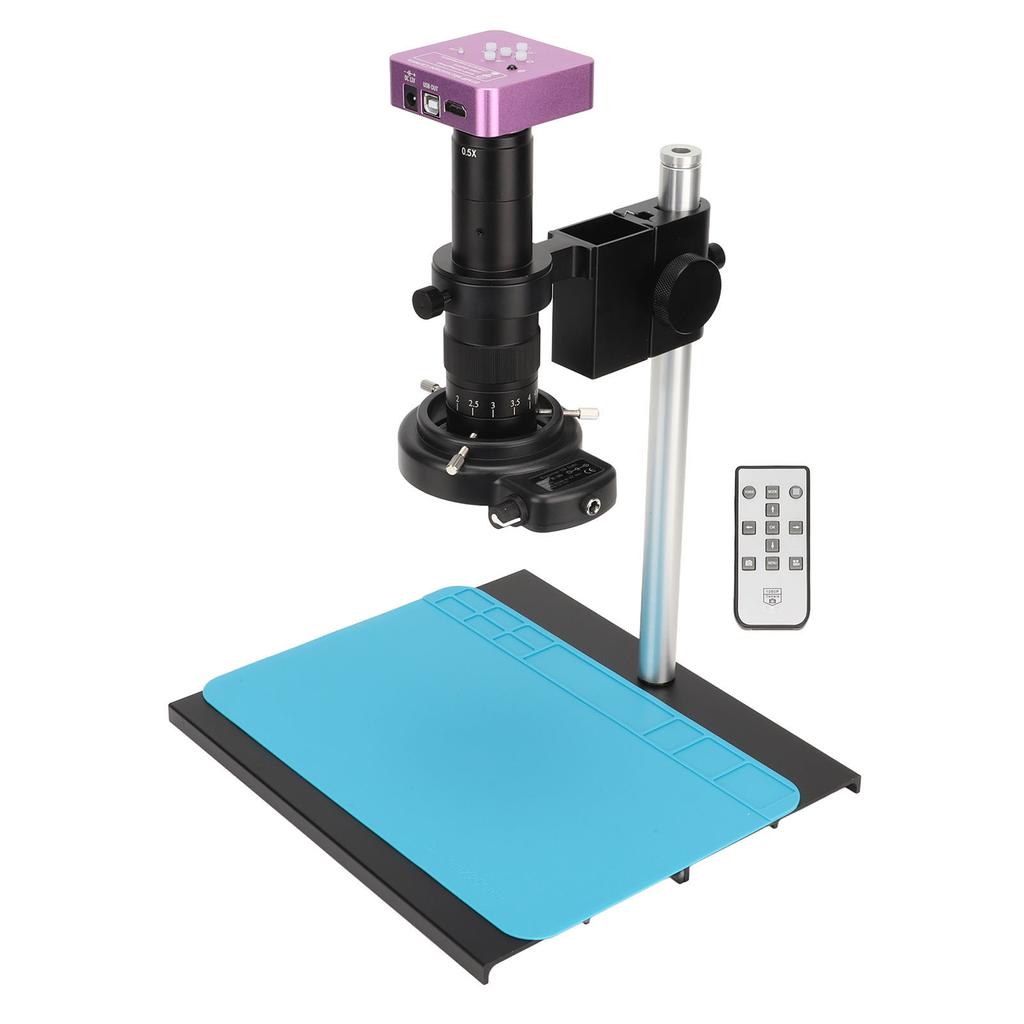

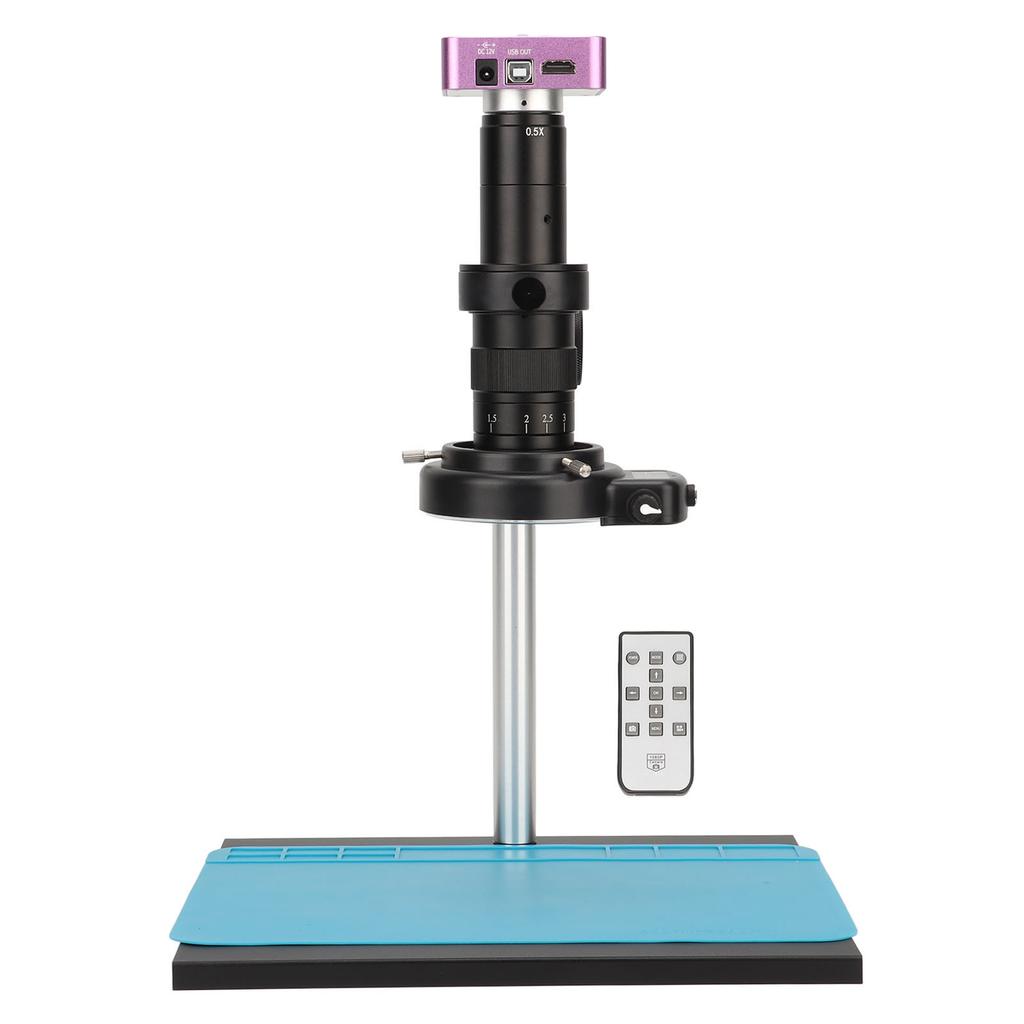

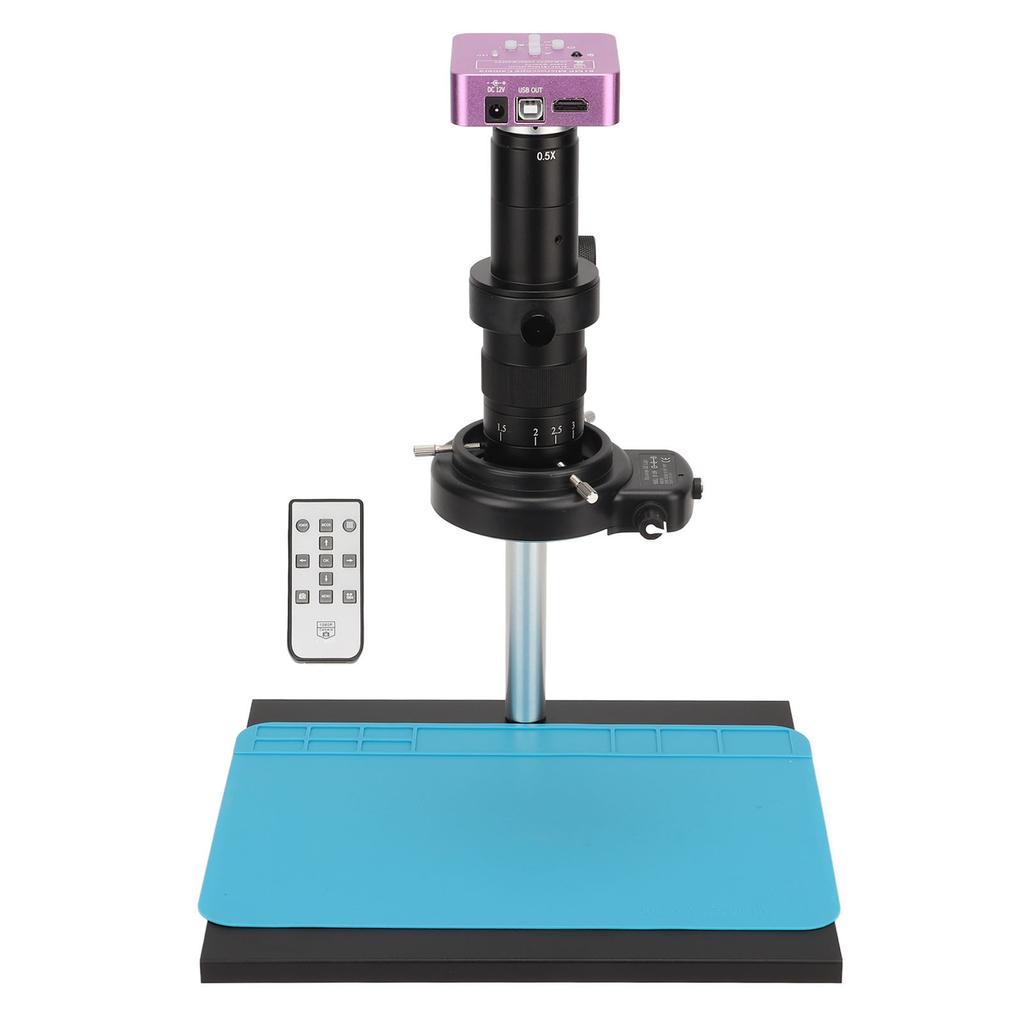

Item Type: 51MP Microscope Camera
Material: Aluminum Alloy
Characteristic:
1. PC supports multi system and for Windows XP, 7, 8, 10 system.
2. 180X C zoom lens equipped with industrial microscope camera.
3. This 51MP industrial microscope camera is applicable to the maintenance industry.
4. Adopts premium metal shell, which is durable and has a long service life.
5. High resolution, dual output, more convenient to use.
Remote Control Battery: 1 x CR2025 150mAh button battery (shipped with built in battery)
Microscope camera
Image Format: jpg
Image Resolution: 51MP
Video Format: MP4 (for memory card)
Video Recorder: 1080P, 60FPS
HD Multimedia Interface Video Resolution: 1920x1080, 60FPS (for High Definition Display Interface)
USB Video Resolution: 1920x1080, 30FPS; 1280x720 at 30 FPS; 640x480, 30 frames per second; 320x240, 30 frames per second
White balance: Automatic, manual
Lights: Automatic, manual
Exposure: Automatic, manual, value adjustable
Direction: Left, right, up, down
Freeze: Supported
OSD: English, Chinese, French, Spanish, Japanese, German
Line: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP CMOS sensor 1 2.33in
Effective Pixel: 51MP
Pixel Size: 1.335 μm x 1.335 μm
Frame Rate: 60fps
Definition: Full HD
Shell: Metal
Lens: C, CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic, manual
Color: R, G, B adjustable
Movies and Records: Support
Cross Cursor: Support multi color, adjustable size
Horizontal and Vertical Lines:
Support multi color, 5 horizontal, vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface: Up to 128G (shipment without storage memory card)
HD Multimedia Interface: Standard HD multimedia interface output (Class A)
USB Interface: Standard USB2.0 interface (type B)
180X C MOUNT lens
Working Distance: Approx. 95mm 3.74in
Zoom c count lens
0.5X C type mounting adapter
Scale: 6.5:1
Target Magnification is 0.7 to 4.5 times (about 10 to 180 times on the display)
Size:
Length: Approx. 180mm 7.09in
Diameter: Approx. 50mm 1.97in
Working Distance: Approx. 11cm 4.3in
144 LED microscope ring lamp
Provide strong and focused shadowless lighting
144 white LED lights
Brightness adjustable
Strongly focused shadowless lighting
100000 hours of life
Working Distance: Approx. 27 to 120mm 1.06 to 4.72in
Microscope Bracket
Material: Aluminum Alloy
Ring Diameter: Approx. 42mm 1.65in (diameter)
Material: Alloy
Color: Black
Maximum Diameter of Microscope Tube: Approx. 42mm 1.65in
Support Height: Approx. 310mm 12.2in
Overall Outer Diameter: Approx. 45mm 1.77in
Working Distance: Approx. 27 to 45mm 1.06 to 1.77in .

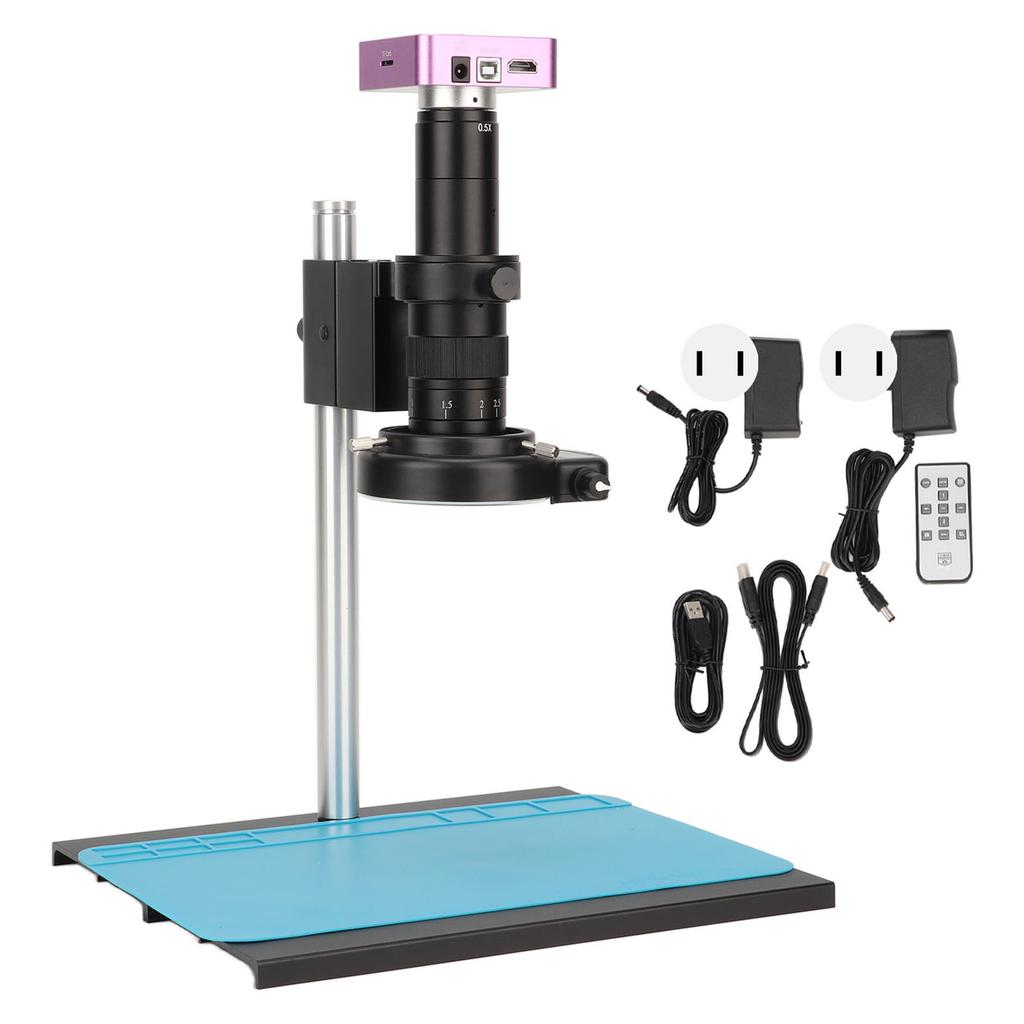

Package List:
1 x Microscope Camera1 x Drive 1 x High Definition Display Interface Cable 1 x USB Cable 1 x Remote Control 2 x Power Adapter 5 x Microscope Bracket Accessory 5 x Screw 1 x High Temperature Pad 1 x 180X Lens 1 x LED Ring Light 1 x Manual
