Feature:
1. [High Efficiency] MPPT and boost charging, high efficiency tracking chip can effectively improve the charging efficiency of wind turbines, solar and wind energy, while charging and using electricity at the same time.
2. [Intelligent] Fan PWM stepless unloading, external unloading device, solar energy intelligent disconnection charging, automatic matching of wind turbines charging, supercharged MPPT technology, under low wind speed, the power of wind turbines can still be used
3. [Multifunctional] LCD large screen digital display, which can display battery, fan, solar energy, load voltage and current information, some parameters can be set.
4. [Full Protection] Selective switching between Chinese and English, universal for multiple types of batteries, lockable voltage, complete protection functions, the internal circuit board of the controller can be dustproof and anti static, and the load output can be adjusted in various working modes.
5. [Stable Performance] Controller dual power supply function, battery and solar power supply, with resistance and resistance connecting line, effectively protect battery and windy weather.
Specification:

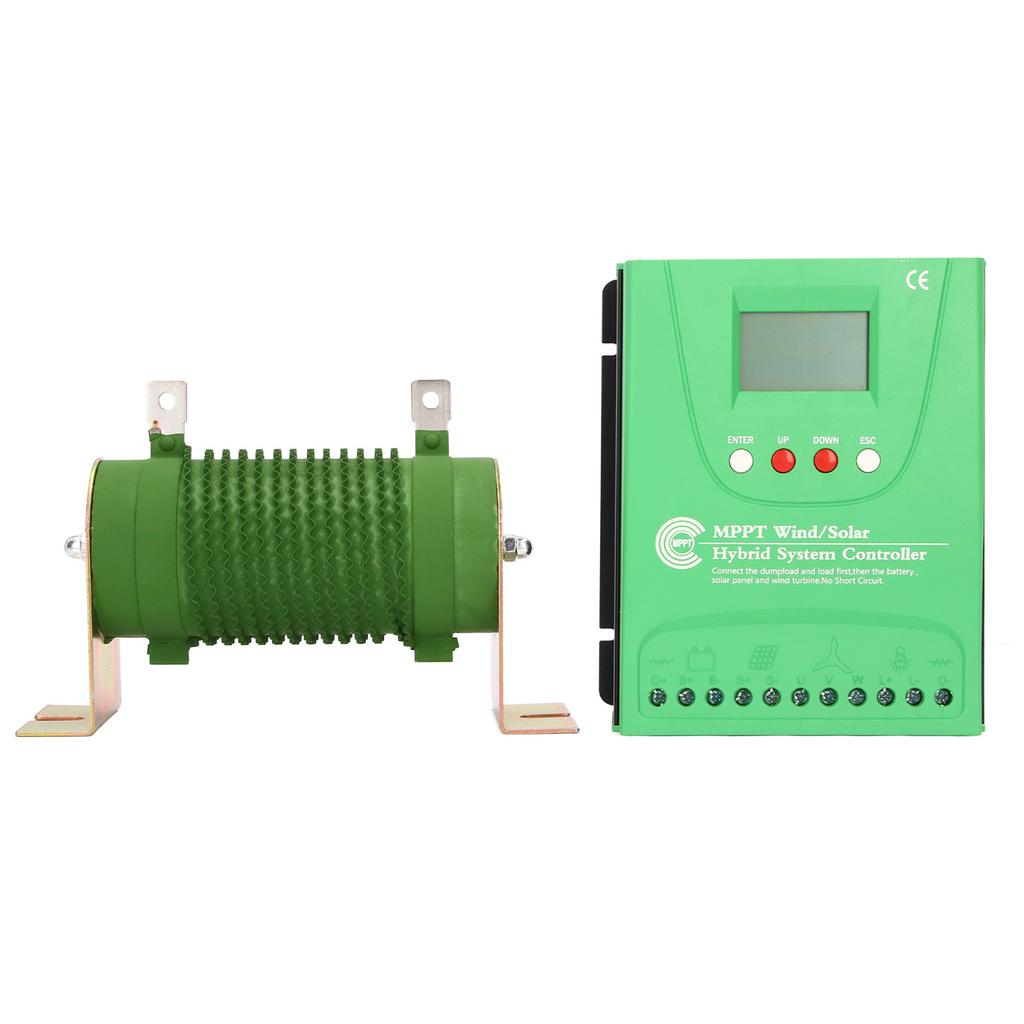

Item Type: Wind Solar Hybrid Charge Controller
Host Size: Approx. 174 x 145.5 x 70 mm 6.9 x 5.7 x 2.8 in
Shell Color: Green
Material: ABS
System Rated Voltage: 12 24V automatic identification
Model
GPI 4030
GPI 6060
GPI 1010K
Battery Voltage
12V
24V
12V
24V
12V
24V
Wind Turbines Rated Power
200
400
300
600
500
1000
PV Module Rated Power
150
300
300
600
500
1000
Maximum Input Voltage: Wind turbines <80V, solar panel <95V (12V 24V controller)
No Load Current (DC): less than 0.05A
The Controller Takes Power: Battery or photovoltaic panel to take power
Control Method: Fan MPPT boost charging function, PWM unloading function, PWM overcurrent limiting function
Load: A variety of working modes are available: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
Display Mode: LCD, Chinese display, clear and intuitive
Display Parameters: Voltage, battery power, current, power, load mode, temperature, etc.
Protection Type: Solar battery anti reverse charging protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, etc.
Heat Dissipation Method: Aluminum heat dissipation and self cooling
Operating Temperature And Humidity Range: 20 +55 celsius 35 85percent RH (but no condensation)
Weight: Approx. 2289g 80.7oz
Applicable Battery: General acid lithium battery
Application: Wind solar hybrid energy storage power station, wind solar hybrid monitoring system, wind solar hybrid lighting system
Failure Analysis:
When the fan is connected to the controller, the speed of the fan becomes very slow immediately?
1. The battery voltage arrive the floating charging point
2. The rated output voltage of the fan is much higher than the rated voltage of the battery, because the fan speed is proportional to the output voltage, and the fan voltage is dragged by the battery and will not be very high, so the speed will be very low
3. The unloading tube was burnt out in the wrong operation
Why does the controller unload when the LCD displays a small current value?
The controller controls the unloading by detecting parameters such as battery voltage, charging current and temperature. When the floating charging voltage point is arrived, or when high temperature protection is arrived, no matter how large the charging current is, the fan will unload.
LCD does not display?
1. The battery is in poor contact, please check the battery connection cable.
2. The battery is damaged, please check and replace the battery.
No charging current?
If the charging voltage is not arrived, the input voltage of the solar panel must be higher than the battery voltage before it can be charged. The fan needs to arrive a certain wind speed in order to generate electricity normally.
.
Package List:
1 x Controller 1 x Resistance
2 x Cable2 x Screw2 x Nuts1 x Manual
