Feature:

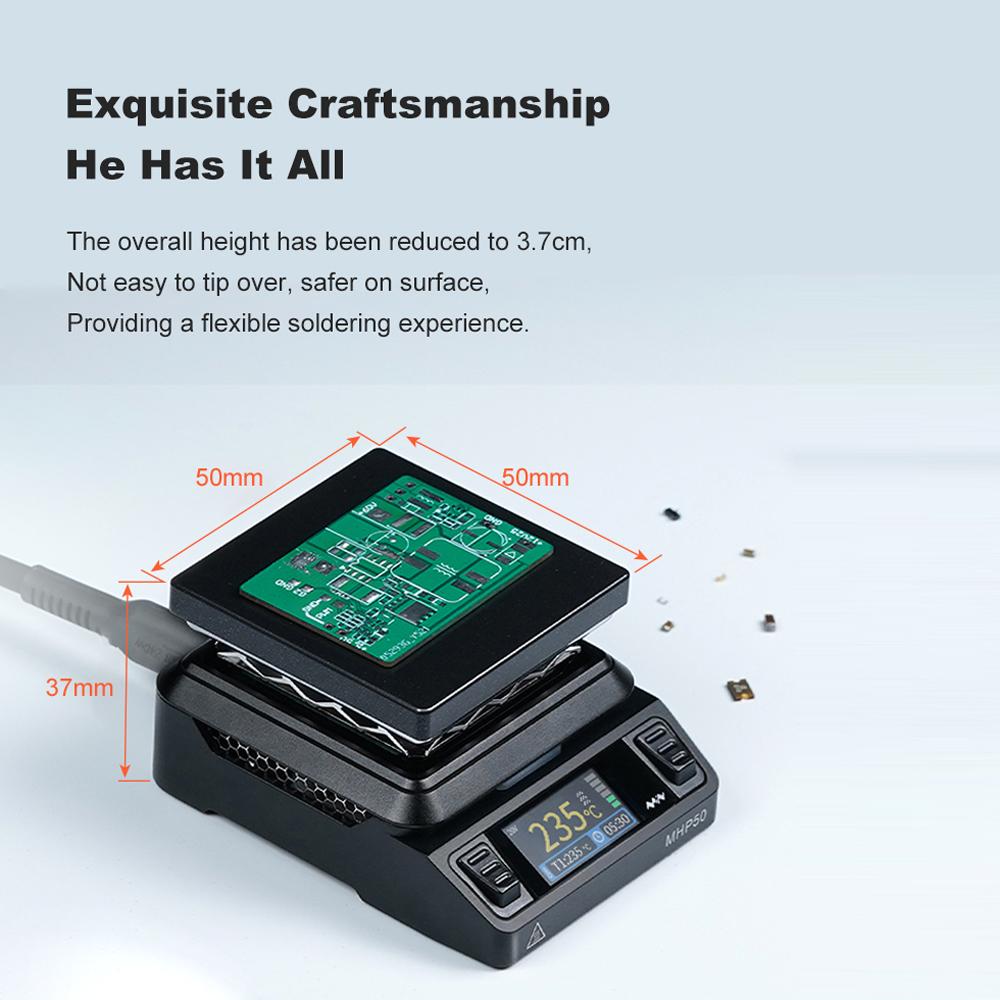

1. (Scientific Design): Lower height design not easy to dump, smoother desoldering, more flexible to use. 50*50mm enlarged heating area, applicable to more scenes.

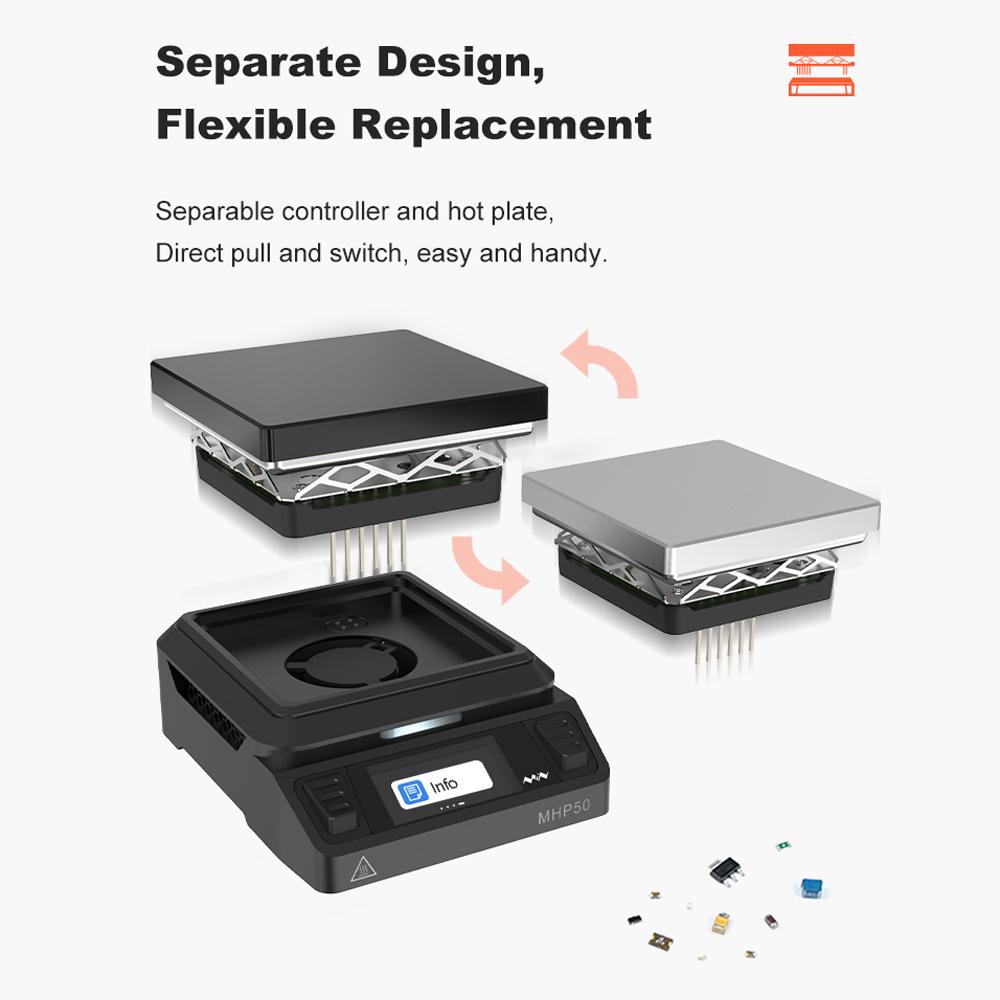

2. (Split Design): The controlling end and the heating end can be separated, directly plugged and replaced, more flexible and convenient to replace.

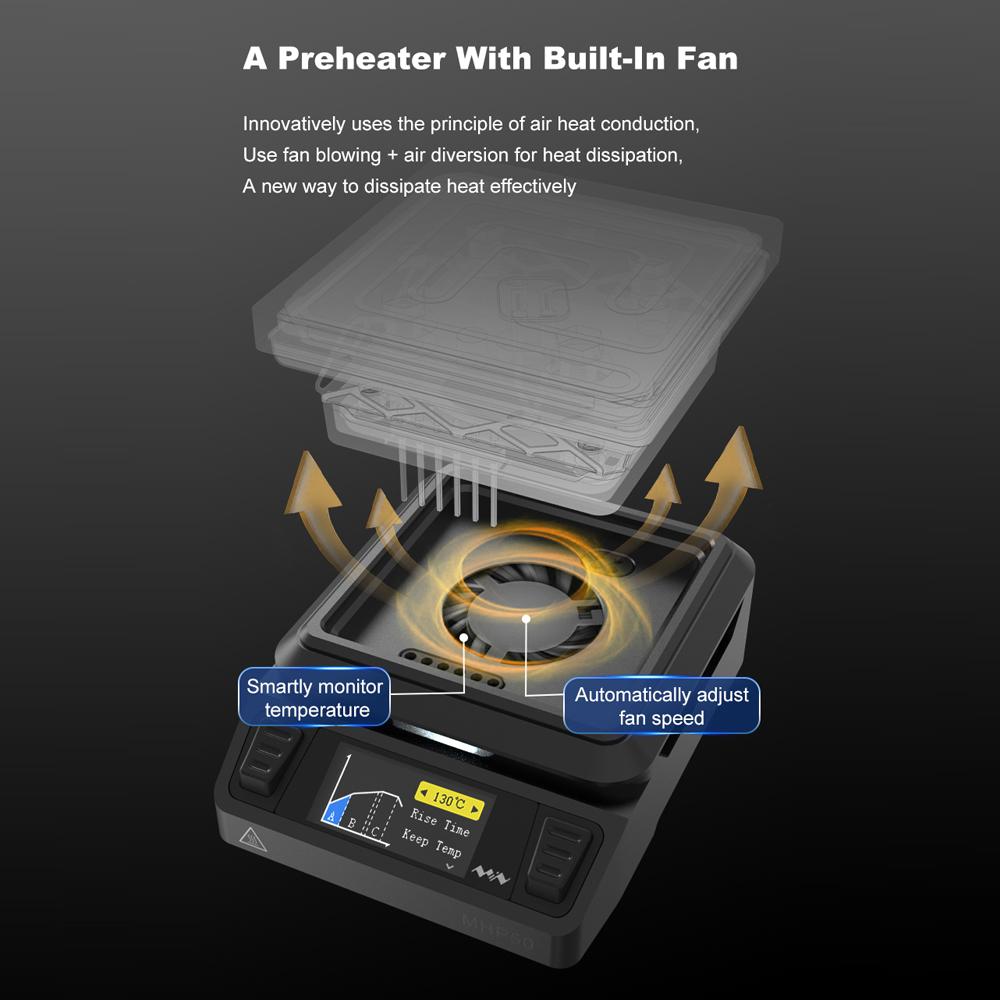

3. (Built in Cooling Fan): Innovative use of the principle of airconduction, combined with fan blowing and airconduction cooling, fan automatic speed regulation, with fast cooling speed and nice cooling result.
4. (LCD Color Screen): Equipped with LCD color display, 160*80 resolution, display upgrade, new operation interaction, clear interface, rich display, keyfront, and convenient operation.
5. (Segmented Heating): The new \ reflow soldering\ heating curve design, can set the heating temperature and time in segments, simulating the function of the reflow oven, intelligent temperature control, accurate heating, and reflow soldering.
6. (Dumping to Stop Heating): If the tilt angle of the unit is detected to be too large, the controller will immediately stop the heating process to ensure safety.
7. (Dual mode Powersupply): Dual power input modes design, room temperature 28 celsius heating to 300 celsius fastest in 150 seconds. USB Type C interface powersupply, PD 20 V maximum power 100W. DC5525 interface, 19 24VDC powersupply, the maximum power of 150V. (Note: DC5525 and PD interface can not be used at the same time. Under the same powersupply conditions, the heating time required for different heating body materials is different.)
8. (With Color Indicator): Designed with a color indicator light, the color of light will change with the temperature of the heating body, you can see the visual reminder clearly at a glance, beautiful and humanized.
9. (Firmware Upgrade): Embedded e Design firmware for software DFU upgrade, personality optimization, and the firmware upgrade status light color is blue.

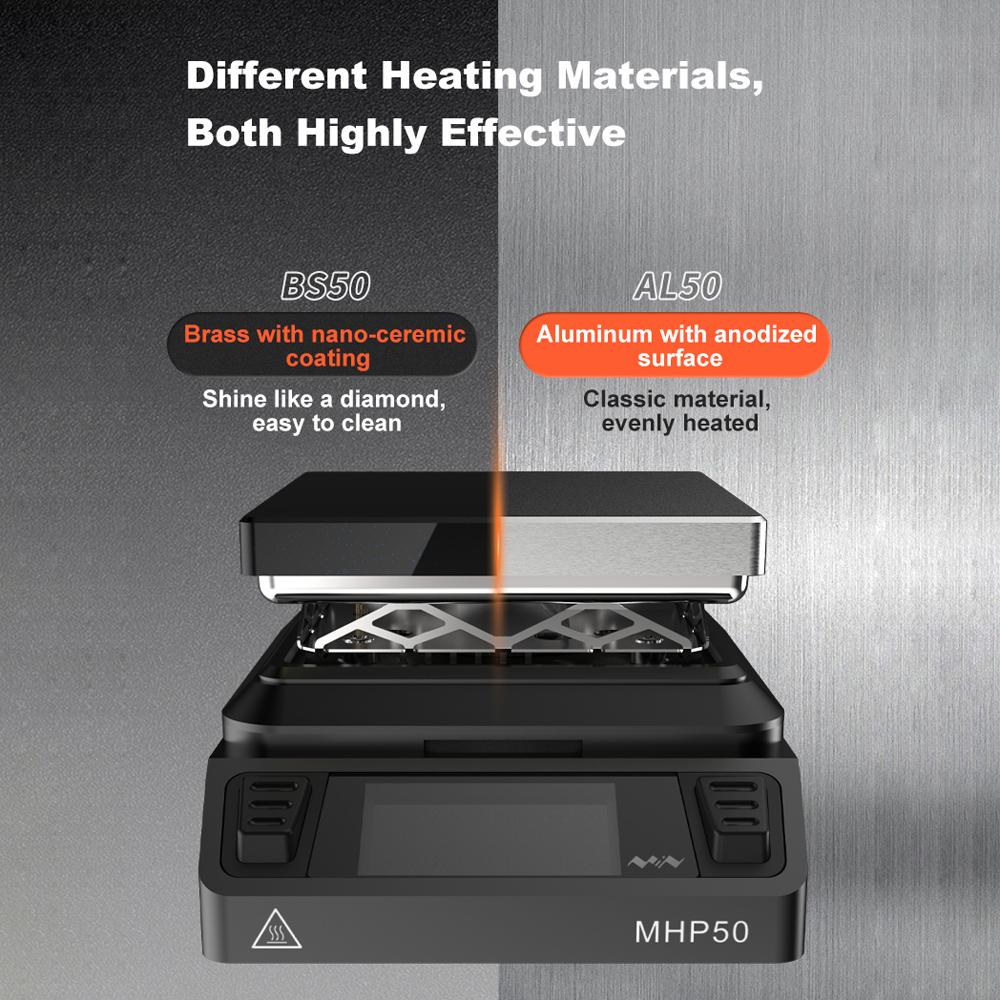

10. (Two Specifications are Available): Choose between the BS50 and AL50, each offering distinct advantages tailored to your preference. The BS50 features a copper body with a ceramic coating, offering a stylish and aesthetically pleasing design that is also easy to wash. On the other hand, the AL50 is crafted from aluminum alloy with an anodized surface treating process, with even heat distribution. Both options provide exceptional performance, allowing you to select the one that suits your needs.
Specification:
The constant temperature heating platform adopts lower height design, smoother desoldering, more flexible to use. 50*50mm enlarged heating area, applicable to more scenes. The new "reflow soldering" heating curve design, can set the heating temperature and time in segments, simulating the function of the reflow oven, intelligent temperature control, accurate heating, and reflow soldering. If the tilt angle of the unit is detected to be too large, the controller will immediately stop the heating process to ensure safety. Choose between the BS50 and AL50, each offering distinct advantages tailored to your preference.
Features:
(Scientific Design): Lower height design not easy to dump, smoother desoldering, more flexible to use. 50*50mm enlarged heating area, applicable to more scenes.
(Split Design): The controlling end and the heating end can be separated, directly plugged and replaced, more flexible and convenient to replace.
(Built in Cooling Fan): Innovative use of the principle of airconduction, combined with fan blowing and airconduction cooling, fan automatic speed regulation, with fast cooling speed and nice cooling result.
(LCD Color Screen): Equipped with LCD color display, 160*80 resolution, display upgrade, new operation interaction, clear interface, rich display, keyfront, and convenient operation.
(Segmented Heating): The new "reflow soldering" heating curve design, can set the heating temperature and time in segments, simulating the function of the reflow oven, intelligent temperature control, accurate heating, and reflow soldering.
(Dumping to Stop Heating): If the tilt angle of the unit is detected to be too large, the controller will immediately stop the heating process to ensure safety.
(Dual mode Powersupply): Dual power input modes design, room temperature 28 celsius heating to 300 celsius fastest in 150 seconds. USB Type C interface powersupply, PD 20 V maximum power 100W. DC5525 interface, 19 24VDC powersupply, the maximum power of 150V. (Note: DC5525 and PD interface can not be used at the same time. Under the same powersupply conditions, the heating time required for different heating body materials is different.)
(With Color Indicator): Designed with a color indicator light, the color of light will change with the temperature of the heating body, you can see the visual reminder clearly at a glance, beautiful and humanized.
(Firmware Upgrade): Embedded e Design firmware for software DFU upgrade, personality optimization, and the firmware upgrade status light color is blue.
(Two Specifications are Available): Choose between the BS50 and AL50, each offering distinct advantages tailored to your preference. The BS50 features a copper body with a ceramic coating, offering a stylish and aesthetically pleasing design that is also easy to wash. On the other hand, the AL50 is crafted from aluminum alloy with an anodized surface treating process, with even heat distribution. Both options provide exceptional performance, allowing you to select the one that suits your needs.
Specifications:
Name: Heating Platform
Material: plastics+metal
Model: MPH50 BS50, MPH50 AL50 (optional)
Heating plate material:
AL50: aluminum alloy
BS50: copper body with a ceramic coating
Display: 160*80 color LCD
Temperature ranges: 100 350 celsius
Temperature stability: ±3percent
Power interface: USB Type C and DC5525
Input voltage: 19 24VDC, 20 VPD
Max power: DC5525 150W, PD 100W
Heating size: 50 * 50 * 29mm 1.97 * 1.97 * 1.14in
Item size: 71.5 * 55.5 * 22.5mm 2.81 * 2.19 * 0.89in
Item weight:
MPH50 AL50: 138g 4.88ounce
MPH50 BS50: 165g 5.82ounce
Package size: 108 * 108 * 71mm 4.25 * 4.25 * 2.80in
Package weight:
MPH50 AL50: 302g 10.65ounce
MPH50 BS50: 328g 11.57ounce
Packing List:
1 * Control End
1 * Heating Plate
1 * PD Cable
1 * Guideline
Package List:
1 * Control End
1 * Heating Plate
1 * PD Cable
1 * Guideline
