380V 8A 1 Single Channel Solid State Relay Module Board SSR Switch Controller

Description : High voltage level trigger refers to a forward voltage between signal trigger end(IN) and power cathode, is a trigger way of connecting anode of power with trigger end. When there is forward voltage or the voltage reaches to a certain trigger amount at the trigger end, relay is actuated. Low voltage level trigger refers to the voltage between signal trigger end and power cathode is 0 V, or voltage of trigger end is lower than that of power anode, and relay is actuated. Usually connect power cathode with trigger end. Feature s : 1, Power supply of module should be direct current, and voltage should be associated to that of relay . 2, The controlled voltage range of relay is AC 24 V to 380 V. Max Current: 8 A . 3, C onvenient KF301 green input wiring terminals . 4, Safe KF1000 2P output wiring terminals . 5, 380 V 8 A solid state relay . Specific ations : Input Voltage Range: DC 5 V to 12 V Input Control Signal Voltage:

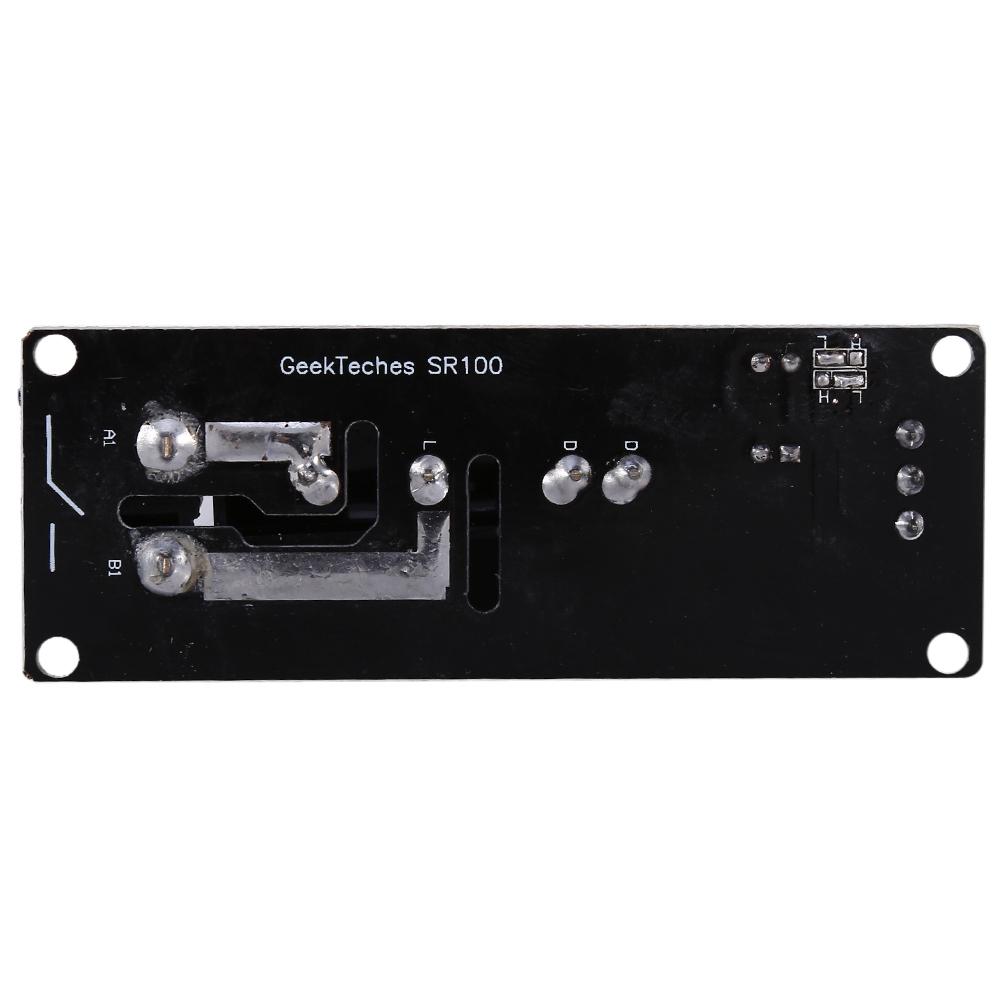

High and low voltage level can be set (short circuit boards welding on the back plate, the default is low voltage level) Weight: 39 g(approx.) Input Interface : DC+ DC CH1: 1 channel relay module signal triggering end Package i ncludes: 1 x Relay Module
