【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

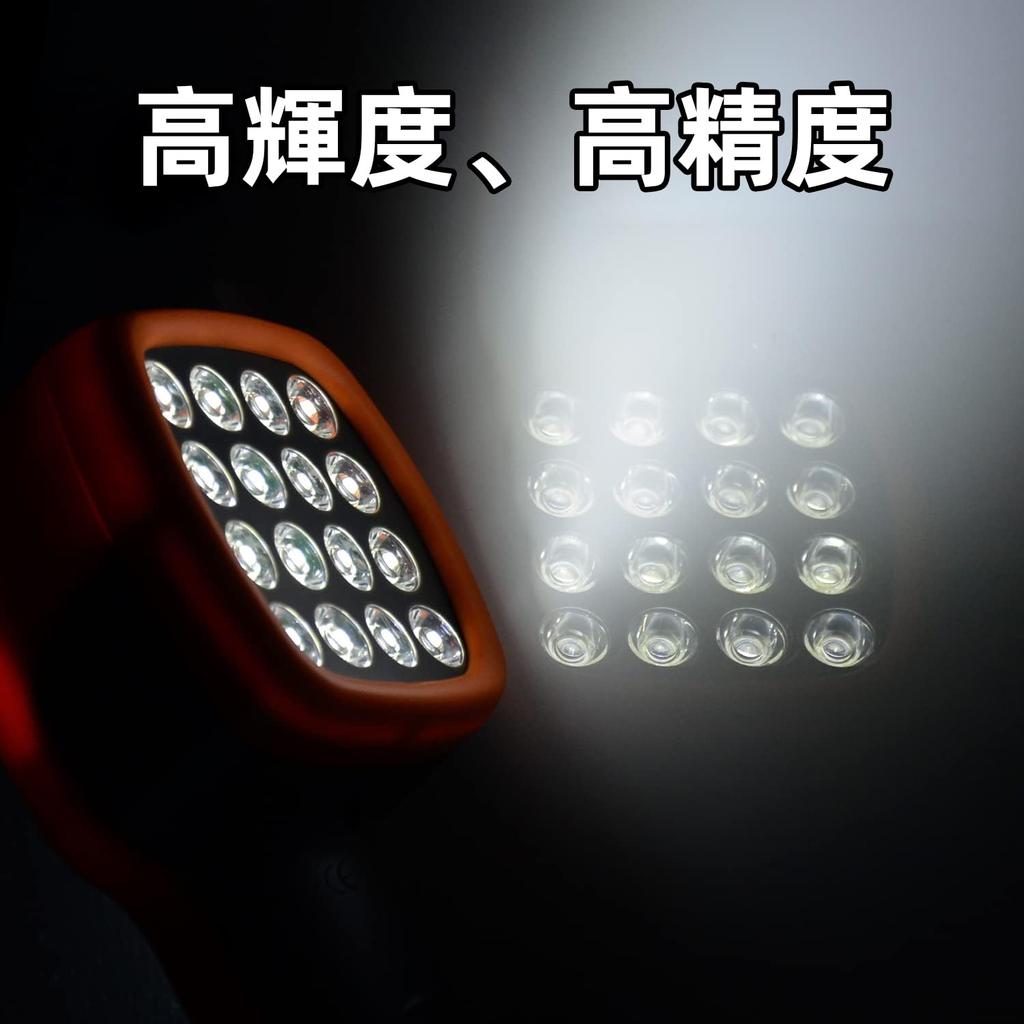

🎯【Wide Range & High Accuracy】Using advanced LED technology, the AI-DT10S RPM Stroboscope Meter provides a high-intensity strobe effect of 1500 Lux and measures speeds from 60 to 99,999 RPM with an accuracy of 0.001%. The high brightness makes the image clearer and more accurate during measurement, making it easier to observe and analyze high-speed movements and vibrations.

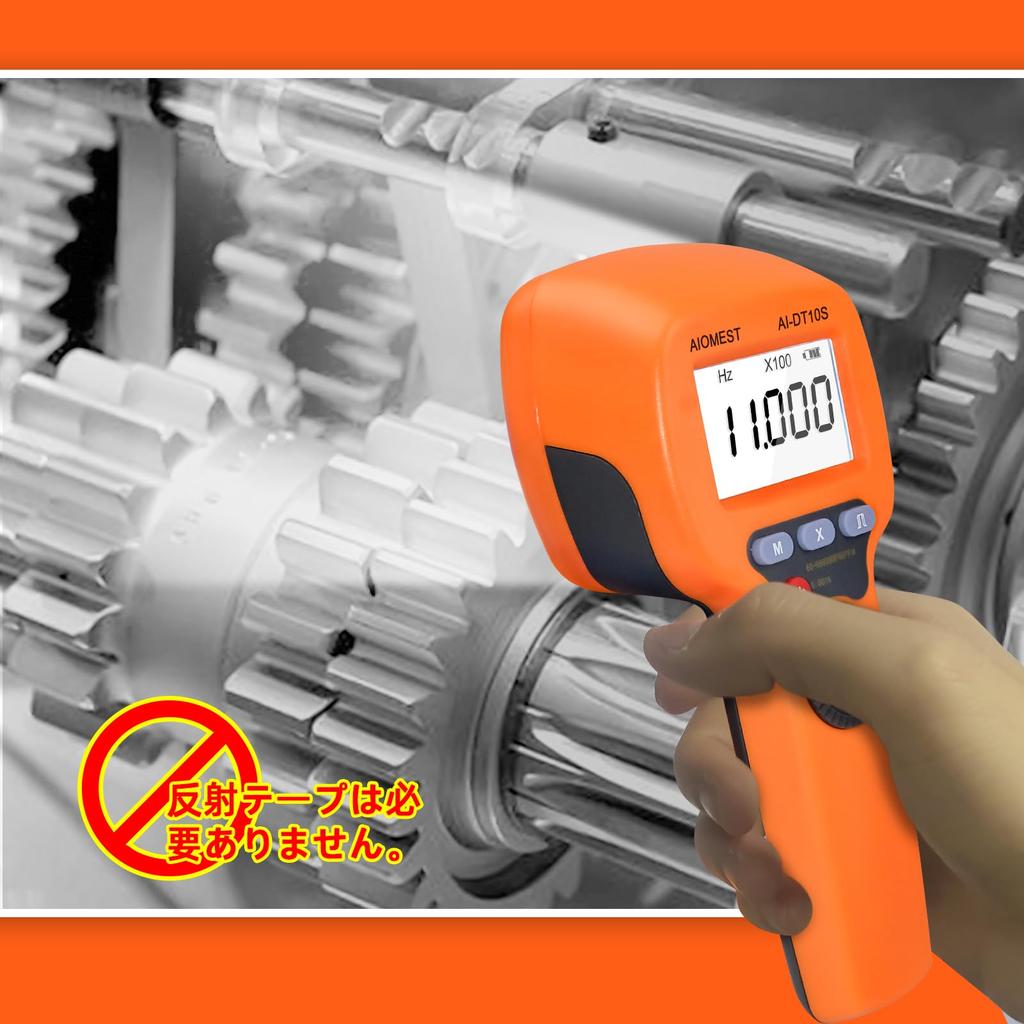

🎯【No Reflective Tape Required】Unlike traditional laser tachometers, no physical contact or reflective tape is required. Simply match the strobe light frequency to a rotating object to measure its speed. When the flash frequency matches, the object will appear stationary or slow, allowing you to troubleshoot motors, fans, HVAC, and engines without stopping operation.

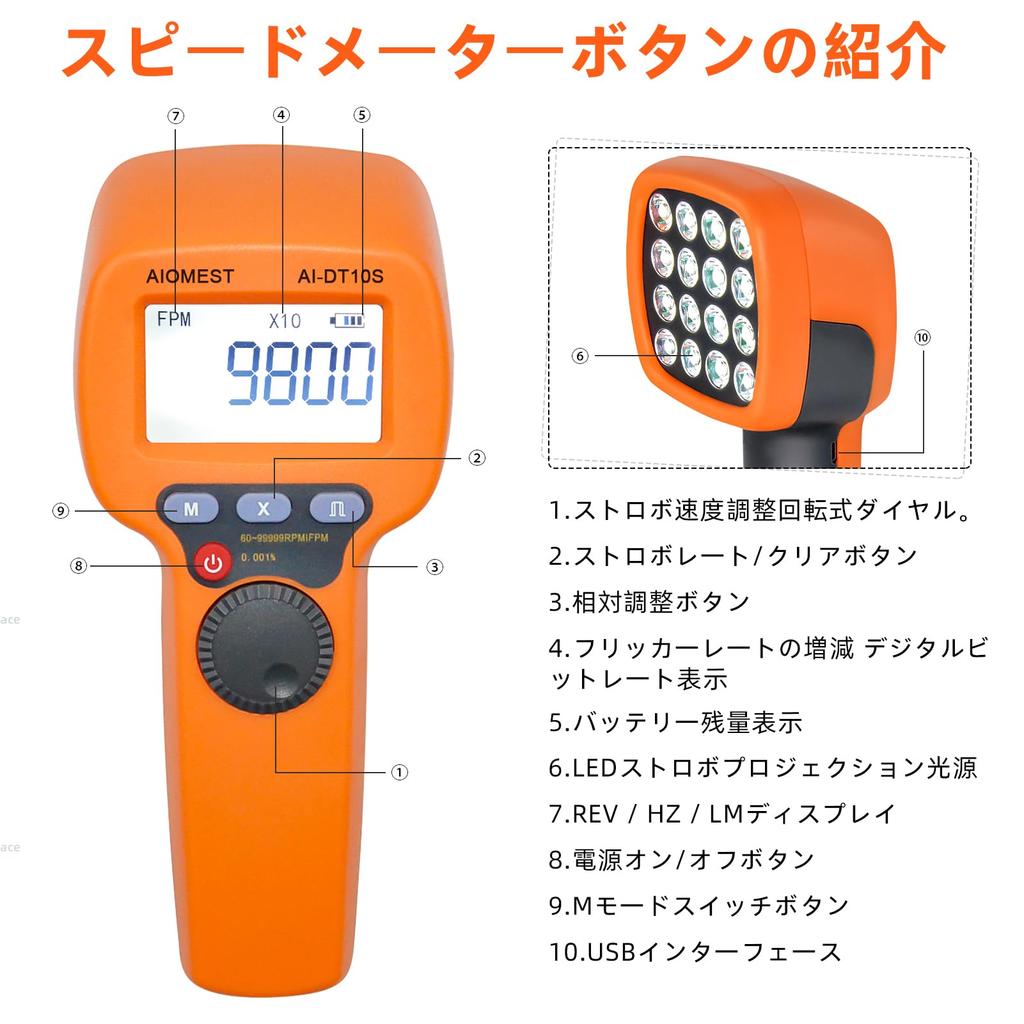

🎯【Adjustable Strobe Light Speed】Equipped with a 360° rotating driving plate and a magnification gear switch (X1, X10, X100), this industrial strobe meter allows unlimited left and right rotation, allowing for quick and easy adjustment of strobe speed/frequency. It can "freeze" fast-rotating or moving objects for clear observation. The HD backlit LCD display ensures visibility in any condition.

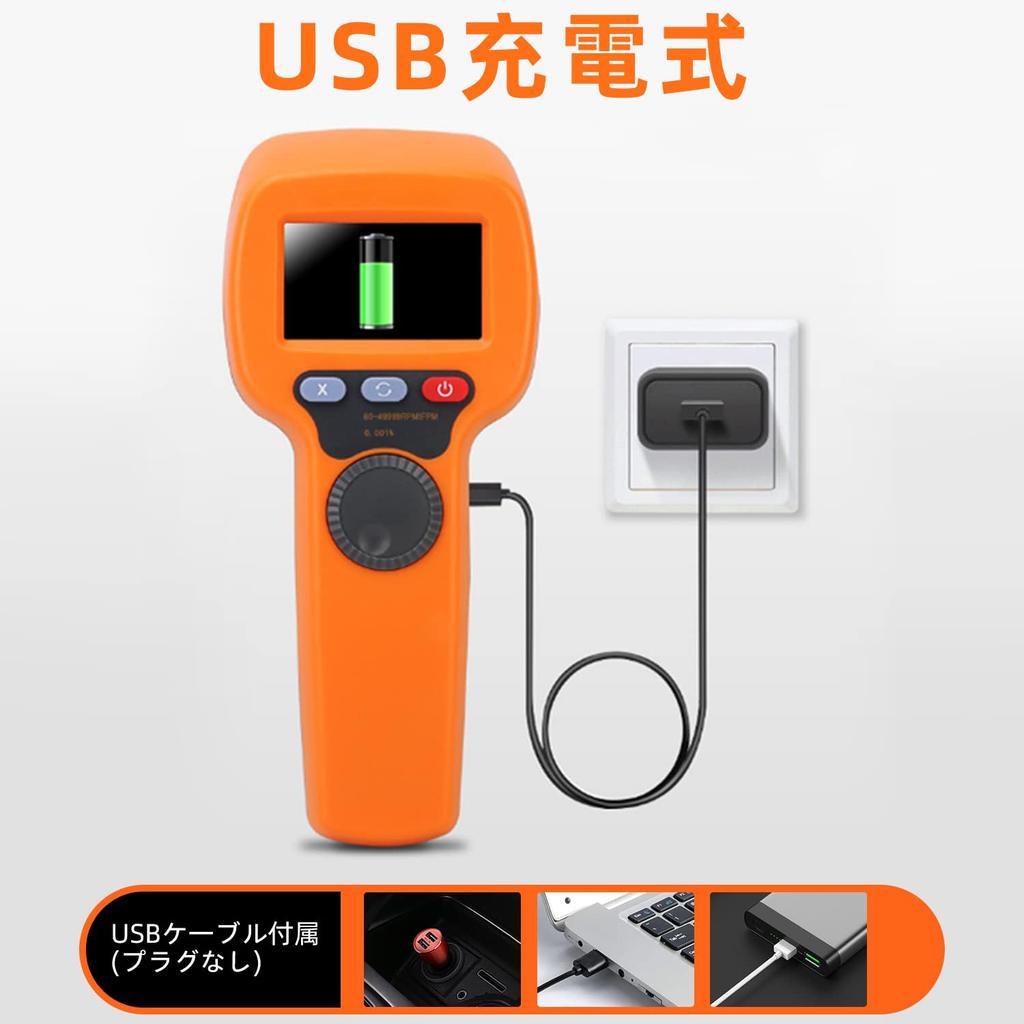

🎯【Rechargeable FPM Meter】Powered by a 7.4V/1100mAh rechargeable lithium battery, it can work continuously for up to 8 hours and has a standby time of 3 months. It comes with a USB charging cable for convenient charging.

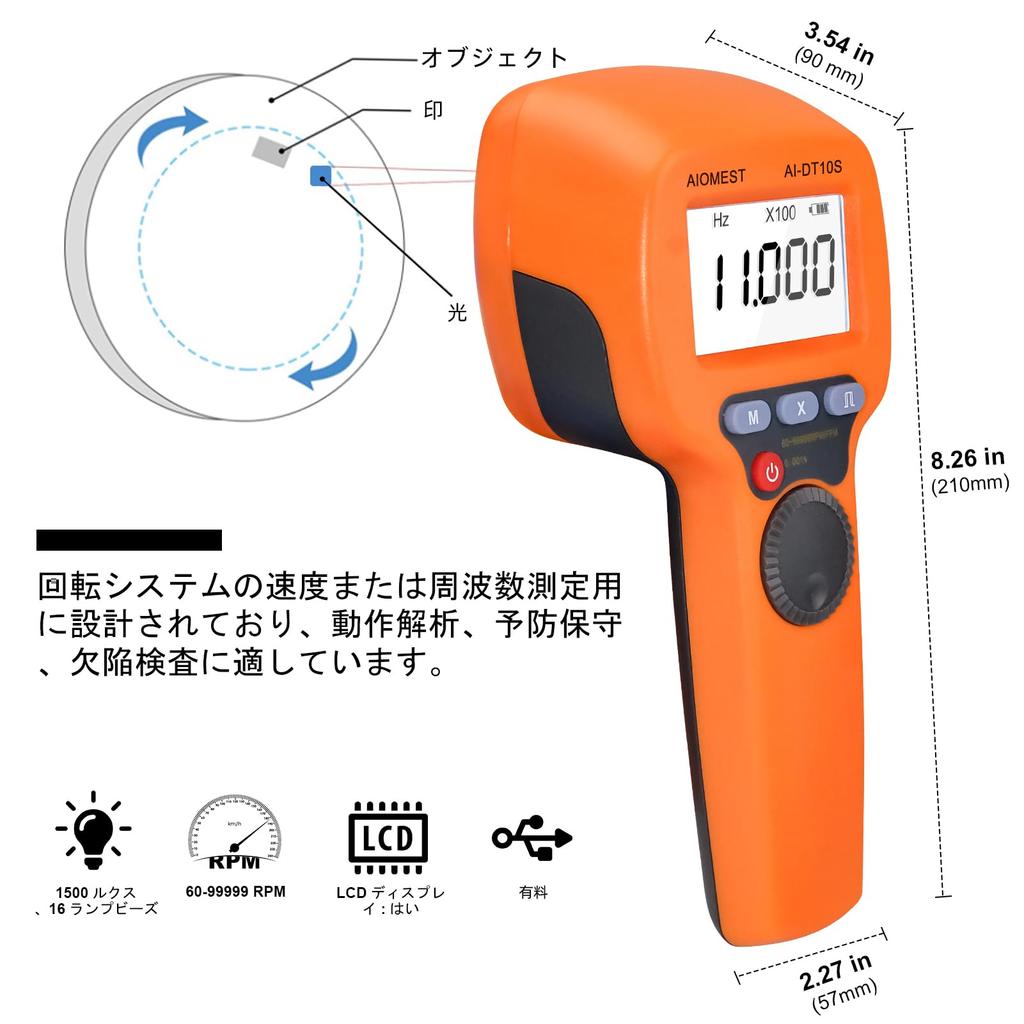

🎯【Quality Guarantee & Warranty】The handheld design (210 x 90 x 57mm) and lightweight (320g) make it easy to carry and use in the field. The AI-DT10S Digital Tachometer RPM Meter is backed by a 365-day quality guarantee and lifetime support.
Digital Tachometer: The digital tachometer counts high-speed objects without contact. With the help of an LED beam, you can safely obtain accurate measurements of rotating objects. We recommend that you read and follow the instructions carefully before use. Specifications: LCD Display: Yes Illumination: 1500 lux RPM Accuracy: 0.001% Weight: 320g / 11.3oz Measurement Range: 60-99999 RPM Operating Temperature: -10℃ ~ 55℃ Dimensions: 210*90*57(mm) / 8.3*3.5*2.2(in) Power Supply: 7.4V/2200mA Lithium Battery

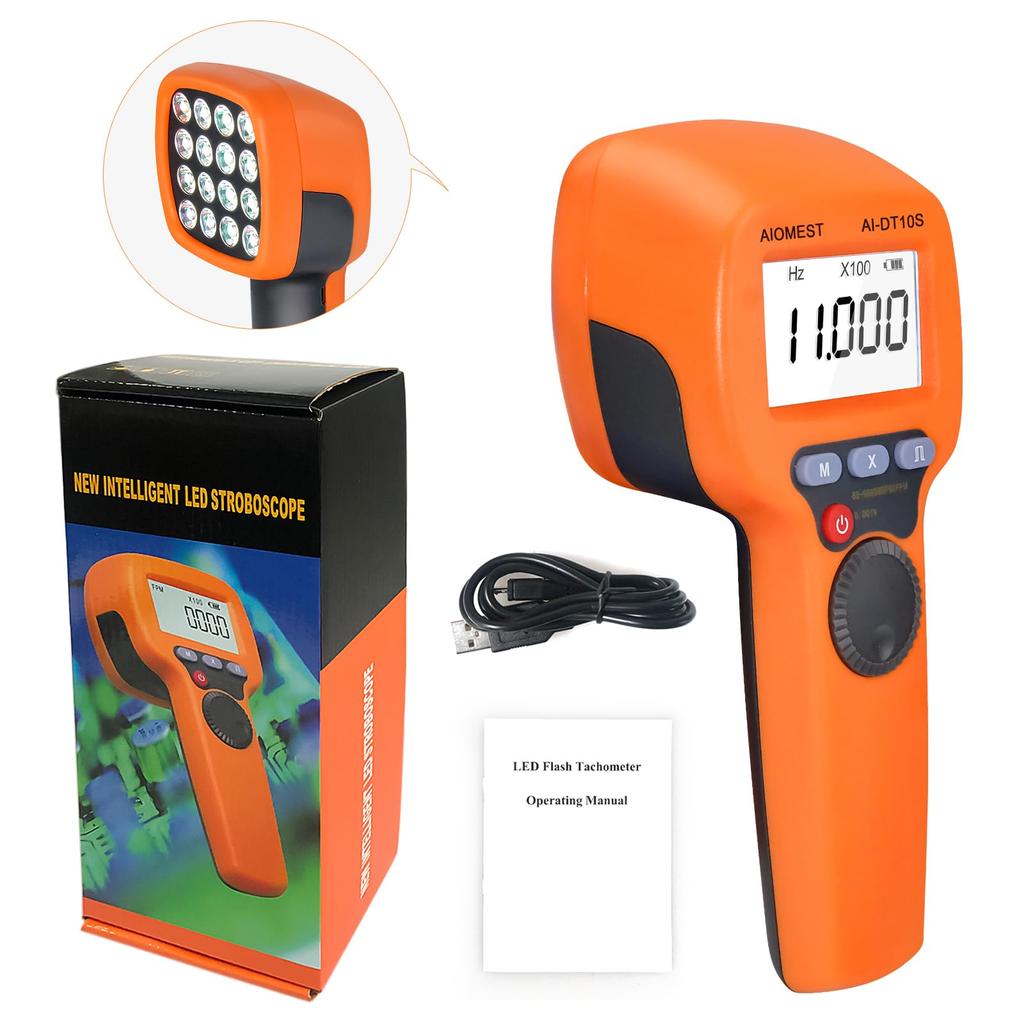

What's in the box? 1 * Manual 1 * USB Line 1 * AIOMEST LED Stroboscope
Warning: 1. Do not place in a humid place. 2. Do not place in a place where the temperature exceeds 55°C. 3. Do not place in a place with thick acidic or salty mist. 4. Do not hit or forcefully push heavy objects into the product. AIOMEST is committed to providing the best measuring instruments. Enjoy worry-free shopping! If you have any problems with our products, please feel free to contact us.
