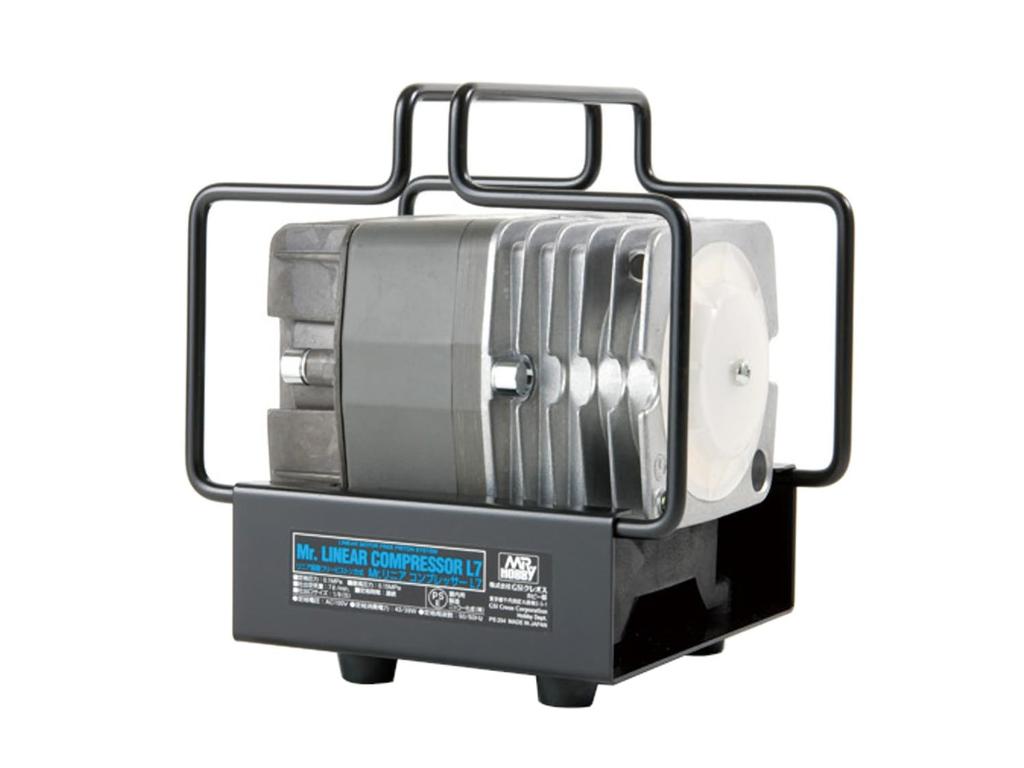

This is the flagship model in the quiet linear compressor series.
The linear drive ensures stable airflow. Its low operating noise minimizes disturbance to surrounding areas, even during nighttime work.
In addition to its robustness, the Mr. Linear Compressor series is characterized by its continuous operation (24 hours a day). No cool-down period is required, even for multiple painting jobs.
●The linear drive free-piston system is an innovative method that directly drives the compression piston with electromagnetic force. Unlike conventional systems, this advanced compressor does not require the transmission mechanism (motor, crankshaft, connecting rod, etc.) that generates drive noise. This results in quiet operation, allowing for nighttime use without worry.
●Its compact and lightweight design makes it easy to transport and even suitable for desktop use.
●It is designed for long-term continuous operation. (The L5 and L7 models can operate continuously throughout the day.)
●The intake air filter and oil-free system ensure clean discharge air. ●The air pressure and air volume of this unit have been set to the optimum output so that you can enjoy advanced airbrush painting with Pro Spray, Procon Boy, or Mr. Airbrush using Mr. Color or water-based hobby colors. It is also compatible with most similar paints and airbrushes from other companies (nozzle diameter 0.4mm or less).
●A wide range of accessories allows for a wide range of combinations.
●Use: Airbrush painting compressor
●Suitable fluid: Air
●Rated pressure: 0.1 MPa
●Maximum pressure: 0.15 MPa
●Air discharge rate: 7.0 L/min. (0.05 MPa)
●Rated duration: Continuous
●Operating noise: 55 dB (no load)
●Outlet size: 1/8" (S)
●Rated voltage: AC 100 V
●Rated power consumption: 43/39 W
●Rated frequency: 50/60 Hz
●Dimensions: L 170 x W 142 x H 185 mm (5.9" x 5.9" x 7.5")
●Weight: 2.9kg
● The linear-drive free-piston system is an innovative method that directly drives the compression piston with electromagnetic force. Unlike conventional systems, this advanced compressor eliminates the noise-generating transmission mechanisms (motors, crankshafts, connecting rods, etc.). This results in quiet operation, allowing for worry-free nighttime use. ● The compact and lightweight design makes it easy to carry and even suitable for desktop use. ● Designed for long-term continuous operation. (The L5 and L7 models can be operated continuously throughout the day.) ● Equipped with an intake air filter and oil-free design, the discharge air is always clean. ● The unit's air pressure and volume are preset to optimal output for advanced airbrush painting using ProSpray, ProCon BOY, Mr. Airbrush, Mr. Color, and water-based hobby colors. It is also compatible with most other commercially available paints and airbrushes (nozzle diameter 0.4mm or less). ● A wide range of accessories allows for versatile combinations. ●Use: Airbrush painting compressor ●Suitable fluid: Air ●Rated pressure: 0.1 MPa ●Maximum pressure: 0.15 MPa
●Air discharge rate: 7.0 L/min (0.05 MPa) ●Rated duration: Continuous ●Operating noise: 55 dB (unloaded) ●Outlet size: 1/8"
●Rated voltage: AC 100V ●Rated power consumption: 43/39 W ●Rated frequency: 50/60 Hz ●Dimensions: L 170 x W 142 x H 185 mm (6.5" x 5.7" x 7.5") ●Weight: 2.9 kg (5.9 lbs)
