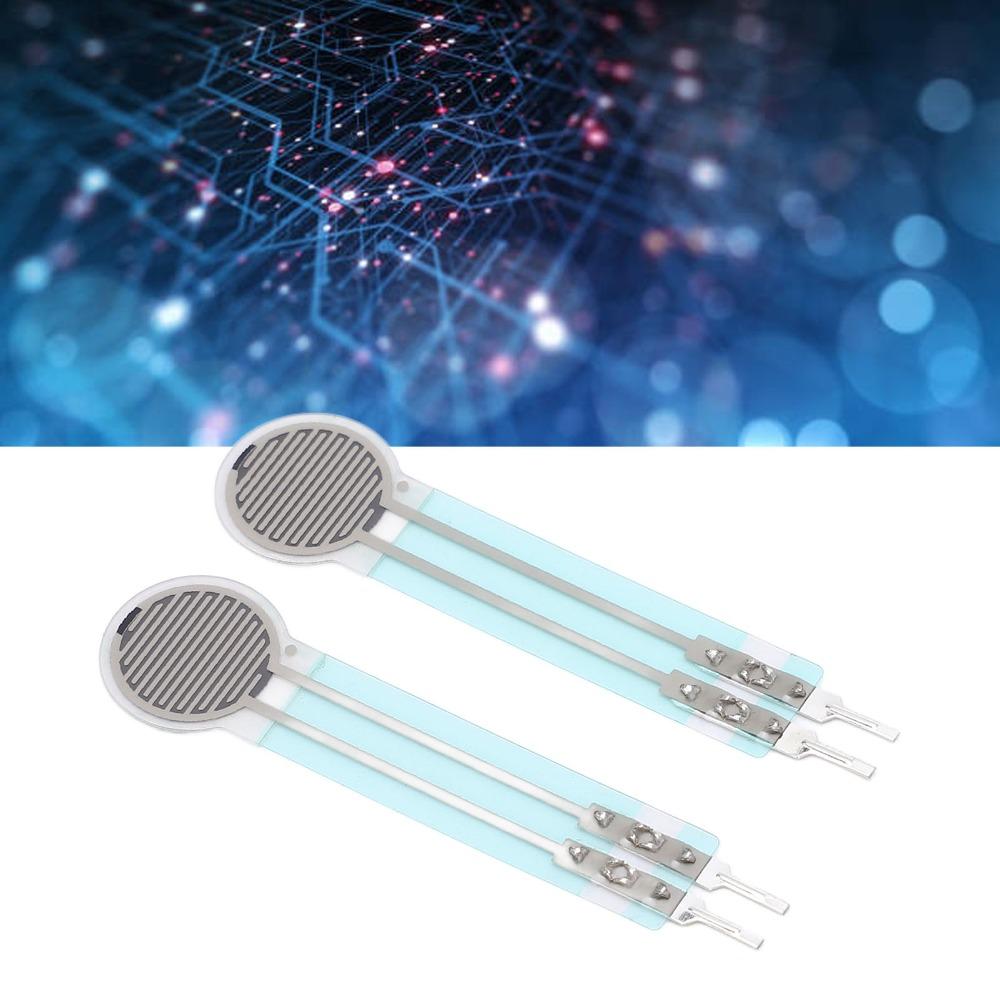

2PCS High Sensitivity Force Sensitive Resistor Flexible Bend Sensor Pressure Sensing

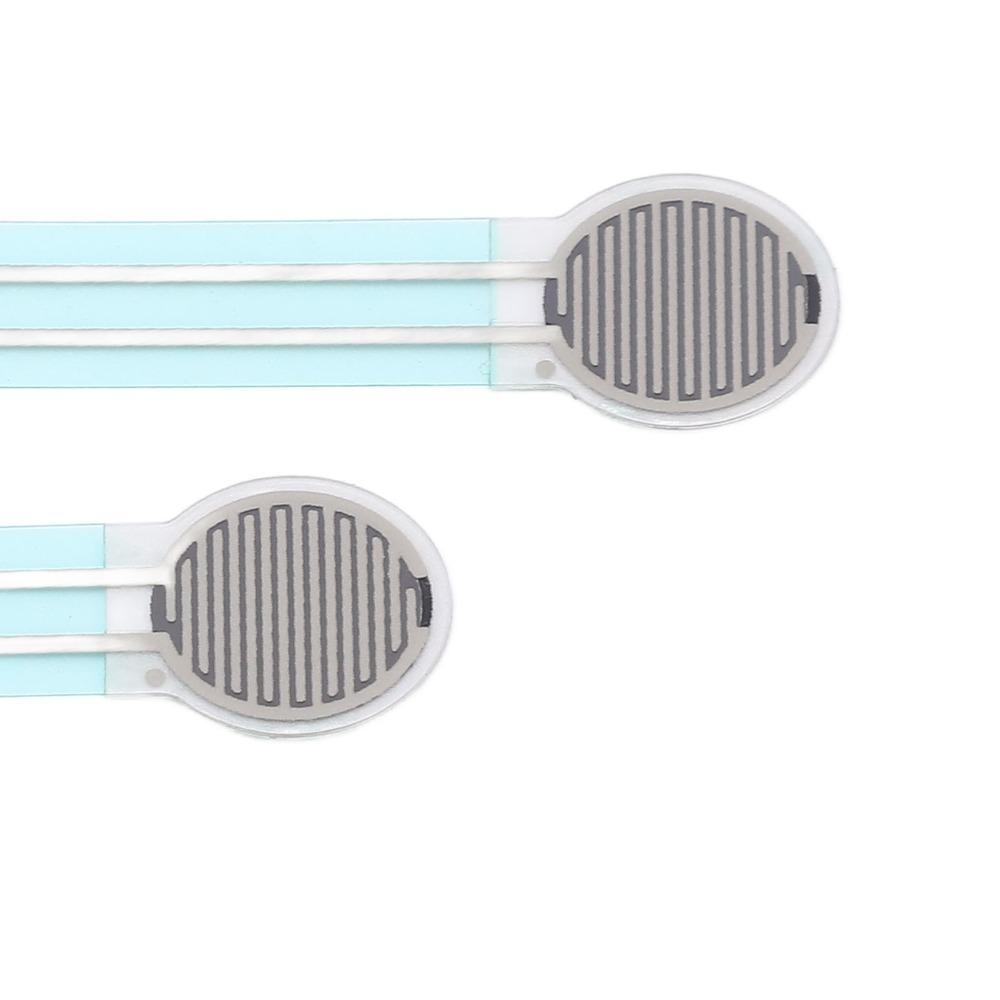

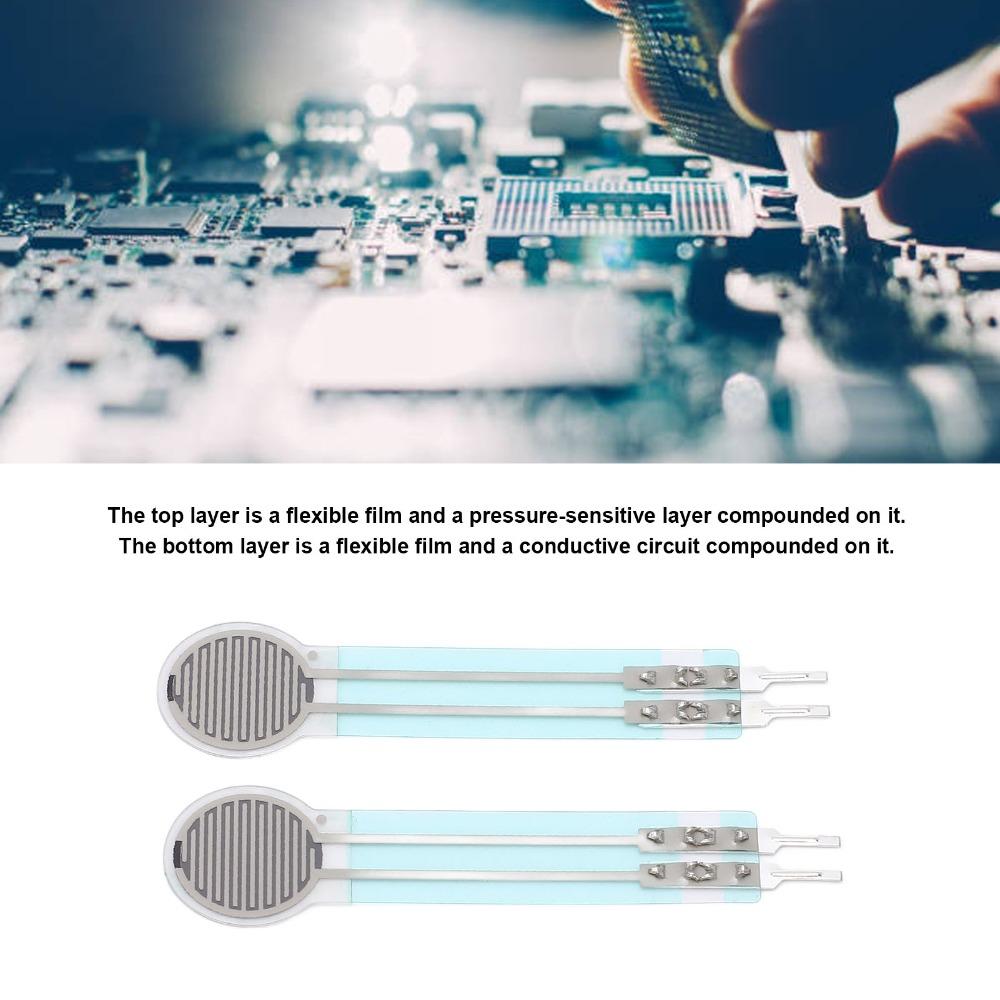

Label:Yes -Pressure Sensor: When pressure is applied to the sensing area, the mutually disconnected circuits on the bottom layer will be connected via the varistor layer on the top layer, and the resistance output value of the port varies with the pressure. -High Accuracy: Featuring a wide pressure sensing range of 20g-3kg, the thin-film pressure sensor also has minimal drift and high accuracy. -Good Materials: The flexible film pressure-sensitive sensor is made of polyester film (with excellent overall mechanical properties), highly conductive materials, and nano pressure-sensitive materials. -Structure: The top layer consists of a flexible film and a pressure-sensitive layer bonded to it, while the bottom layer is composed of a flexible film and a conductive circuit bonded to it. -Easy Manipulate: Being thin and flexible, these 2 force-sensitive resistors allow for convenient manipulate and installation.

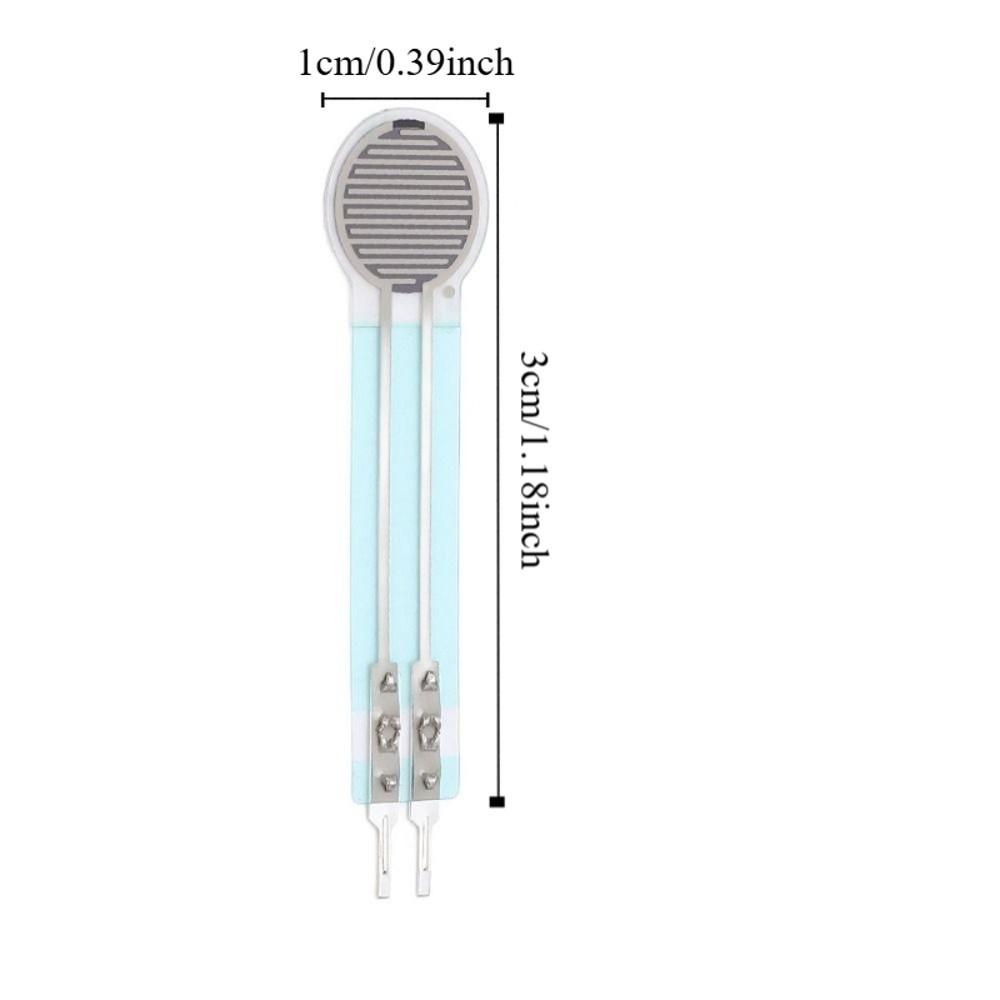

Specification: Item Type: Thin Film Pressure Sensor Model: RP-C10-LT Color:as shown in the figure Size:3*1cm(1.18*0.39in) Material: Polyester film, high conductivity material and nanometer pressure sensitive material. Pressure Sensing Range: Approx. 20g-3kg / 0.71oz-6.61lb Trigger Force: Approx. 20 g / 0.71 oz, trigger when the default resistance is less than 200kohm Thickness: Approx. 0.4mm(0.02in) / 0.02in Style: Thin and flexible. Resistance When not Triggered: Greater than 10Mohm. Activation Time: Less than 0.01S. Hysteresis: +10%, 1000 g / 35.27 oz force, approx. Response Time: <10ms Electromagnetic Interference EMl: No Electrostatic Discharge EDS: Insensitive Drift: <5%, 1Kg static load 24H.

Note: 1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2.Please allow 0.2 inch measuring deviation due to manual measurement. thanks for your understanding.

Package List: 2 x Thin Film Pressure Sensor(Including gasket)
