Battery Included : No
High-concerned chemical : None
Operating Temperature : -40~1000℃ ±(1%+2)
Measuring Capacitance Range : 0.1uF-6000uF ±(3%+3)
Measuring Resistance Range : 0-60MΩ ±(0.8%+3)
Display Type : Digital Only
Model Number : Dual Display Multimeter
DIY Supplies : Electrical
Origin : Mainland China
Certification : None

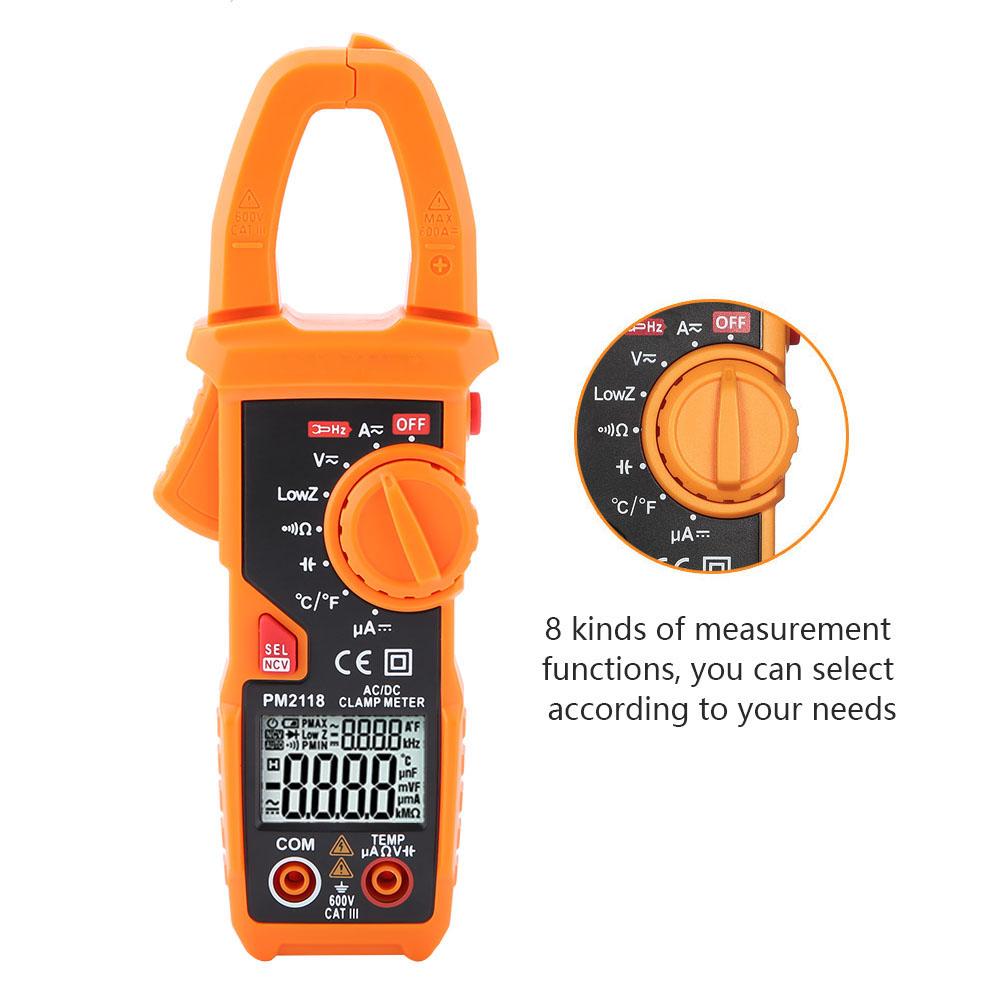

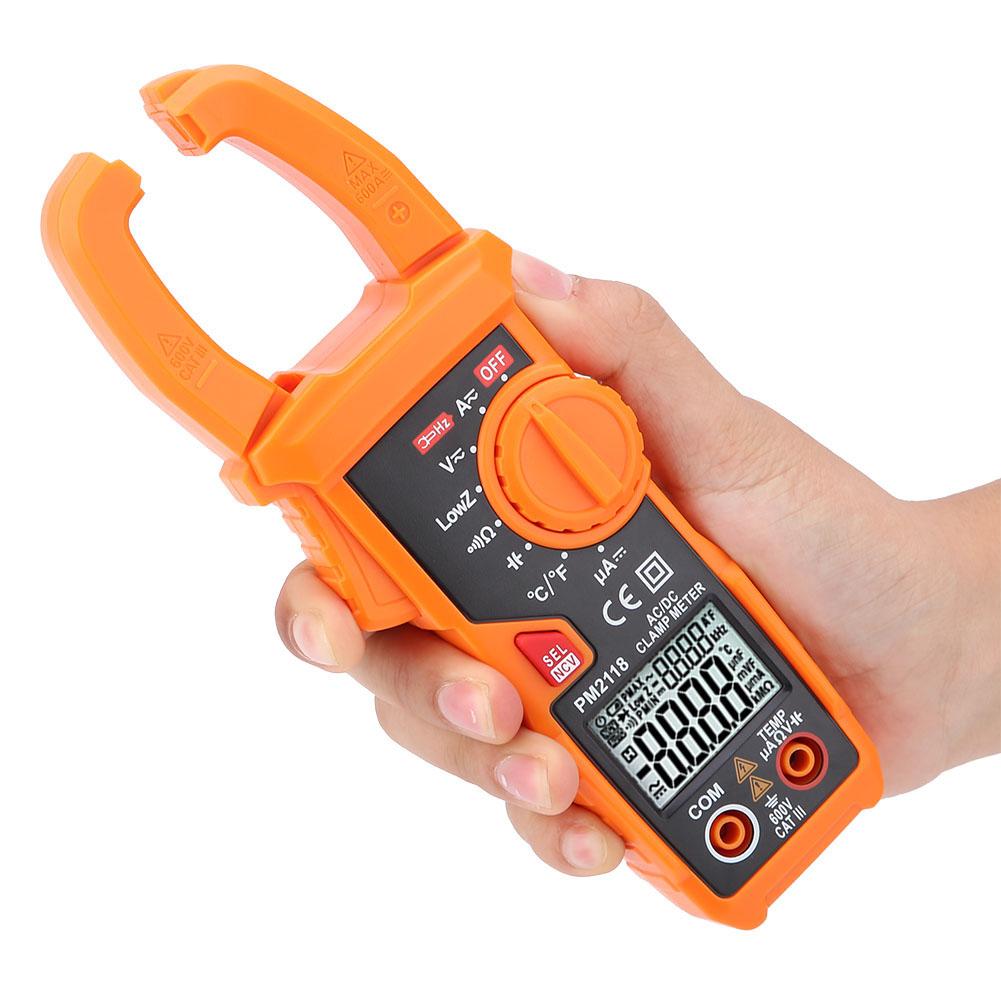

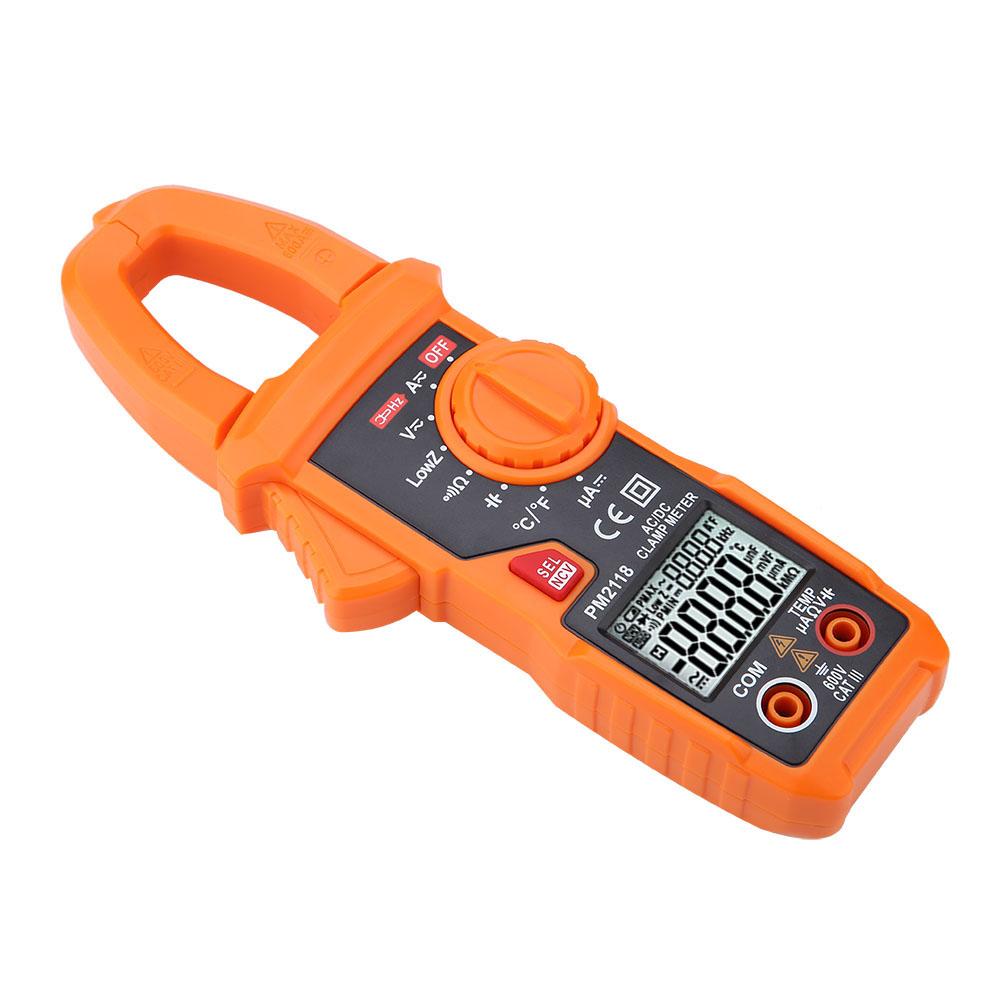

PEAKMETER PM2118 Dual Display AC DC Clamp Multiemeter NCV Ohmmeter Capacitance Temp Tester
Specification:
Features:
1. This is a clamp multimeter to accurately measure AC DC current/voltage, frequency, resistance, capacitance and temperature.
2. 6000 counts LCD screen displays the measuring data clearly and intuitively.
3. 8 selection manual function knob.
4. Non-contact voltage (NCV) detection, safe and practical.
5. More functions: Continuity test, data hold, low battery indication, auto power off and more.
Specification:
Specification Range Accuracy
DC Voltage 0-660.0V ±(0.5%+3)
AC Voltage(40-65Hz) 0.01-600.0V ±(0.8%+5)
DC Current 10mA-400A ±(3%+3)
400A-600A ±(3.5%+3)
AC Current(40-65Hz) 100mA-400A ±(2.5%+5)
400A-600A ±(3%+5)
Resistance 0-60MΩ ±(0.8%+3)
Capacitance 0.1uF-6000uF ±(3%+3)
Frequency 40Hz-1000Hz
Continuity
Low Impedance Voltage 1.0-600V ±(0.8%+3)
DC Current uA 0-200uA ±(0.8%+3)
Temperature -40~1000℃ ±(1%+2)
-40~1832℉ ±(1%+2)
Feature
Display 6000 counts
Auto Range Yes
AC Current 60A/600A
DC Current 60A/600A
AC Voltage 600mV/6V/60V/600V
DC Voltage 6V/60V/600V
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency(Clamp) 1kHz
Frequency(Voltage)1kHz
LPF(1kHz-3dB) Yes
Capacitance 600uF/6000uF
Data Hold Yes
Backlight Yes
NCV Yes
Low Battery IndicationYes
Auto Power OffYes
Dual DIsplay Yes
General Parameter
BrandPEAKMETER
ModelPM2118
Power Supply 2 x 1.5V AAA batteries (NOT included)

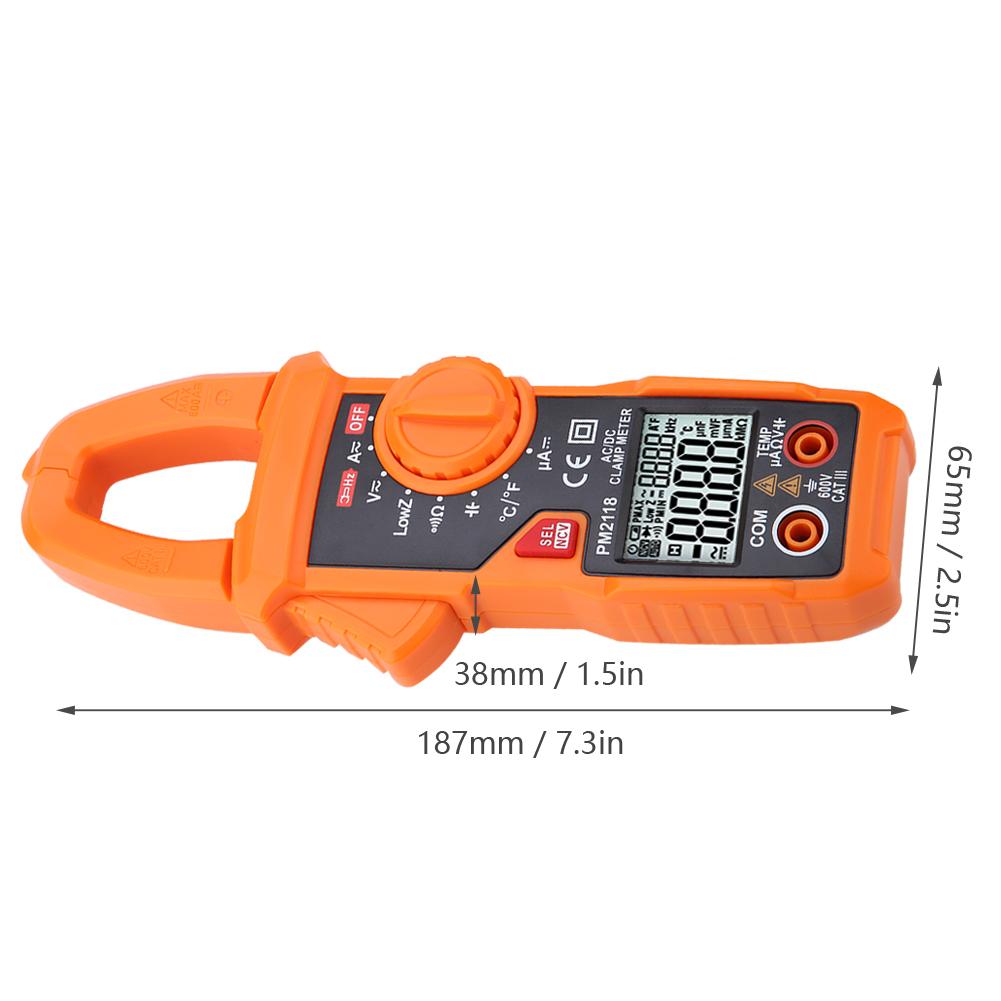

Size 187*65*38mm / 7.3*2.5*1.5in
Package WeightApprox. 357g/12.6oz
Package list:
1 * Clamp Multimeter
2 * Test Probes
1 * Thermocouple
1 * Black Bag
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
