Smart Electromagnetic Radiation Detector Geiger Counter Electric Magnetic Field Strength RF Power Real Time Monitor Alarm Record
Description:
GC-03is a multifunctional detector, a professional instrument for measuring nr, mainly used in various occasions such as home, office, outdoor environment, etc. It uses a 2.4-inch high-definition color screen and supports real-time monitoring of nr, electric field strength, and magnetic field strength.
Features:
1. Real-time measurement and alarm function:
The device continuously monitors and displays the measured values of radiation, electric field strength, and magnetic field strength and
their corresponding units. And evaluates the danger level according to the alarm threshold set for each measurement value.
2. Flexible radiation unit setting:
The device allows users to select measurement units. Available units include μs v/h, uGy/h, mR/h, CPS, CPM, etc.
This function ensures that users can choose the most appropriate unit based on their specific measurement needs and industry standards.
3. Alarm record display function:
The alarm record page displays alarm records in order, with serial numbers from the oldest to the newest. Each record contains the type of data
that triggered the alarm (for example, NR, electric field strength, magnetic field strength) and the specific date and time when the alarm
was triggered.

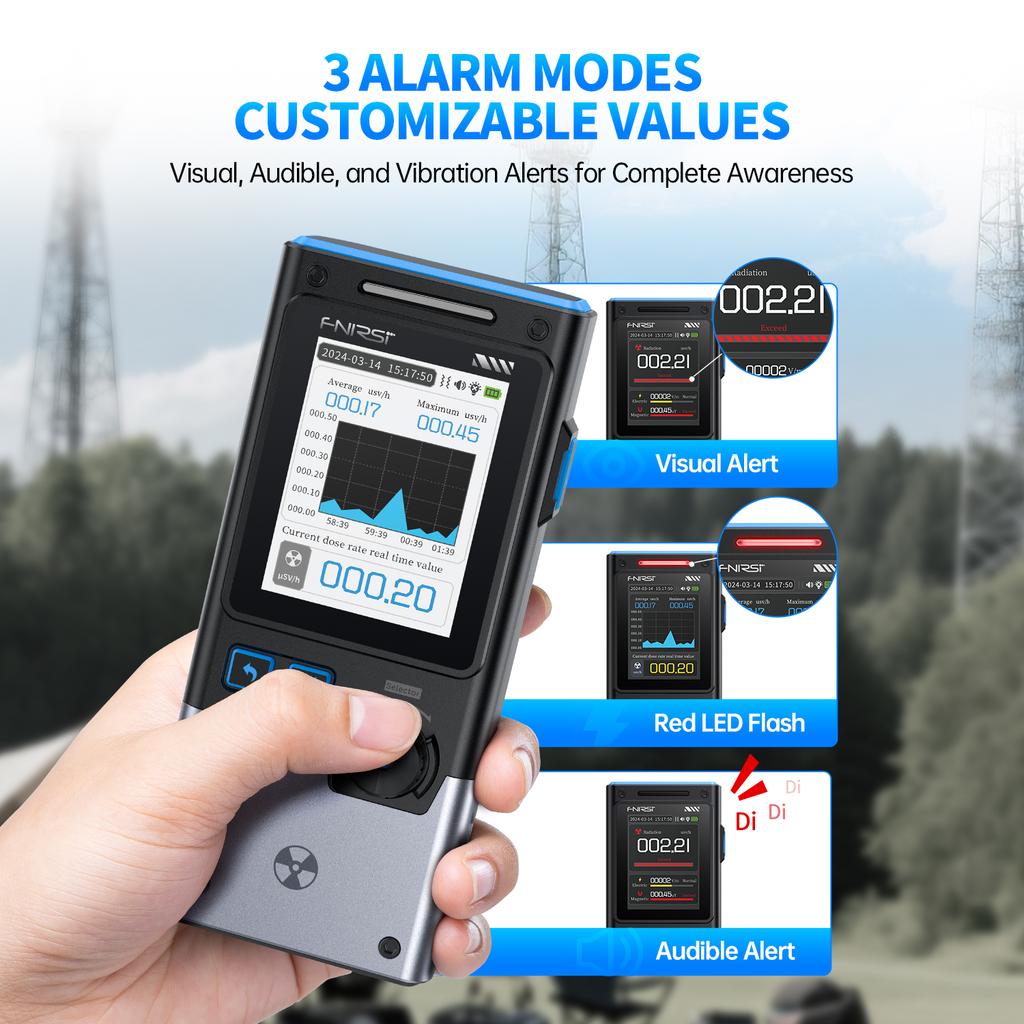

4. Multiple alarm modes:
This area is highlighted, indicating that the alarm mode setting has been entered, and the corresponding setting content is displayed. There are three alarm modes: indicator light, vibration and volume alarm. The three modes can be combined with each other and selected according to the user's wishes.
Parameters:
Basic Parameters:
1.Screen material: 2.4-inch color screen
2.Backlight: Brightness Adjustable
3.Power supply: TYPE-C (5V/1A)
4.Battery: 1500mAh
5.Languages: Chinese, English
6.Product size: ≈138×63×32mm
7.Net weight: ≈141g
Measurement Parameters:
1.NR:
Range: 0.01usv/h-999.99usv/h
Units: usv/h
Accuracy: 0.01usv/h
2.Electric Field:
Range: 1V/m - 1999V/m
Units: V/m
Accuracy: 1V/m
3.Magnetic Field:
Range: 0.01μT-99.99μT
Units: μT
Accuracy: 0.01μT
Radiation Power: 0.2-1000mW/m²
NR Detection:
1.Detection Type: Ionizing radiation (gamma rays, etc.)

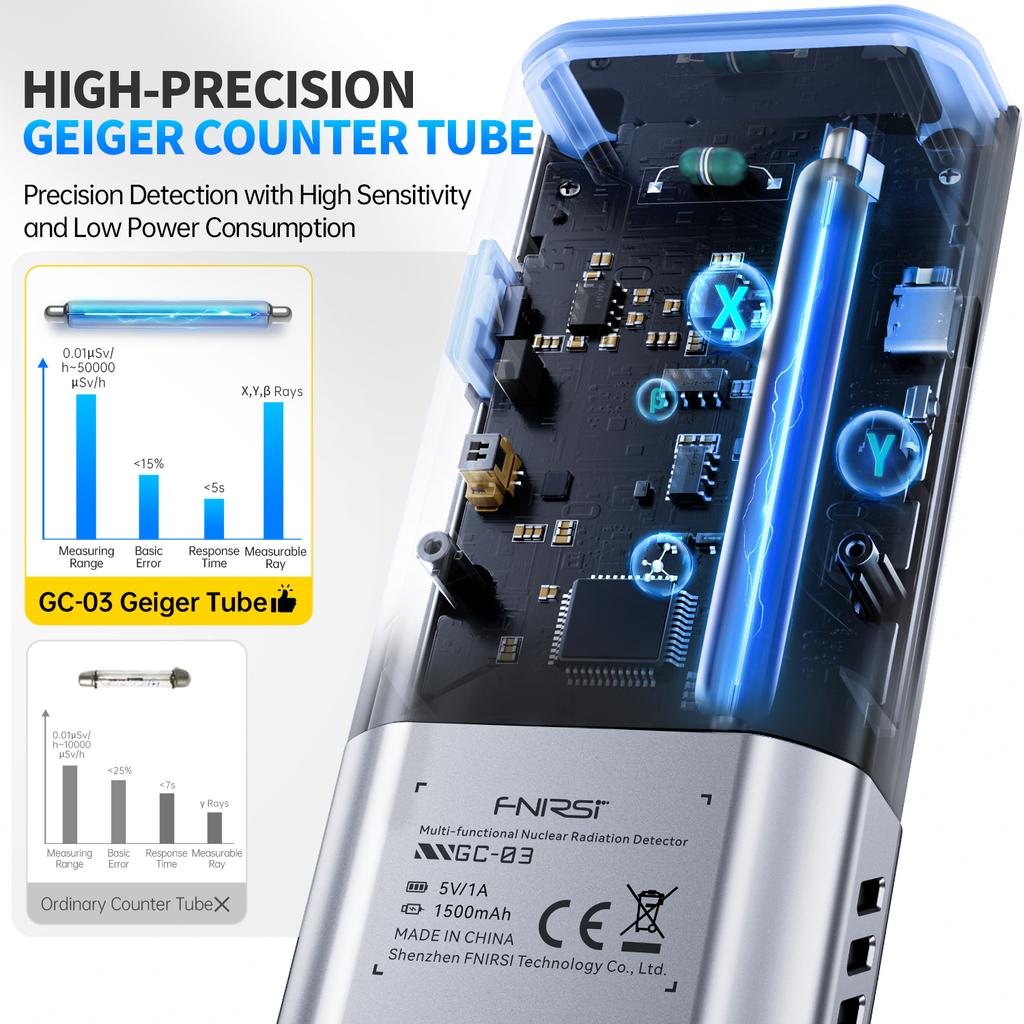

2.Detector: Energy compensation GM tube (Geiger counter tube)
3.Dose Current Rate: 0.00-10000uSv/h (10mSv/h)
4.Cumulative Dose Equivalent: 0.00uSv-500.0mSv
5.Energy Range: 48keV-1.5MeV ≤ ±30% (for 137Cs-)
6.Sensitivity: 80CPM/uSv
7.Dose Unit: uSv/h, uGy/h, mR/h, cps, cpm
8.Alarm Mode: Light, vibration, sound

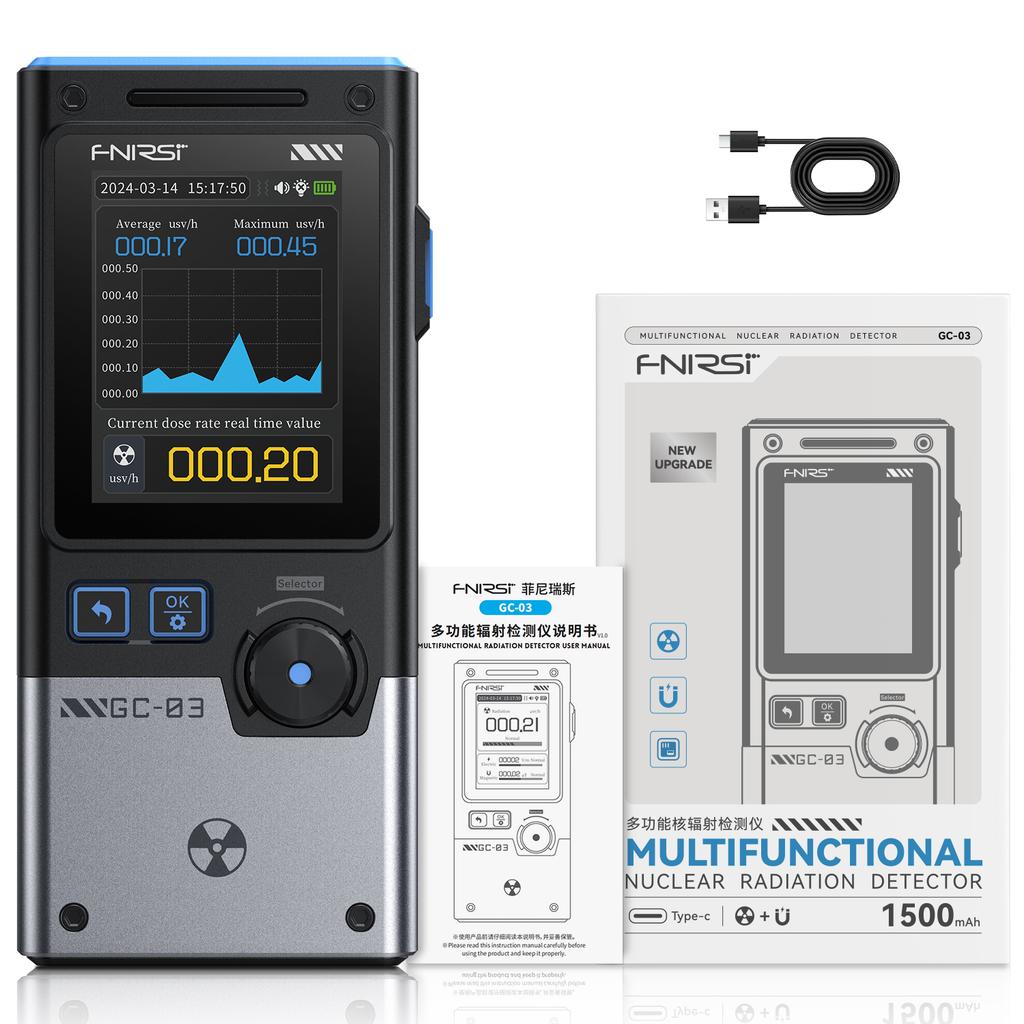

Package List:
1.GC-03 Host*1
2.Packing Box*1
3.User Manual *1
4.Data Cable*1
