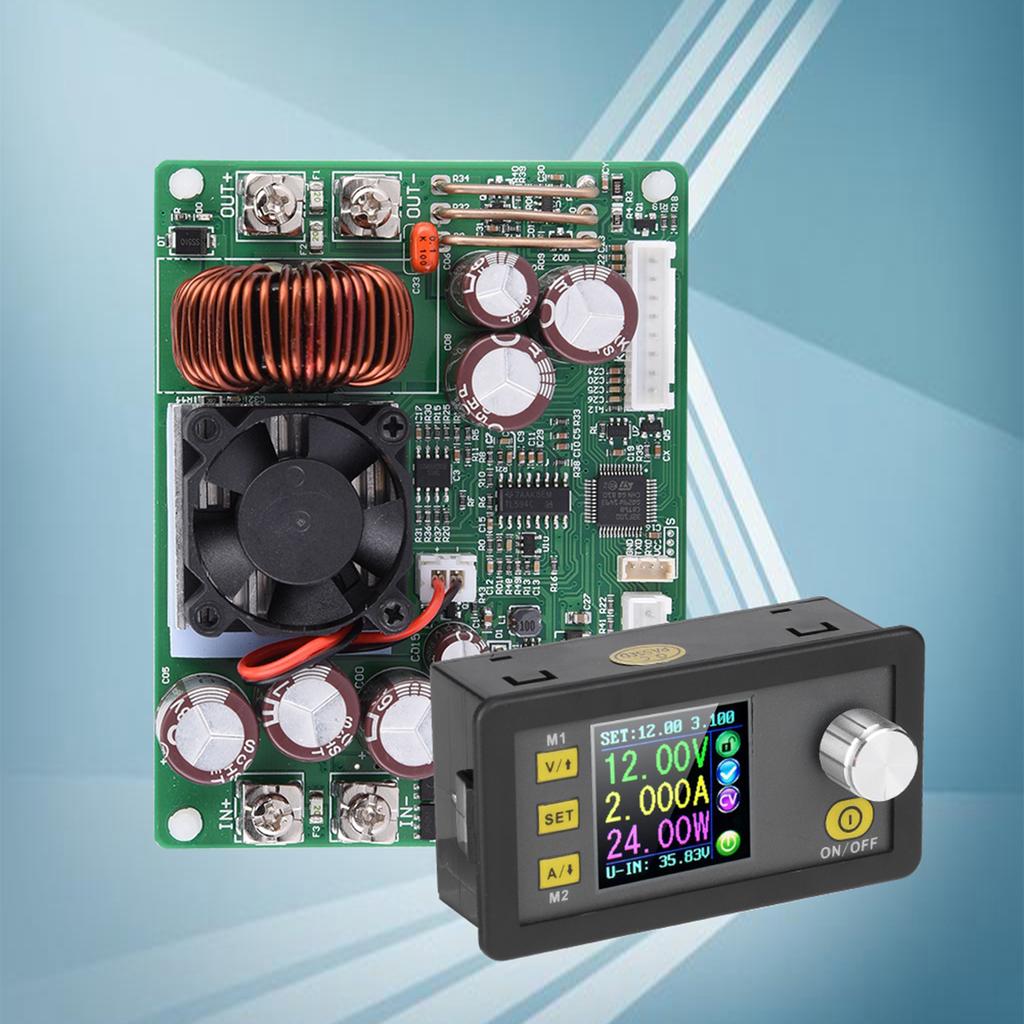

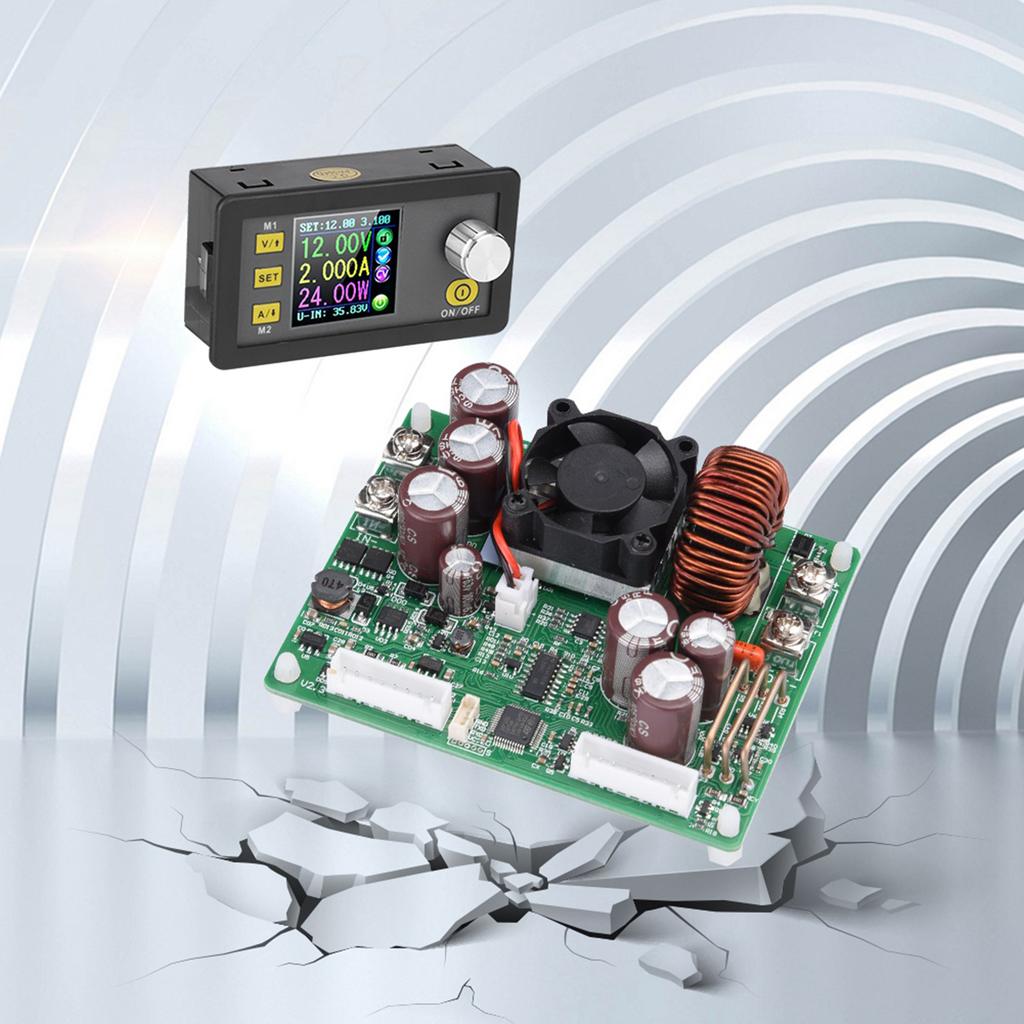

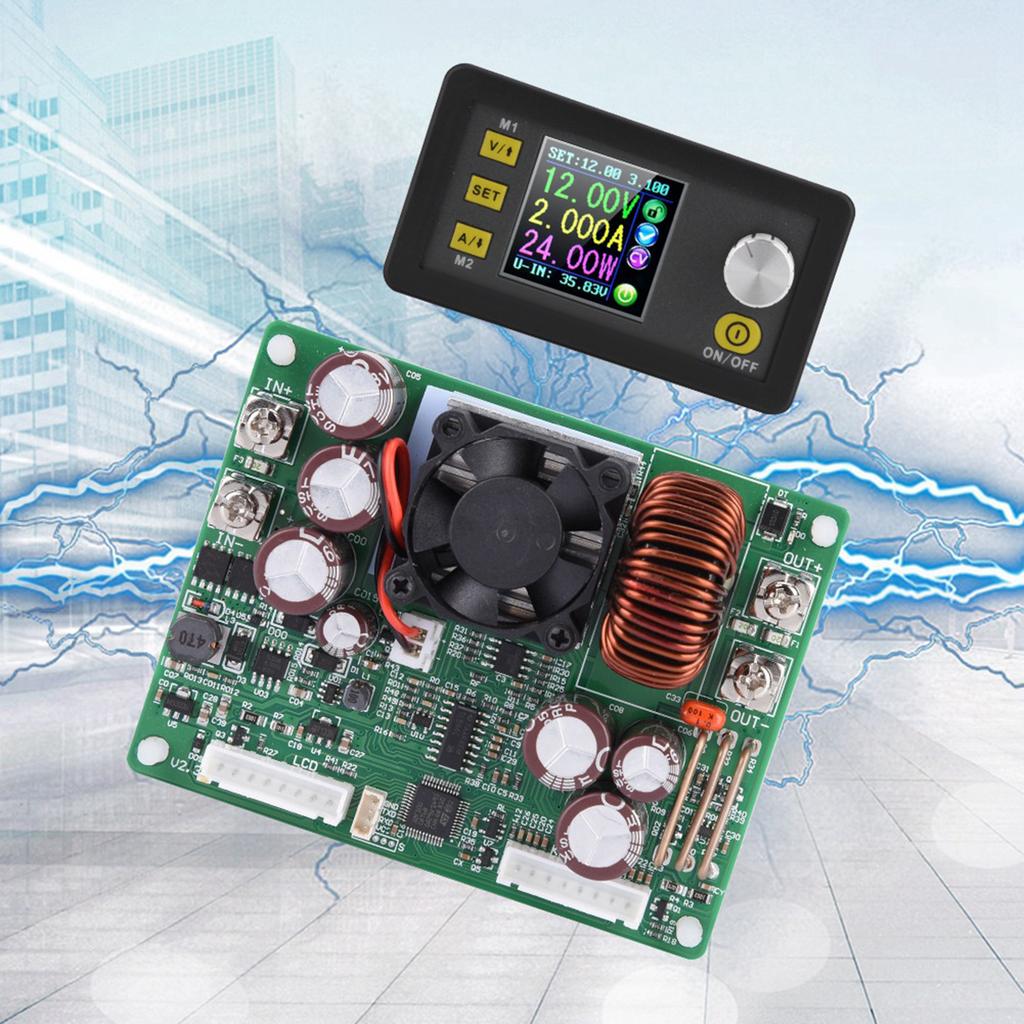

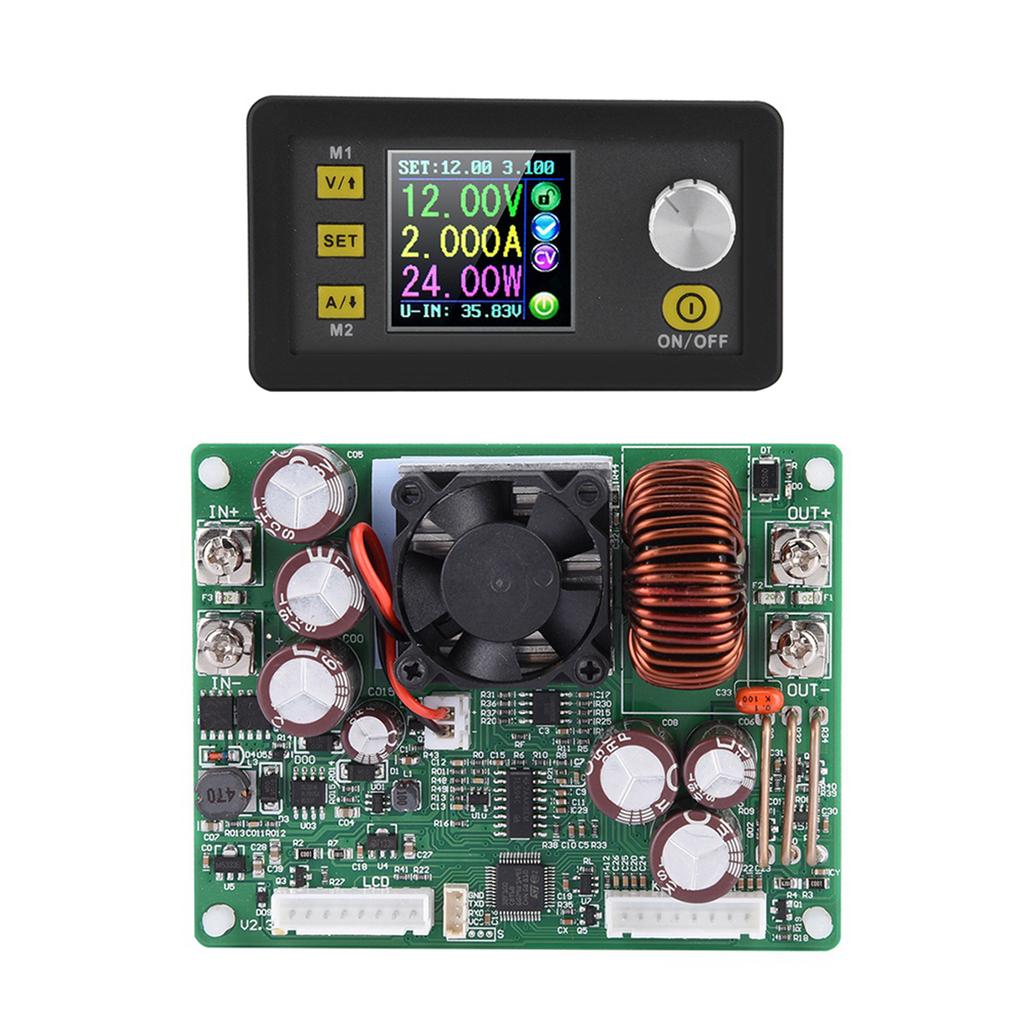

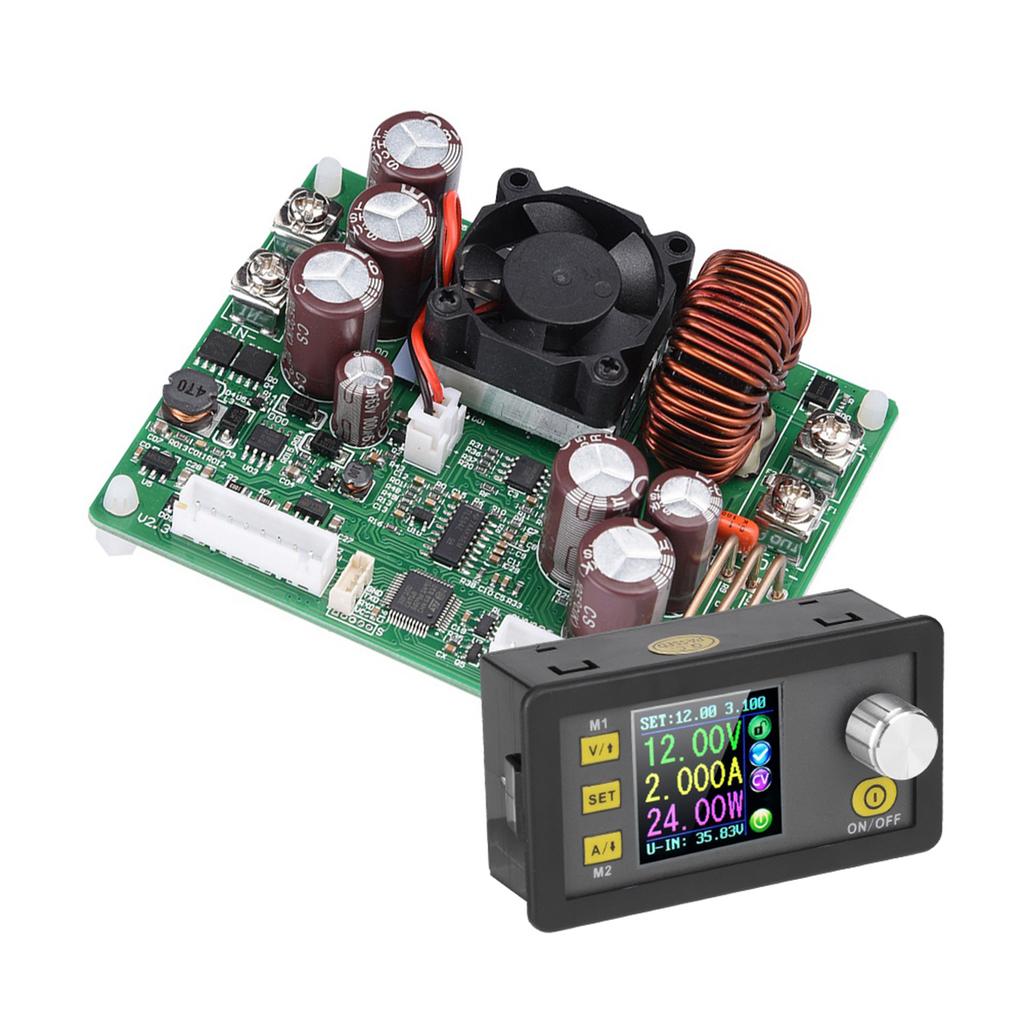

This
constant voltage and constant current programmable control power supply module
makes analog integration and digital control functions combined in one. It can
store 10 groups of preset value and can quickly extract 2 groups of preset
value. With LCD display and the function of voltage and current meter, you can
view the preset voltage, input voltage, output voltage, preset current, output
current, output power, etc. In the output state display area, it is convenient
for you to know whether the output works, output voltage current state, current
data group extracted, etc. Characterized with advanced functions, high
accuracy, good visual effect and strong operability, the item is really
practical.
Features:
1. The power supply module features small in volume, advanced in
function, good in effect, strong in operability and high in precision.
2. Open or close the output: You can press the ON OFF button to open
or close the output on any interface.
3. Lock the button to avoid wrong operation: On any interface, you can
keep pressing coding potentiometer for 2 seconds, all buttons are locked. Keep
pressing coding potentiometer for 2 seconds to unlock all buttons. You can see
the key lock unlock icon on the right of the screen.
4. M0 M9 ten data groups: M0 group is the boot default data group.
When you extract the data group you need, this data group will cover M0 data group
and be automatically stored on M0 data group.
5. You can quickly extract storage data group M1 or M2 or extract the
specified data group.
Specification:
Model (
Optional
)
DPS5015
DPS5020
Input Voltage
DC 6 60V
Output Voltage
0 50.00V
Output Current
0 15.00A
0 20.00A
Output Power
0 750W
0 1000W
Output Voltage Resolution
0.01V
Output Current Resolution
0.01A
Display
1.44in colorful LCD
Wiring Length
200mm 7.9in
Display Module Size
80*42*45mm
3.1*1.6*1.8in
79*43*41mm
3.1*1.7*1.6in
Power Module Size
93*71*41mm 3.7*2.8*1.6in
Package Weight (Approx.)
237g 8.3oz
269g 9.5oz

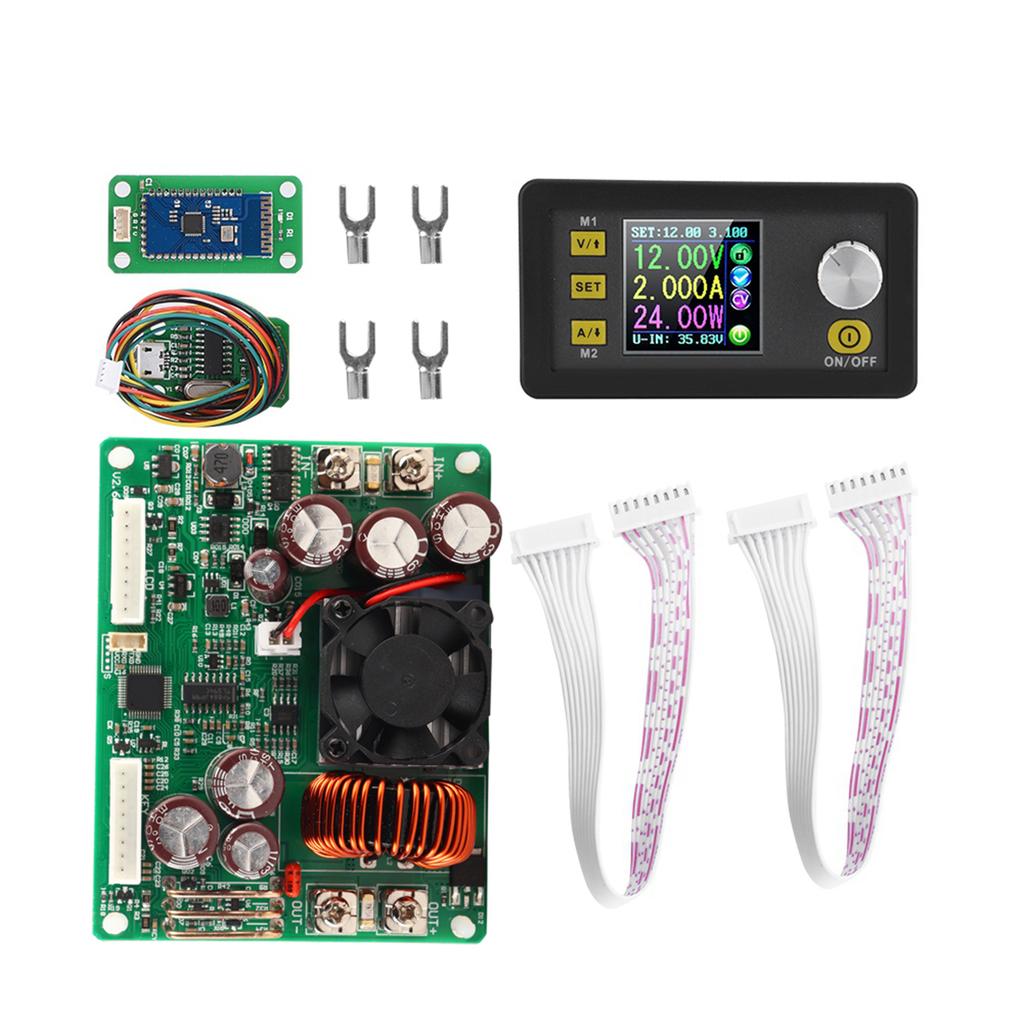

Package List:
1 *
Display Module
1 *
Power Module
1 * USB
Board
1 *
Bluetooth Board
1 * Set of Accessories
Note:
1. You must make sure that the input voltage
is 1.1 times higher than output voltage.
2. Under large current circumstances, pay
attention to enhancing heat dissipation.
3. Please properly connect the display module and the power module.
