Feature:

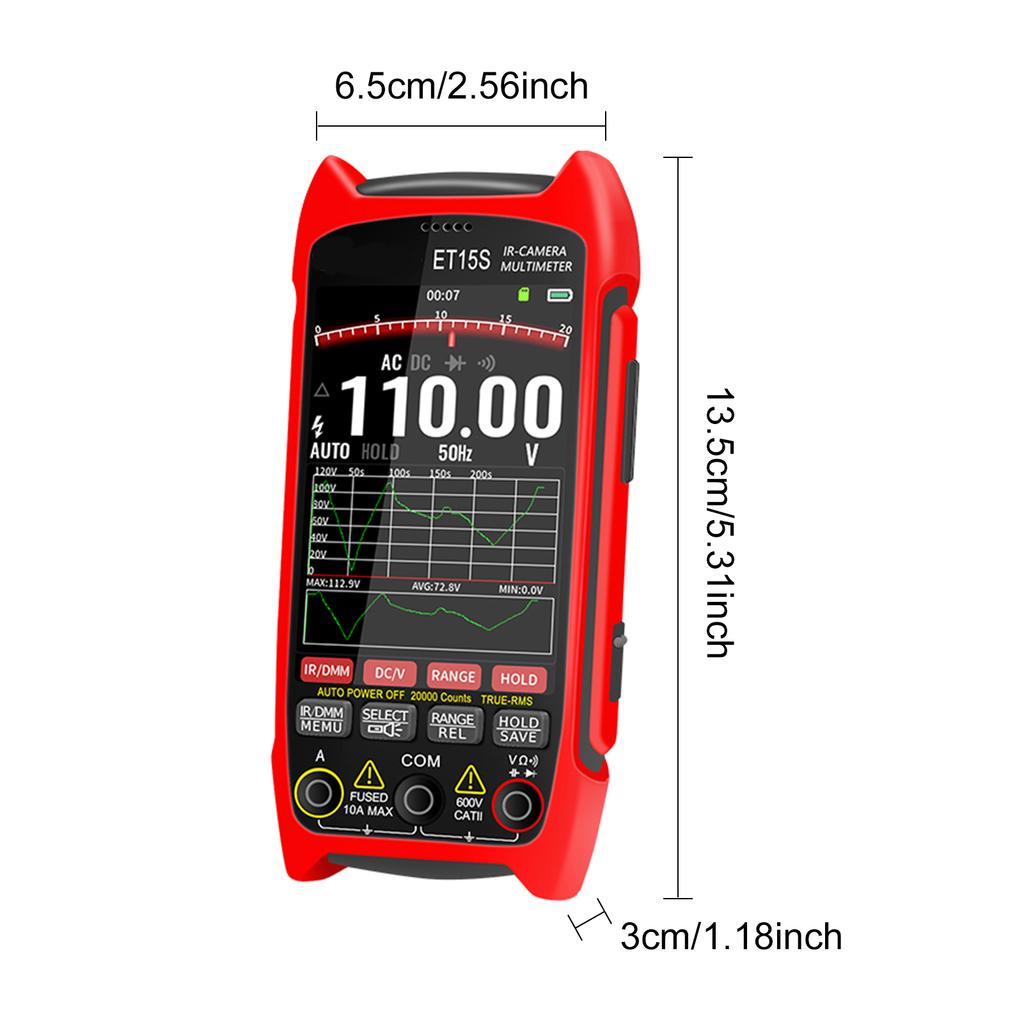

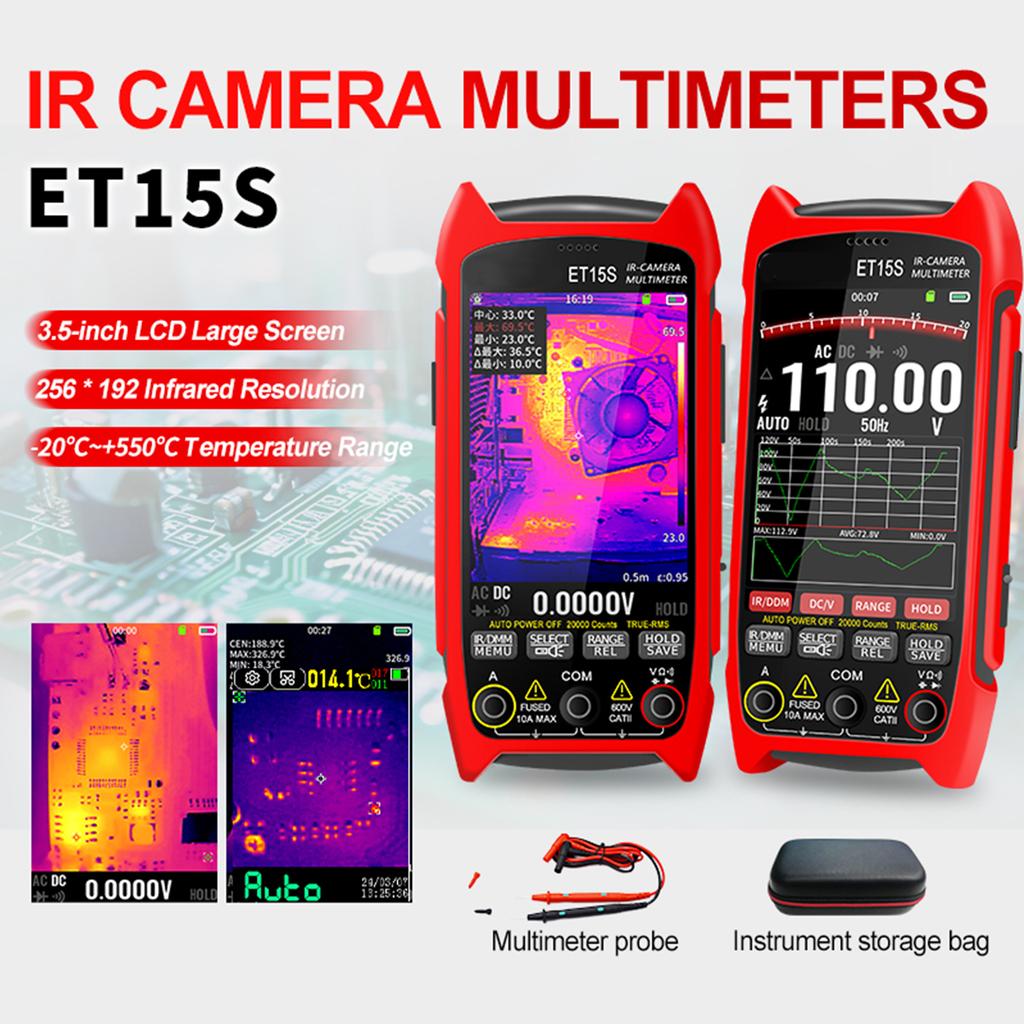

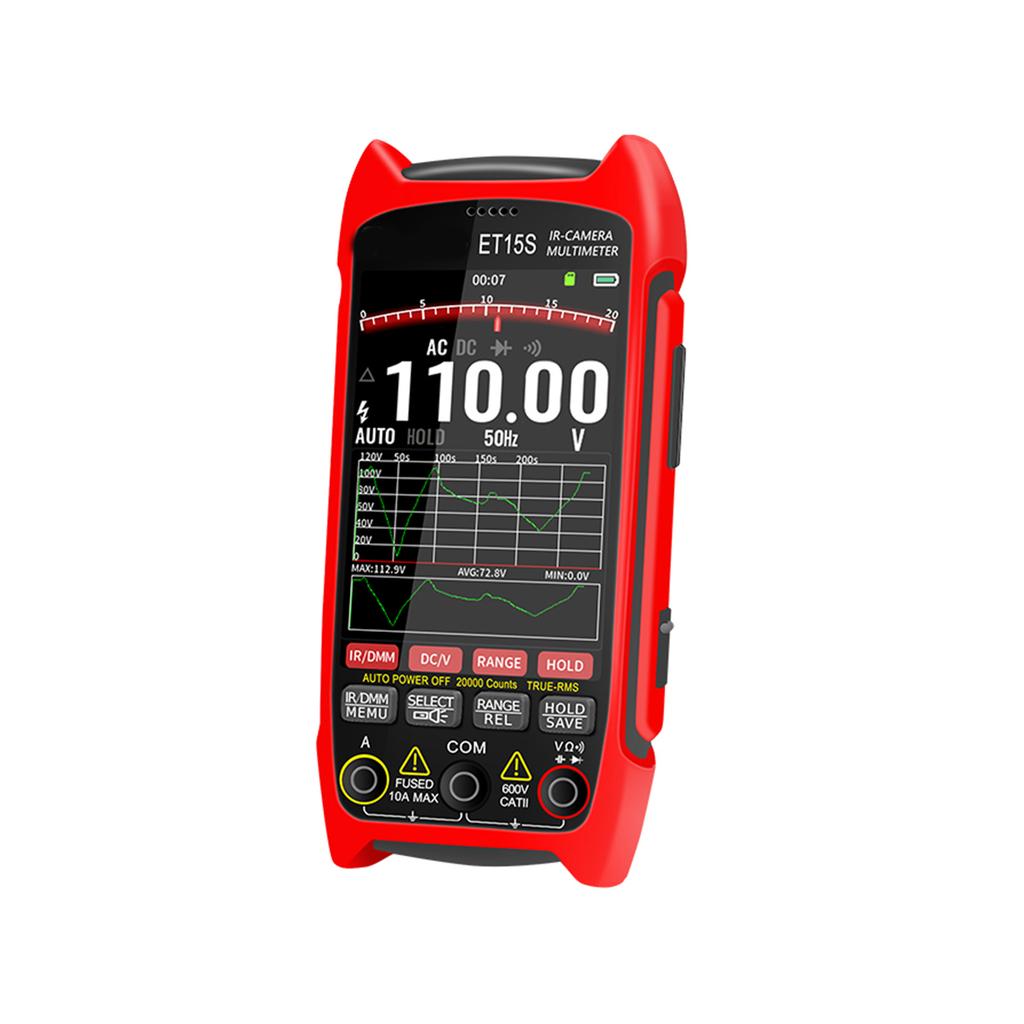

1. 2 in 1 Design: Thermal Imaging Multimeter integrates thermal imaging and multimeter functions to meet various measurement needs. It can accurately measure the temperature range of 20 celsius to 550 celsius , providing an integrated solution for temperature detection and electrical parameter measurement. Compact and lightweight, easy to carry to various work sites such as transportation, energy, electronic manufacturing, etc., it is a practical tool for electricians and maintenance technicians.

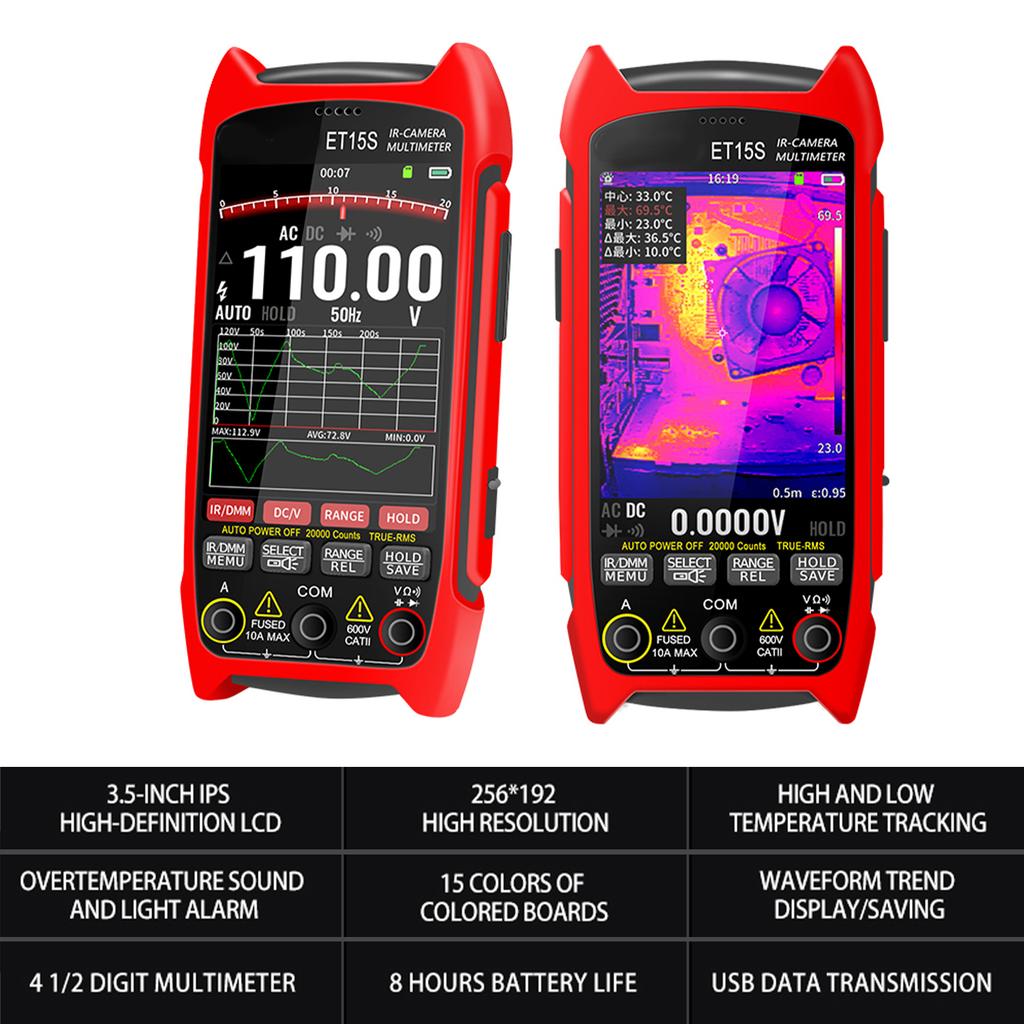

2. 3.5 inch Touch Screen, Easy to Operate: Equipped with a 3.5 inch touch screen, 427 * 320 display resolution, 256 * 192 infrared resolution. Support one click direct access function, with simple and intuitive operation. Users can set parameters as needed to make the measurement results more accurate. There are 11 languages available, including Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, and Polish.

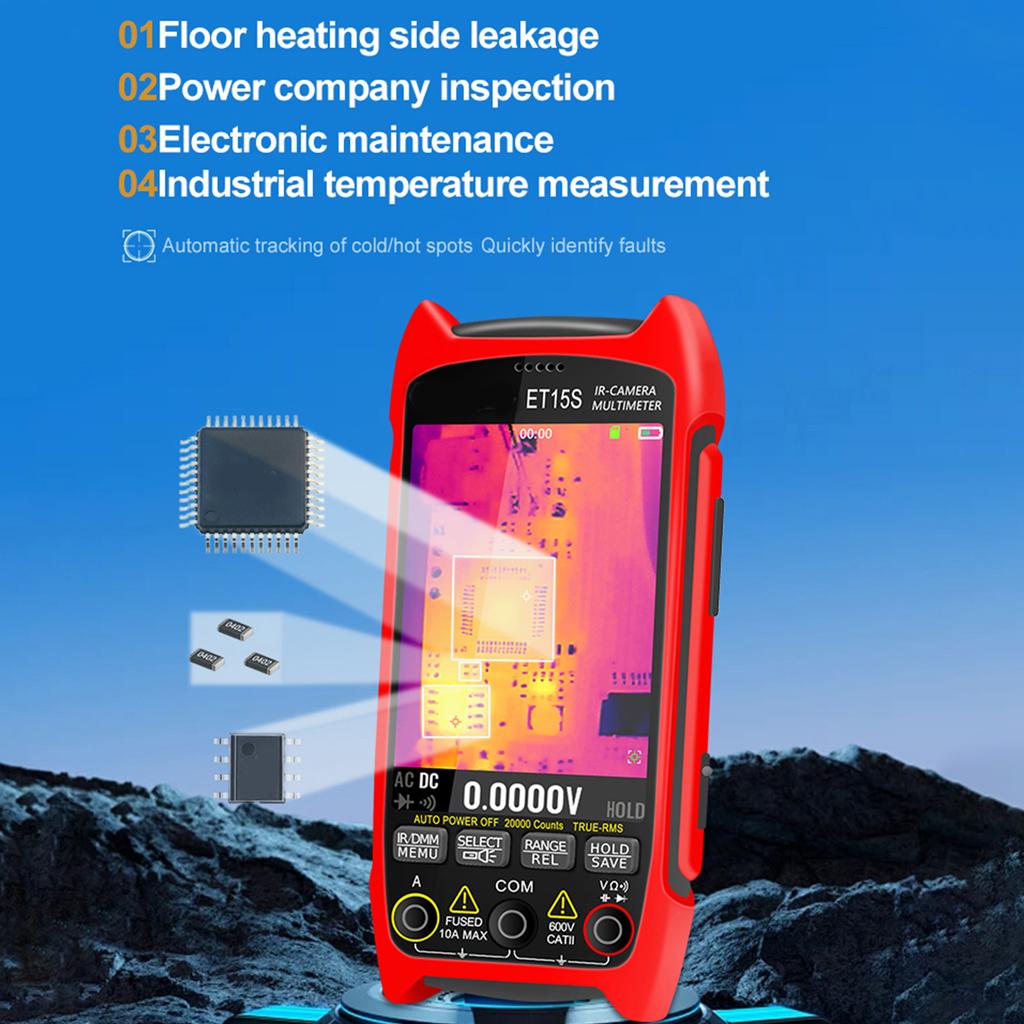

3. Thermal Imager Function: The display screen clearly shows the maximum, minimum, and center temperatures, allowing users to have a more comprehensive understanding of temperature distribution. The image mode has been upgraded to 15 pseudo colors: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice and fire, rain, green hot, red hot, and dark blue. Users can freely switch according to their actual needs to enhance the observation effect. And it has automatic testing hotspot tracking function, which can quickly locate temperature abnormal areas.
4. 20000 Count Multimeter Function: The multimeter has comprehensive functions, including DC voltage, AC voltage, DC current, AC current, resistance, diode, on off, capacitance, temperature, NCV (non contact measurement), LIVE (zero line recognition) and other measurement modes. In addition, with the help of multimeter data chart recording and data transmission functions, measurement data can be saved in the device and transmitted to the computer through USB interface for in depth analysis using upper computer software.
5. Intelligent Power saving and Convenient Charging: Equipped with a built in 3.7V 2000mAh lithium battery, supports USB charging, and has automatic screen and shutdown functions, effectively extending battery life. Equipped with a USB Type C data transfer interface, it facilitates data transfer and analysis, further improving work efficiency and portability.
Specification:
Item: Thermal Imaging MultimeterMain Material: ABSMain Color: Red, BlackBattery: 1 * Built in 2000mAh Lithium BatteryImage Capture Frequency: 25HzThermal Imaging Pixel: 256*192Display Image Resolution: 427*320Field of View (Fov): 50.0°(H) × 37.2°(V)Emissivity: Adjustable from 0.1 0.99, Default 0.95Measurement Temperature Range: 20 celsius to+550 celsius Mode: Automatic GainColor Palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep BlueTemperature Measurement Error:>0 celsius ± 2 celsius or ± 2percent ≤ 0 celsius ± 5 celsius or ± 5Display Temperature Accuracy: 0.1 celsius 0.1 Fahrenheit Multimeter Parameters:DC Maximum Input Voltage: 1000VMaximum Input Voltage for Communication: 750VMaximum Measured Current: 10AMaximum Measured Resistance: 99.9 Μ ΩMaximum Measured Capacitance: 99.99 mFDuty Cycle Measurement Range: 0.1percent 99.9percent Diode Measurement Range: 0V 3VMaximum Resistance for on off Detection: 999.9 ΩDisplay Quantity: 19999 Words Updated Approximately 3 Times Per SecondOther Parameters of the Device:Display Screen: 3.5 inches, 320 * 480 ResolutionTouch Screen: Resistive Touch ScreenUSB Interface: Type C USBStorage Capacity: 4G (Maximum Support for Expansion up to 64G)Image Format: BMP FileStorage Temperature: 20 60 celsius ( 4 140 Fahrenheit )Working Temperature: 0 50 celsius (32 122 Fahrenheit )Working Humidity:< 85percent RH (Non Condensing)Product Size: 13.5*6.5*3cm 5.31*2.56*1.18inchPackage Size: 18*11*6cmPackage Weight: 390g

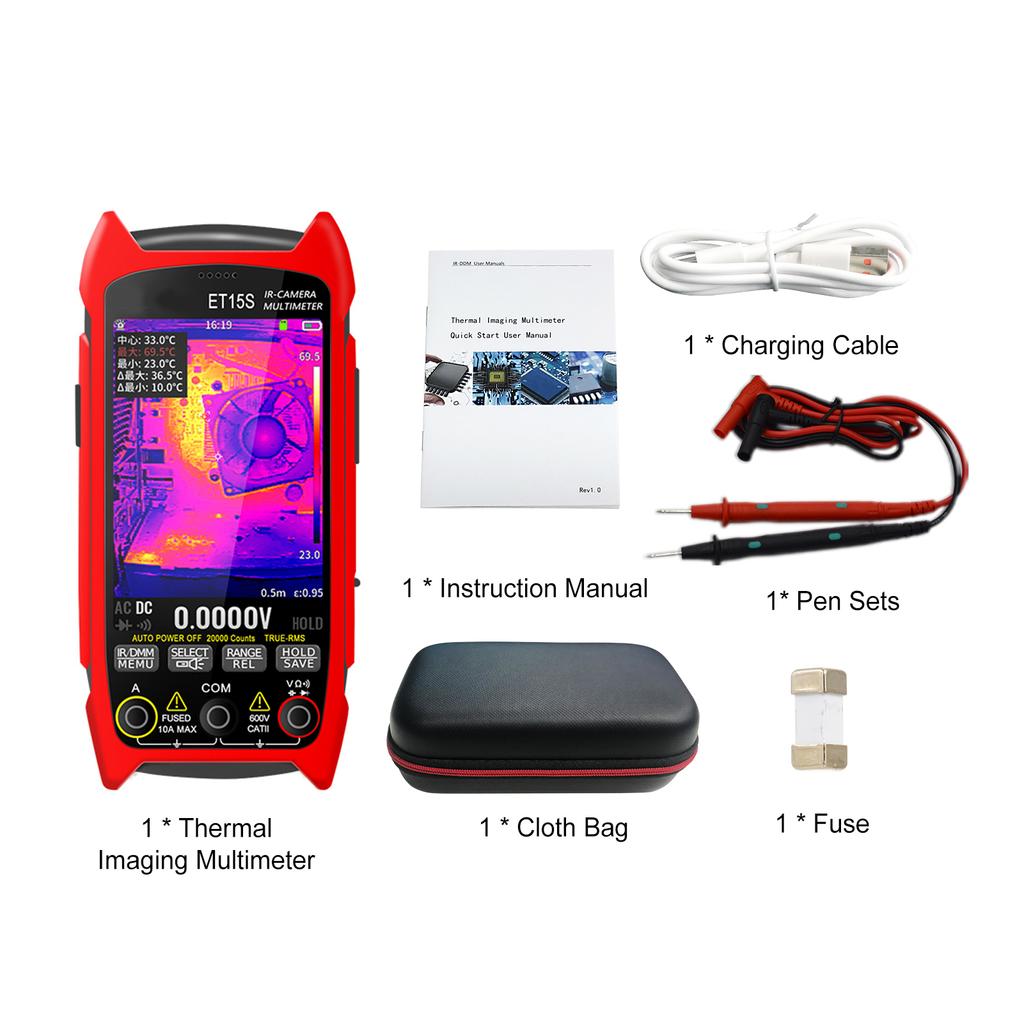

Package List:
1 * Thermal Imaging Multimeter1 * Instruction Manual2* Pen Sets1 * Charging Cable1 * Fuse1 * Cloth Bag
