Feature:

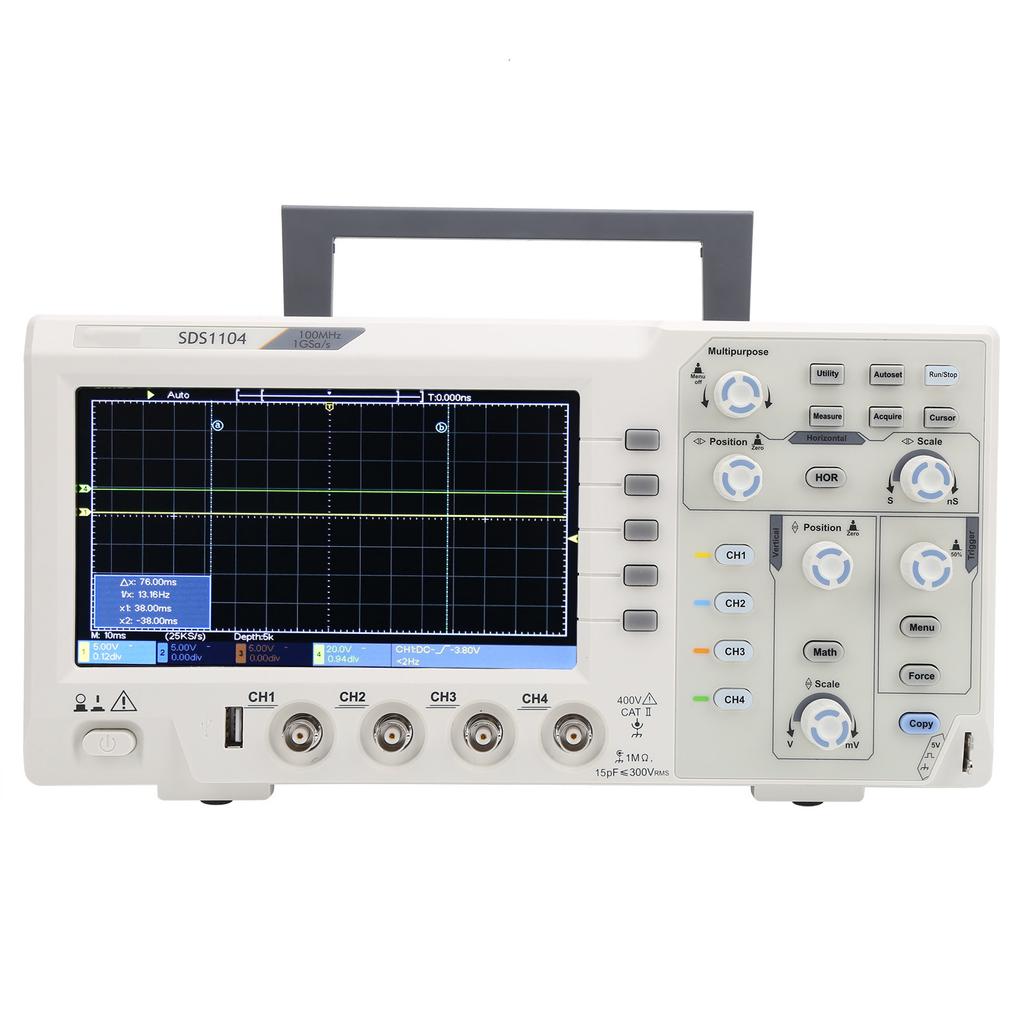

1. Digital oscilloscope, 4‑channel design, 100MHz bandwidth, 1GS s sampling rate, SCPI, and supports LabVIEW.
2. Built‑in 39 automatic measurement functions, one‑key display of all measurement values, easy to view waveform information.
3. Built‑in FFT spectrum analysis function, provides FFT rms function, supports for Hamming, for Hanning, for Blackman, for Rectangular, for Kaiser, for Bartlett.
4. The automatic cursor function can quickly measure the difference between two points of the waveform, helping engineers analyze the real‑time measurement waveform.
5. Waveform zoom function, the upper part is main window to display complete waveform, and the lower part is enlarged area to observe more waveform details and make it easier to read parameter data.
Specification:
Item Type: Oscilloscope
Material: ABS
Function
Parameter
Model
SDS1104
Bandwidth
100MHz
Sample Rate
1GS s
Horizontal Scale (s div)
2ns div 1000s div, step by 1 2 5
Rise Time (at input, typical)
less than 3.5ns
Channel
4
Display
7in color LCD, 800 x 480 pixels
Input Impedance
1M Ohm + 2percent , in parallel with 20pF+ 5pF
Maximum Input Voltage
400V (PK PK) (DC+AC, PK PK)
DC Gain Accuracy
+ 3percent
Record Length
20K
DC Accuracy (average)
Average more than 16:+ (3percent reading + 0.05 div) for △V
Probe Attenuation Factor
1X, 10X, 100X, 1000X
LF Respond (AC, 3dB)
more than 10Hz (at input, AC coupling, 3dB)
Sample Rate Relay Time
+ 100ppm
Accuracy
Interpolation
sin (x) x
Interval (△T) Accuracy (full bandwidth)
Single:+ (1 interval time + 100ppm x reading + 0.6ns),
Rise time, Fall time, +Width, Width, +Duty, Duty, Delay A B , Delay A B, area,Instructions:
2: Connect the probe to the channel
3: The probe is calibrated in the 5V calibration area to see if the waveform is displayed completely
4: Adjust the probe so that the waveform can be output stably
5: Measurement.
v\:* {behavior:url(#default#VML);}
o\:* {behavior:url(#default#VML);}
x\:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
v\:* {behavior:url(#default#VML);}
o\:* {behavior:url(#default#VML);}
x\:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
v\:* {behavior:url(#default#VML);}
o\:* {behavior:url(#default#VML);}
x\:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
v\:* {behavior:url(#default#VML);}
o\:* {behavior:url(#default#VML);}
x\:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
Package List:

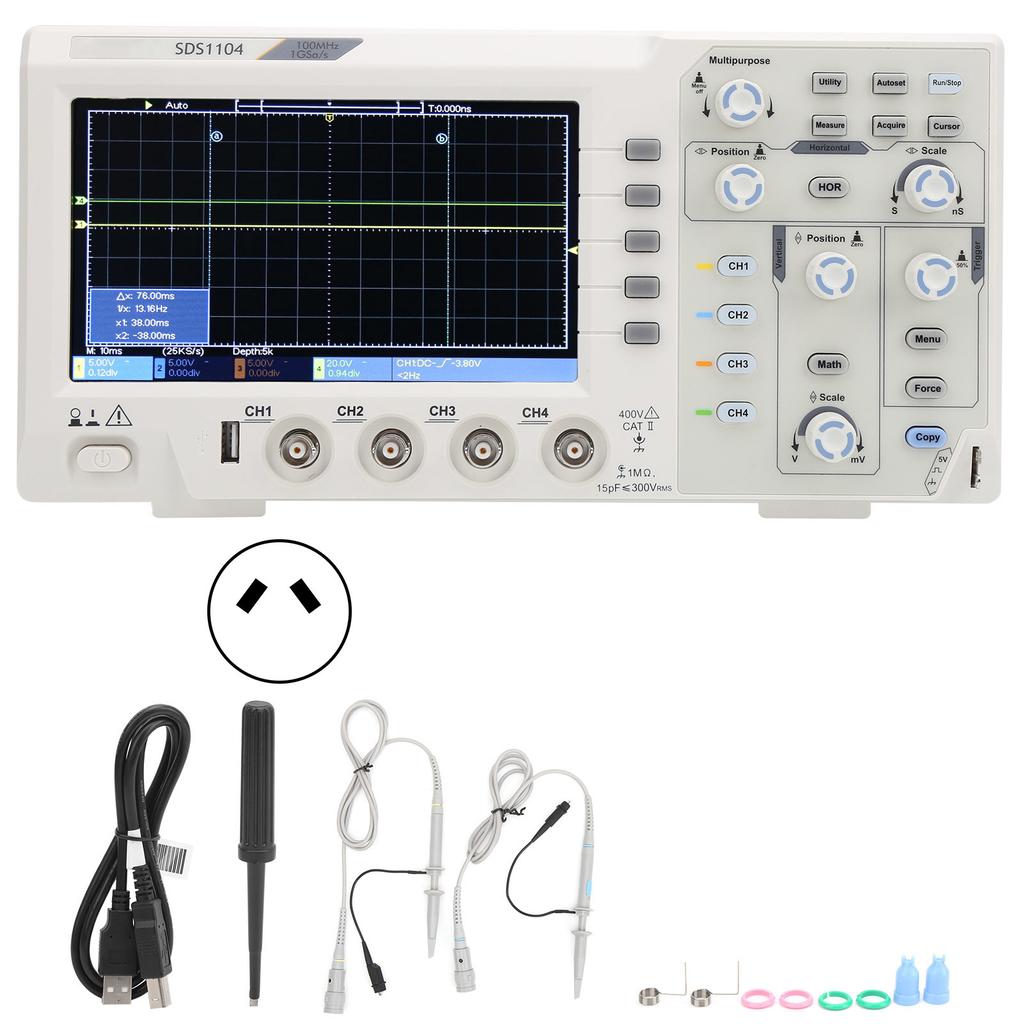

1 x Oscilloscope1 x CD1 x USB Cable4 x Probe8 x Color Ring2 x Adjustable Bit4 x IC Cap4 x Grounding Spring1 x Power Cord4 x Manual
