Feature:
1. HIGH ACCURACY: Using high accuracy sensor, the infrared temperature measurement imaging accuracy is as high as + 2 celsius , and the detection is more accurate.
2. CLEAR DISPLAY: Adopt 2.4in color LCD screen, 10800 temperature measurement pixels, 25Hz image frame rate, with clear imaging, delicate picture, and faster screening.
3. MULTIPLE FUNCTIONS: The thermal imager adopts focus free method, convenient and fast, has the function of taking pictures, and can save more than 6000 pictures.
4. TEMPERATURE CHECK: Automatically catch the highest and lowest temperature in the area, center point analysis, with high temperature, low temperature and area alarms.
5. USB CONNECTION: Connected with a USB interface and equipped with memory cards, data can be transferred between the thermal imager and the computer.
6. APPLICABLE SCOPE: The handheld infrared camera is widely used for predictive maintenance, equipment troubleshooting and confirmation of proper functioning.
Specification:

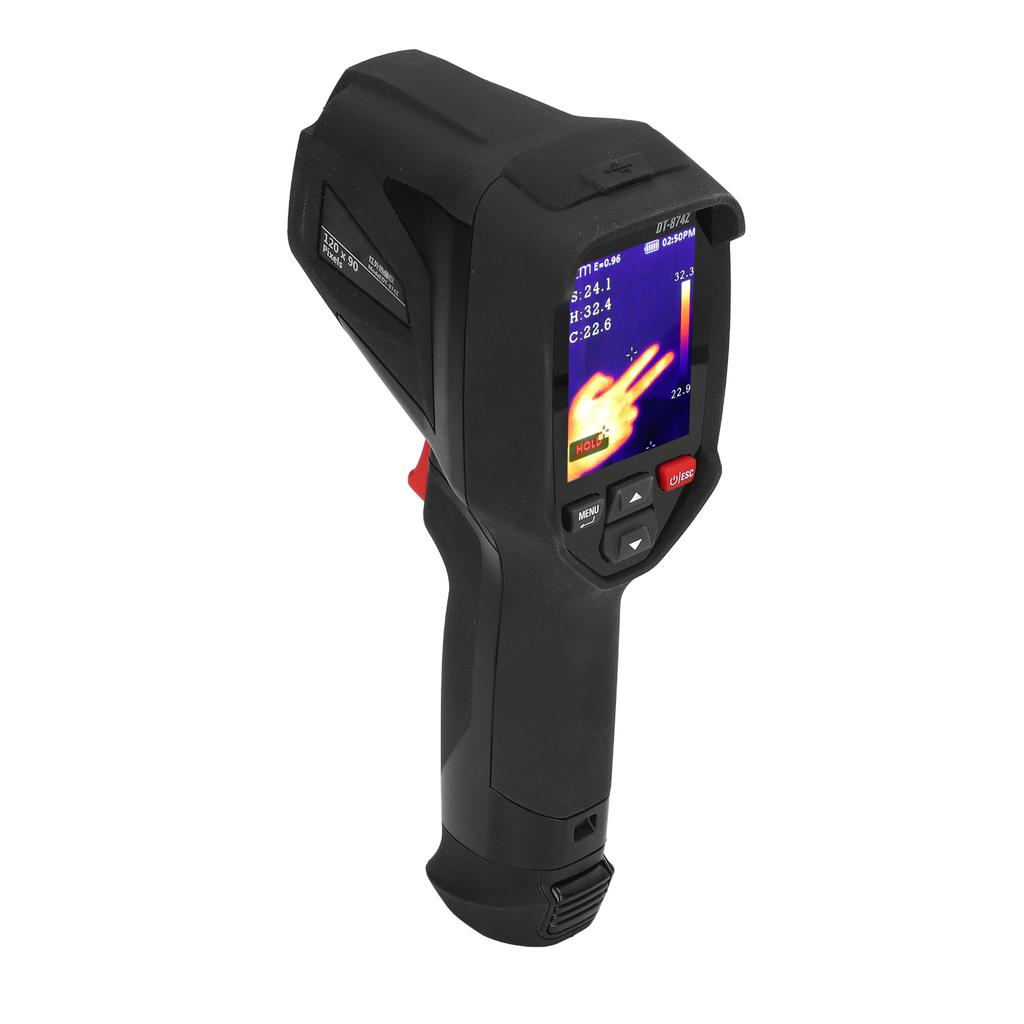

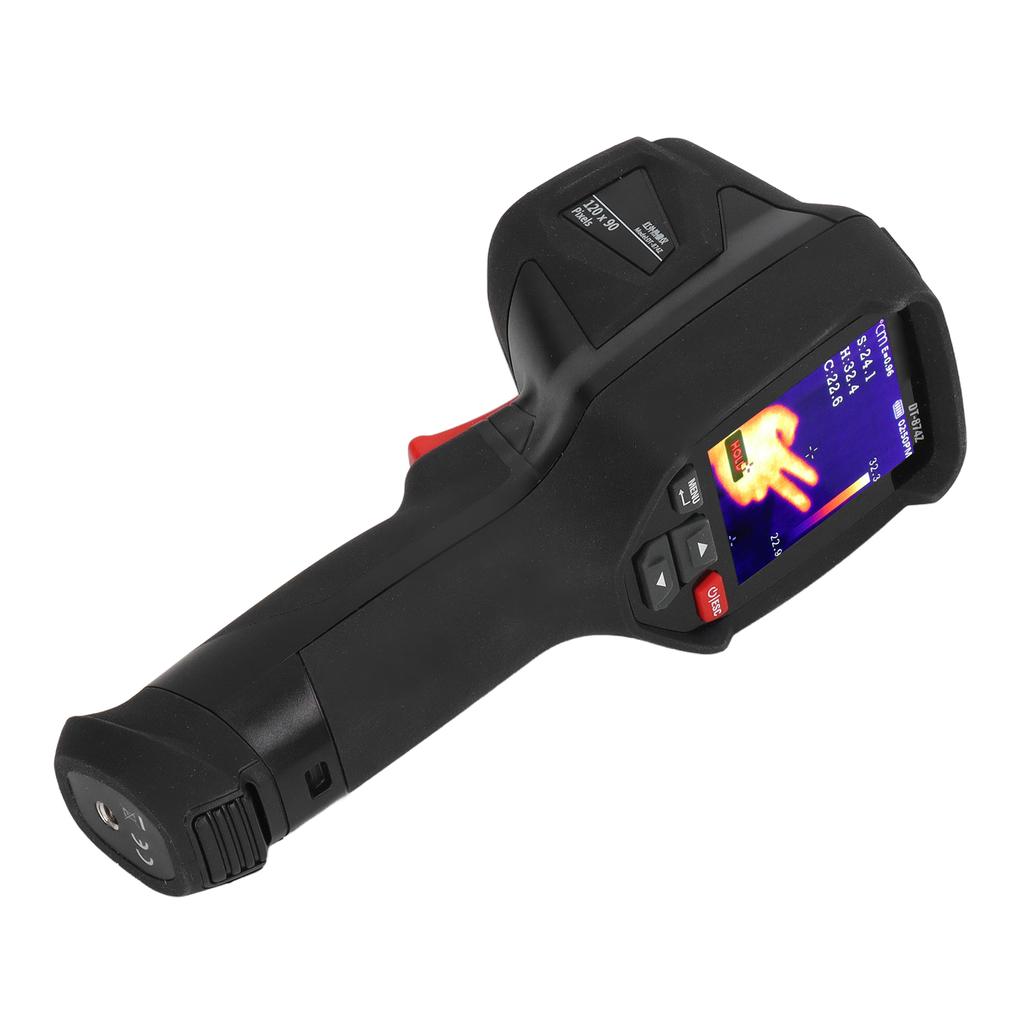

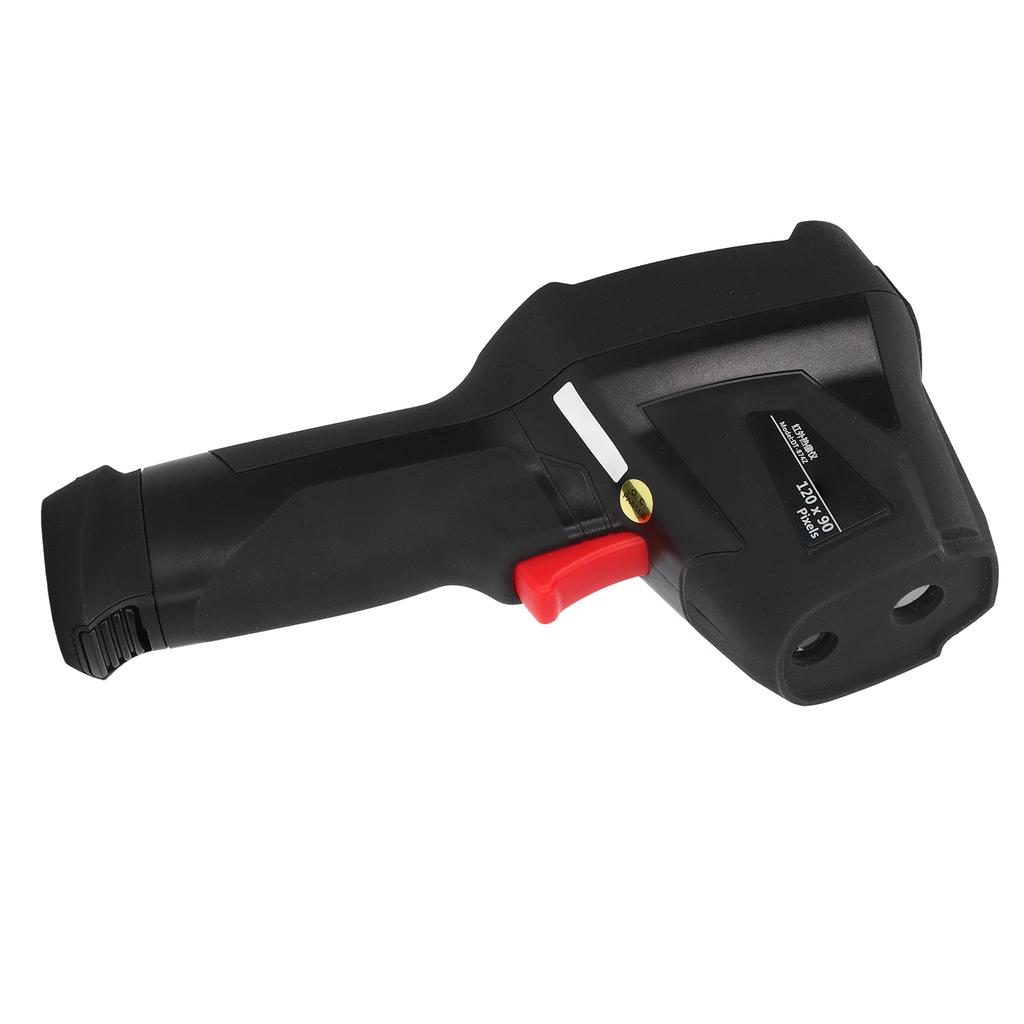

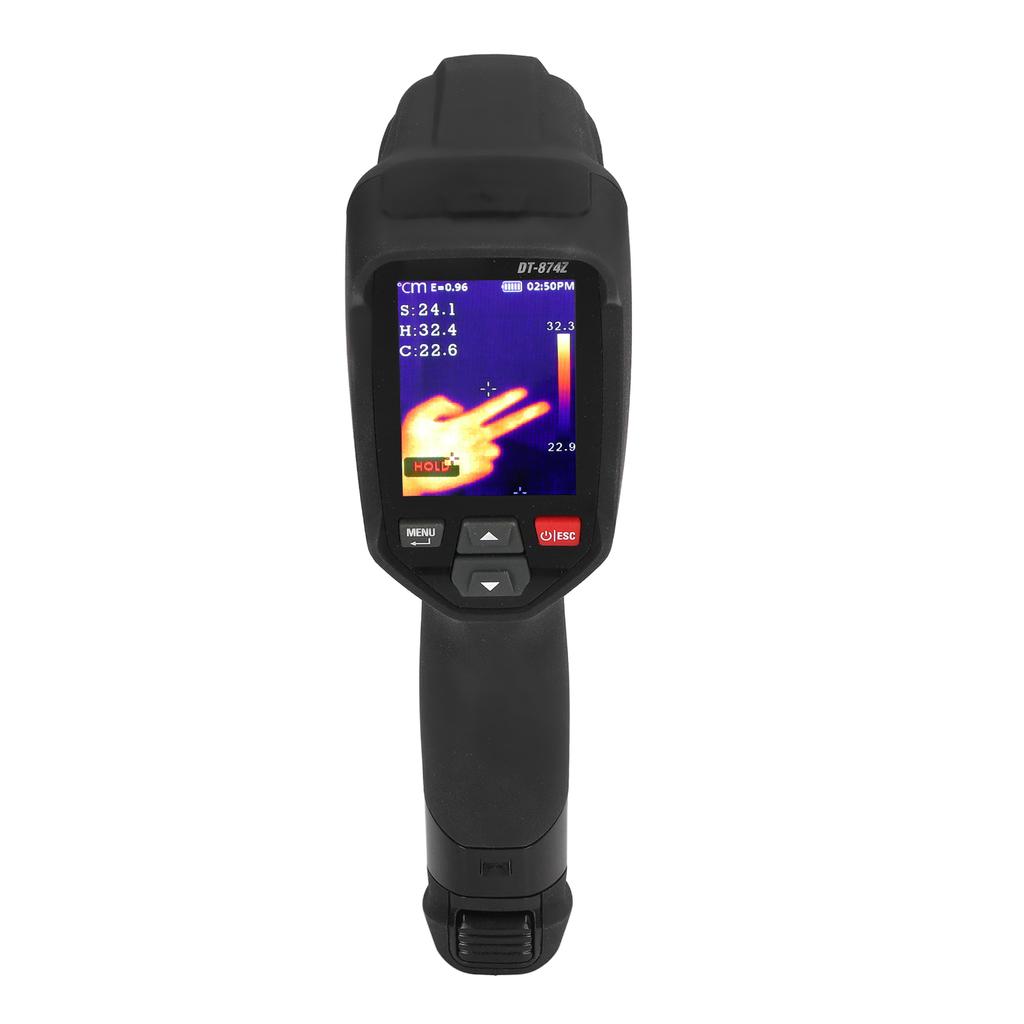

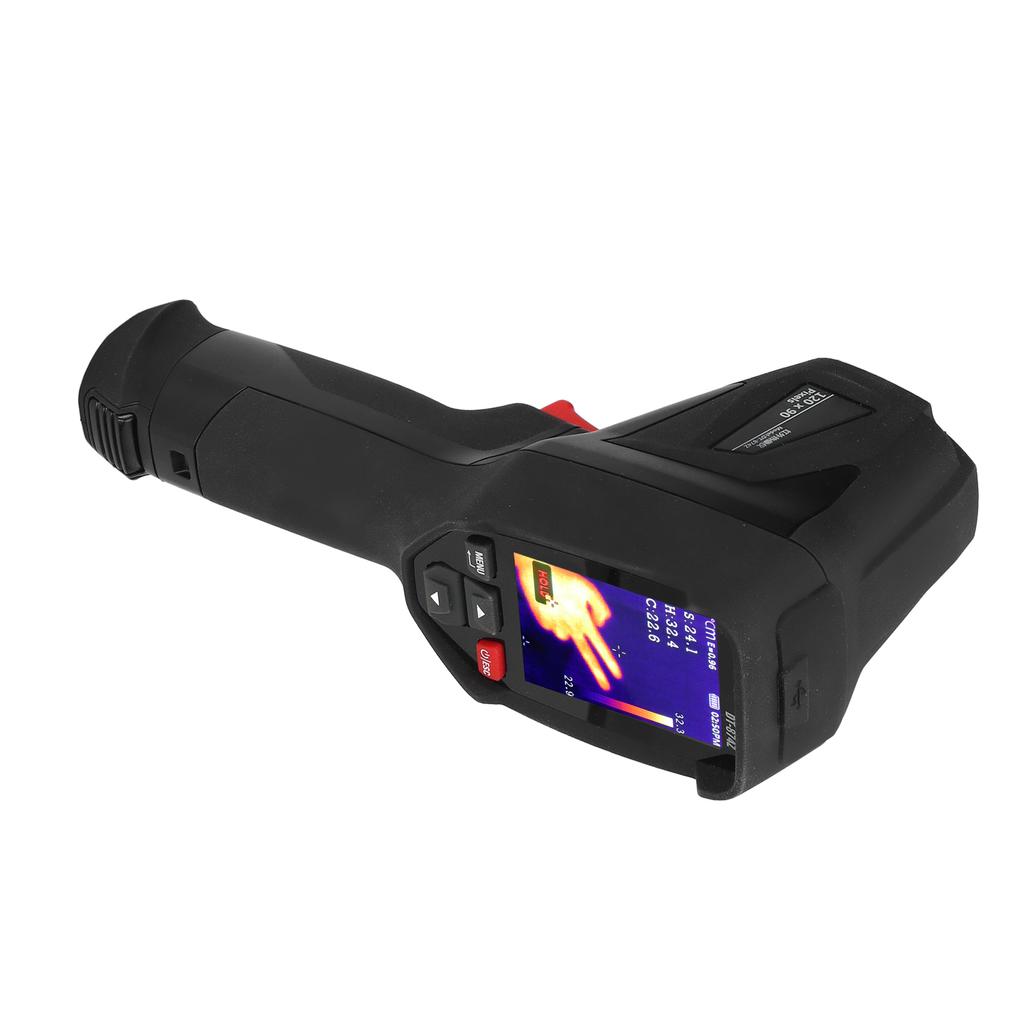

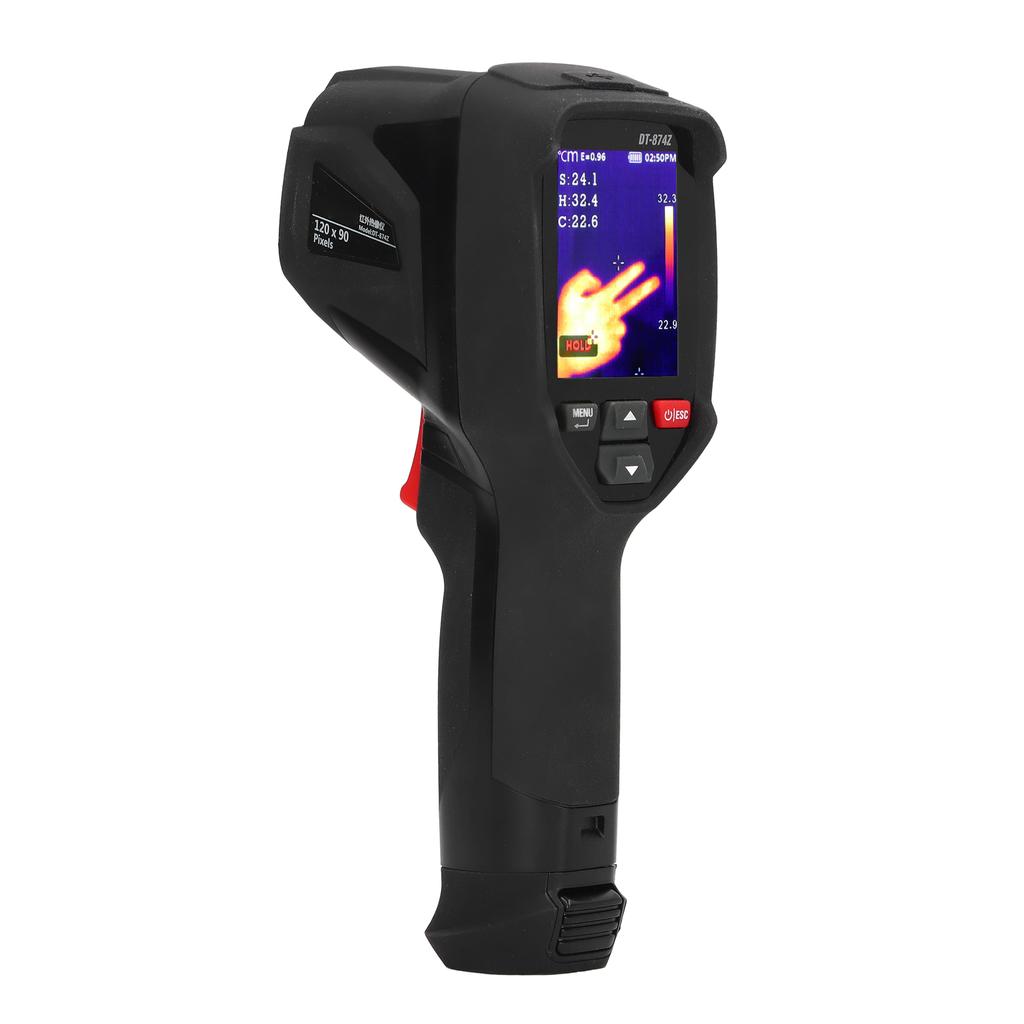

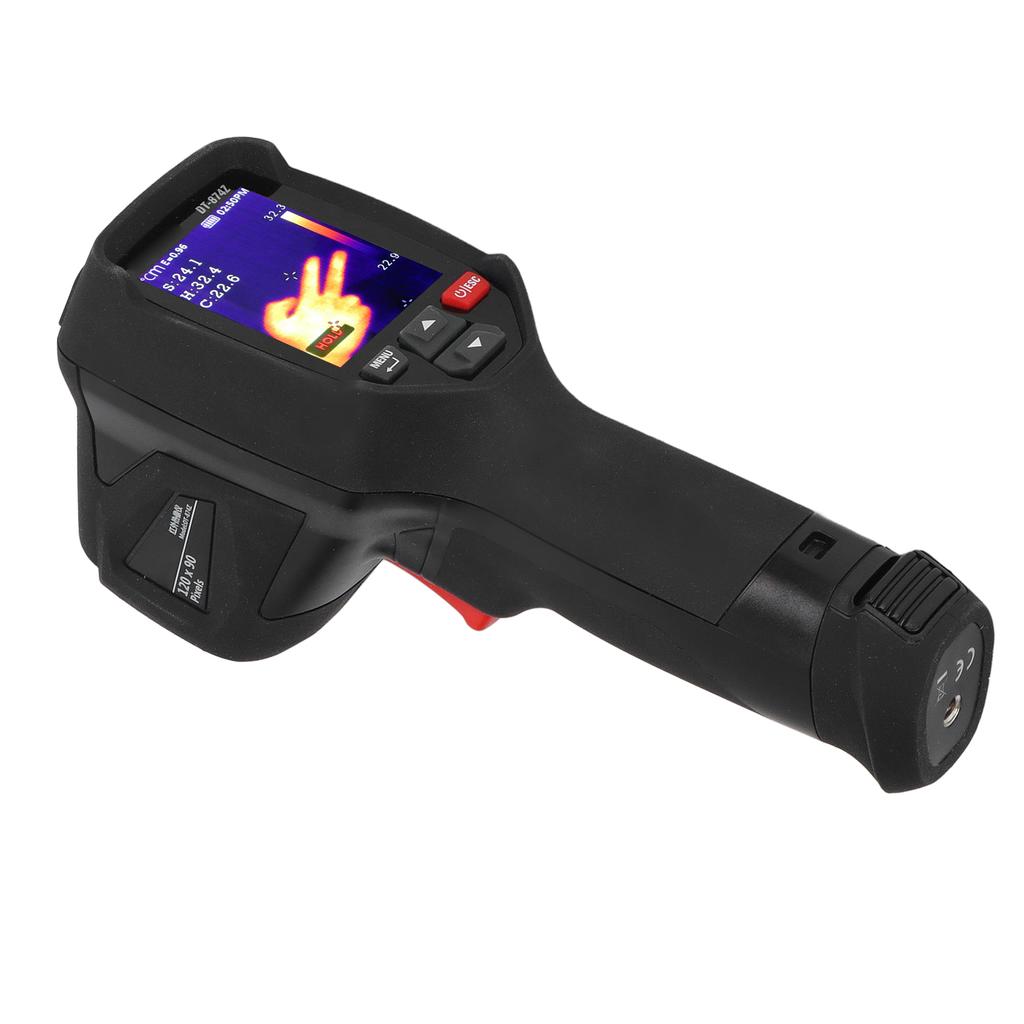

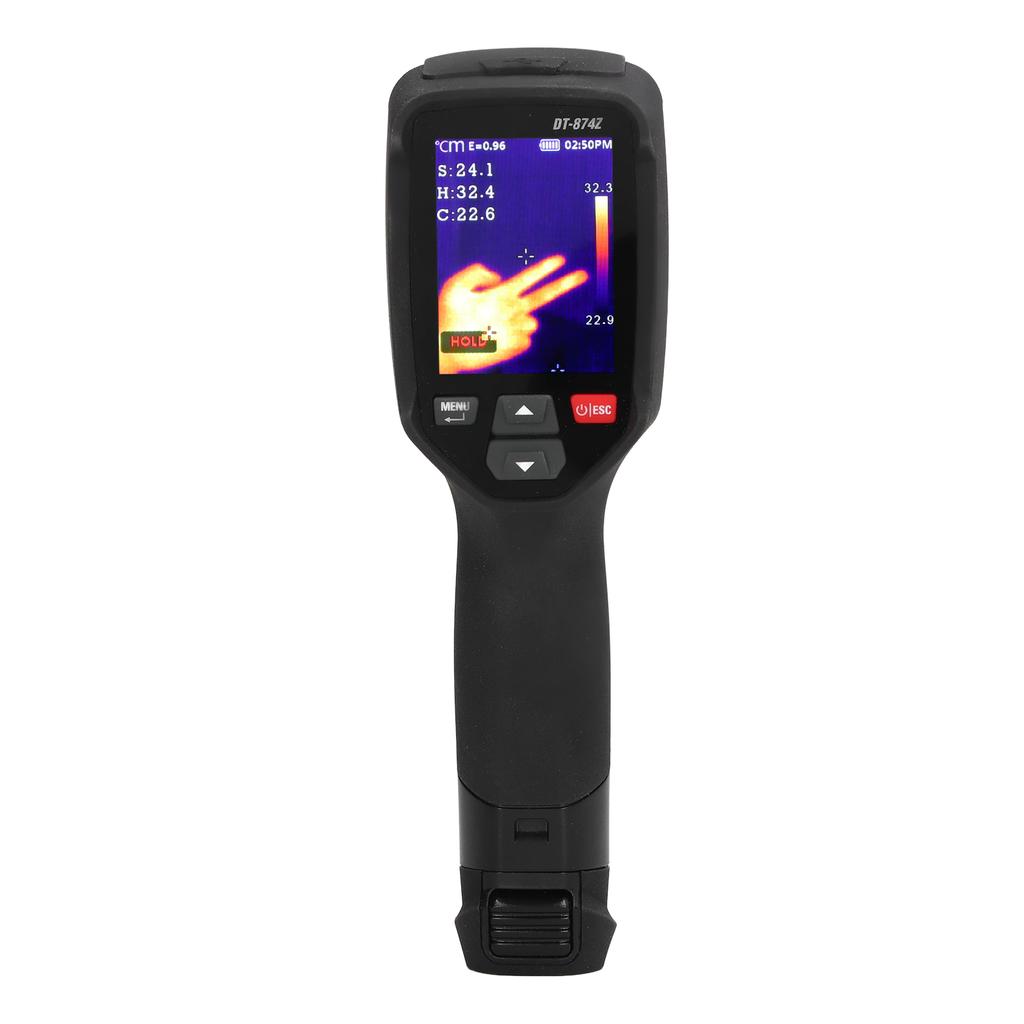

Item Type: Handheld Thermal Imager
Optical Parameters:
Field of View: 50 degrees x37 degrees
Minimum Focusing Distance: Approx. 0.5 meter 1.6ft
Thermal Sensitivity (NETD): <0.06C, +30 celsius (+86 Fahrenheit ) 60mK
Image Frame Rate: 25Hz
Focal Length: Focus Free
Spatial Resolution (IFOV): 7.6mrad
Detector Type: Uncooled Microbolometer
Working Wavelength: 7.5 14micrometer
Infrared Resolution: 120x90 pixels
Image Parameters:
LCD Display: 2.4in color LCD, 240x320 pixel non touch screen
Color Palette: Iron Red, Rainbow, White Hot, Black Hot, Brown Hot, Blue Red, Hot Cold, Feather
Measurement:
Temperature Measurement Range: 20 400 celsius ( 4 752 Fahrenheit )
Accuracy: + 2 celsius (+ 3.6 Fahrenheit )0r+ 2percent
Measurement Analysis:
Point Analysis: Center Point
Temperature Detection: Automatically catch the highest and lowest temperature in the area
Measurement Correction: Emissivity, reflected temperature, infrared compensation, distance compensation.
Best Measuring Distance: Approx. 50cm 19.7in
Image Storage:
Storage Medium: Micro Memory Card
Image File Format: Standard bmp file, including measurement data, >6000 images
Settings:
Set Commands: Units, Language, Date, Time, Information
Language: Multinational
Interface:
Interface: USB C, data transfer between thermal imager and computer
Power Systems:
Battery: 1 x 3.7V rechargeable lithium battery 2600mah (including battery), working time up to 4 hours or more
Input Voltage: DC 5V
Charging System: Digital camera (AC adapter)
Power Management: Auto Shutdown
Ambient Parameters:
Operating Ambient Temperature: 0 50 celsius (32 122 Fahrenheit )
Storage Ambient Temperature: 20 60 celsius ( 4 140 Fahrenheit )
Ambient Humidity (Working and Storage): <80percent HR
Drop Resistant Grade: Approx. 2 meter 6.6ft
Product Size: Approx. 105 x 62 x 210mm 4.1 x 2.4 x 8.3in.

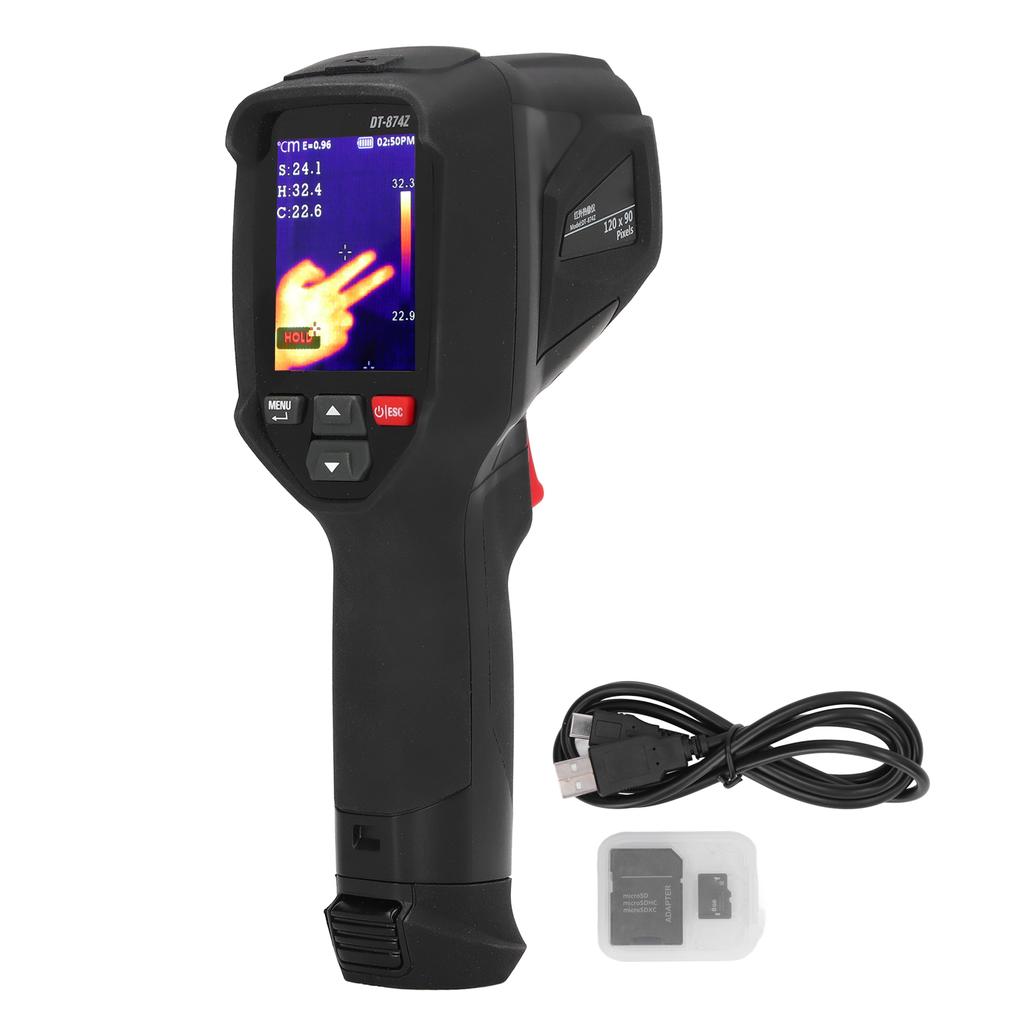

Package List:
1 x Host1 x Battery1 x USB Cable2 x Memory Cards
