Feature:

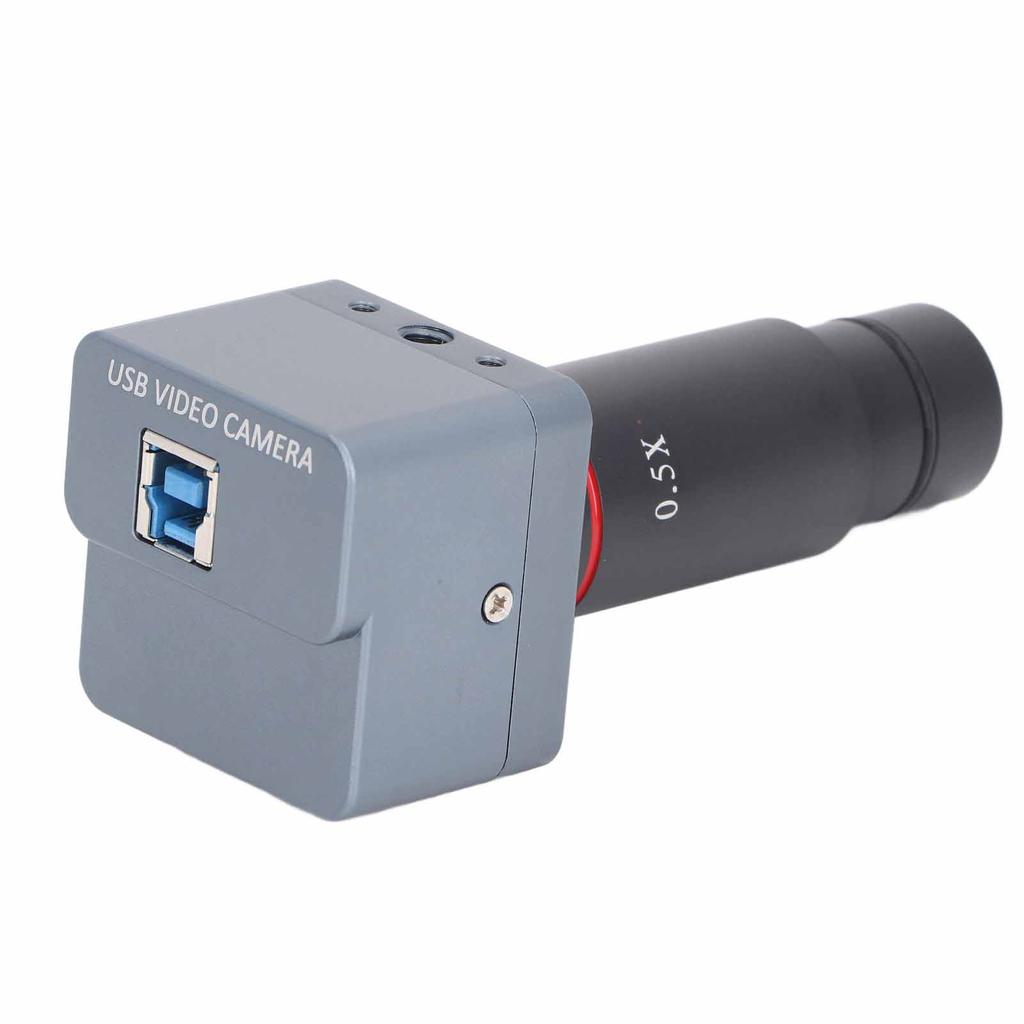

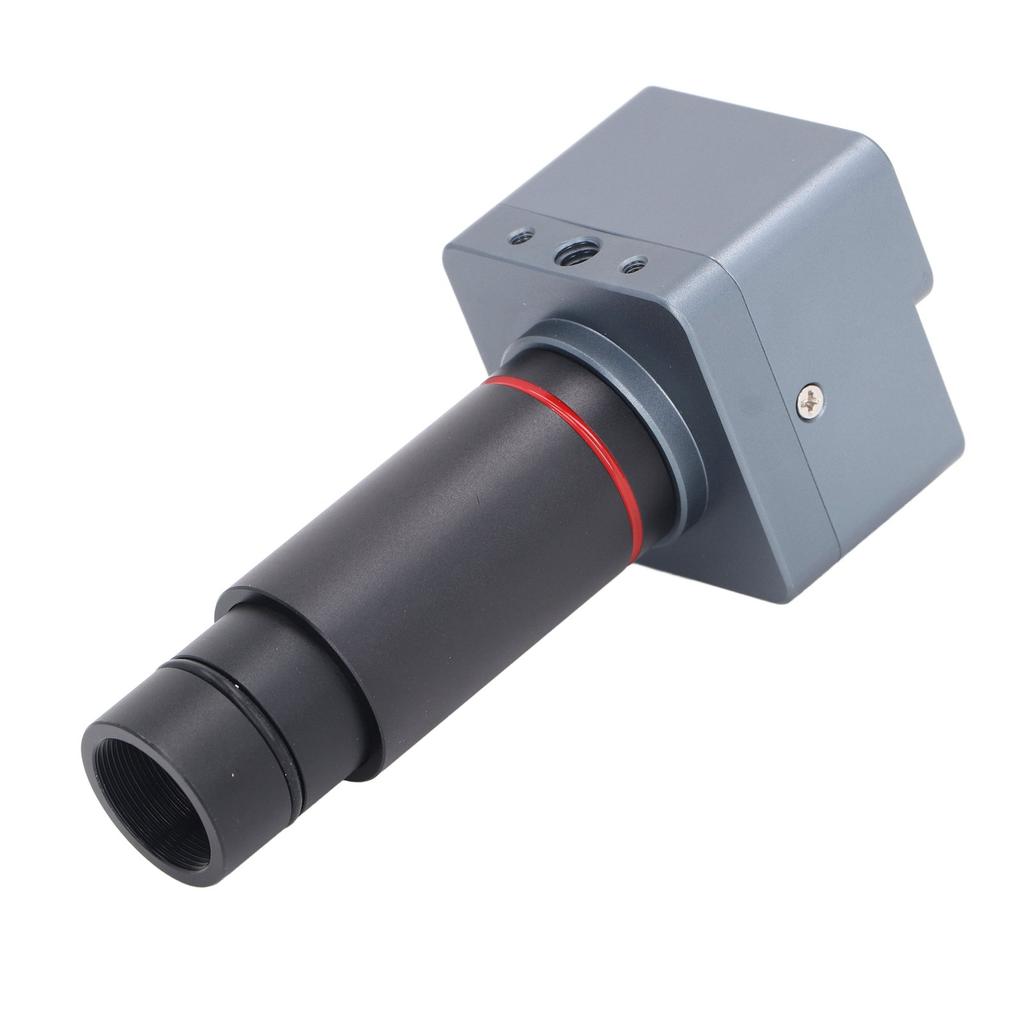

1. [HD Image Sensor] Built in high definition image sensor, support 4K video recording, 8MP image; The 0.5X zoom lens provide a larger field of view, making observation easier.
2. [Easy to Install] The upper USB port can be connected to your computer, the lower mouth is 23.2mm, with a 30mm and 30.5mm adapter, can be directly inserted into a microscope or telescope.
3. [For USB Output] Can adjust software to operate white balance, exposure, color adjustment, supports photography and video recording, precise measurement, computer hard disk storage of data, grid line.
4. [Software Support System] The software supports for WinXP, for Win7, for Win10, for Win11, for Linux, for Android (UVC protocol); for OS X 10.4.8 or later (UVC protocol).
5. [Multi Function] Add layers, watermarks, mosaics, tiles; Adjust color balance, exposure, saturation, contrast, direction; Change resolution, histogram, granulation, diffusion; Transform images through edge detection and digital image distortion; Measure individual, parallel or vertical lines, as well as rectangular, elliptical, and irregular areas; Add annotations, measurements, text, arrows, labels, etc. using custom text of different sizes and colors; Measure in micrometers, millimeters, centimeters, inches, feet, etc. at any magnification with the required tolerance.
Specification:
Item Type: Microscope Camera
Material: Aluminum Alloy
Image Sensor: 1 1.8 Inch Color Image Sensor
Spectral Response: 400nm to 1000nm
Resolution: 3840x2160; 2592x1944; 2560x1440; 1920x1080; 1280x720; 640x480
Dynamic Range: 74dB (Linear) to 85dB( HDR)
White Balance: Auto Manual
Signal to Noise Ratio: 39dB
Scan Mode: Progressive Scan, Pure Hardware 8MP Image Sensor, No Compression No Interpolation
Pixel Size: 2pm (H) X 2pm(V)
Output Image Format: MJPEG (Compressed), YUV422 (Compressed)
Sensitivity: 2400 mV Lx sec
Image Output: USB2.0, 480Mb s
One Touch White Balance: Supported
Support Driver Free Protocol: USB Video Class (UVC)
Support OTG Protocol: USB2.0 OTG
Adjustable Save Parameters: Brightness, Contrast; Color Saturation; Color Tone; Clarity; Gamma; Gain; White Balance; Backlit Contrast; Exposure
Support Output Format: 12 10bit RGB; Supports 2x2 binning; ISP clock up to 240MHz
Support System: for WinXP, for Win7, for Win10, for Win11, for Linux, for Android (UVC protocol); for OS X 10.4.8 or later (UVC protocol)
Video Recording:
3840x2160 at 25fps;
2592x1944 at 25fps;
2560x1440 at 45fps;
1920x1080 HDR at 60fps;
1280x960 HDR at 60fps;
1280x720 HDR at 60fps;
640x480 HDR at 60fps;
320x240 HDR at 60fps;
3840x2160 at fps;
1280x720 at 5fps;
1920x1080 at 5fps;
640x360 at 3fps;
640x480 at 30fps;
320x240 at 30fps.
Package List:
1 x Microscope Camera1 x 0.5X Zoom Lens2 x Adapter1 x USB Cable1 x Instruction Manual
