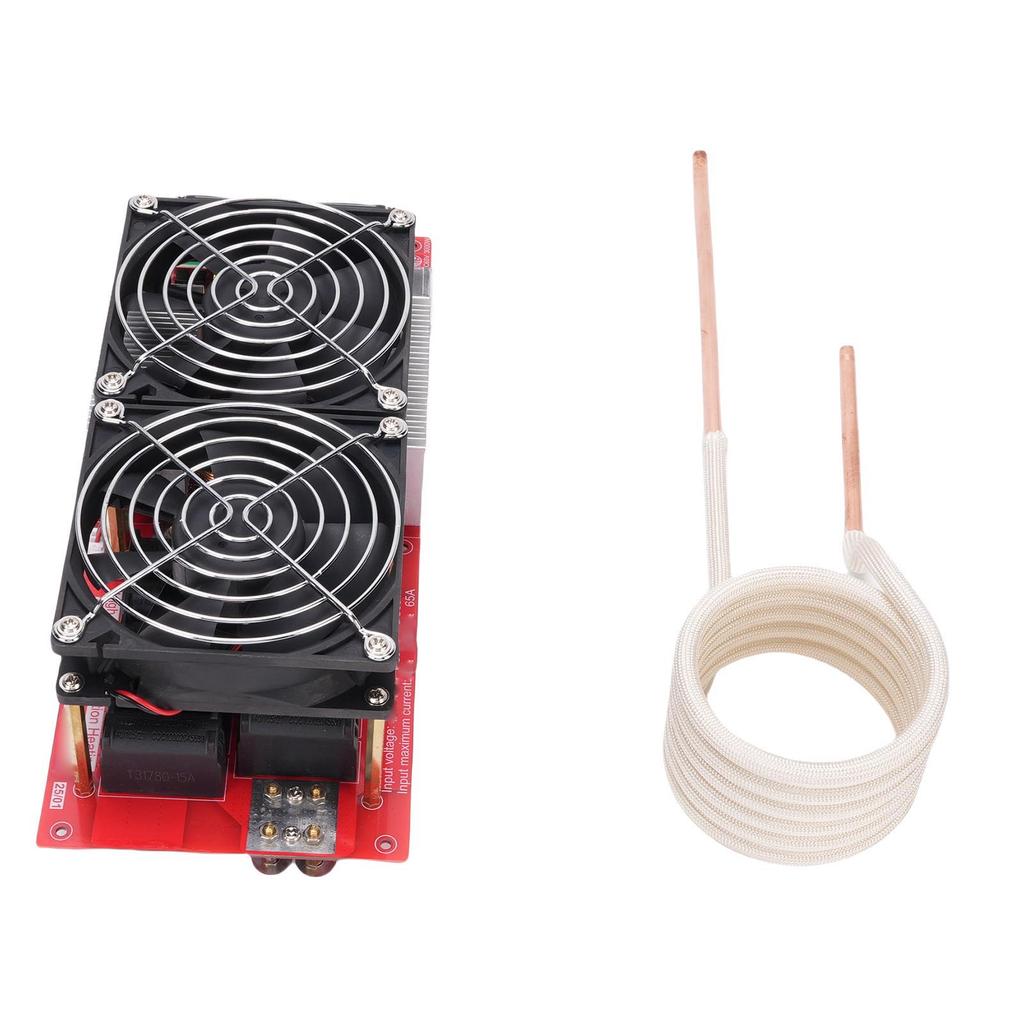

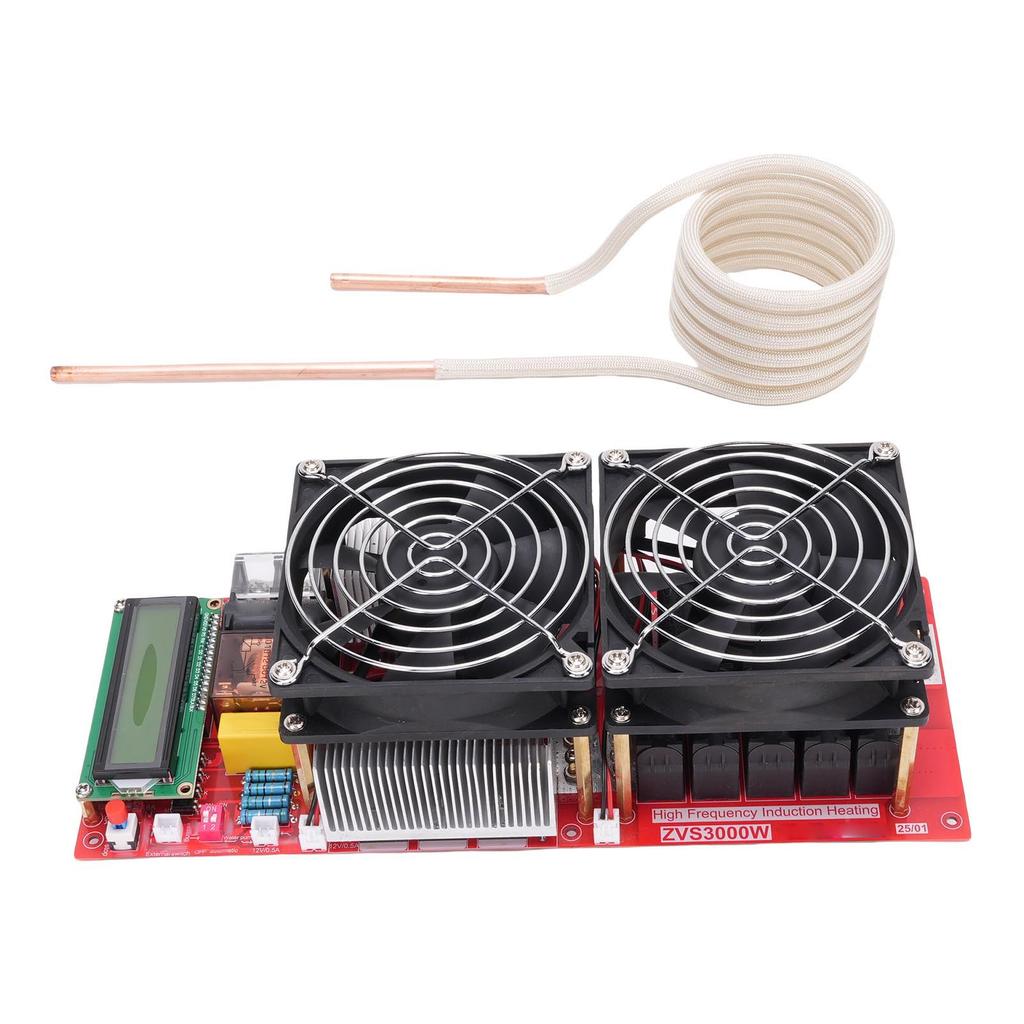

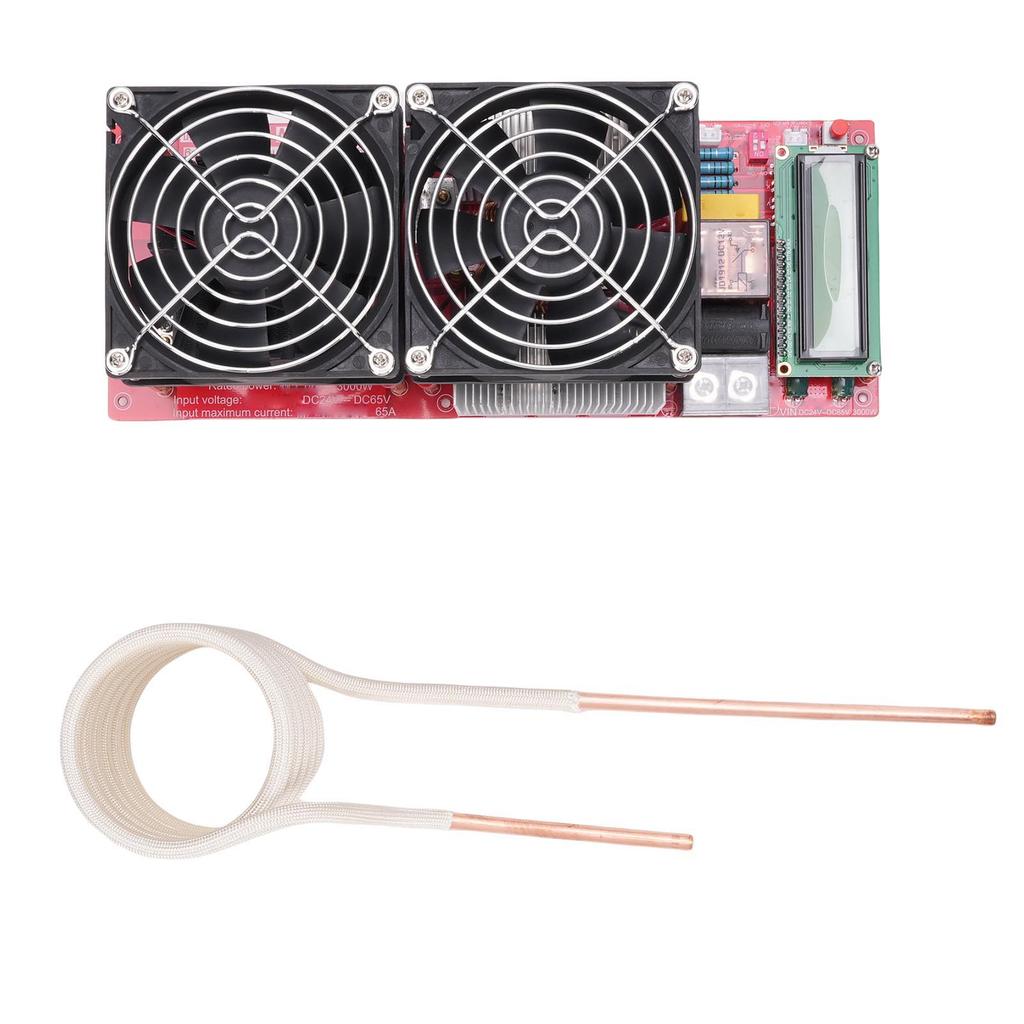

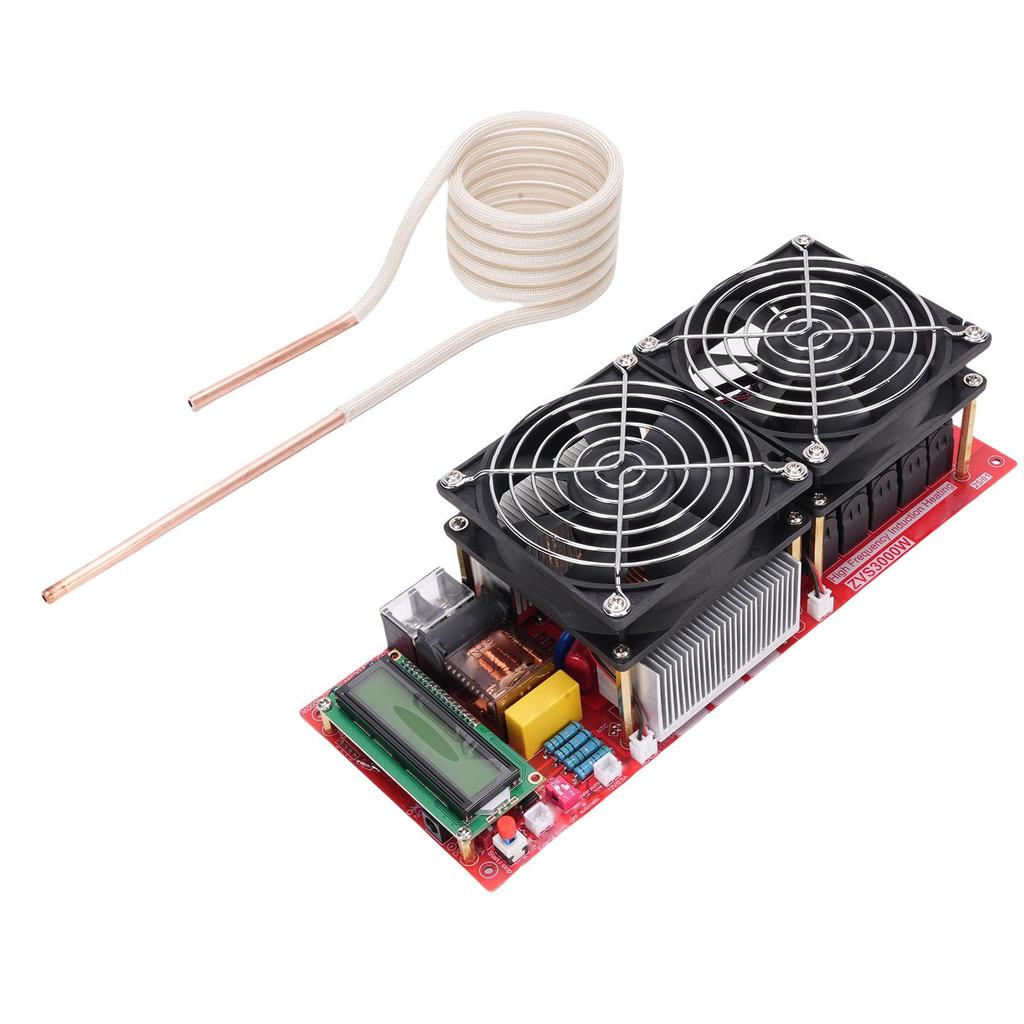

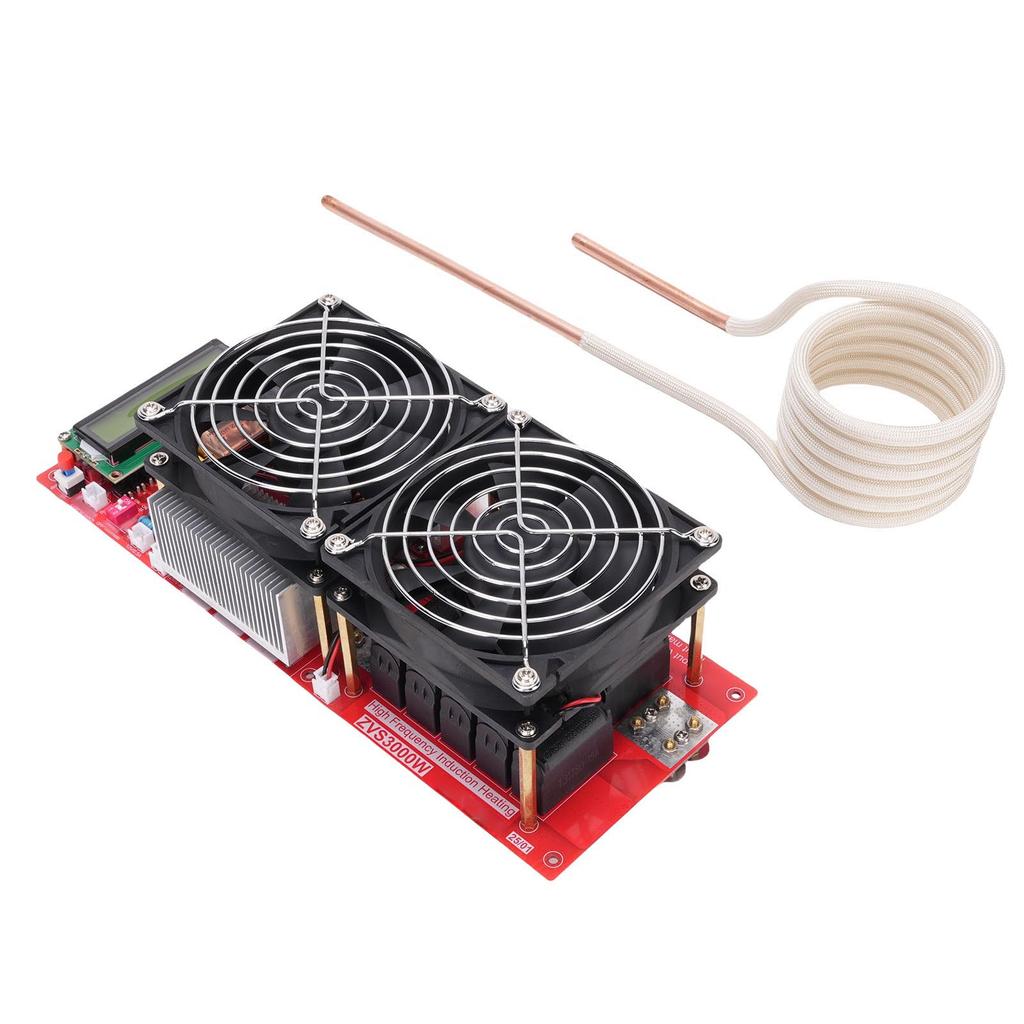

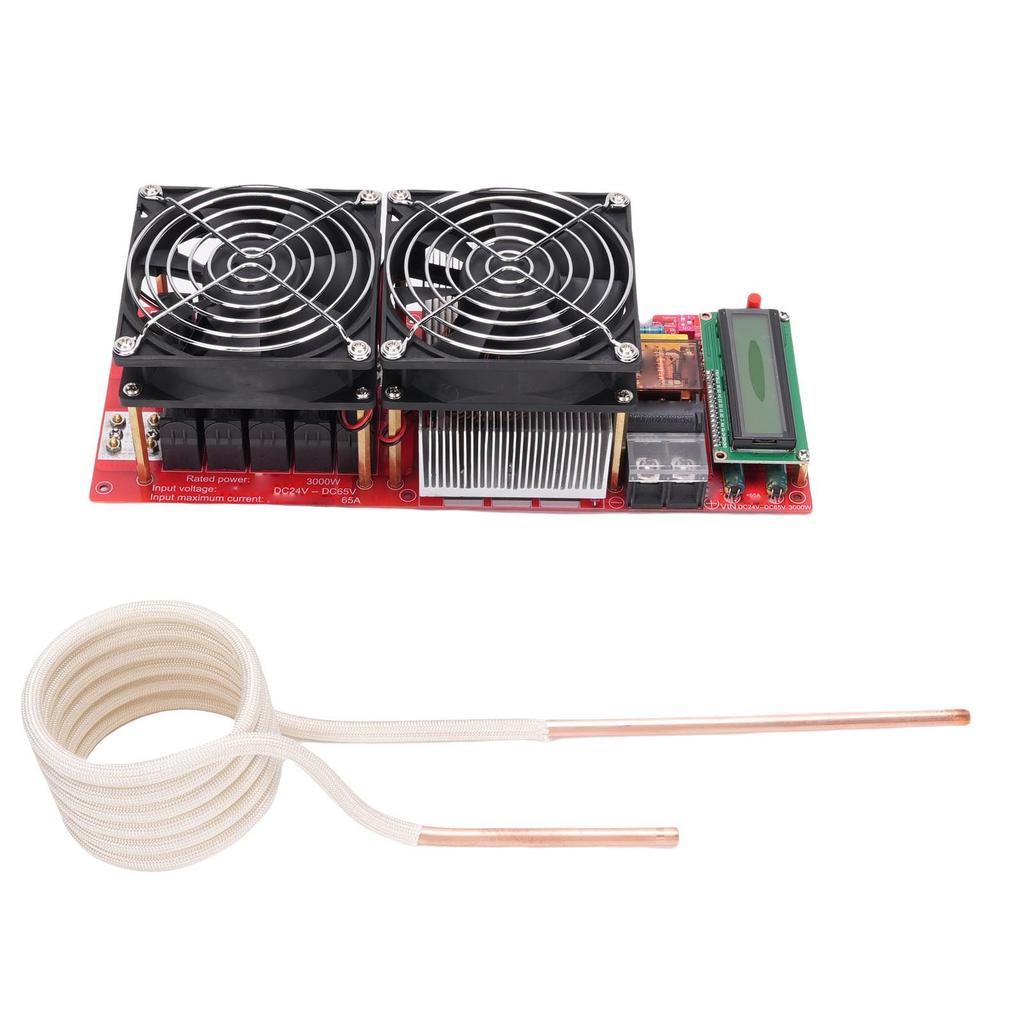

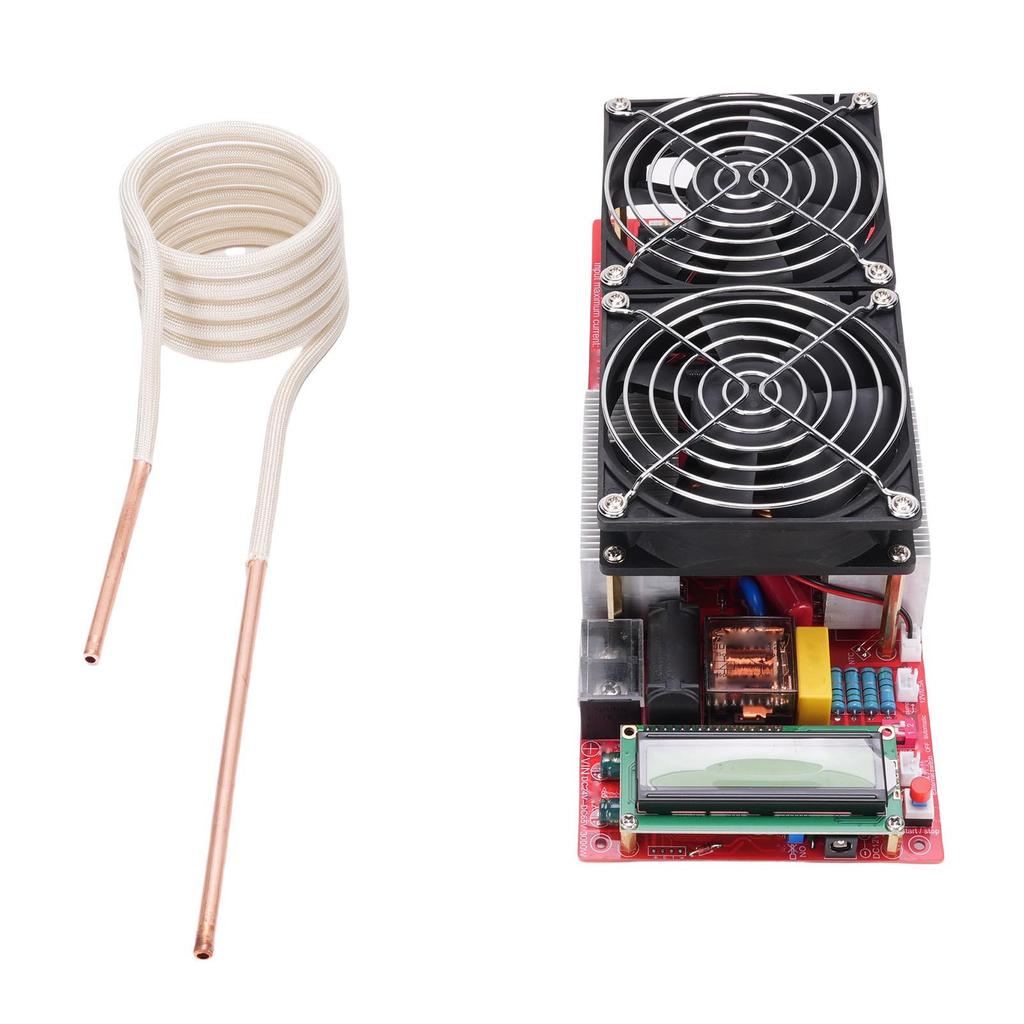

3000W ZVS Induction Heater Module DC 24 65V Flyback Driver Induction Heating PCB Board Module with Copper Tube Pump US

Feature: 1. PCB Board: The induction heater module features grade PCB material, ensuring stable operation. It has a maximum power of 3000W and a peak current of 65A, an input voltage range of DC24 65V. 2. Enhanced Power Cord: The induction heater module utilizes a fully copper covered power cord design, which increases both current flow and heat generation for improved efficiency during operation. 3. Superior Heat Dissipation: This induction heater module is equipped with a high power heat sinks, effectively enhancing heat dissipation and maintaining optimal performance even during prolonged use. 4. Wide Application: The ZVS induction heater module can heat various metals, including iron, steel, stainless steel, tungsten steel, and graphite crucibles, achieving steel heating temperatures of approximately 700 degrees C for solid, 900 celsius for hollow ones, 1500 celsius for graphite crucibles. Metals that cannot be heated include gold, silver, copper, aluminium, etc. (which are difficult to heat). 5. Power Supply Requirement: This product does not include a heating power supply. Please bring your own 3000W communication power supply or a DC welding machine to power the induction heating machine. Specification: Item Type: Induction Heater Module Material: Metal + copper +PCB Power Adapter Current: 3A Induction Heating Module Parameters Heating Rated Power: 3000W (53.5V setting) Heating Power Supply Voltage Range: DC24 DC65V (DC) Heating Current Range: 0A 65A (Long Time 55A, Short Time 55A 65A) Copper Pipe Resonance : Approx. 60KHZ 65KHZ (Default Copper Tube Under the Measured Value) Product Size: Circuit Board Approx. 270x105x100mm 10.63x4.13x3.94in (L x W x H) Pump Main Parameters: Pump Size: Approx. 90 x 40 x 35mm 3.54 x 1.57 x 1.38in Outlet Diameter: Approx. Inner 6mm 0.24in, Outer 8.5mm 0.33in Working Current: 0.5 0.7A (Power Must Reach 6W Above) Flow Rate: 1.5 2L Min (Approx.) Suction Lift: 2 meters Head: Vertical 3 meters Lifespan: Up to 2500 hours Water Temperature: Up to 80 degrees C Storage Environment: 10 degrees C to +50 degrees C, Normal Humidity, No Water Immersion or Splashing. Package List: 1 x Induction Heater Module 1 x 63mm (6 turns) Heating Copper Tube 1 x 2m Water Pipe 1 x 12V Pump 1 x 12V 3A Power Adapter 1 x Set of Accessories 1 x User Manual
