Feature:

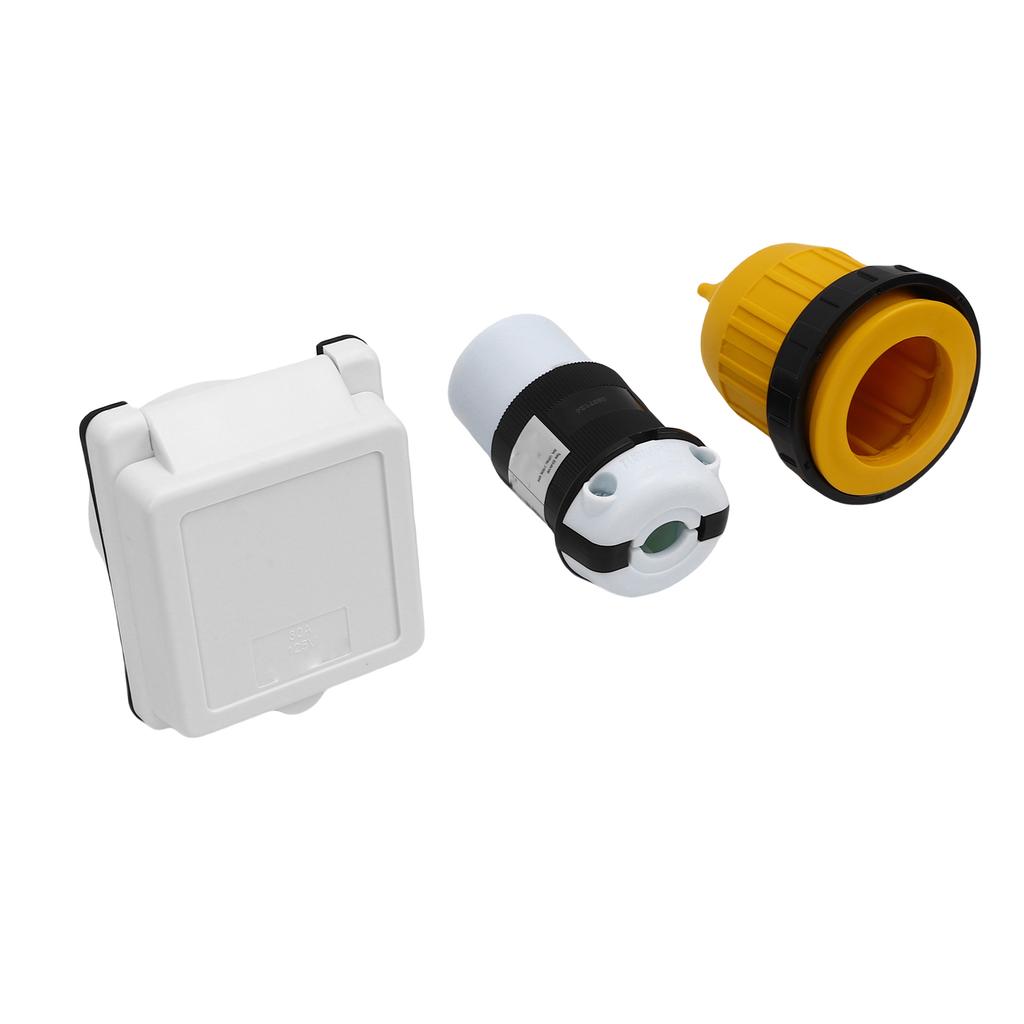

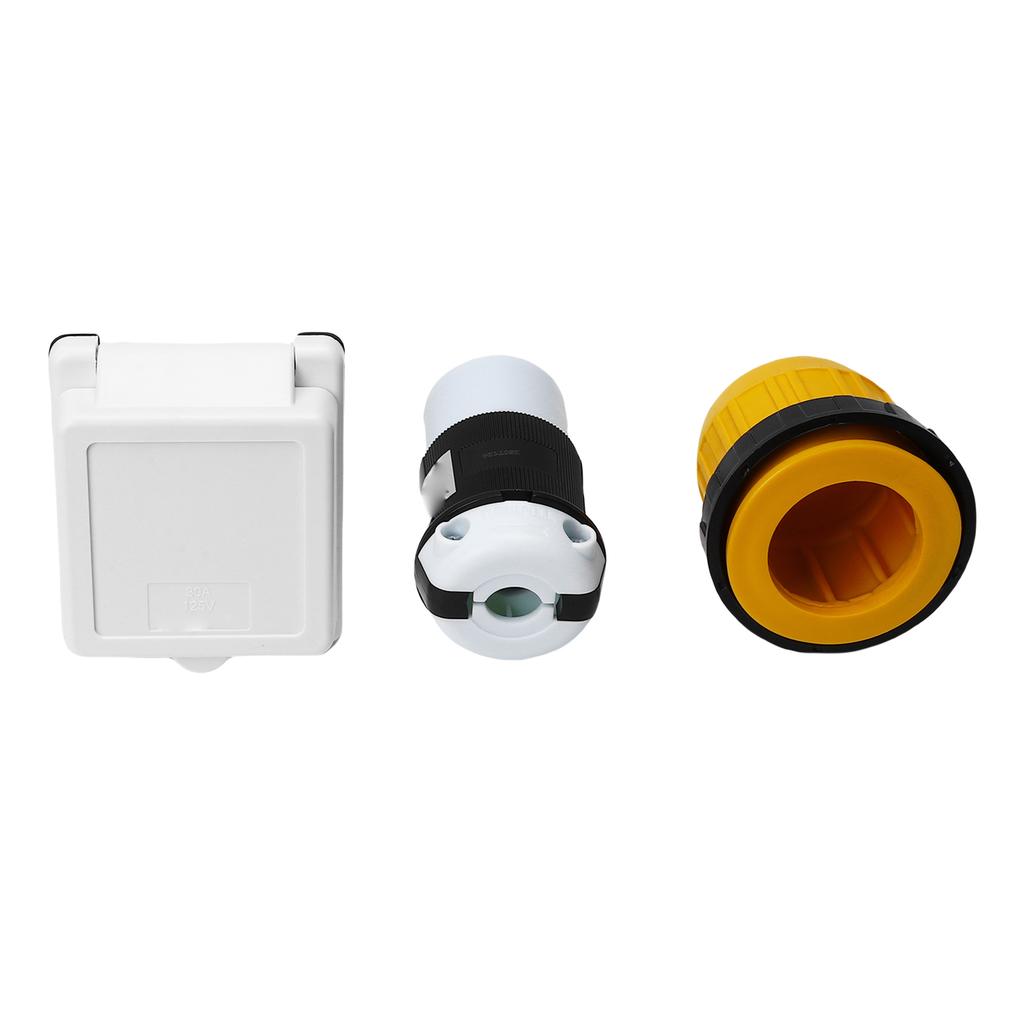

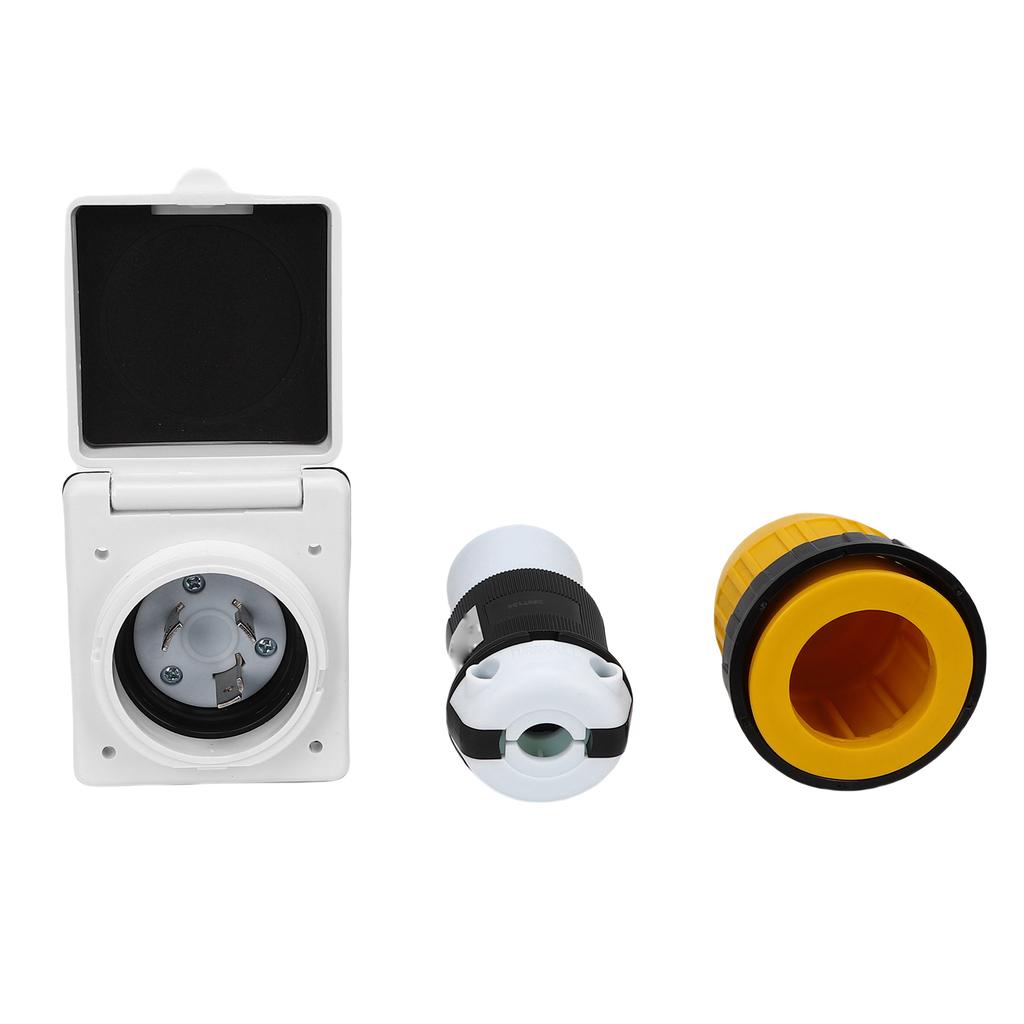

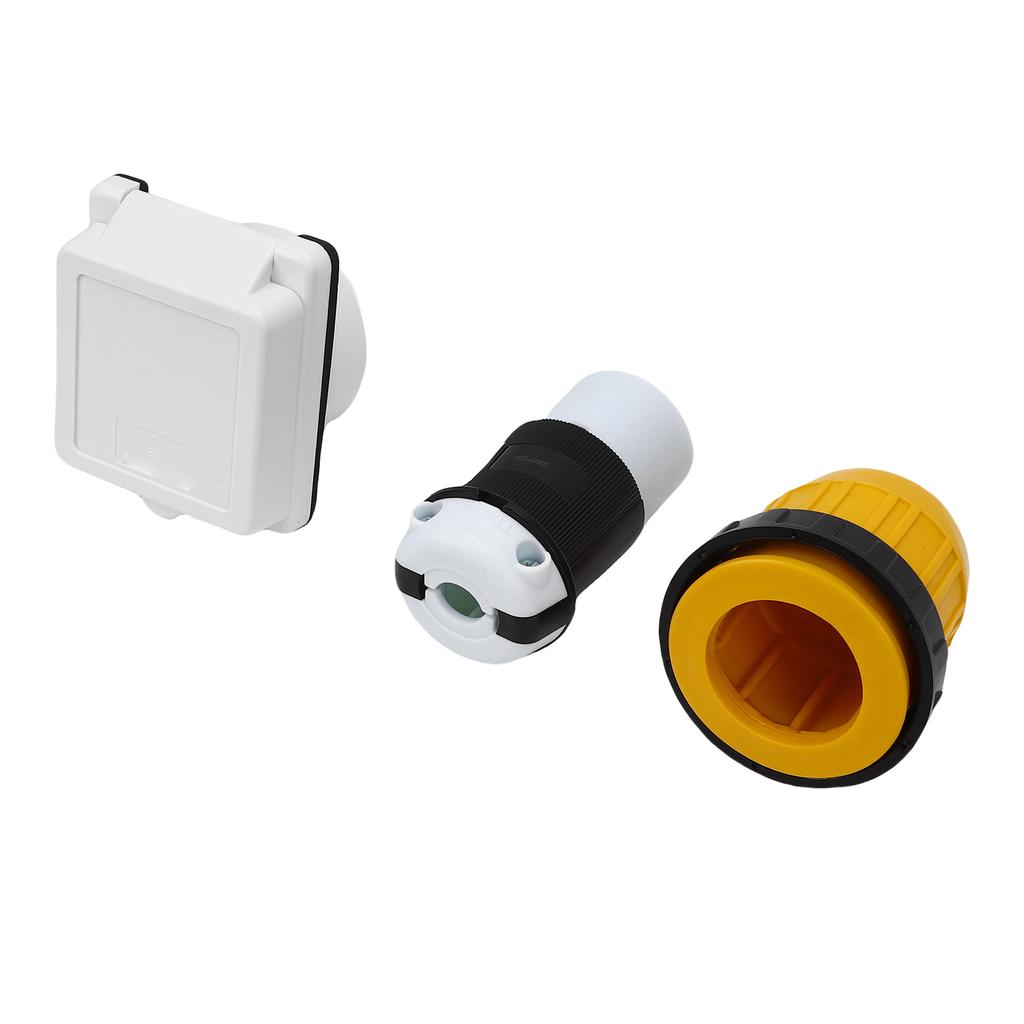

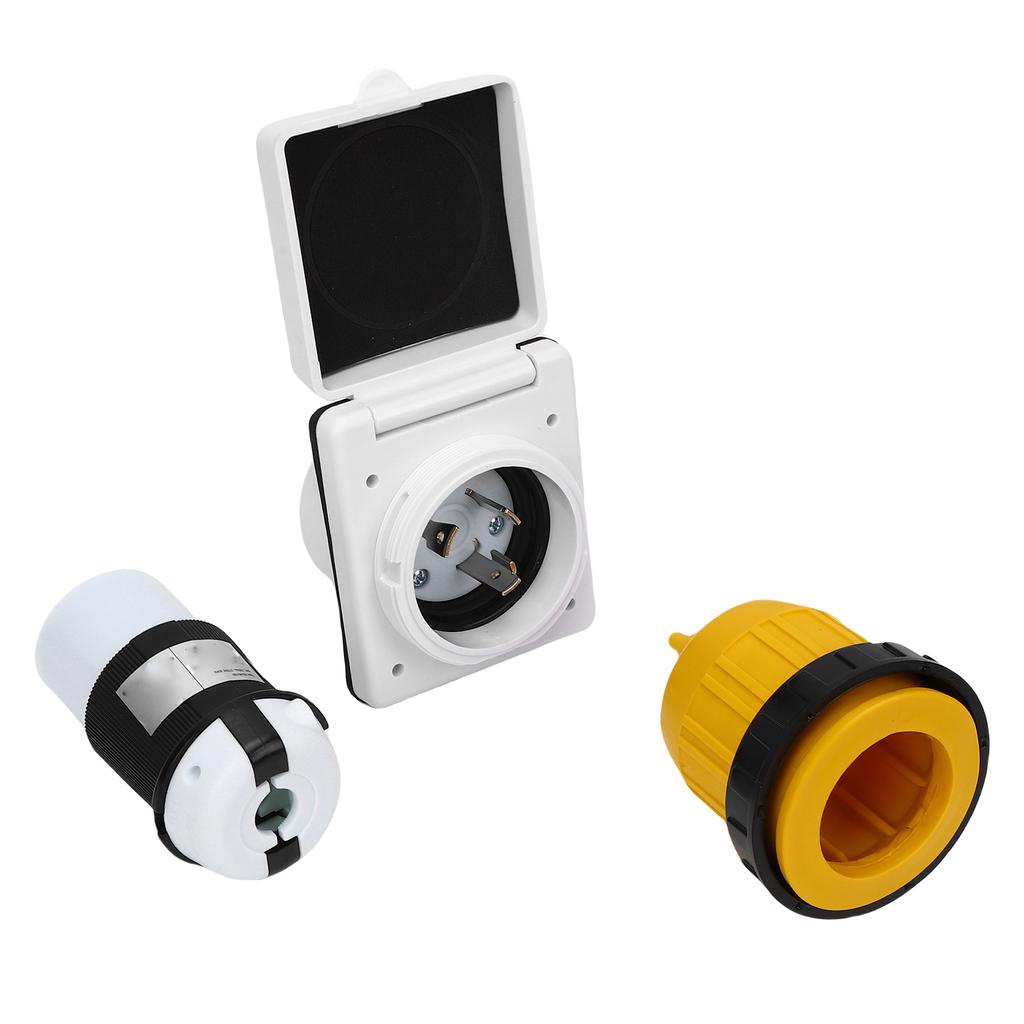

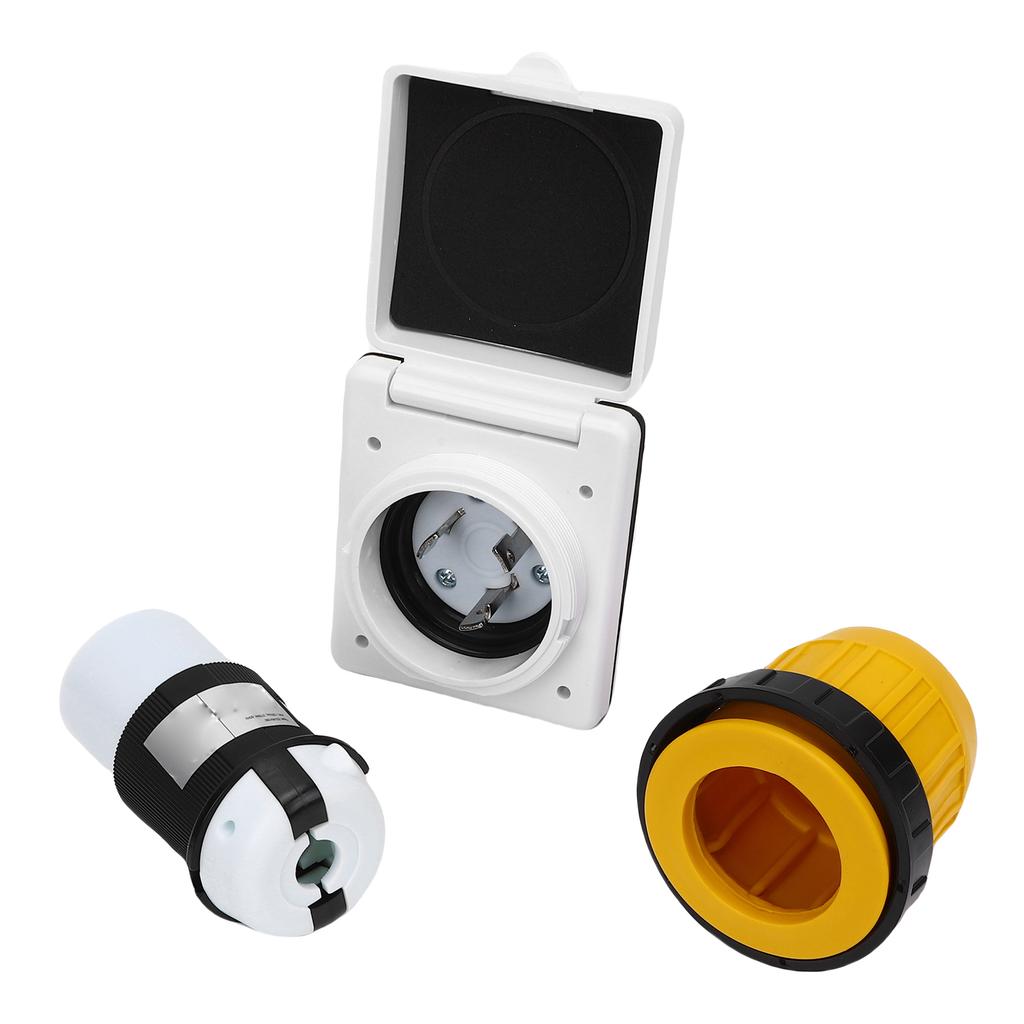

1. RV Power Plug Kit: The kit includes NEMA L5 30P male connector, NEMA L5 30R female connector, and power cord protective cover with locking ring.
2. Versatile Use: This power inlet outlet shore kit features rated current of 30A, can be widely used in RVs, trailers, ships, caravans, and van.
3. PVC Shell: The locking plug and connector set adopts heavy duty PVC material, which is high temperature proof and flame retardant, ensuring safety.
4. Long Lasting: The ni plated brass rod on the plug is made of brass and plastic, which will not oxidize and can avoid damage caused by sun degradation.
5. Easy to Install: The color terminals make installation more convenient, the green terminal is for ground wire, black terminal is for live wire, and the white terminal is for neutral wire. Compatible with 10 8AWG wires.
Specification:
Item Type: RV Power Inlet Outlet Shore Kit
Material: PVC, Brass
Rated Current: 30A
Plug Specification: NEMA L5 30R
Socket Specification: NEMA L5 30P
Installation Steps:
1. Position Determination: Select a suitable location on the shell, avoid any pipes or other obstacles, and ensure that all power tools are properly grounded.
2. Marking and Cutting: Use a hole saw to mark and cut holes with a Diameter of 2 7 8in on the shell.
3. Placement Inlet: Place the air inlet into the opening and use it as a model to mark the location of the installation hole, then use a 1 8in drill bit to drill the installation hole.
4. Remove the Rear Baffle: Remove the 2 screws at the front end of the air inlet and remove the rear baffle.
Wiring Specifications:
Peel off the 3 4 inch insulation layer from the wire end, ensure the wire cores are clean and non corrosive. If necessary, cut off the corrosive part and re strip the wire.
Wiring Color Code:
1. 125V 3 Wire System: Black: Live wire; White: Neutral wire; Green: Equipment ground wire
2. 125 250V
4 Wire System: Black: Live wire (125V); Red: Live wire (125V); White: Neutral wire; Green: Equipment ground wire
3. Insert the wire into the terminal hole, tighten the terminal screw to a torsion of 20in lb, and ensure that there is no insulation remains.
Wiring:
Thread the internal wiring through the box opening, use at least 10 AWG 3c wires, do not use finer wires to prevent overheating and potential electrical fires.
Stripping and Connecting:
Peel off 3 5in on the end of the wire to ensure it is clean and non corrosive. Insert the wire into the opening behind the air inlet according to the color code and tighten the terminal screw.
Organizing and Fixing:
Thread the wires through the rear baffle and pressure reducing device, slide the rear baffle behind the air inlet, tighten the pressure reducing screw, place the air inlet above the box opening, align the mounting holes, and use screws to fix the air inlet to the box.
Adjustment Steps:
1. Power Outage: Cut off the power at the entrance of the circuit breaker.
2. Dismantling Old Inlet: Remove the old air inlet from the housing and disconnect the internal wiring.
3. Check for Erosion: Check for erosion in the wiring. If there is, cut off the corrosive
part and re strip the wire.
.
Package List:
1 x NEMA L5 30R Plug1 x Plug Protective Cover1 x User Manual1 x NEMA L5 30P Socket1 x Socket Manual
Note:
Precautions Before Installation:1. Electrical Risk: There is a risk of electric shock and fire during installation, ensure that connectors and cables are not connected to the power source.2. Professional Advice: If unsure how to install, please consult a qualified electrician.Applicable Materials: Only suitable for copper wire.Cable Specifications: Use cables with specifications of 6AWG 4C or 6AWG 3C+8AWG 1C.Required Tools: Pencil, electric drill, 2 1 2in hole saw, 1 8in drill bit, flat head screwdriver, wire stripping pliers wire stripper, 8 stainless steel flat head screws (not provided).
