Feature:
1. 3.5mm Radio Jack: This radio transceiver features a 3.5mm voice jack so you can easily listen to standard NFM and WFM sound signals.
2. Multiple Signal Reception: This radio transceiver can accept SSB, AM, narrowband FM, wideband FM sound with spectrum waterfall.
3. Multiple Accessories Addable: When connected to the for PortaPack, this radio transceiver allows you to add an LCD touch screen, navigation controls, headphone jack, real time clock, and a micro storage card slot.
4. Compact And Convenient: This radio transceiver is small in size and light in weight, making it very convenient to carry and use on the go.
5. Wide Application: This radio transceiver has a wide range of applications and can be used for communications, radio and television.
Specification:
Item Type: Radio Transceiver
Model: Portapack H2
Material: Aluminum Alloy
Battery Type: 3.7V 2000mAh Lithium Battery x1 ( Shipped With Built In Battery )
Antenna Receiving Frequency Range: 1MHz 6GHz
Catch Replay:
One of the best things about the radio transceiver is that it makes it very easy to catch and replay wireless signals from ISM band remotes.
Create a catch. All you need to do is go to the catching menu, set the frequency of the remote control key, press the red R record button and press the key on the remote control.
Then stop recording to save it to the storage card.
Now you can go to the Playback menu, select the file you just recorded and click Play. The exact same signal will be transmitted over the air, effectively replacing your remote key.
TX Microphone:
Using the 3.5mm radio jack, the radio transceiver can also be used as a standard push to talk or voice activated walkie talkie radio by the radio transceiver. Plug the microphone into the radio jack, you simply press and hold the right button to push to talk.
If desired, you can also enable multiple CTCSS tone options, as well as tones that appear to be transmitted to the wireless headset
Receiver:
You can easily listen to standard NFM and WFM radio signals by connecting your speaker to the Portapack s 3.5mm radio jack.
ADS B reception is easily enabled on the radio transceiver by selecting the inductor and lightning symbol in the upper right corner.
Hardware Configuration:
3.2 Inch, 240 x 320 RGB LCD With Resistive Touchscreen.
Navigation Switches
Radio Output
Microphone Input
DC 2.1 Connector
4 layer Gold Plating
HAVOC Features Include:
IQ File Playback
Microphone FM Transmission With CTCSS
CTCSS Decoder
Frequency Manager (Save And Load From Storage Card With Categories And Comments)
File Manager
Soundboard Wave File Player (Holds 8 Bit Mono Files) Storage Card, Wav Directory)
ADS B Receiver With Map View
SSTV Transmitter
Fully Configurable Transmitter Signals
POCSAG Transmitter
POCSAG Receiver, Decoder
Morse Transmitter (FM Tone and CW)
OOK Transmitters for Common Remote Encoders (PT2262, Doorbells, Remote Outlets, Some Garages)
RDS (Radio Data System) PSN, RadioText and Time Group Transmitters
Weather Radio Sounder Receivers for M10 and M2K2
AFSK Receiver
AFSK Transmitter (Bell202)
Nuoptix DTMF Synchronization Transmitter
TouchTunes Jukebox Universal Remote Control
LCR (Language de Commande Routier) Message Generator
Street Lighting Control Transmitter (CCIR tones)
Play Dead for Emergencies
Fully Configurable RF Signal Generator
RSSI Radio Output for Pitch (for Direction Finding)
Features:
4 Way Arrow Buttons, Scroll Wheel and Selector Buttons.
Coin Cell Battery for Saving Settings and Date, Time.
Micro Storage Card Slot For Data And Code Storage
Micro Storage Card Slot For Data And Code Storage
SSB, AM, Narrowband FM, Wideband FM Radio Reception With Cascaded Spectrum.
Broadband (18MHz) Spectrum and Cascade Analysis.
Monitoring of Ships (AIS), Cars (TPMS), Electronic Utility Counter Transponders (ITRON ERT).
For mode runs for firmware for use with SDR host software.
Calibrates PPM for more accurate adjustments.
Sleep mode saves energy by turning off the display only.
Instructions:
When you place the PortaPack in for Mode, your will continue to work with the PC based SDR software.
The radio transceiver is only compatible with for One. If your for Blue does not have a baseband connector installed, you should have no mechanical problems..
Package List:

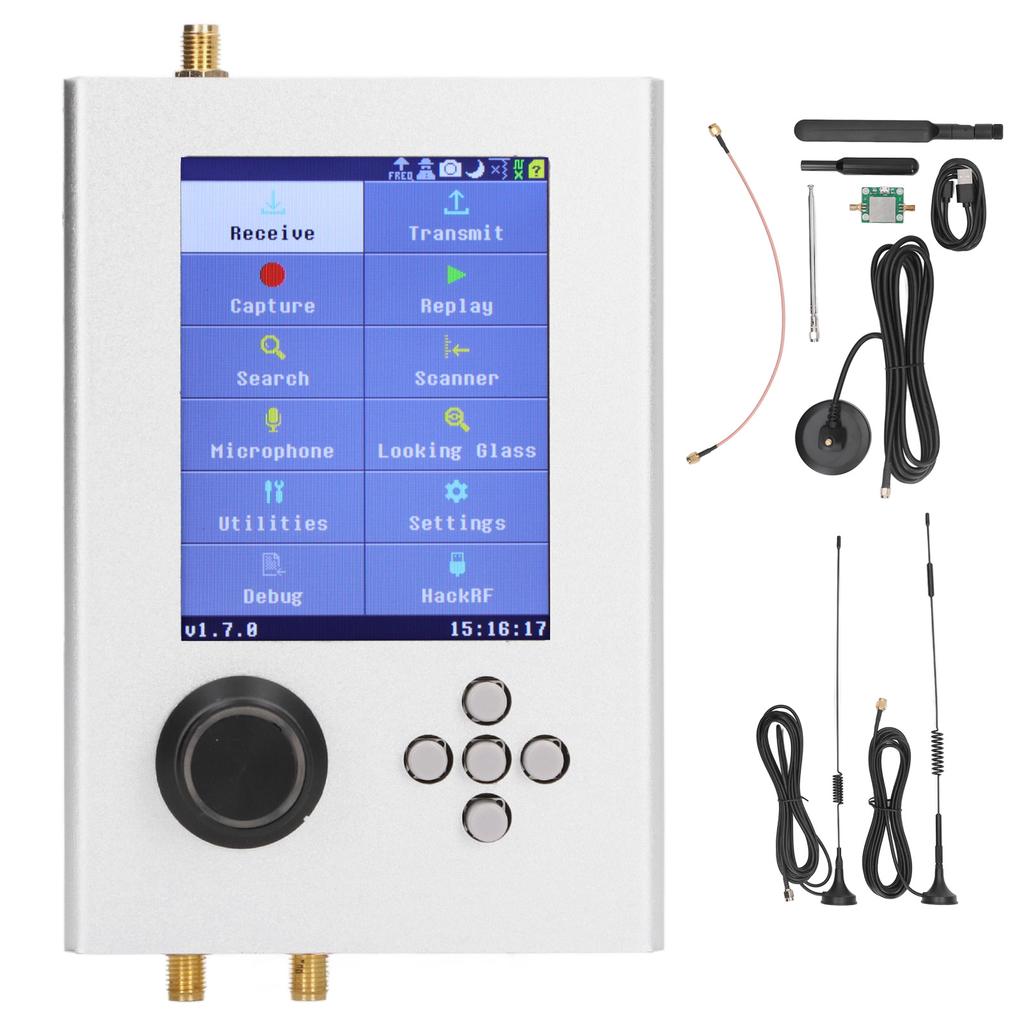

1 x Radio Transceiver1 x USB Cable1 x SMA Antenna4 x Other Antenna1 x Antenna Accessory1 x Amplifier*11 x Male To Male Connection Cable
