Ken R Air Compressor Pressure Switch Repair/Replacement, Top Pull ON/OFF, Pressure Safety Valve, Pressure Gauge, Regulator (1 Port)

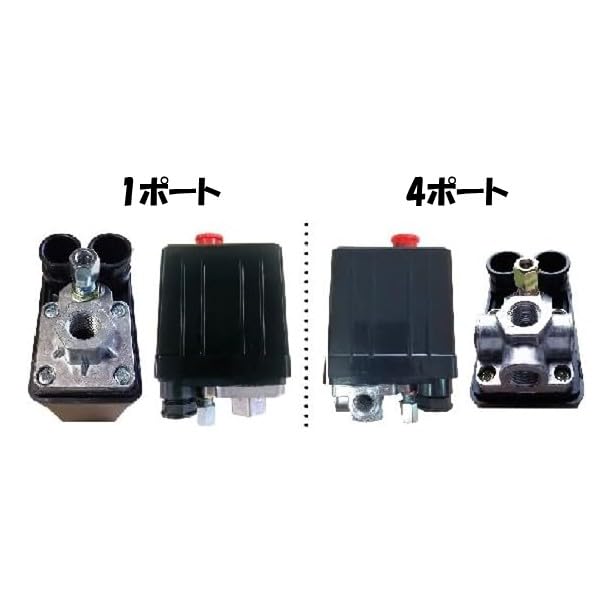

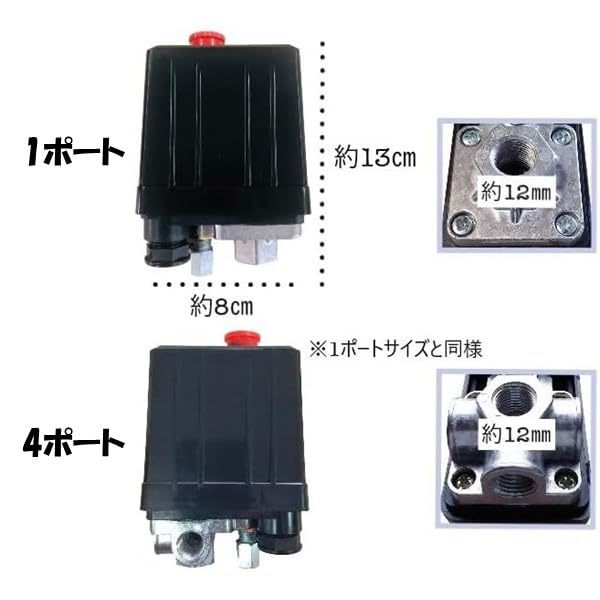

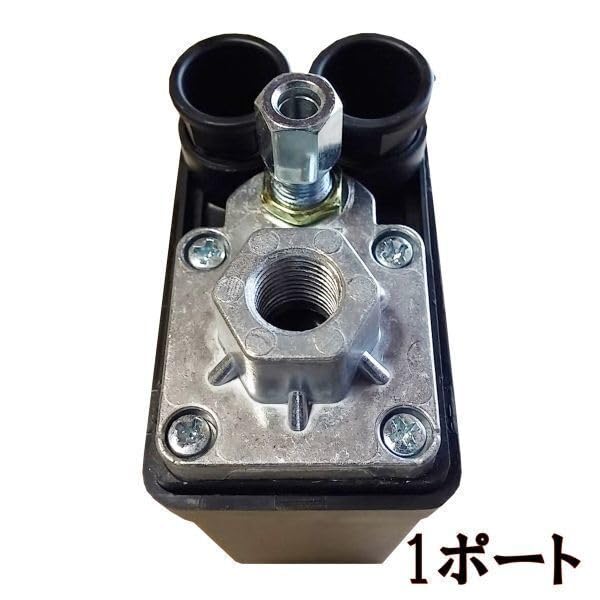

Available in two types: 4-port and 1-port. The 4-port version has a safety valve, pressure gauge, regulator, etc. connected to the switch. Without these, it's a 1-port version. The red switch may be stiff to turn on and off upon initial use. However, by turning the red switch while pressing or lifting it, it will turn on and off relatively smoothly. Instruction manual not included. Compatible voltage: AC 230V or less, Current rating: 16A Compatible pressure: 175PSI, 12 bar, 0.8MPa (stop), 0.6MPa (start) Port mounting thread size: 1/4" 2-minute, outer diameter approximately 14mm Exhaust pipe mounting size: 6mm diameter Available in two types: 4-port and 1-port. The 4-port type has a safety valve, pressure gauge, regulator, etc. connected to the switch. If they are not connected, it is a 1-port type.

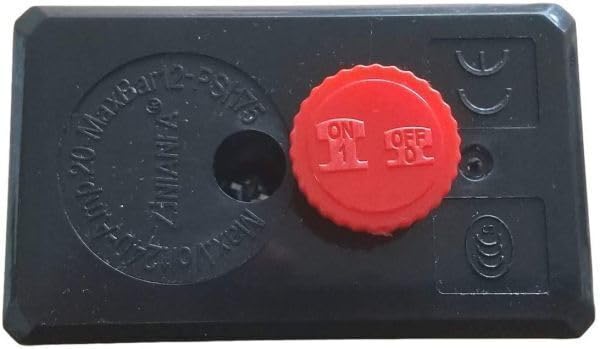

- The red switch may be stiff to turn on and off upon first use, but if you press or lift the red switch while turning it, it will turn on and off relatively smoothly.

- Instruction manual not included.

- Compatible voltage: AC 230V or less Current capacity: 16A

- Compatible pressure: 175PSI, 12 bar 0.8Mpa: Stop 0.6Mpa: Start
