Deruiz neu Quartz 2026
1. Product slogan:
Urban riding. Next level.

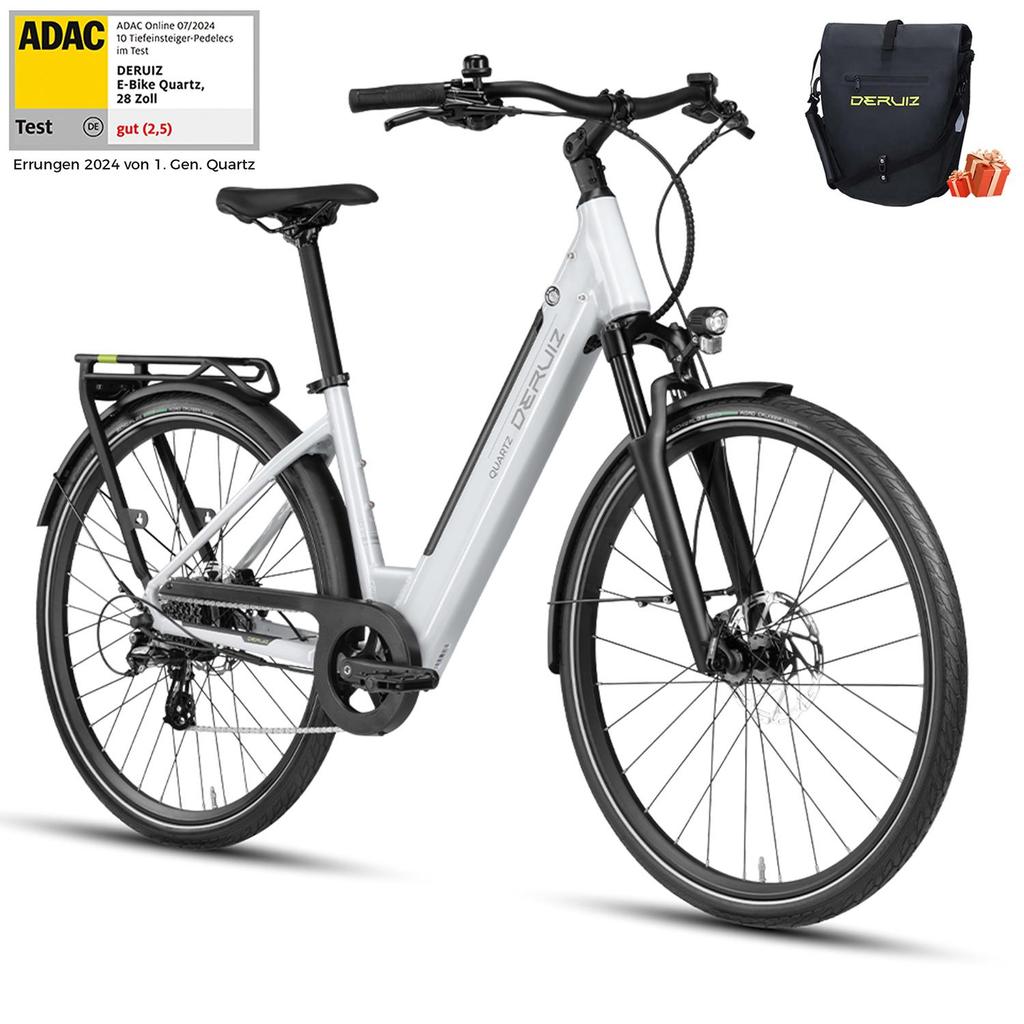

The Quartz is one of the most important bikes in Deruiz's history—and a new chapter begins in 2026. After countless kilometers, innumerable user reviews, and the highest ADAC rating among all tested entry-level models in 2024, the Quartz has now been completely redesigned.
The result: a significantly lighter frame, hydraulic disc brakes, a new torque sensor, an optimized design, and a fully app-compatible motor platform.
More control. More comfort. More safety. More Quartz.
Available in Matte Titan Grey, Moonbeam.
2. FEATURES & HIGHLIGHTS:
Simply get on and off.
The entirely newly developed aluminum frame for beginners is lighter, more stable, and has a more harmonious line design. Getting on, starting, and stopping—all feel instantly familiar, intuitive, and agile. The new design reduces the weight by about 3 kg and looks clearer and more modern.

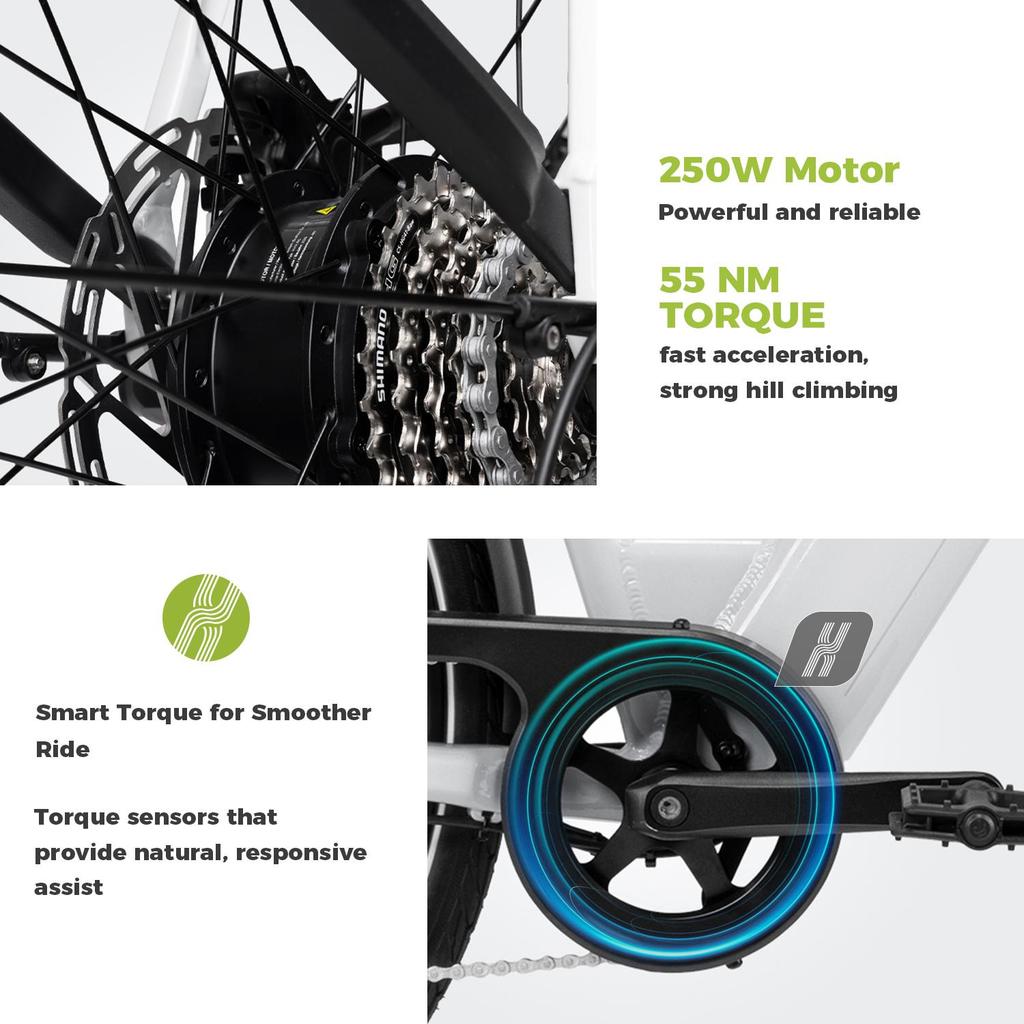

Direct, dynamic, natural: the new torque sensor. The Quartz 2026 rides even smarter. The integrated torque sensor responds precisely to your pedaling strength and delivers a natural, finely tuned support—ideal for stop-and-go, hill starts, or smooth cruising through the city. More control, faster motor response, noticeably more harmonious driving dynamics. Powerful rear-wheel drive—now even more confident. The proven 48-Volt rear motor with 55-Nm torque remains a real powerhouse. Combined with the new sensor system, it accelerates faster, smoother, and more efficiently—whether uphill, with luggage, or over long distances.
Enduringly on the move.

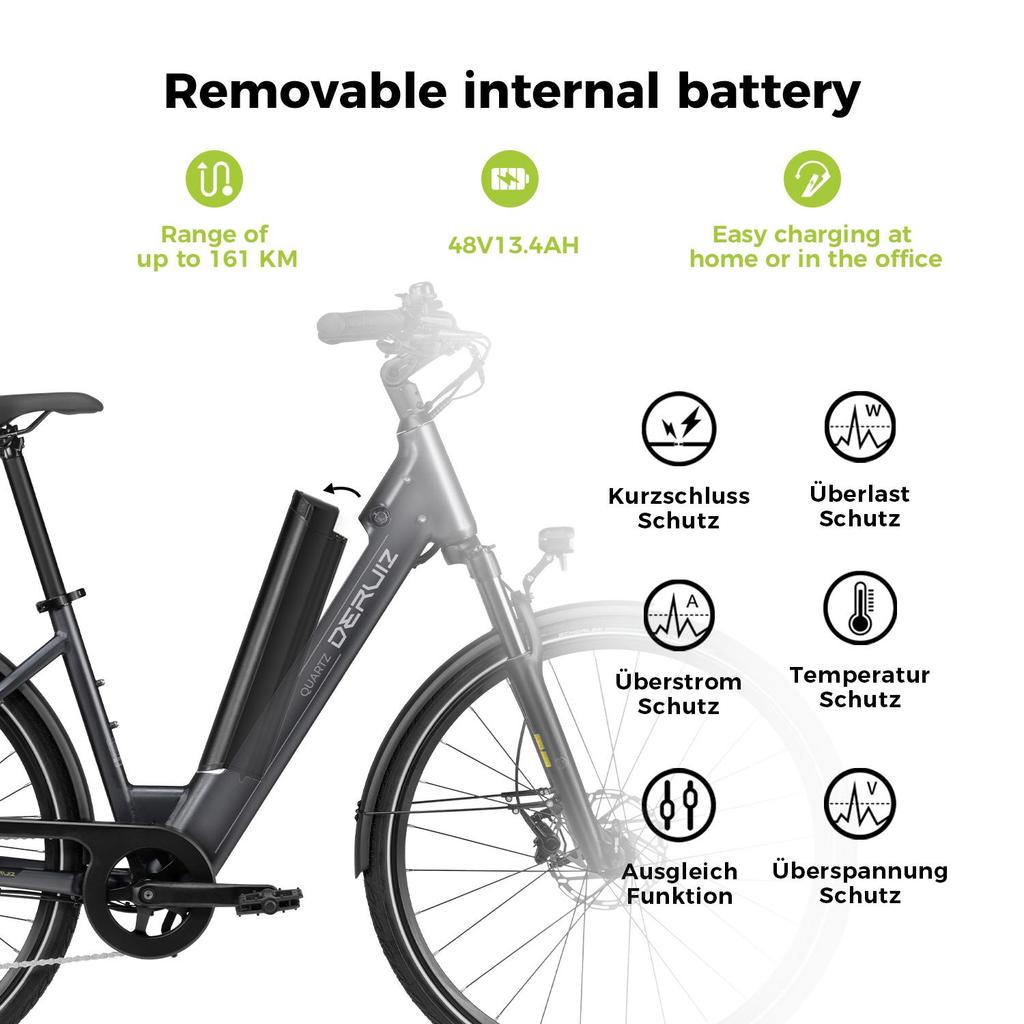

The integrated 644-Wh battery ensures a long range in daily use.
It can be easily removed and charged externally. The new charging port makes the system even safer and compatible with the app configuration of all current Deruiz models.
Safe braking – in any weather.

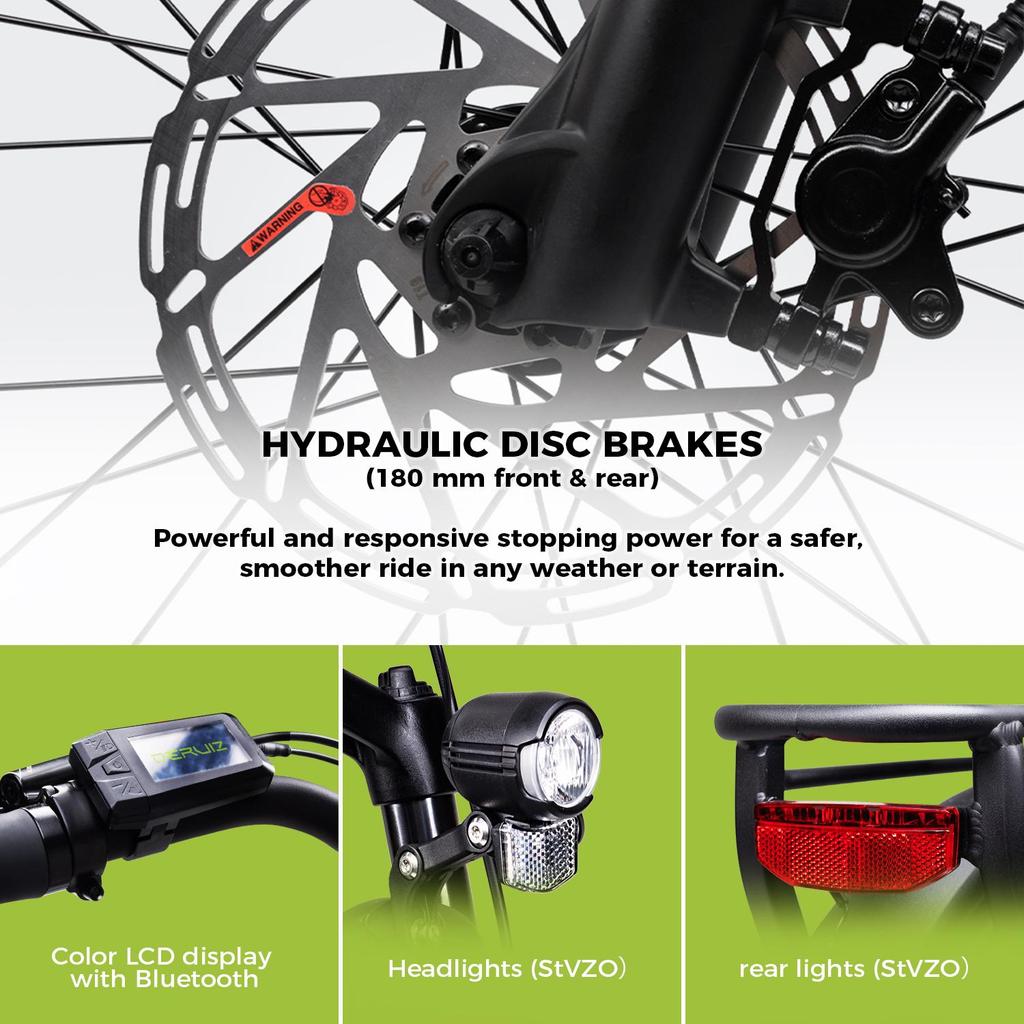

A major upgrade: the new hydraulic disc brakes with 180-mm discs at both front and rear ensure strong, reliable braking power—whether dry, wet, or downhill.
More control, less effort, significantly more safety.
Fenders in new design.
The new double-layer aluminum fenders from Deruiz are stable, aesthetically pleasing, and free of rubber parts. Minimalist, high-quality, and perfectly matched to the new frame design.
Relyable tires.

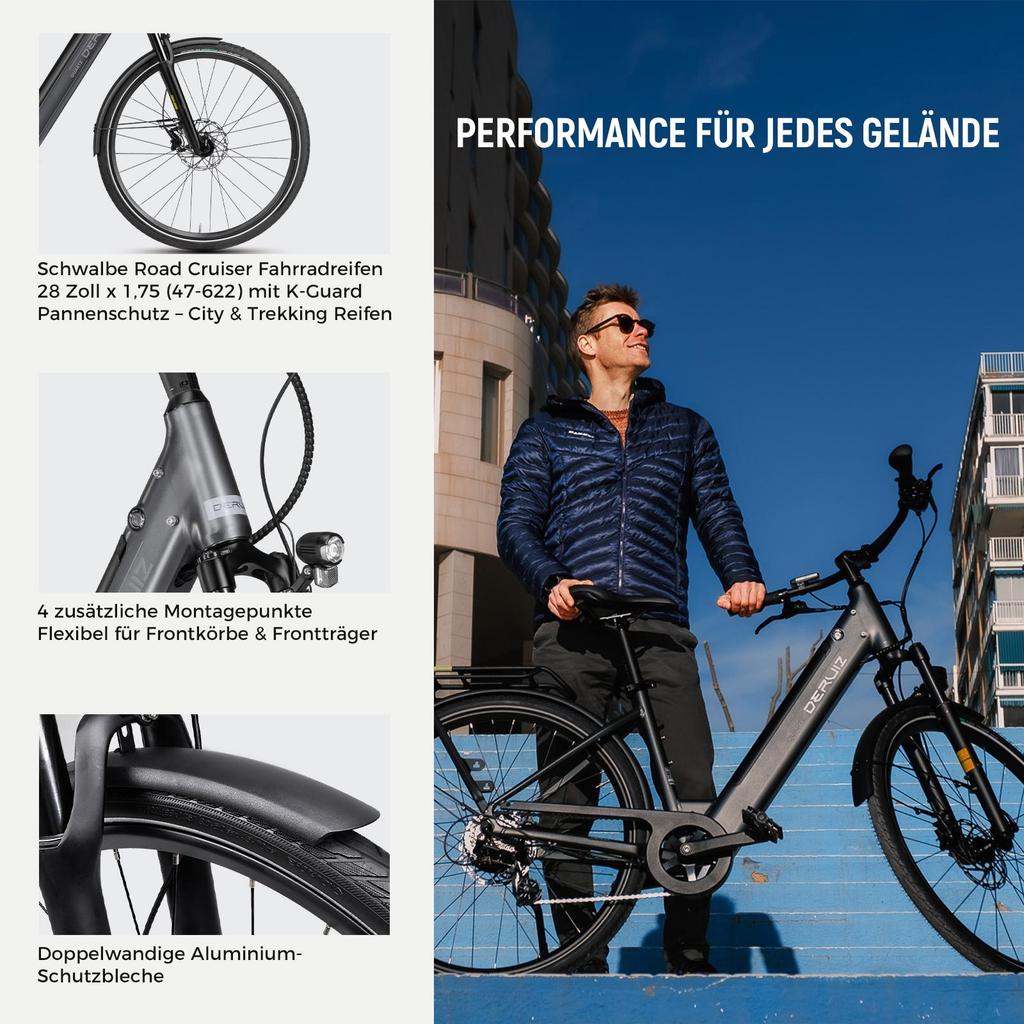

Neu: Schwalbe Road Cruiser with K-Guard puncture protection, reflective strips, and a quiet, comfortable rolling behavior. Ideal for urban traffic, gravel roads, and everyday rides – stable, safe, and long-lasting.
Front Baskets & Accessories: More Options
The new exhaust pipe area features four additional mounting points—compatible with all current Deruiz front bays and front carriers. More transport options, seamlessly integrated, stable, and versatile.
More space for everything that matters.
The integrated luggage rack can carry up to 25 kg and is fully compatible with side bags, baskets, and the Quick-Mount system.
Whether it's shopping, a laptop, or weekend gear – everything has its place.
3. Technical Data

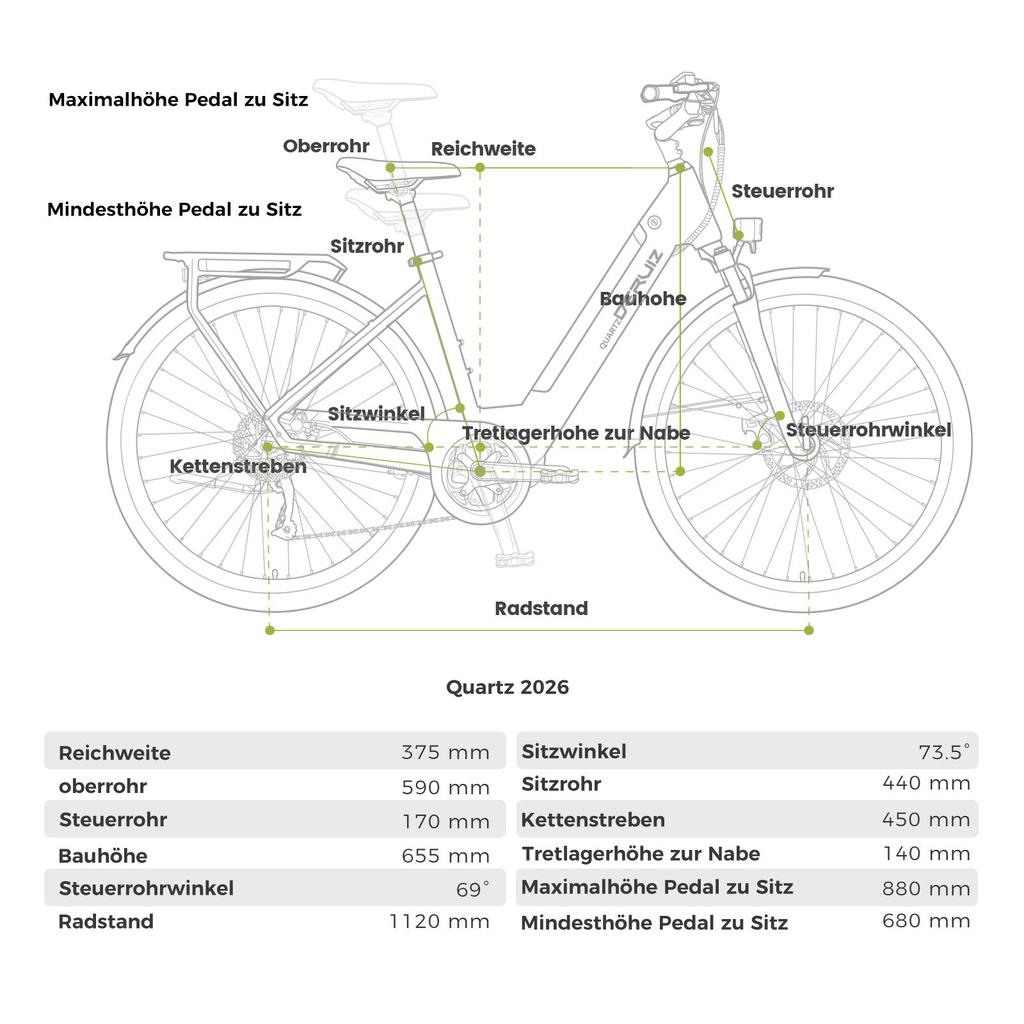

Frame
- Material: 6061 Aluminium
- Size: One Size (44 cm)
- Frame Type: Step-Through Frame
Fork / Suspension

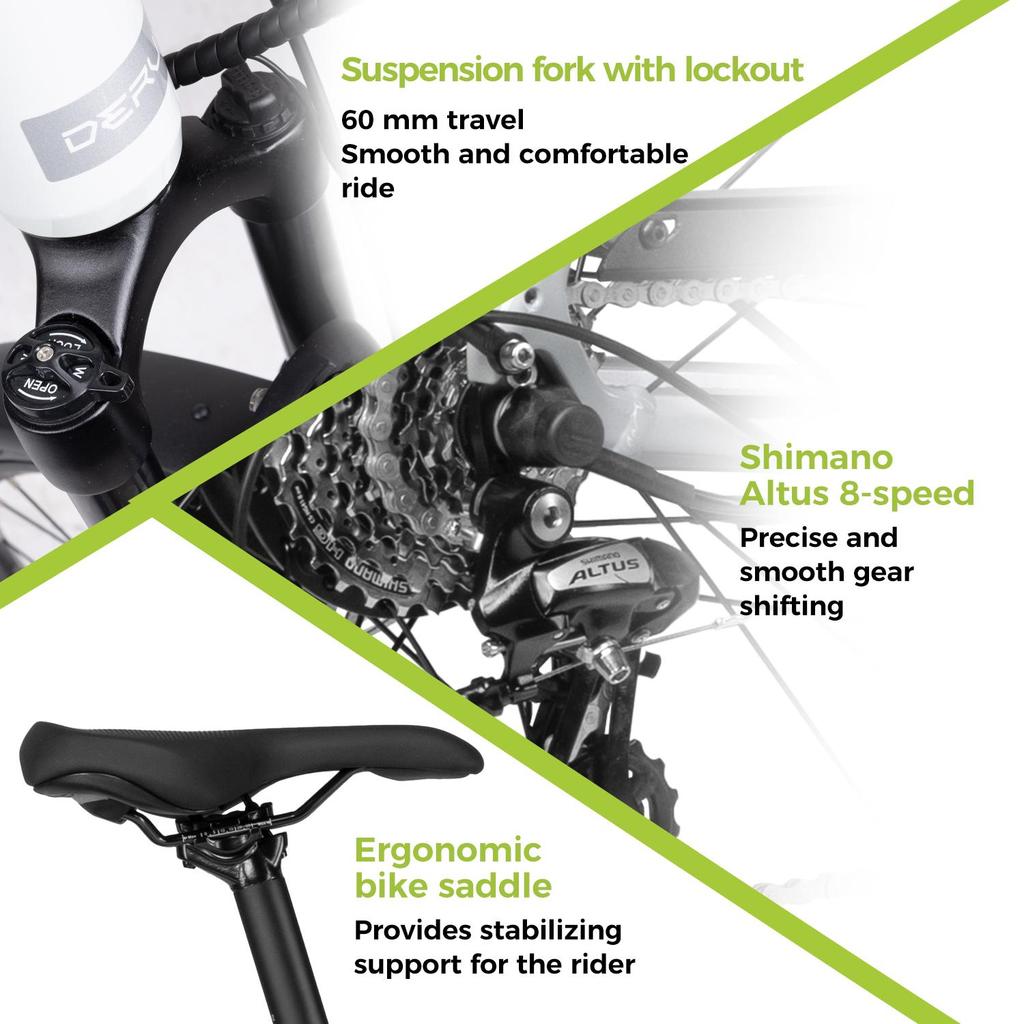

- Front Suspension Fork: Deruiz PAY-PRO 700C, Disc Brake Mount, 60 mm Travel, with Mechanical Lockout
E-Bike System

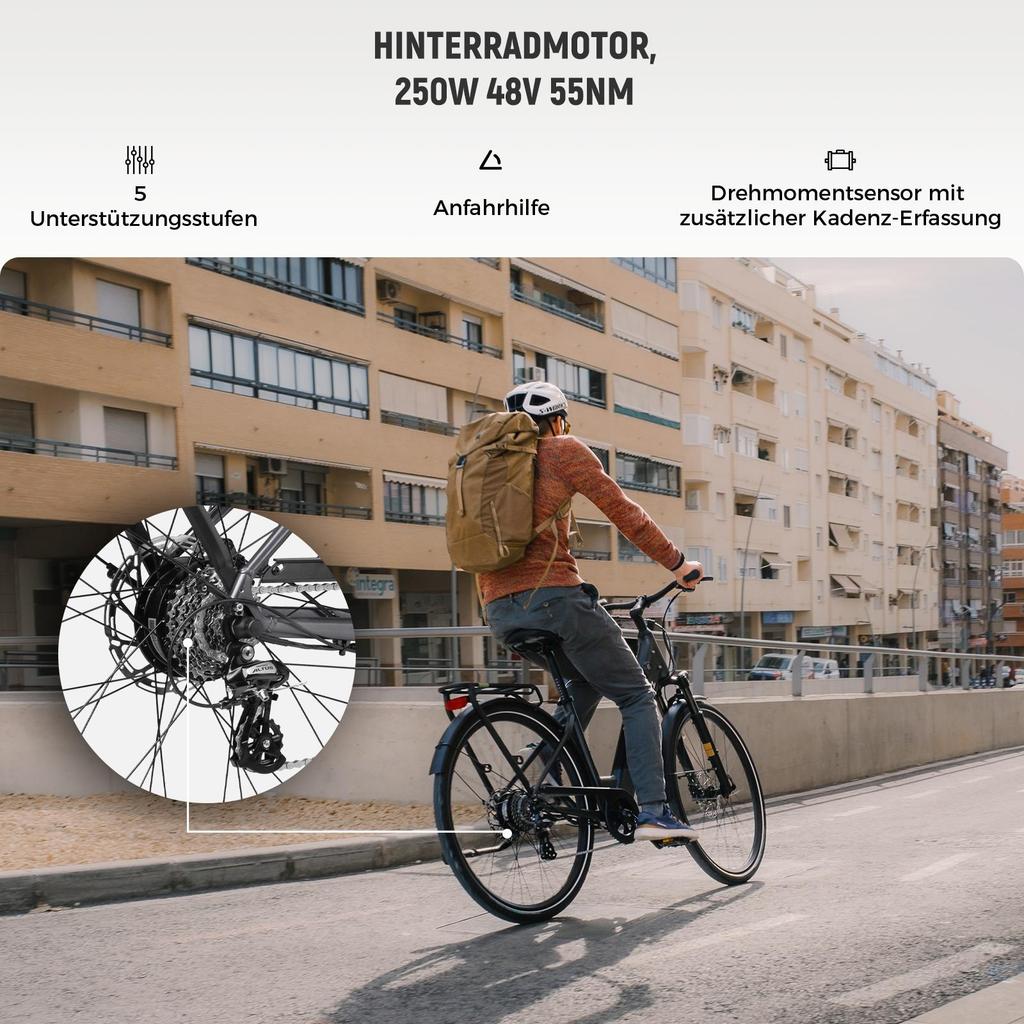

- Motor: Deruiz Rear Hub Motor 95RX.RC / 250 W / 48 V / 55 Nm
- Sensors: Torque Sensor with Additional Cadence Detection / 5 Support Levels / Start Assist
- Battery: 48 V / 13.2 Ah / approx. 644 Wh / Range up to approx. 161 km (depending on driving style and conditions)
- Display: Deruiz Color LCD Display (KD126 Custom) with Bluetooth, Deruiz Ebike App Connection and Deruiz Protocol
- Charger: Deruiz 48 V / 2 A Charger with 4-Pin Connector
- Front Light: Shiny 40, 40 Lux (StVZO-Certified)
- Rear Light: Büchel Edge, 2.5 cd (StVZO-Certified)
Drivetrain & Brakes
- Braking System: Deruiz HD-280E Hydraulic Disc Brakes (180 mm Front / 180 mm Rear)
- Shifter Lever: Shimano Altus SL-M315-8R Rapidfire
- Rear Derailleur: Shimano Altus RD-M310 / 8-Speed
- Cassette: Shimano Acera CS-HG41-8 / 11–32 Teeth
- Crankset: XR5HA-42 / 42 Teeth / 170 mm Crank Arms
Cockpit
- Handlebar: Deruiz Comfort Swallow Bar / 640 mm Width / 44° Backsweep / 25 mm Rise
- Stem: Comfort Stem (Ø 31.8 mm) with 30° Angle
- Grips: Deruiz Ergonomic Rubber Grips
- Headset: Semi-Integrated Ahead Headset
Wheels
- Front Wheel Hub: Quick Release 115 mm, Disc Brake Mount
- Rear Wheel Hub: Integrated Deruiz Rear Motor
- Rims: Double-Walled Aluminium Rims, 700C / 36 Holes
- Tire: Schwalbe Road Cruiser, 47-622 (28 × 1.75), with Reflective Strips and K-Guard Puncture Protection
Equipment
- Seatpost: Ø 31.6 × 350 mm / Dual-Screw Clamping
- Saddle: Velo VL-6581
- Pedals: FP-803B City Pedals, Ball-Bearing, with Reflectors
- Kickstand: Adjustable Side Stand (22–29 inches)
- Protective Panels: Deruiz Urban Style / Double-Layer Aluminium Protective Panels / 58 mm Wide (Front and Rear)
- Luggage Rack: Semi-Integrated Deruiz Luggage Rack / Max Load 25 kg (ISO 11243:2023)
Product Information
- App: Deruiz Ebike App for iOS and Android (Bluetooth Connection via Deruiz Display)
- Maximum Total Weight (Including E-Bike): 160 kg
- Colors: Matt Titanium Grey / Moonbeam
- Net Weight (Without Battery): approx. 24.6 kg
- Packaging Size: 1,470 × 250 × 870 mm
4. Key Specs (Quartz) for B2C
Motor & Drive
- Deruiz 250 W Rear Hub Motor (48 V) – Powerful & Reliable
- 55 Nm Torque for Quick Acceleration and Effortless Climbing
- Torque Sensor for Natural, Responsive Riding Support
Battery & Range
- 48 V / 13.2 Ah (≈ 644 Wh)
- Charging Time: 6–7 Hours / Max Range: up to 161 km
- Removable Battery – Easy to Charge at Home or in the Office
Brakes & Safety
- Hydraulic Disc Brakes (180 mm Front & Rear)
- 40-Lux LED Headlight (StVZO-Certified)
- Integrated Rear Light with 2.5 cd Brightness (StVZO-Certified)
Comfort & Riding Feel
- Suspension Fork with Lockout, 60 mm Travel
- Ergonomic Saddle & Comfortable Handlebar
- Lightweight Frame – Only approx. 24.6 kg Without Battery
- Step-Through Frame Design for Easy Mounting, Climbing and Descending
Drivetrain
- Shimano Altus 8-Speed Gear System
- 11–32T Cassette for Versatile Riding on All Terrains
Tires & Wheels
- Schwalbe Road Cruiser 47-622 Tires
- Puncture Protection & Reflective Strips for Enhanced Safety
- 36-Hole Double-Walled Aluminium Rims
Equipment
- Integrated Luggage Rack (Max Load 25 kg)
- 58 mm Wide Aluminium Protective Panels
- Adjustable Front Suspension Fork
- City Pedals with Reflectors
Display & Connectivity
- Color LCD Display (KD126)
- Compatible with Deruiz Ebike App (Bluetooth-Enabled)
- Supports Deruiz Protocol
Miscellaneous
Maximum allowable weight: 160 kg
Farben: Titan Grey Matt, Moonbeam
