Feature:
1. Advanced Maximum Power Point Tracking (MPPT) technology, the efficiency is not less than 99.5percent
2. Improve system performance, the highest conversion efficiency is 98percent , UItra fast tracking speed, to ensure tracking efficiency
3. 12 24VDC automatic identification of system voltage, LCD panel display design, dynamic display of tool operating data and working status
4. Supports 3 rechargeable battery options: sealed, gel, and liquid filled
5. Charging method is divided into three stages, constant current, constant voltage, and floating charge to extend battery life
6. Built in battery temperature compensation function, and multiple load working modes
7. This solar charge controller has a 3 hour function, A: work at night time B: pause during the period, C: work at dawn
Specification:

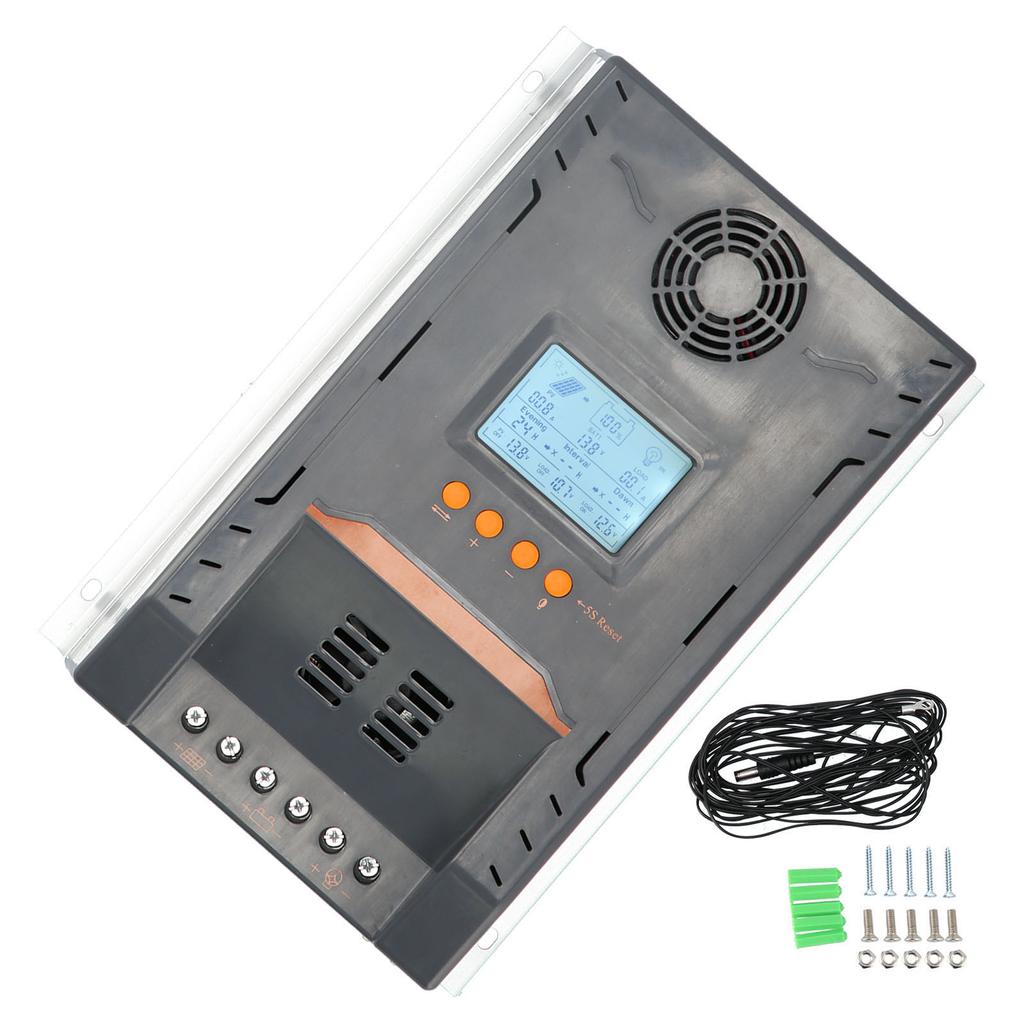

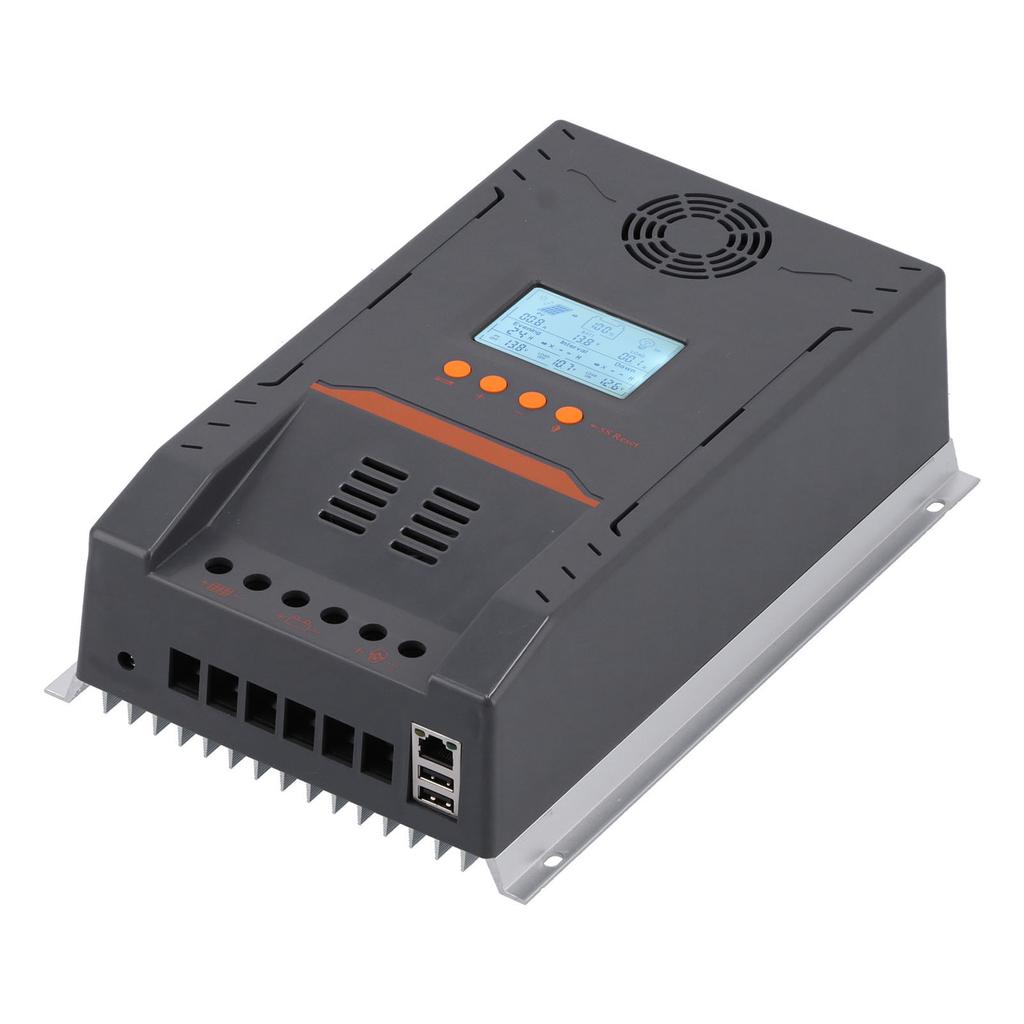

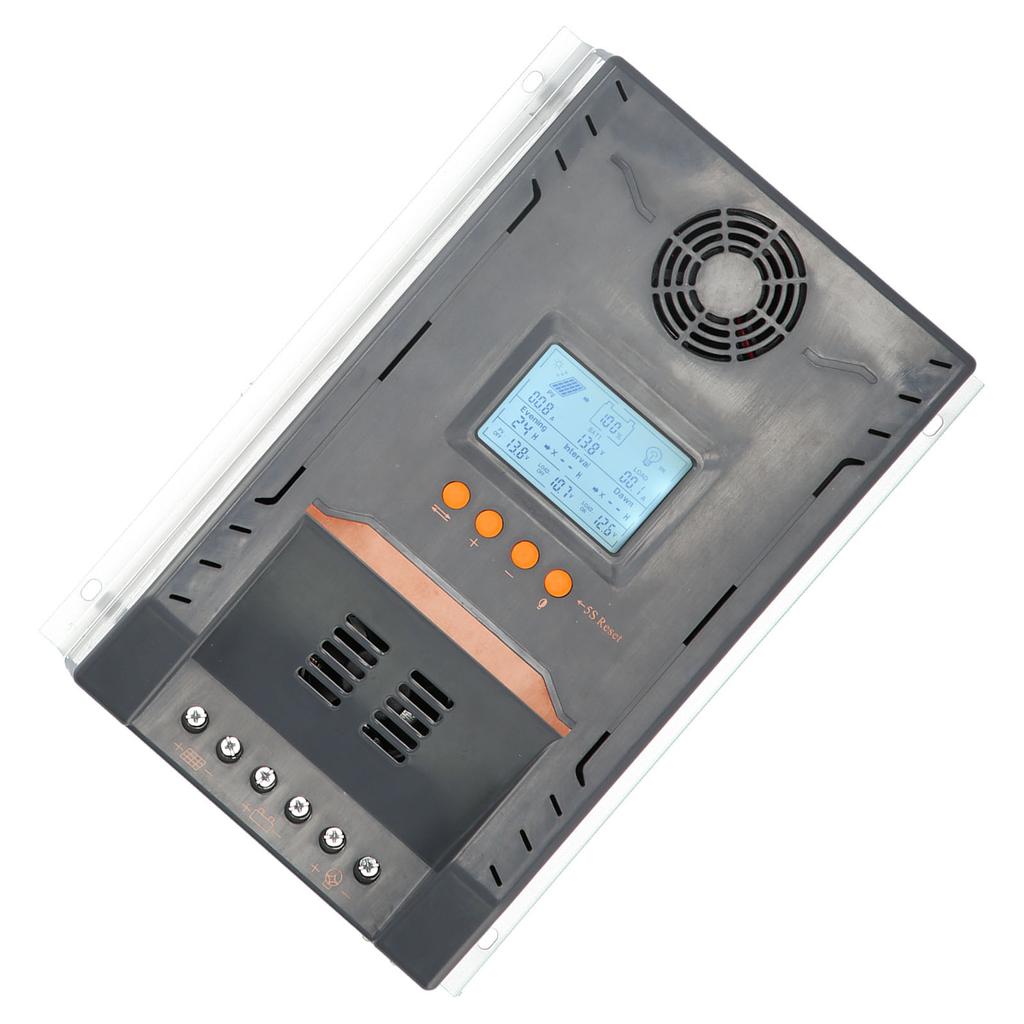

Item Type: MPPT Solar Controller
Material: ABS, aluminum
Purpose: Reduce the high voltage solar array and charge the low voltage battery pack. Widely used in many fields such as RVs, communication base stations, household systems and field monitoring
Maximum Power Current: 100A
Load Output Power: 40A (the unit is correct)
Installation Wire Diameter: 20msquare meters (4#AWG)
Summit Power of Solar Panels (Maximum Wp): less than 1300Wp
Battery Capacity Configuration: more than 800AH
Product Size: Approx. 280 x 190 x 85mm 11 x 7.4 x 3.3in
Battery Float Voltage: 13.8V(12V system), 27.6V(24V system)
Battery (Undervoltage) Protection: 10.6V(12V system), 21.2V(24V system)
Battery (Undervoltage) Recovery Voltage: 12.6V(12V system), 25.2V(24V system)
System Load Loss: less than 13mA
Loop Voltage Reduction: less than 100mV
Working Temperature: 10 celsius 60 celsius
Storage Temperature: 30 celsius 70 celsius
Humidity Requirements: <90percent , No condensation
Temperature Compensation: 4MV Cell celsius
Maximum Open Circuit Voltage of Solar Panels: 18V 48V(12V system), 36V 96V(24V system)
Maximum Open Circuit Voltage of Solar Panels (V): less than 96V
Battery Voltage: 100A
12V System: less than 48V(Voc), less than 36V(Vmp), 1300W
24V System: less than 96V(Voc), less than 72V(Vmp), 2600W.
Package List:

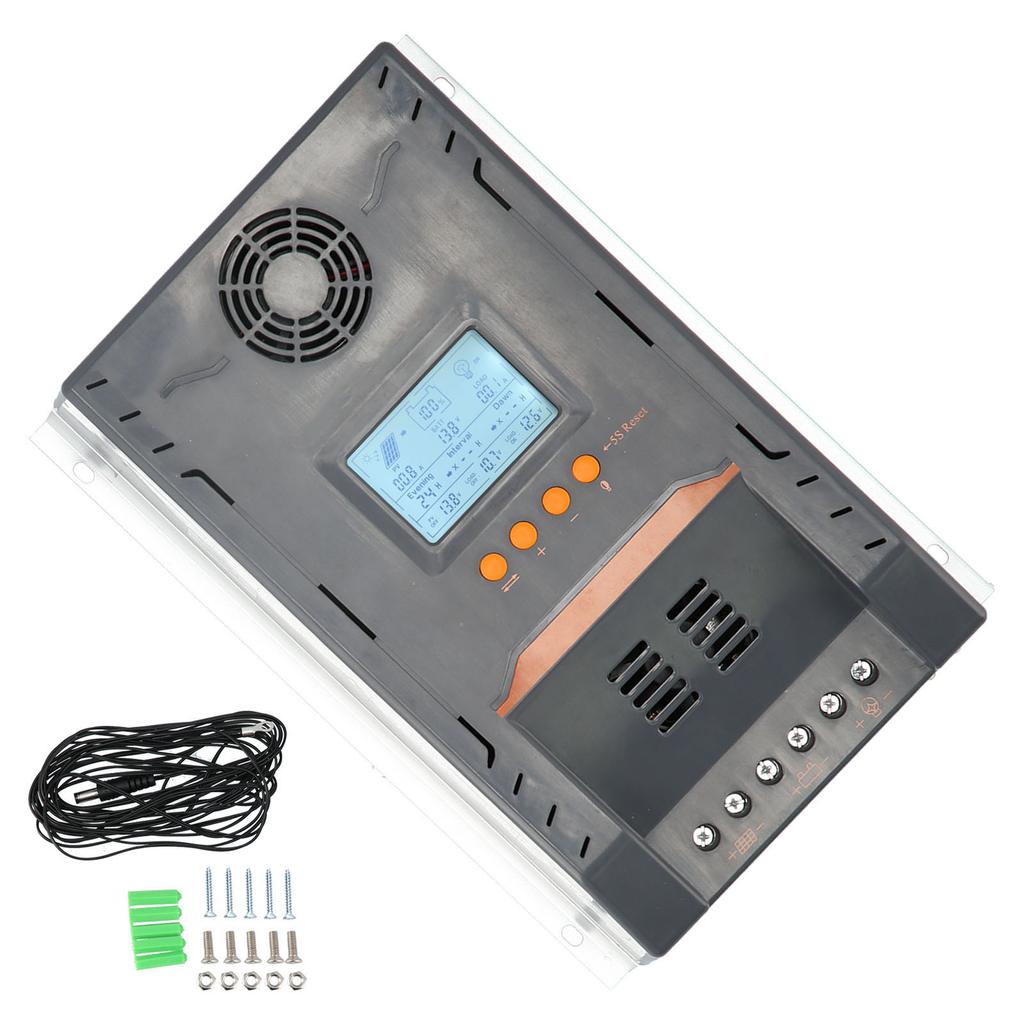

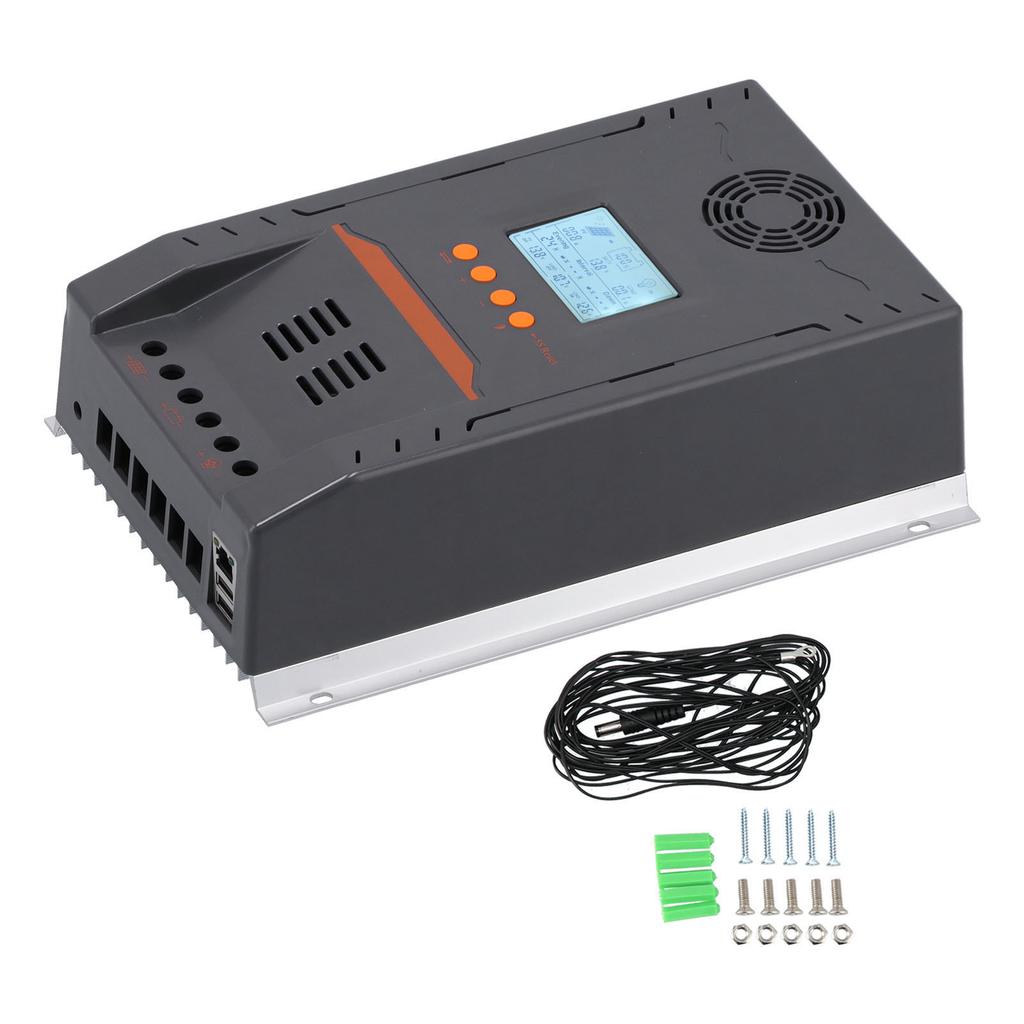

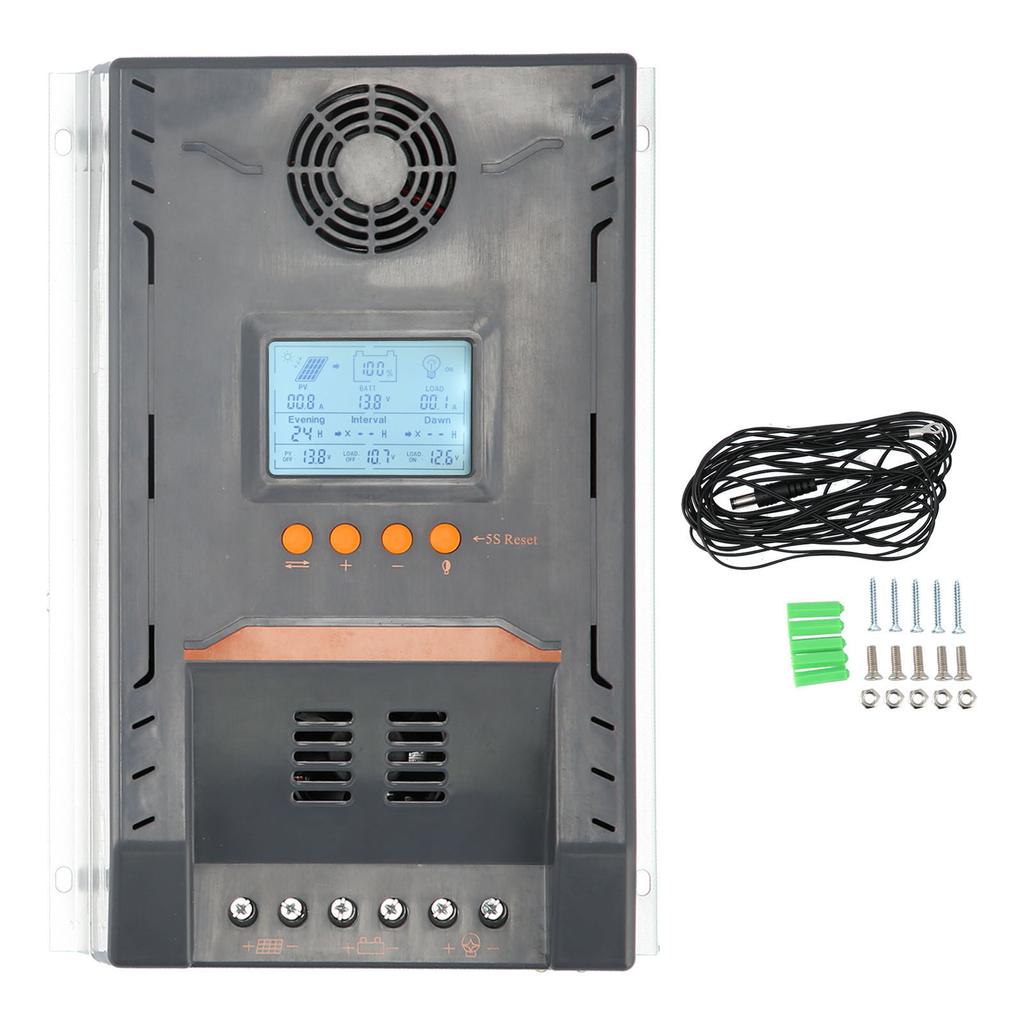

1 x Controller1 x User Manual1 x Temperature Probe Extension Cable10 x Screw5 x Nut5 x Expansion Screw Sleeve
Note:
1. The controller is installed indoors. Prevent exposure to the components and do not allow water to enter the controller.2. The source connection must be kept tight to avoid overheating due to loose connection.3. It is recommended to install a suitable external fuse circuit breaker4. If the system needs to be connected to the inverter, please connect the inverter directly to the battery, and do not connect the load terminal of the controller.5. If there is no display for the first time, please cut off the fuse or circuit breaker immediately and check whether the line is connected correctly
