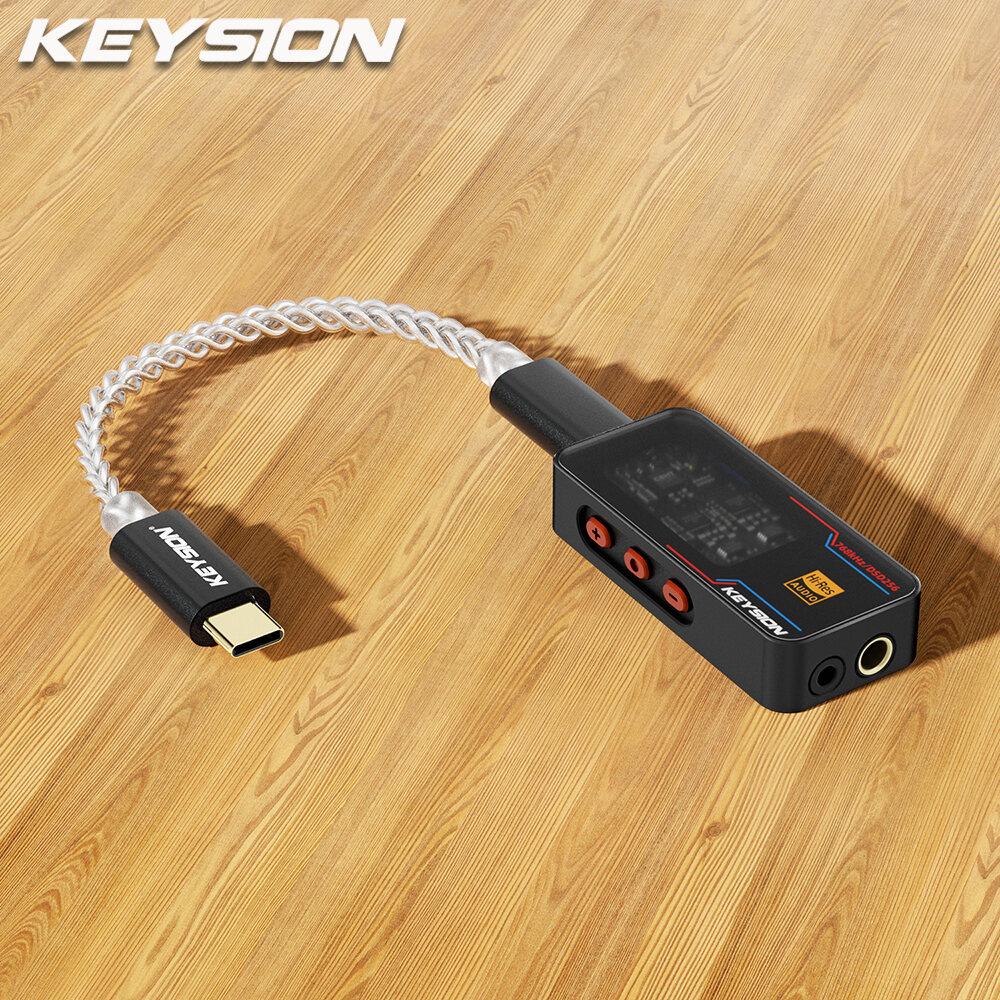

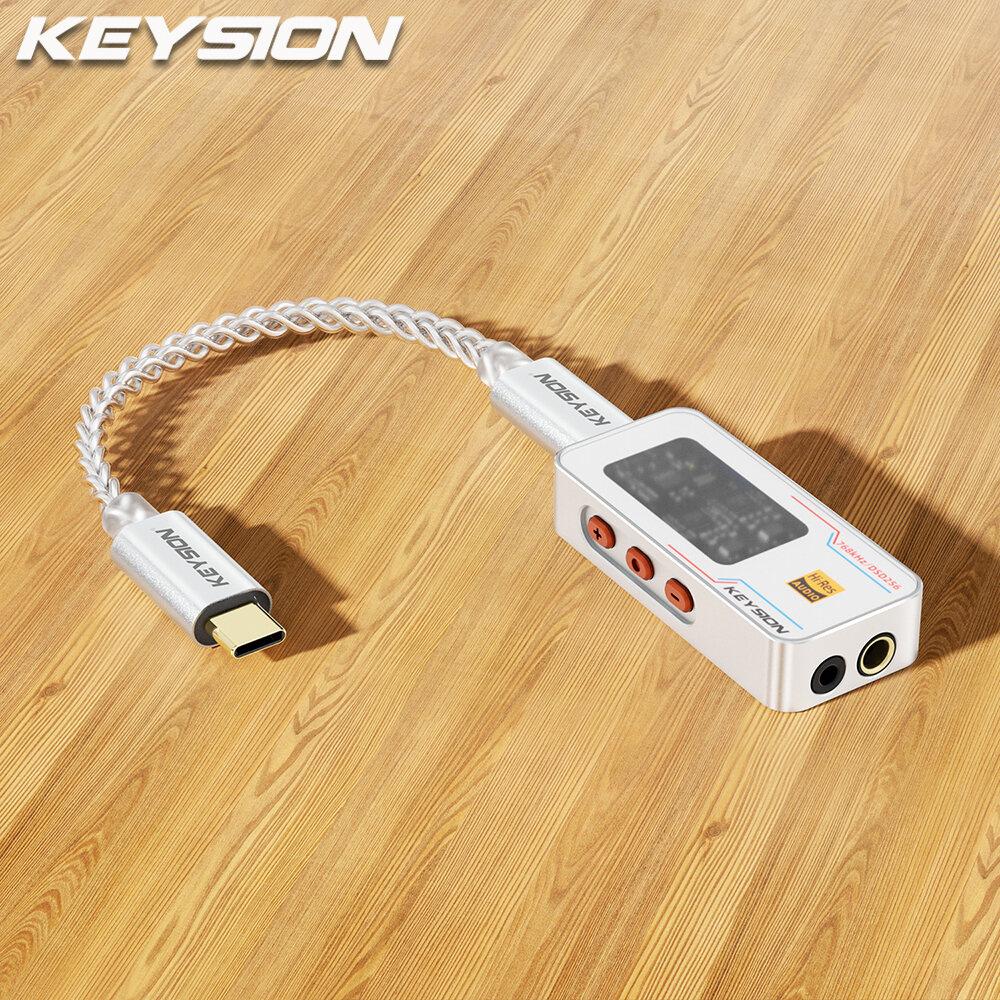

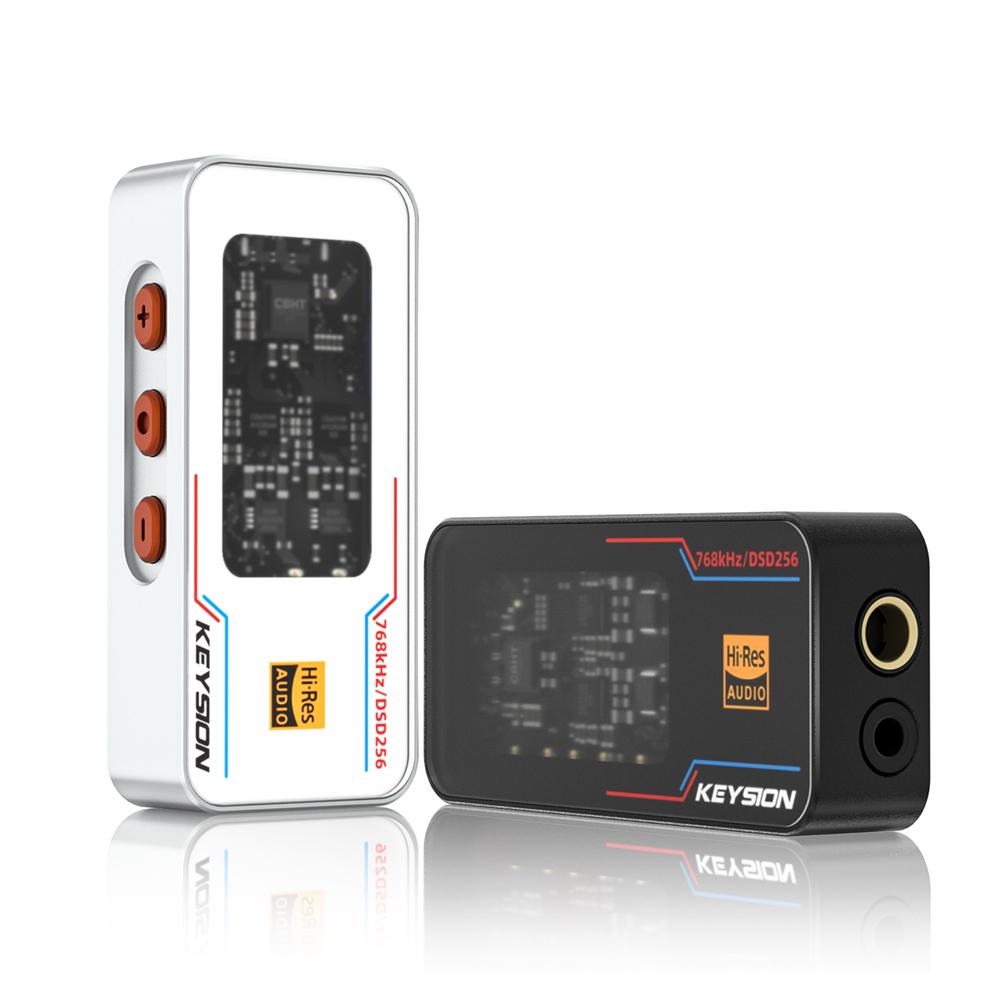

KEYSION Dongle Type C USB DAC AMP Audio HiFi Decoder Headphone Amplifier 2*CS43198 2*SGM8262 Chip 768kHz DSD256 3.5/4.4mm Output
Model:KSHF-02 Pro(EQ)-SP
Input: USB TYPE-C
Output: 3.5mm Earphone Port+4.4mm Earphone Port
Core material:Single crystal copper silver plating
Shell material: Aluminum Alloy CNC+Matte Acrylic Translucent cover Plate
Powerful DAC Chipset: 2*CS43198+2*SGM8262+1*CB5100 Pro
Cirrus Logic CS43198 DAC Chip x2
Bit depth: 16/24/32bit
PCM Specification: 44.1/48/88.2/96/176.4/192/352.8/384/768kHz
DSD Specification: DSD64/128/256/
USB Output DSD Audio Support Mode: DOP (DSD64/128/256)
Native:DSD64/128/256
FR:20-40kHz
Thrust impedance: 16-600Ω Adaptive.
3.5mm Single Port(A-weight)
SNR:125dB@2Vrms
DNR:125dB@2Vrms
THD+N:-112dB@1Vrms
Noise Floor:0.99μV@20-20kHz
Output Power:(THD+N<0.1%) 151.25mW Max(32Ω@2200mW)
4.4mm balance Port(A-weight)
SNR:125dB@4Vrms
DNR:125dB@4Vrms
THD+N:-115dB@2Vrms
Noise Floor:1.3μV@20-20kHz
Output Power:(THD+N<0.1%) 551.25mW Max(32Ω@4200mW)
SGM8262 OP-AMP Chip x2
Low Noise: Voltage noise density is 3.5nV/√Hz.
High-Speed: Bandwidth is 22MHz (at gain G = +1).
High Output Capacity: Supports 310mA linear output Current.
Primachip CB5100 Pro HD Radio Chip
ADC:24bit/48kHz
Features:
1: Newly developed high-performance HIFI two-stage op amp audio architecture, 5-chip combination intelligent linkage((2*CS43198+2*SGM8262+1*CB5100 Pro) powerful combination configuration.Greatly improve the sound quality and user experience.
2:Professional gaming sound card, equipped with CS43198 flagship chip, independent decoding of left and right channels, achieving almost "0" noise floor output.Achieve precise audio positioning and provide professional audio quality assurance for games.Can enable UAC 1.0 game mode and use it as a high-quality audio decoder for game consoles.

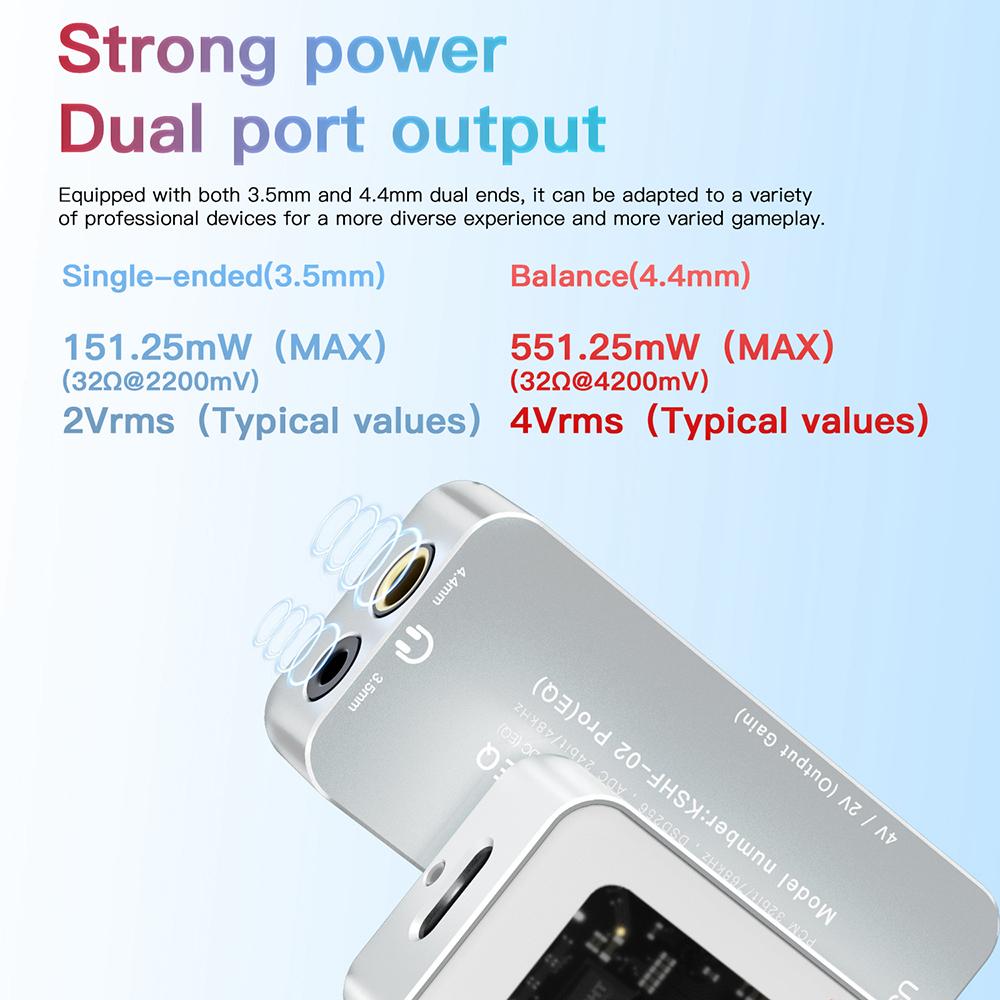

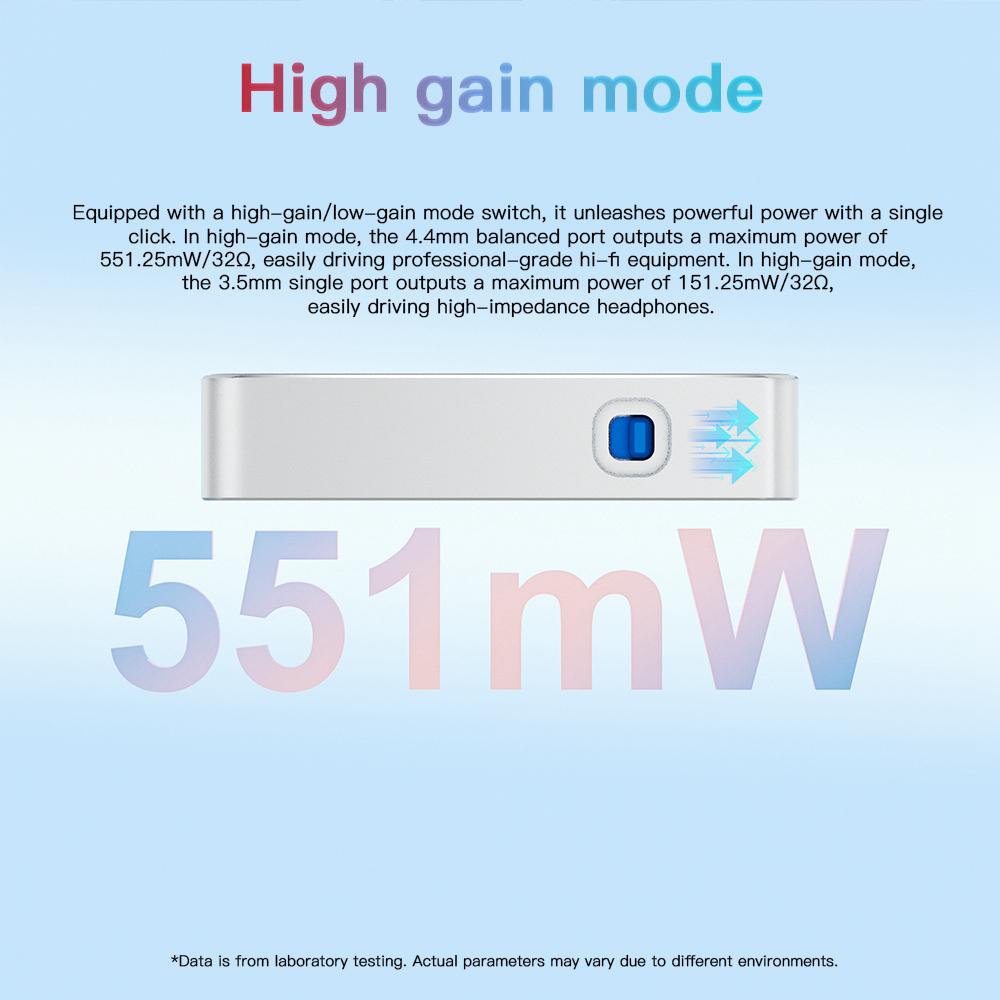

3:Equipped with high gain mode switch,Powerful output mode.4.4mm balance Output Power 551.25mW Max,3.5mm Output Power 151.25mW Max.

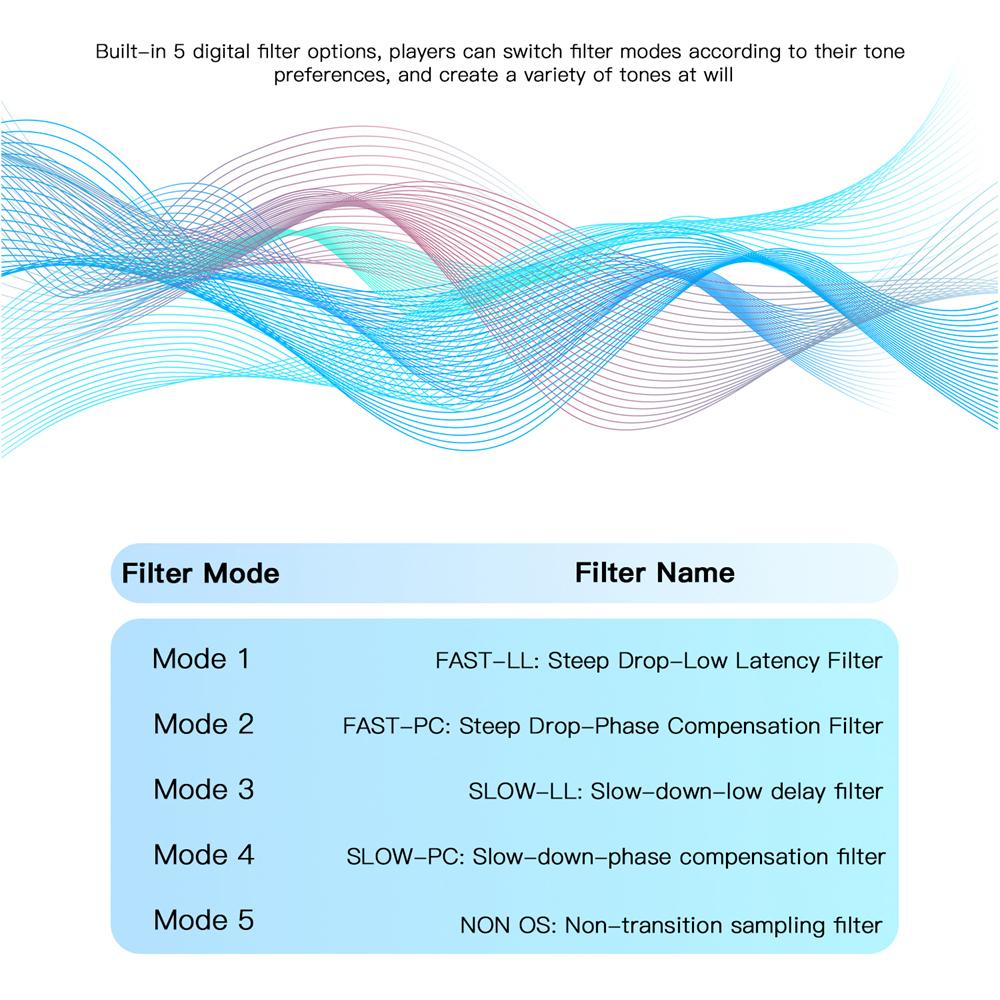

4:Layback supports flexible adjustment configuration of 10-segment EQ Five filter modes and WALK PLAY APP EQ linkage(Note: This feature is currently only available on Android systems, and is not currently supported on Hongmeng and IOS systems.)
5:The maximum compatible recording sound quality is 48KHz/24bit, greatly improving the sound quality during recording.
6:Equipped with recording/calling/Android standard remote control function.

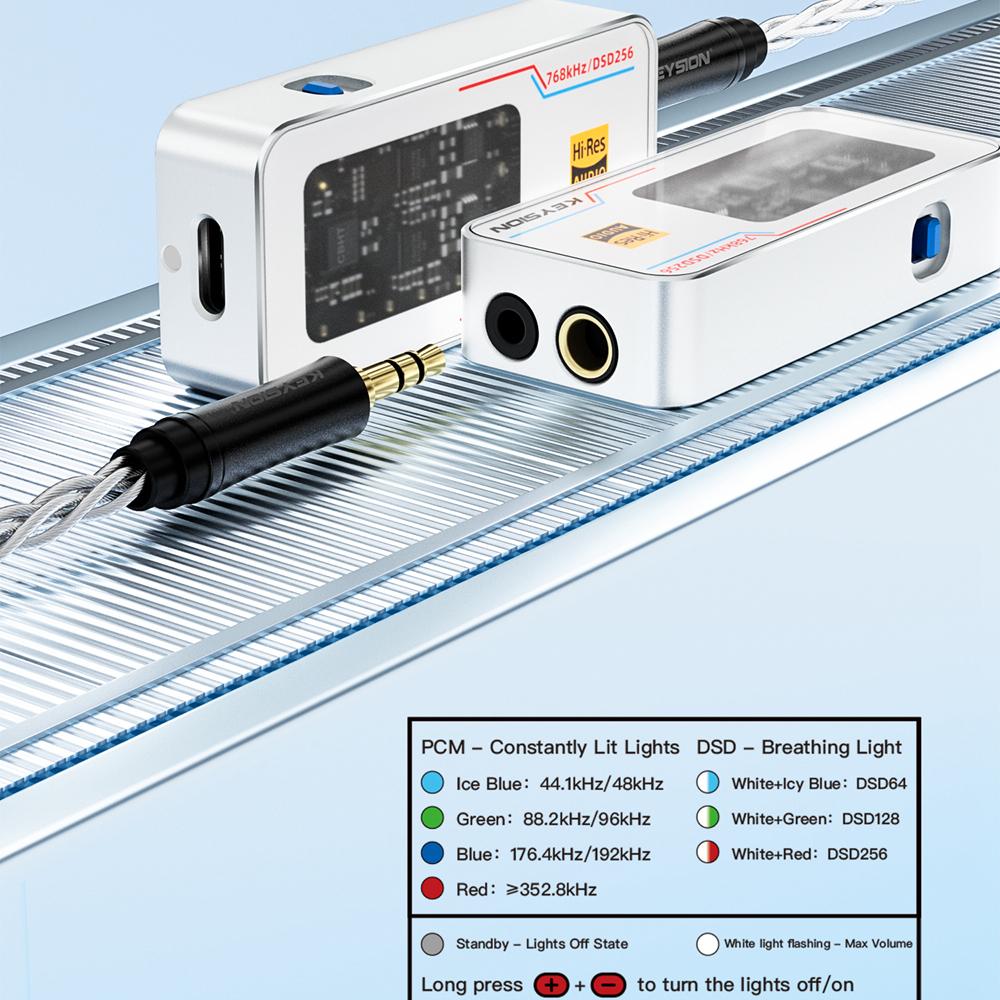

7: Equipped with status indicator light effect:
PCM Mode - Solid Light: Light Blue (44.1kHz/48kHz), Green (88.2kHz/96kHz), Dark Blue (176.4kHz/192kHz), Red (>352.8kHz)
DSD Mode - Breathing Light: White + Light Blue (DSD64), White + Green (DSD128), White + Red (DSD256)

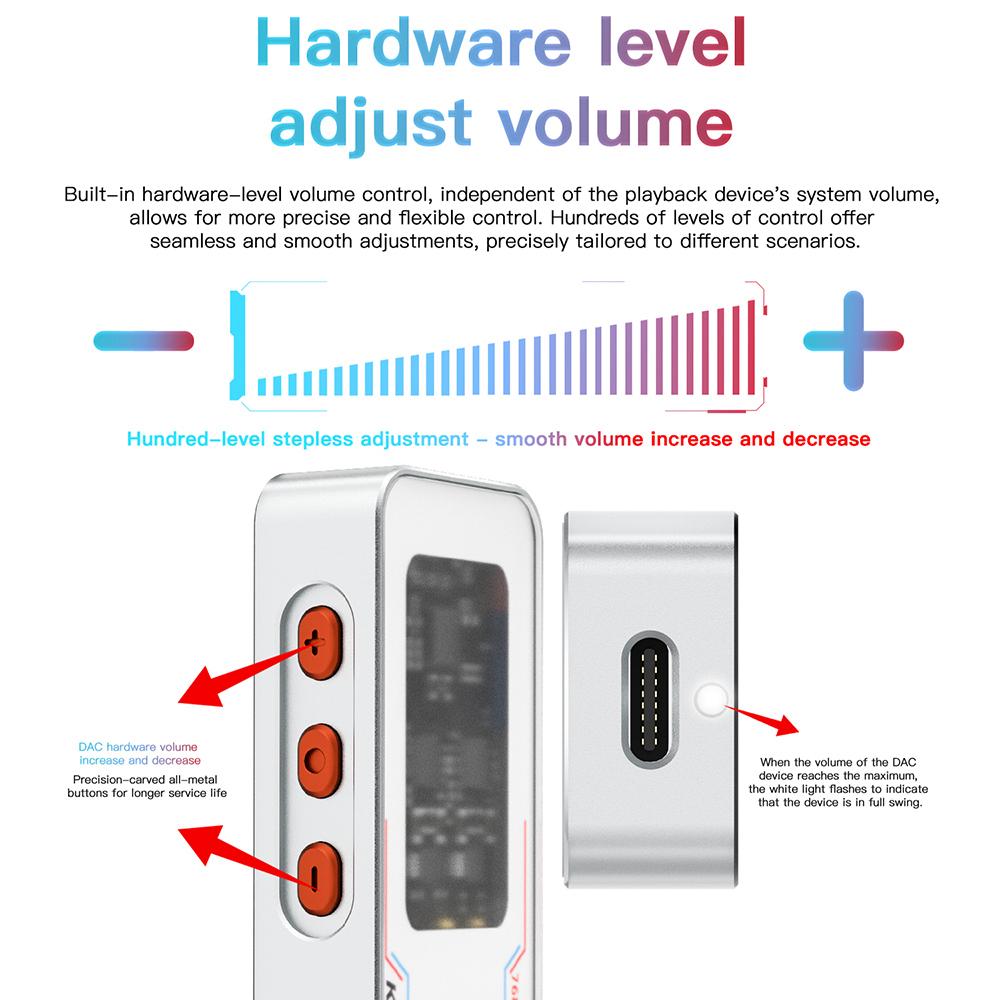

Flashing white light: Maximum volume indication

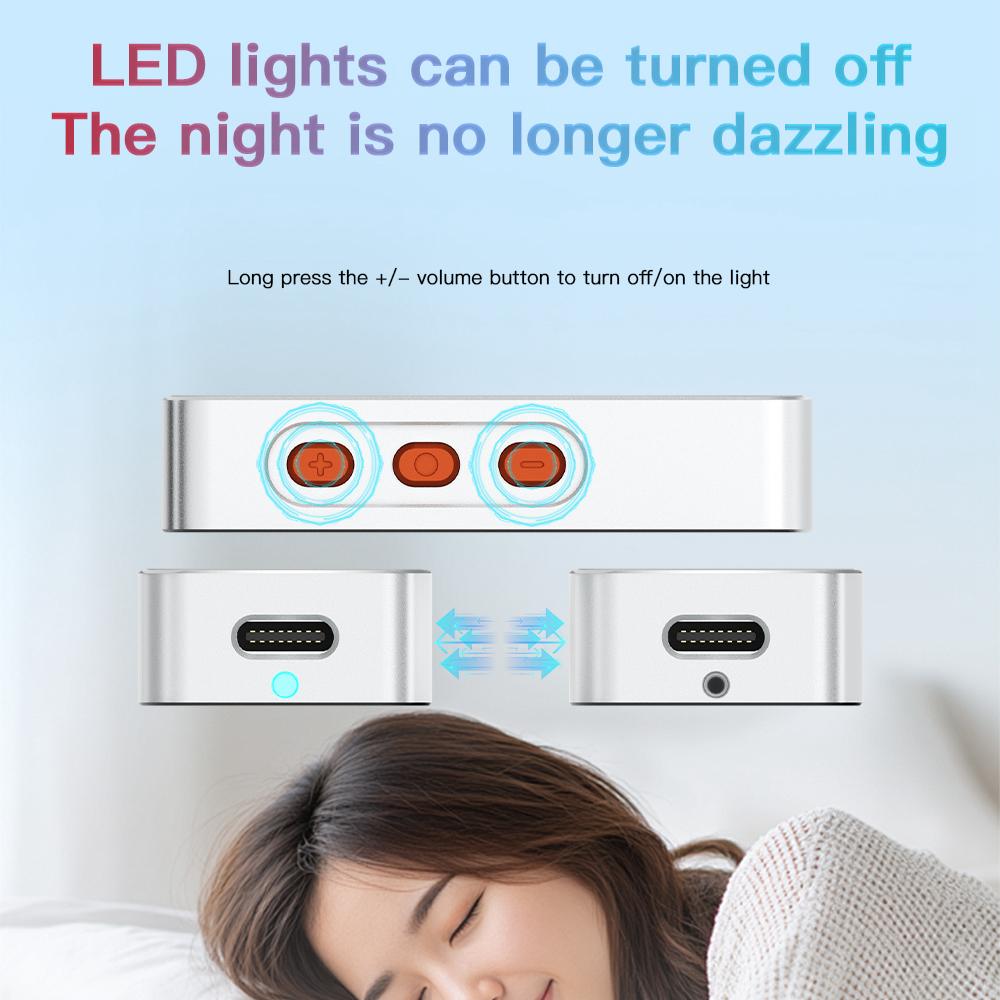

Press and hold (Volume +) to turn the light off/on
8: Wide compatibility:Support 99% USB TYPE-C Ports for smart devices, smartphones / tablets / iOS / Mac / Win10/11
