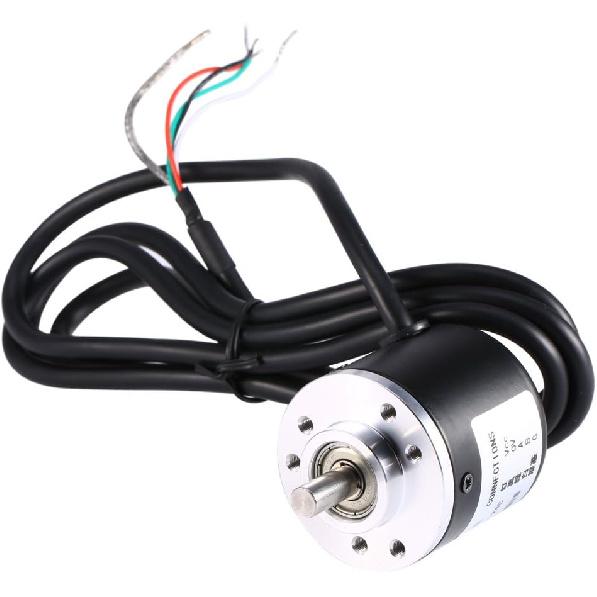

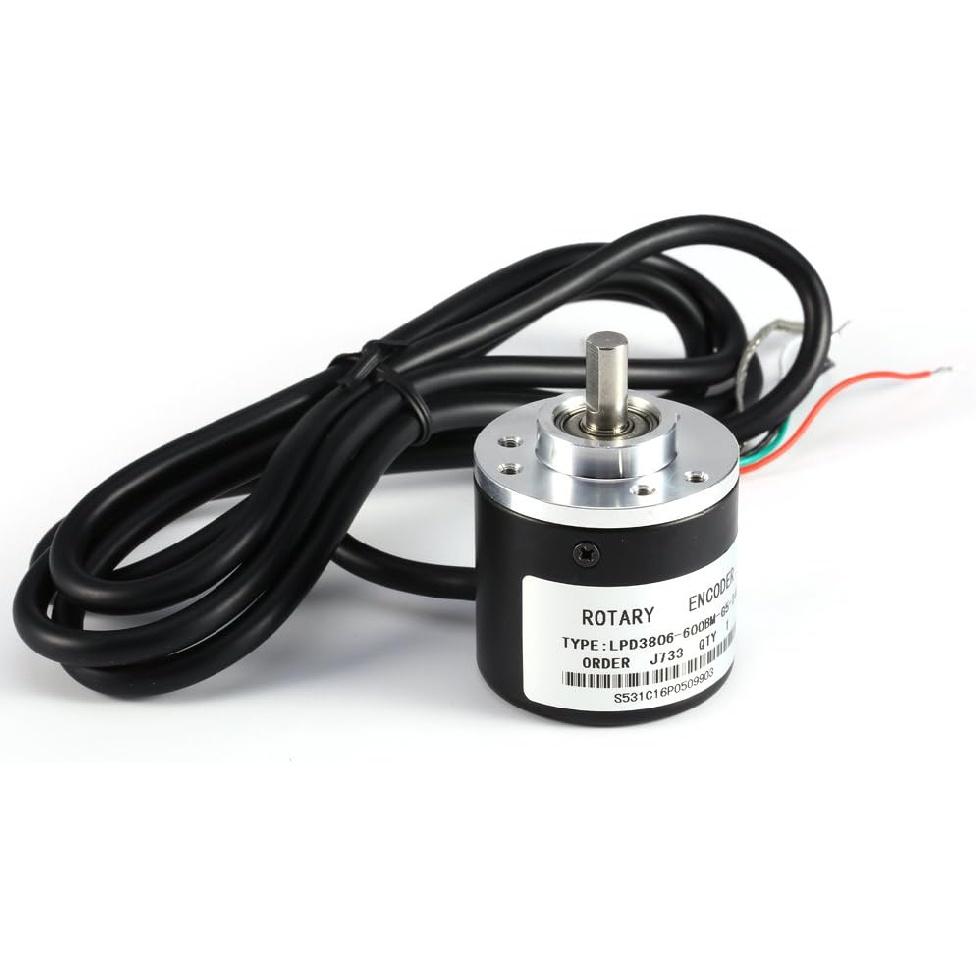

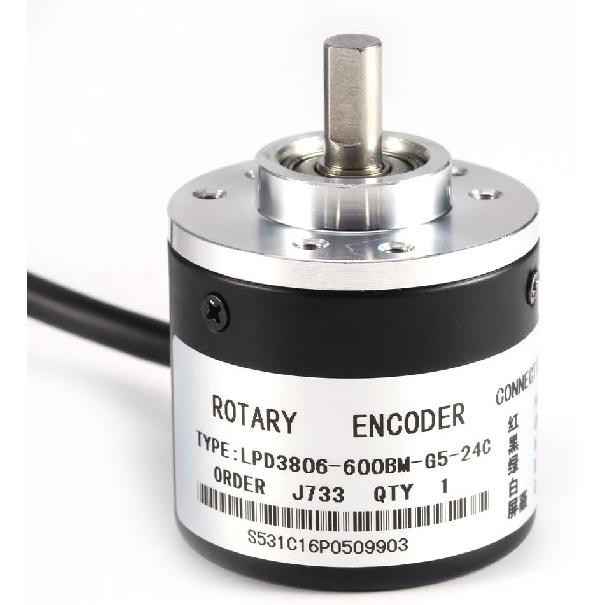

?? 【Incremental photoelectric rotary encoder】 two phase output rectangular quadrature AB pulse, the circuit output is NPN open collector output type, this type of output can be directly connected to a single chip microcomputer or PLC with an internal pull-up resistor, such as a single chip microcomputer PLC(PLC input).
?? 【Application】 It is suitable for intelligent control of various displacement change measures, automatic fixed length suede leather machine, steel fixed length cutting controller, civil height measuring human body scale, robot of competition of college students, etc., used to measure the rotation speed and angle of objects, acceleration and length.

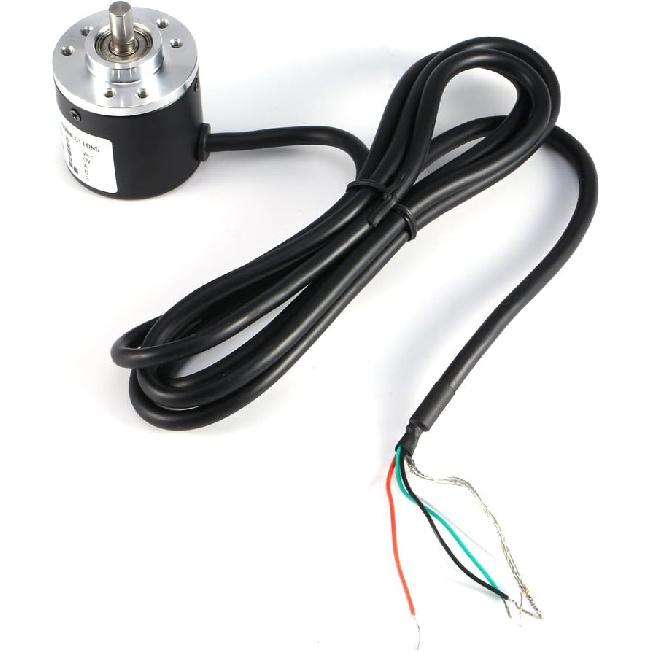

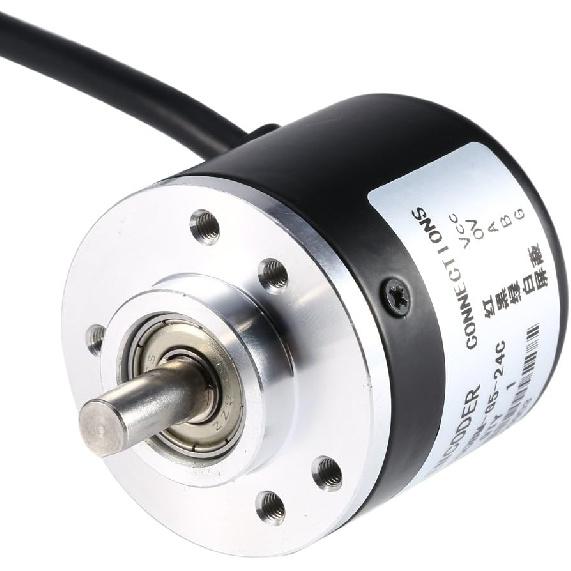

?? 【Connection】 Green = Phase A, White = Phase B, Red = VCC + Power, Black = V0. Note: AB biphasic output should not be directly connected to VCC, otherwise the output transistor will burn out.
?? 【Parameters】 response frequency: 0-20KHz, power supply: DC 5-24V
Encoder Size: 38 x 35.5mm / 1.49 x 1.39inch, Shaft: About 6 x 13mm / 0.23 x 0.51inch, Max Mechanical Speed: 5000R / min.
?? 【After-sales service guarantee】 If the product does not meet your expectations, please contact us first. We will solve your problems immediately and provide you with the best shopping experience.
Manufacturer: Thincol
Part Number: Thincolq2zbgknvwm
Item Weight: 4.9 ounces
Product Dimensions: 3.94 x 3.15 x 2.76 inches
Country of Origin: China
Material: copper
Voltage: 24 Volts
Item Package Quantity: 1
Batteries Included?: No
Batteries Required?: No
ASIN: B07VL4N1HB
Date First Available: May 8, 2020
