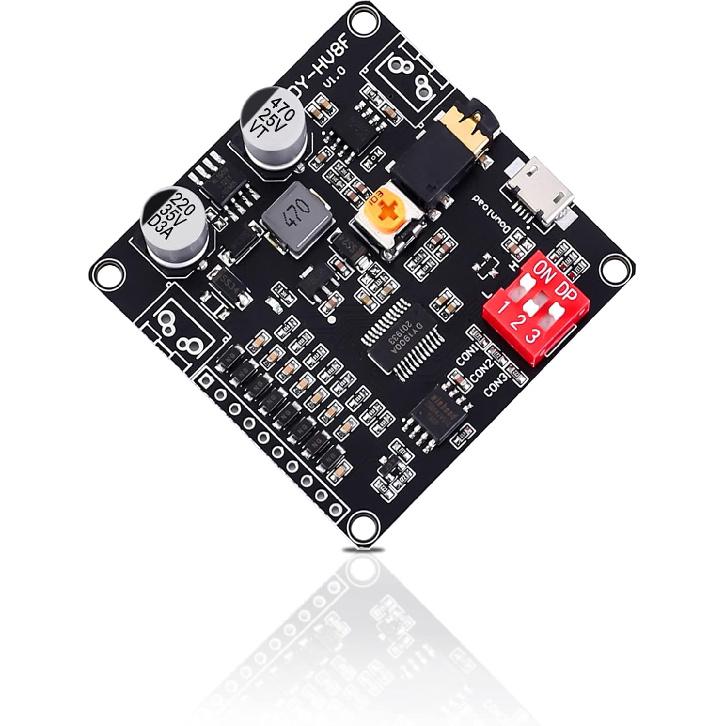

DC 12V 24V 20W Voice Playback Module, PEMENOL High Power Sound Board MP3 Player 64Mbit Flash Storage Mono 8ohm Support MP3 WAV for Arduino

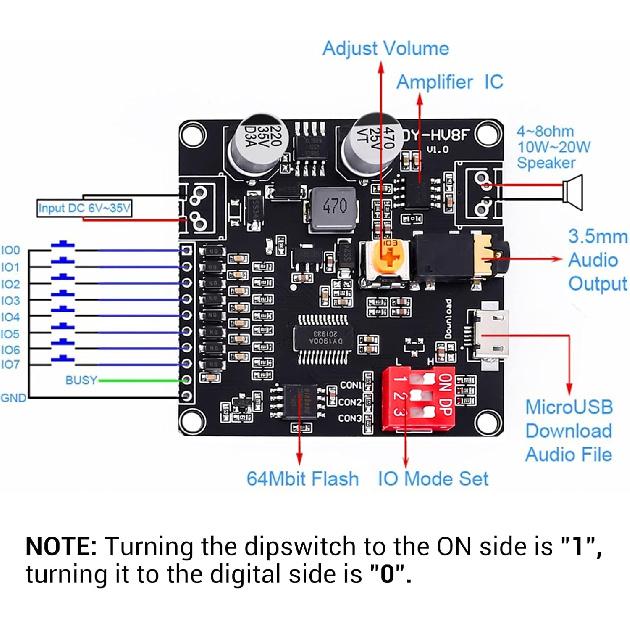

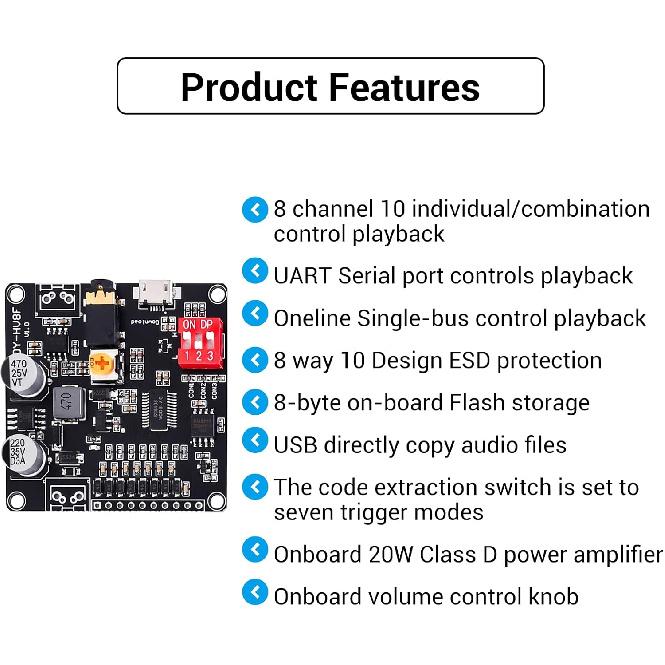

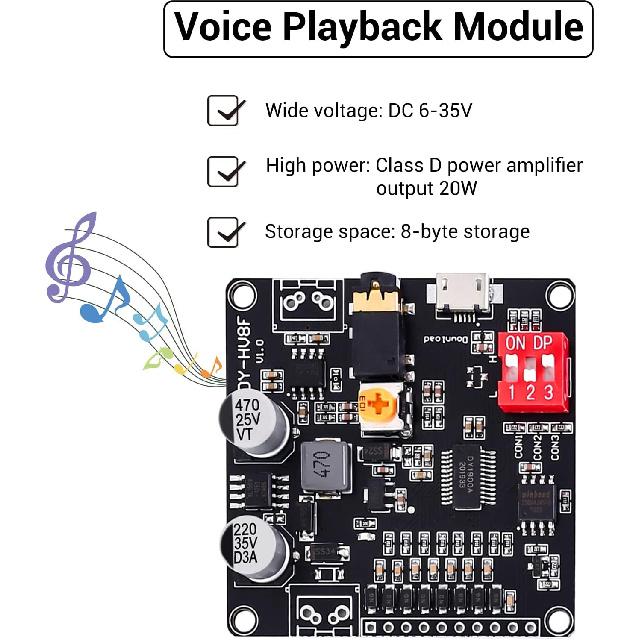

DY-HV8F intelligent voice module integrates I/O segmentation trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 control mode, and can be set through the power-on module. Onboard 20W class D power amplifier circuit, can directly drive a 8ohm/10W or 4ohm/20W speaker. Support MP3, WAV decoding format. Support 64Bbit(8Mbyte) flash memory. Audio files can be updated by connecting to a computer via a USB cable. 3.5mm audio interface, Micro USB download interface and button module are combined into one. Support UART serial port control voice broadcast function. The voice module can control functions such as play, pause, next, previous, volume addition and subtraction, and a maximum of 65535 songs can be selected. Baud rate 9600bit/s. Support sampling frequency (KHz): 8/11.025/12/16/22.05/24/32/44.1/48. 24-bit DAC output, dynamic range supports 90dB, signal-to-noise ratio supports 85dB. Support 3 configuration I/O mode selection, realize 7 working modes.

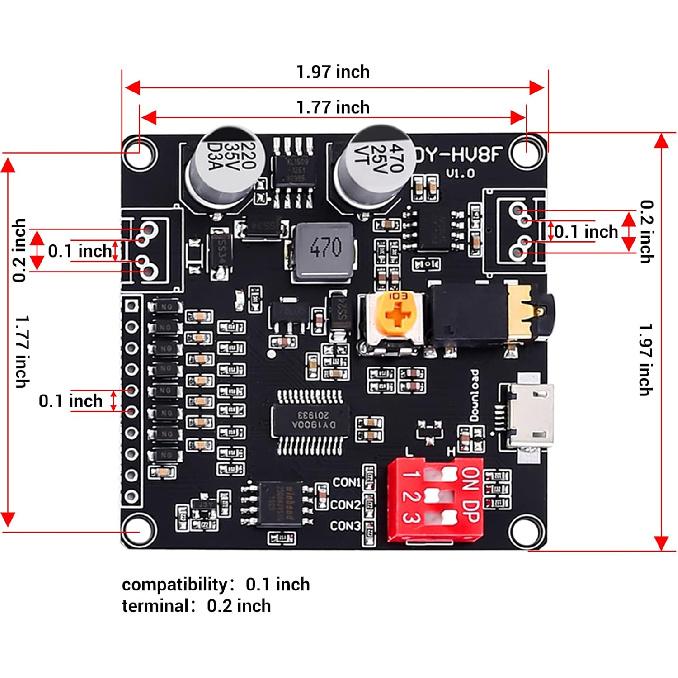

Product Dimensions: 1.97 x 1.97 x 0.2 inches Item Weight: 0.317 ounces ASIN: B0BRRTHCPC Item model number: GY16922 Customer Reviews: 4.3 out of 5 stars Date First Available: January 6, 2023 Manufacturer: PEMENOL
