Features:

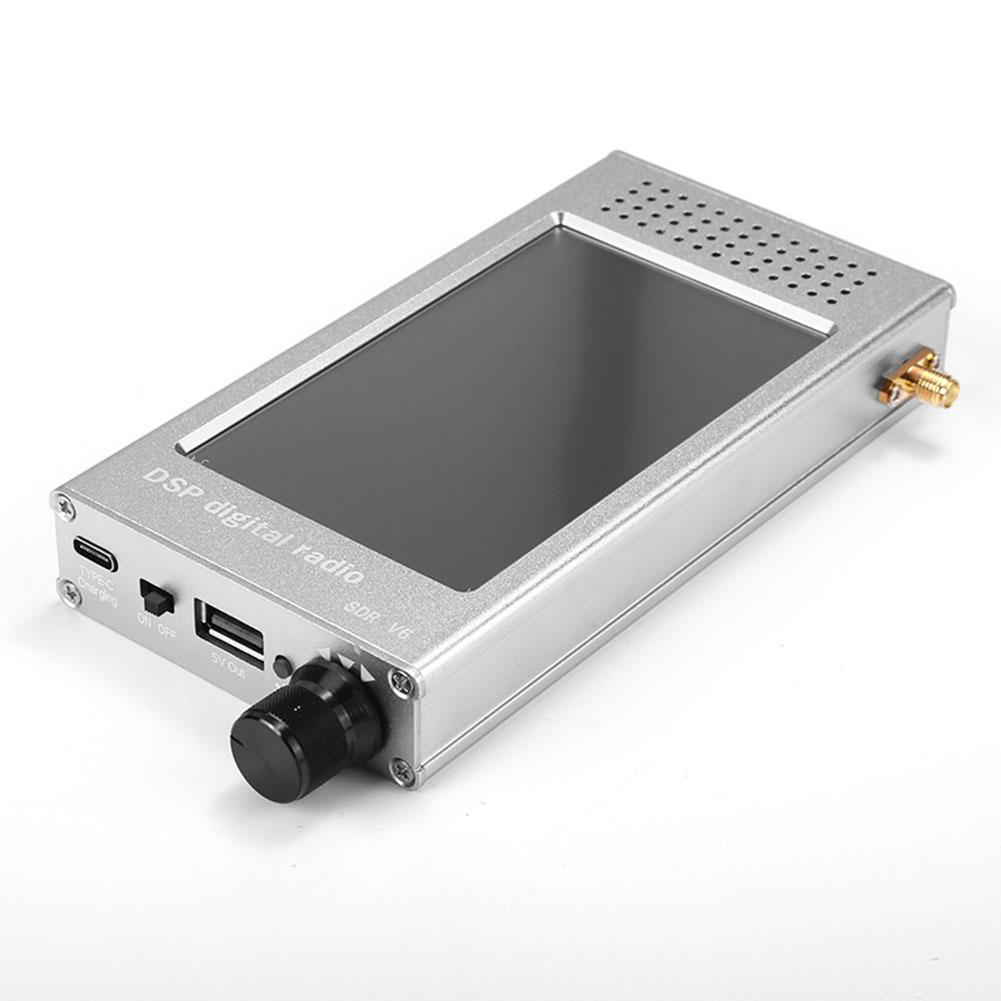

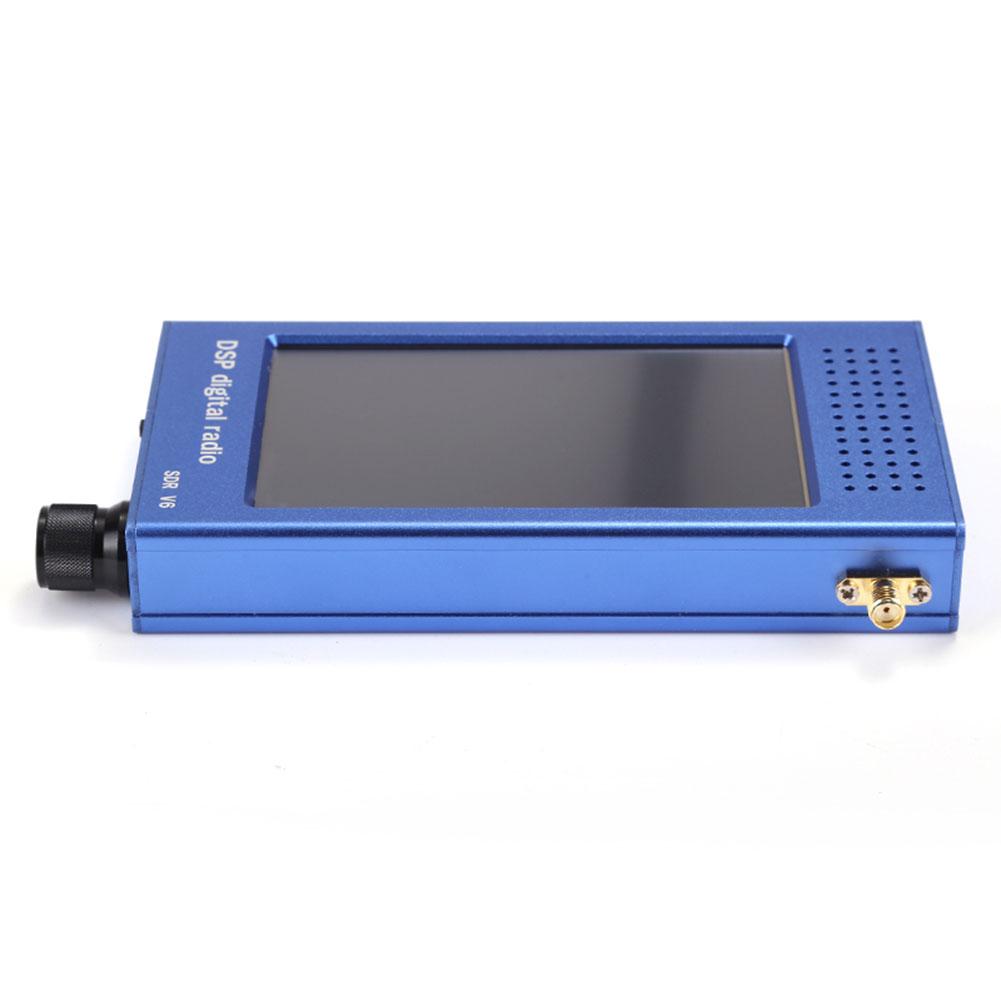

* The SDR-V6 is a high-performance digital demodulation receiver based on a software-defined radio architecture. It employs Taylore quadrature mixer technology and a 192kHz real-time spectrum display, supporting full-band reception (100kHz-149MHz). Featuring a 4.3-inch IPS touchscreen and a CNC-machined aluminum alloy chassis, it combines professional performance with a portable design, suitable for amateur radio, shortwave monitoring, and aviation band reception.
* Full-band coverage.
* Frequency range: 100kHz-149MHz, supporting 1Hz precise step tuning.
* Supported modes: CW/AM/SSB(LSB/USB)/WFM/FM stereo/aviation bands.
* Based on Taylore Quadrature Product Detector mixer technology, it achieves ultra-low noise zero-IF (ZIF) reception.
* For DSP digital demodulation combined with a 16-bit high-dynamic-range ADC ensures signal fidelity.
* High-definition real-time spectrum and waterfall plot.
* 4.3-inch 800×480 IPS screen, supporting adjustable spectrum bandwidth of 192kHz/128kHz/64kHz.
* Waterfall graph and waveform display modes, supporting multiple amplitude scaling levels (x1/x8/x64).
* Portable design and long battery life.
* Built-in 3000mAh lithium battery, providing 10-12 hours of battery life, Type-C fast charging interface.
Specifications:
Part Name: Radio
Material: Aluminum Alloy

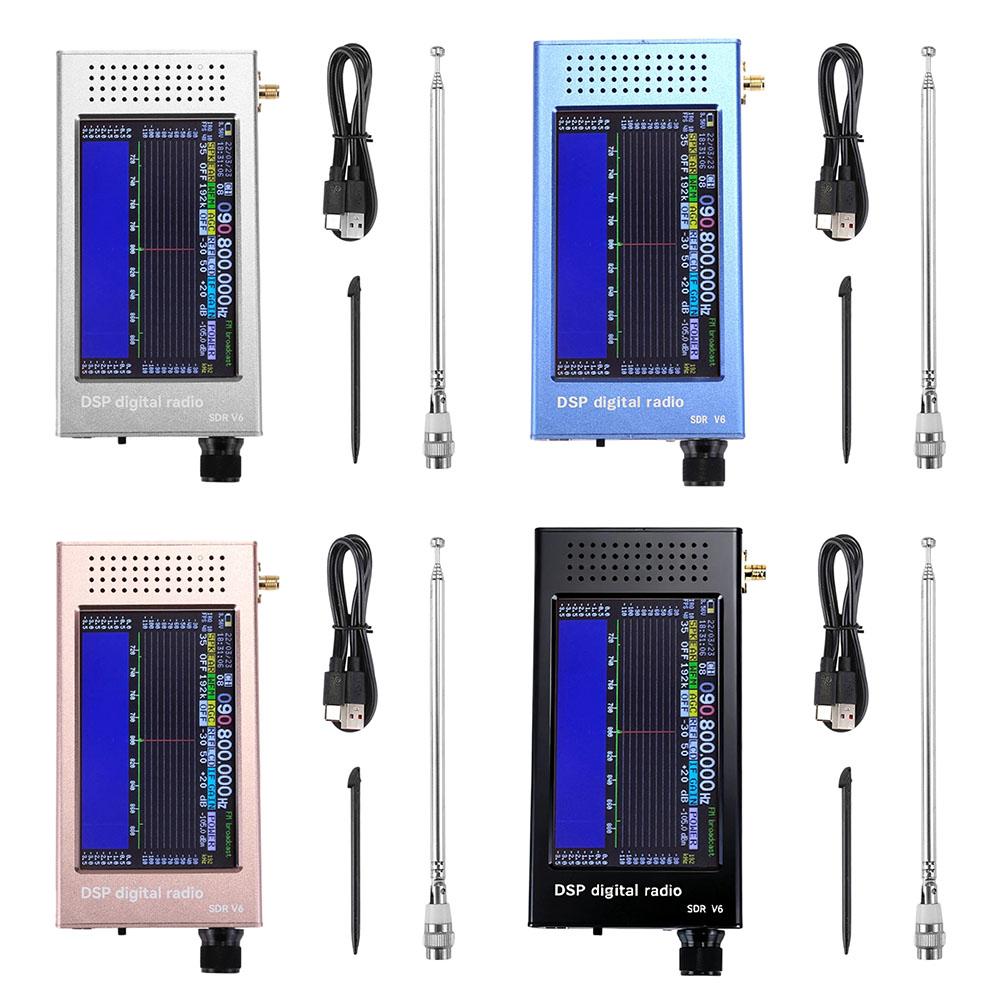

Color: Black, Silver, Blue, Pink (Optional)
Size: 140×74×22mm
Frequency Range: 100kHz-149MHz
Step: 1Hz/10Hz/100Hz/1kHz/10kHz
Display: 4.3-inch IPS Touchscreen (800×480)
Demodulation Modes: CW/AM/LSB/USB/WFM/FM Stereo
Antenna Interface: BNC Male (50Ω, Maximum Input -20dBm)
Reference for Crystal: TCXO 26MHz±0.5ppm
Audio Output: 3.5mm headphone jack (CTIA standard supported), 3W speaker
Storage Channels: 99 programmable channels (supports frequency/mode/name)
Professional Operation Configuration
12 adjustable encoder parameters: Channel selection, frequency step, volume adjustment, modulation mode, AGC (off/slow/medium/fast), reference level, backlight brightness, IF gain (-12~67dB), spectrum style/bandwidth, waterfall area setting
Fixed Display Information: Battery level, date and time, station information, spectrum bandwidth, antenna input power
Application Scenarios: (as follows)
Amateur radio (HAM) communication
Shortwave broadcast reception and monitoring
Aviation band monitoring
Outdoor exploration and communication
Radio teaching and experiments

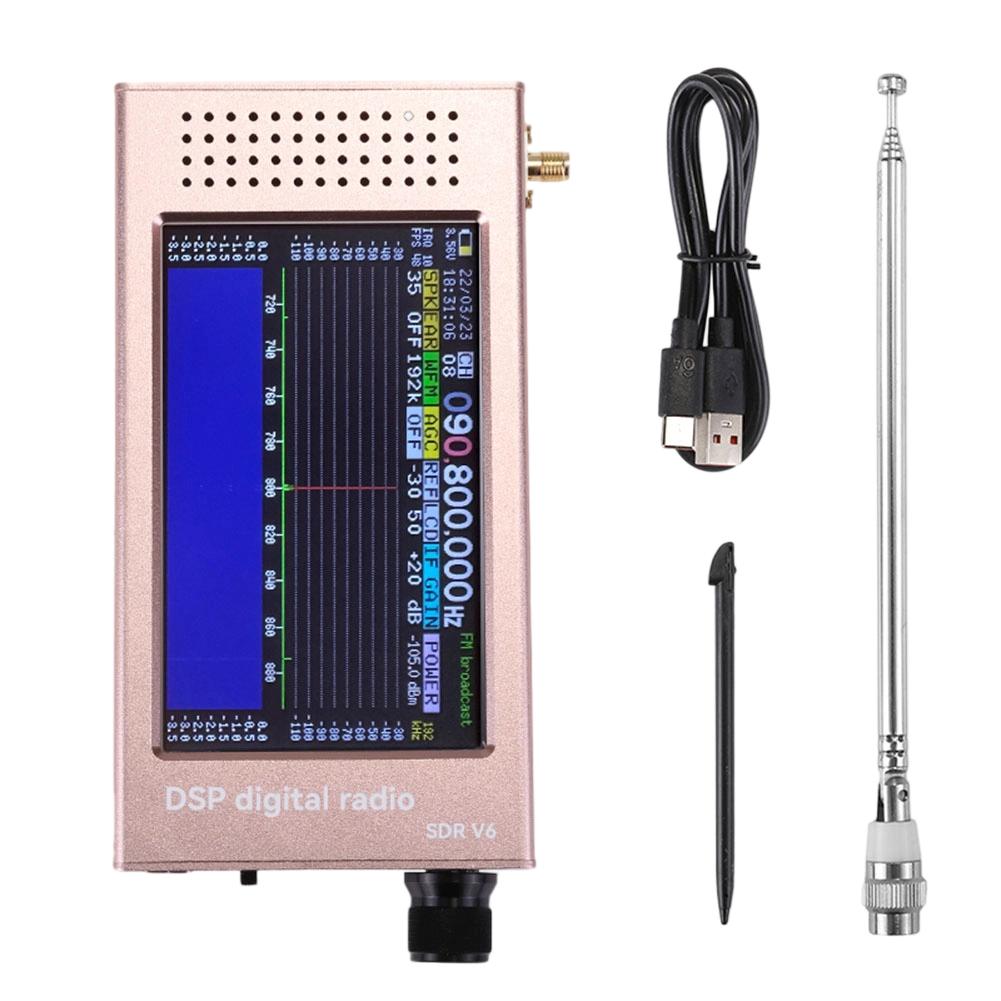

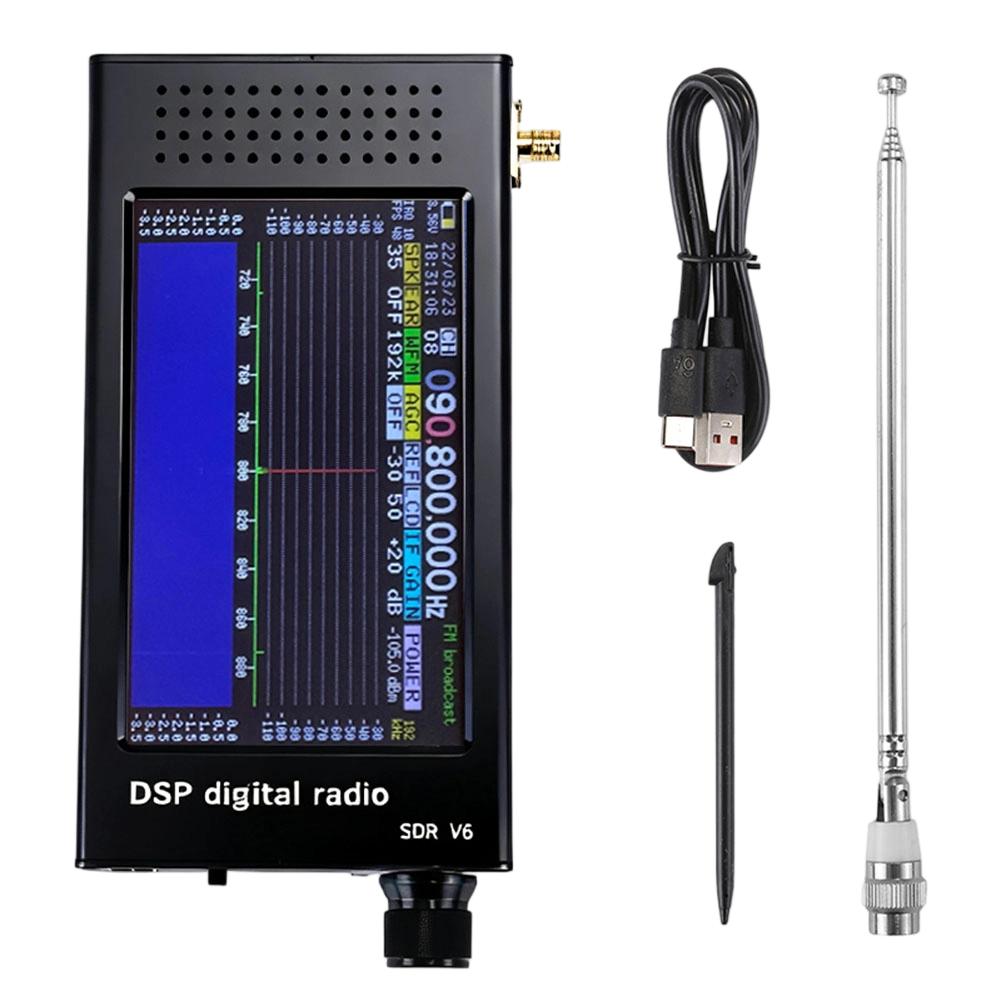

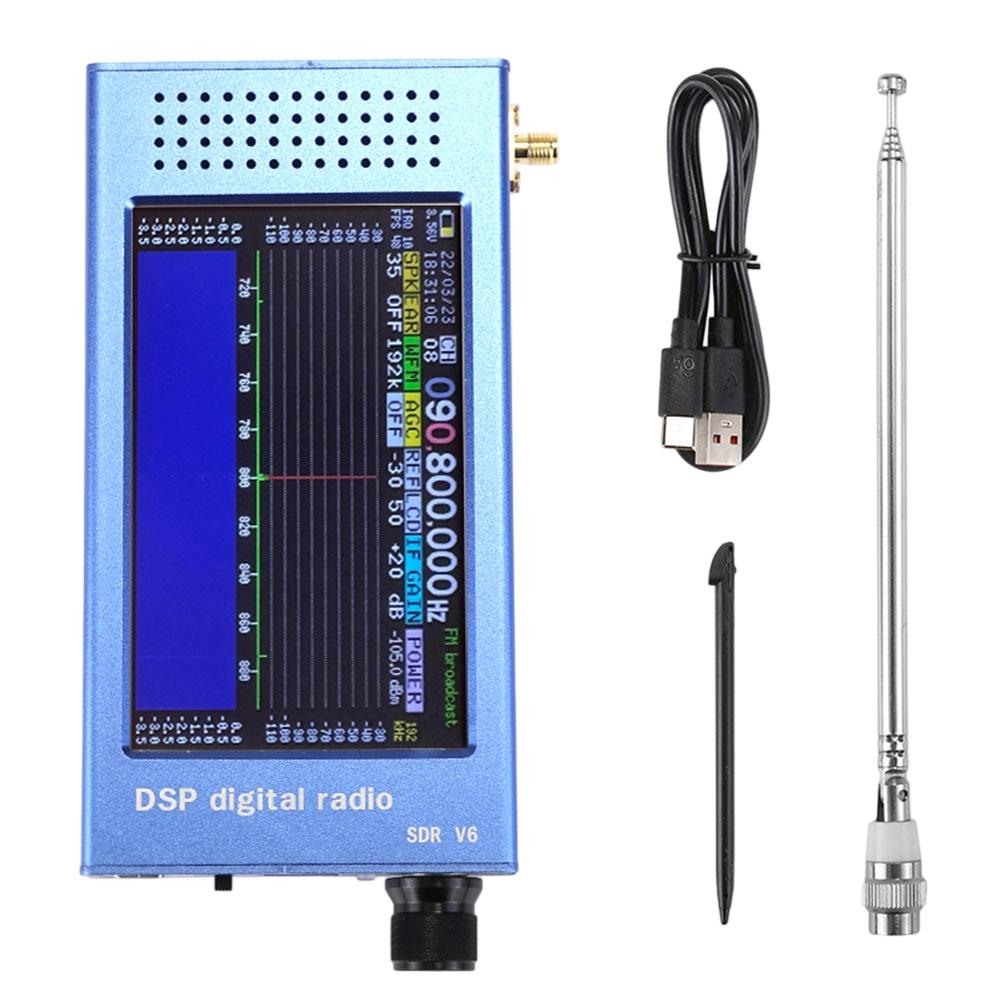

Package Contents:
1 x SDR-V6 main unit
1 x Retractable antenna
1 x Type-C charging cable
1 x Stylus pen
1 x User manual
Note：
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
