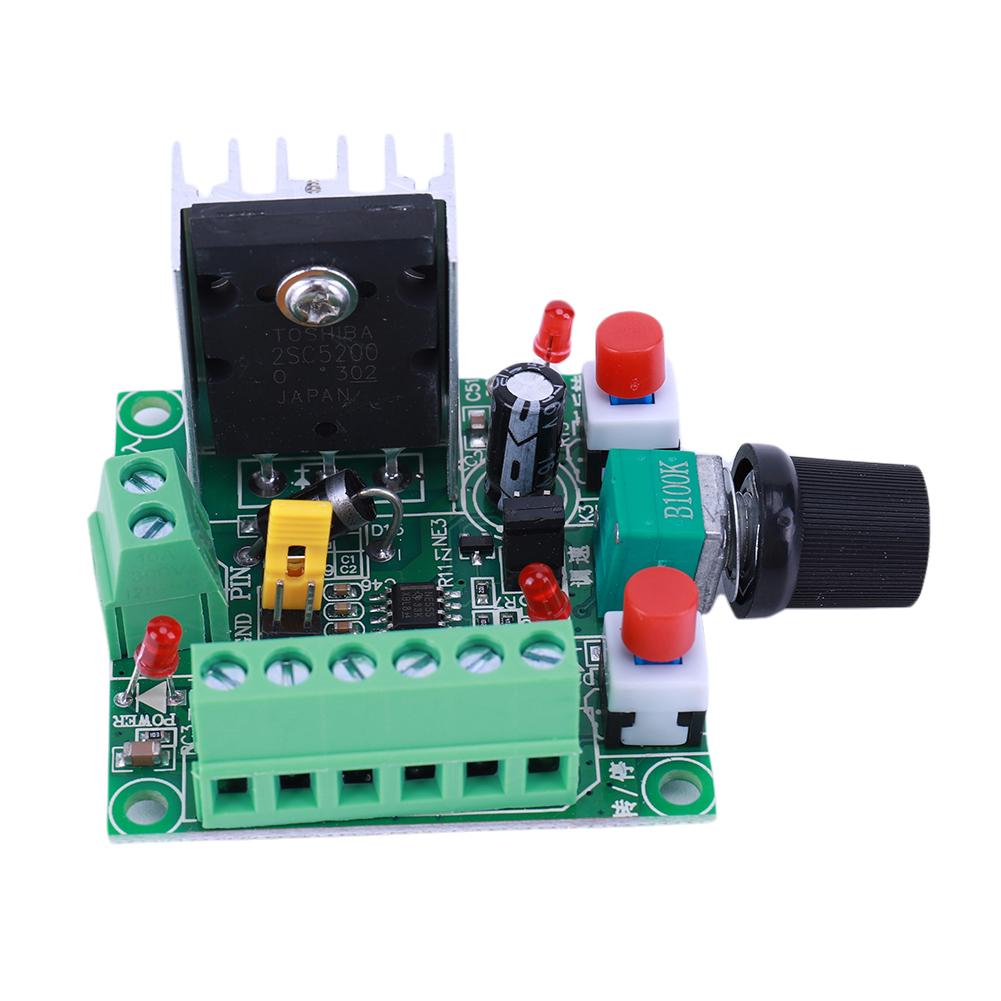

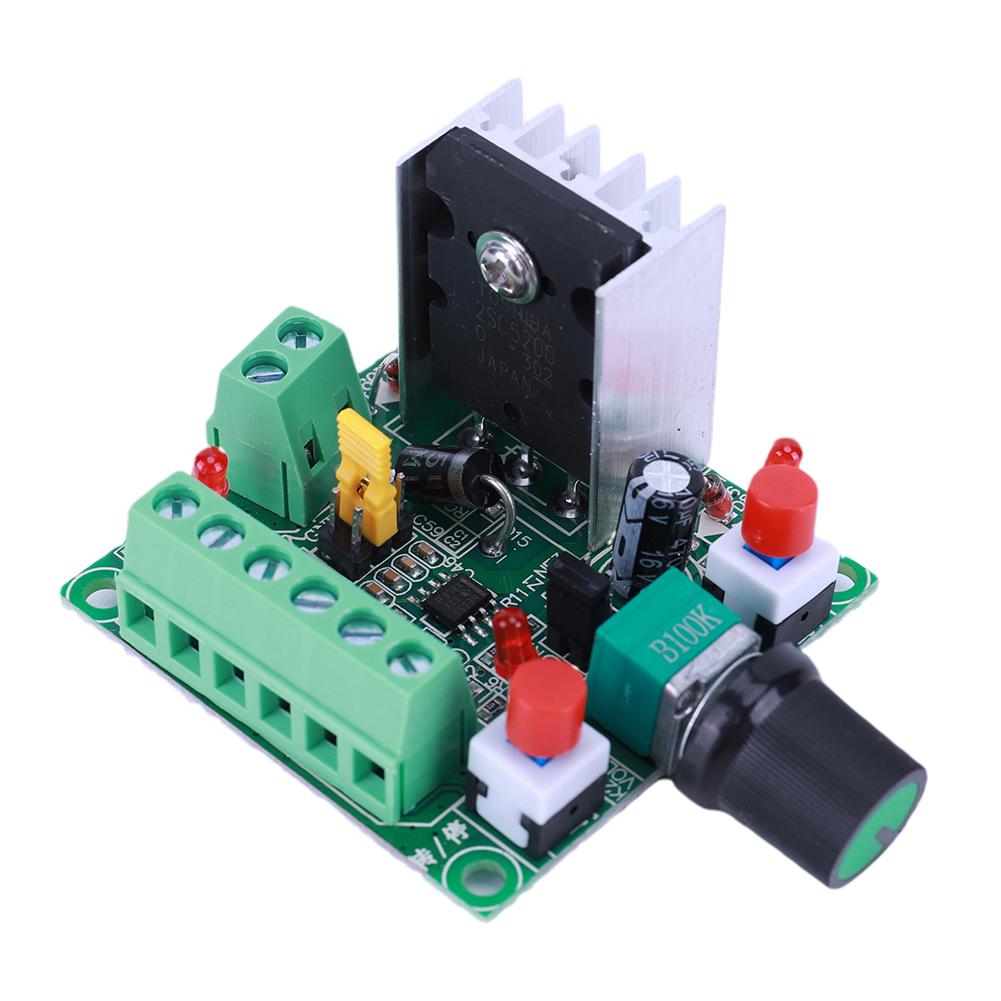

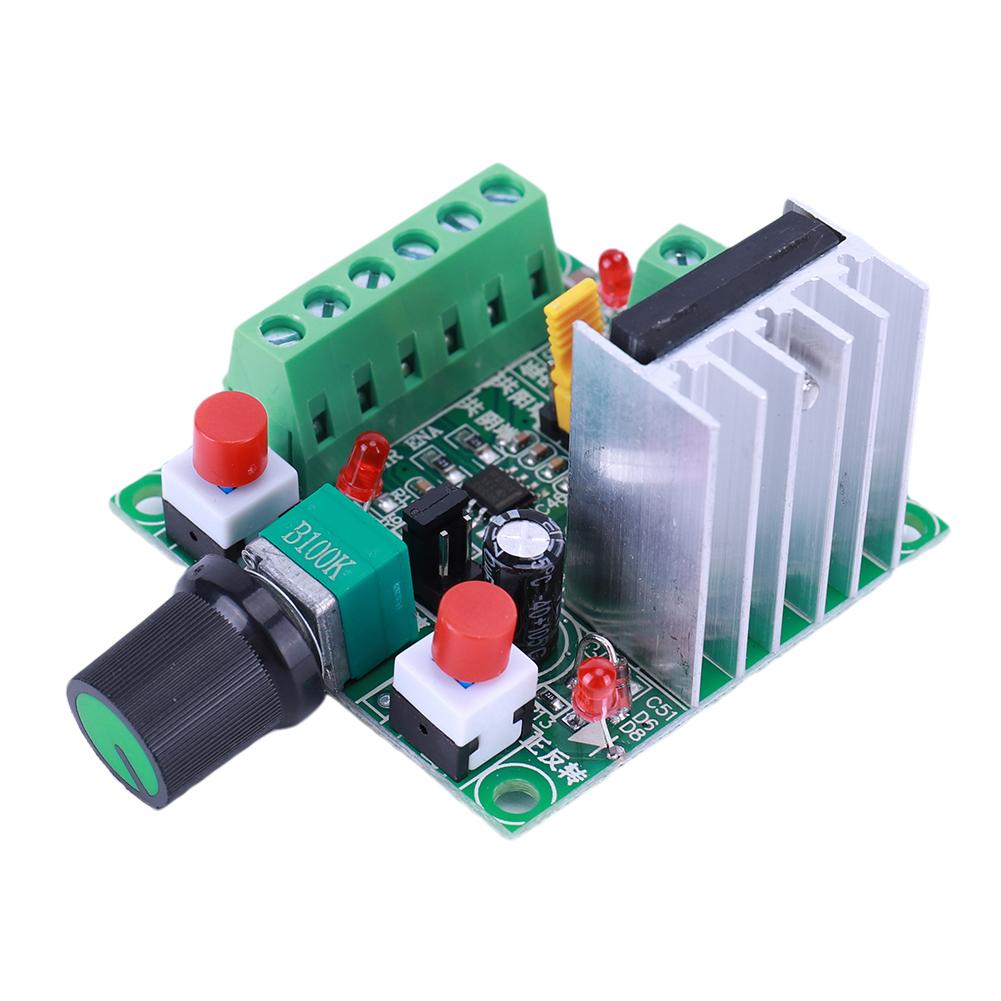

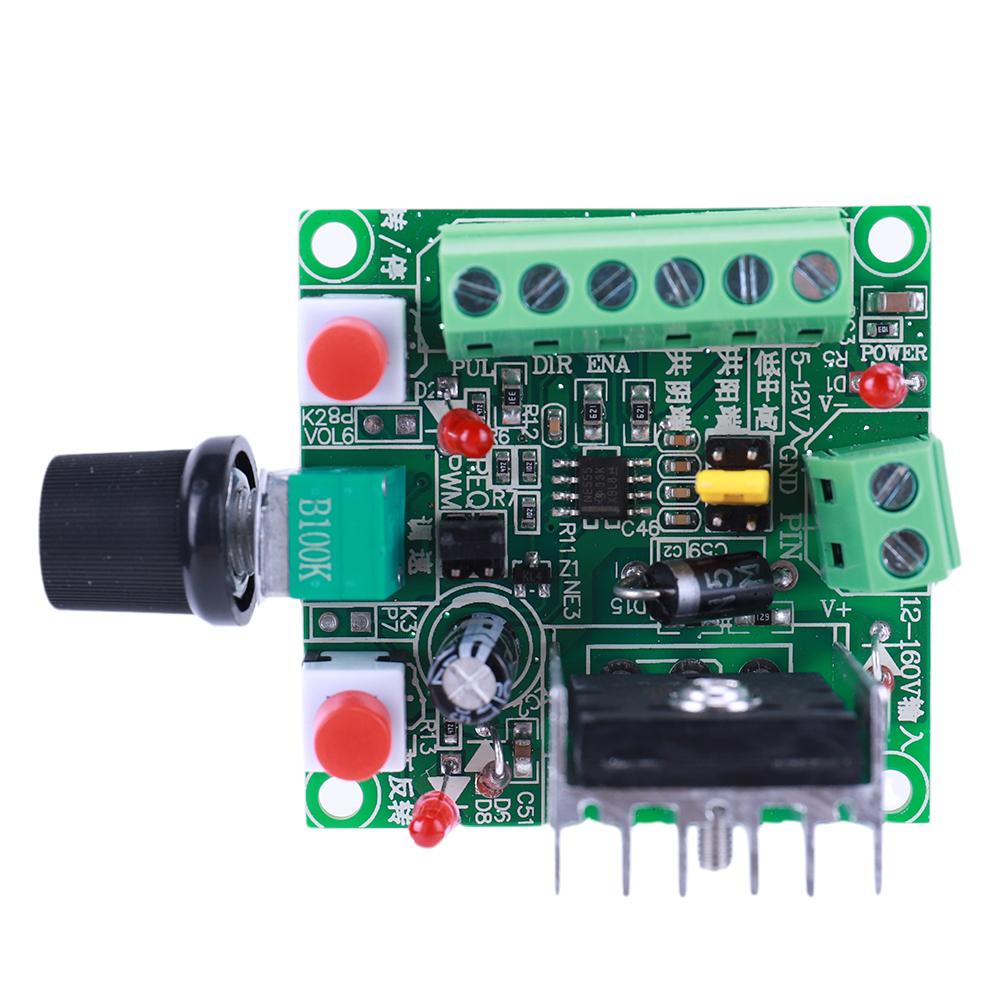

Stepper Motor Driver Controller Frequency Measurement Stepper Motor Driver Easy Controller Signal Generator Speed Regulator

Step Motor Drive Simple Controller Adjustable Frequency Regulation Stepper Motor Controller Pulse PWM Singal Generate Controller Feature: 1. Versatile and Easy Control Platform:This stepper motor driver controller, when combined with a stepper driver, stepper motor, and DC power supply, forms a simple and efficient control platform. It provides a comprehensive solution for controlling stepper motors, offering convenience and ease of use. 2. PWM Signal Generation:The stepper motor driver speed board controller includes a built-in PWM signal generation function. By adjusting the jumper on the board, the working mode can be easily set, with the default mode being pulse frequency signal generation. This feature enhances the precision and flexibility of motor control. 3. Selectable Frequency Options:The step motor drive simple controller offers three frequency options: high, medium, and low. By using the provided jumpers, users can select the desired frequency range according to their specific requirements. The available frequency ranges are approximately high (5.8KHz - 127kHz), medium (590Hz - 15.8kHz), and low (82Hz - 2.3kHz), providing versatility for various applications. 4. Convenient Frequency Measurement:The pulse PWM singal generate controller allows for frequency measurement at the PUL and GND terminals. This feature enables users to accurately measure the frequency of the pulse signals, facilitating better control and monitoring of the stepper motor's performance. 5. Flexible Power Input and Control:The signal generator speed regulator supports two sets of power inputs, but only one connection is necessary for operation. It can accept a 15-160VDC power supply or a 5-12VDC power supply. By adjusting the power connection accordingly, users can easily control the motor's direction, start, stop, and speed using the onboard buttons and the frequency adjustment potentiometer. Specification: Origin: Mainland China Motor Type: Stepper Motor Material: mixed material Size: 50.00x50.00x32.00mm/1.97x1.97x1.26inchThe controller has three frequency signals: high, medium and low, which can be selected with jumper pins. The frequency parameters are approximately: High: 5.8KHZ-127KHZ Medium: 590HZ-15.8KHZ Low: 82HZ-2.3KHZ PUL+ and PUL- are the positive and negative of the pulse; EN+ and EN- are the positive and negative of the enable terminal; DIR+ and DIR- are the positive and negative of the direction. Connect these 6 lines to the 6 ports of the driver corresponding to pulse, direction and enable respectively. Note that if the start or stop function is to be used, the ENA enable terminal on the controller must be connected to the common cathode or common anode of the driver. 2 sets of power input, 2 sets only need to be connected to one power supply. One group is powered by DC 15-160VDC. The other set is 5-12VDC. If it is powered by 5-12VDC, connect the positive power supply to the "5-12V input" and the negative power supply to the "common cathode terminal". 4. The forward and reverse rotation and start and stop of the motor can be controlled through buttons. 5. The speed of the motor can be controlled by adjusting the potentiometer to change the frequency. 6. It turns out that the switches for forward and reverse rotation and start and stop of the motor are ordinary self-locking switches.

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. 1 x Stepper Motor Driver Controller
