50V AC Rotate Speed Sensor IP44 Protection Generator Generator Speed Sensor Diesel Generator

Name: 50V AC Rotate Speed Sensor IP44 Protection Generator Generator Speed Sensor Diesel Generator
SKU: 695b67ff4c7ee201ad349d5e
Price: 27 EUR
Availability: InStock

Aktueller Preis

Preis 27 €

inklusive MwSt.

FarbeWie abgebildet

Lieferung 8–14 Werktage

Lieferung 4 €

Rückerstattung & Rückgabe

Sicheres Bezahlen

Unser Support spricht Deutsch

Sicherheit & Konformität

Hersteller

Beschreibung

Label:Yes 5.Aluminum Alloy Housing:Constructed from aluminum alloy with quality workmanship, offering durability in engine compartment environments. 3.Consistent Sensitivity & IP44 Rating:Provides consistent sensitivity with IP44-level protection against dust and water ingress. Maximum sensing voltage: 50V AC. 4.Simple & Reliable Structure:The RPM speed sensor has a standard M16 thread and simple structure that is easy to connect and install. Designed for straightforward installation and stable performance, with a compact and functional form factor. 2.Dual Output Terminals:Includes two output terminals for connection to a tachometer using shielded wiring, helping ensure stable signal transmission. 1.Engine Speed Sensing Operations:This Magnetic speed sensor is designed for mounting near the engine flywheel. As the engine rotates, it generates an AC signal with a frequency proportional to the rotational speed. It is used together with a compatible tachometer to monitor engine RPM.

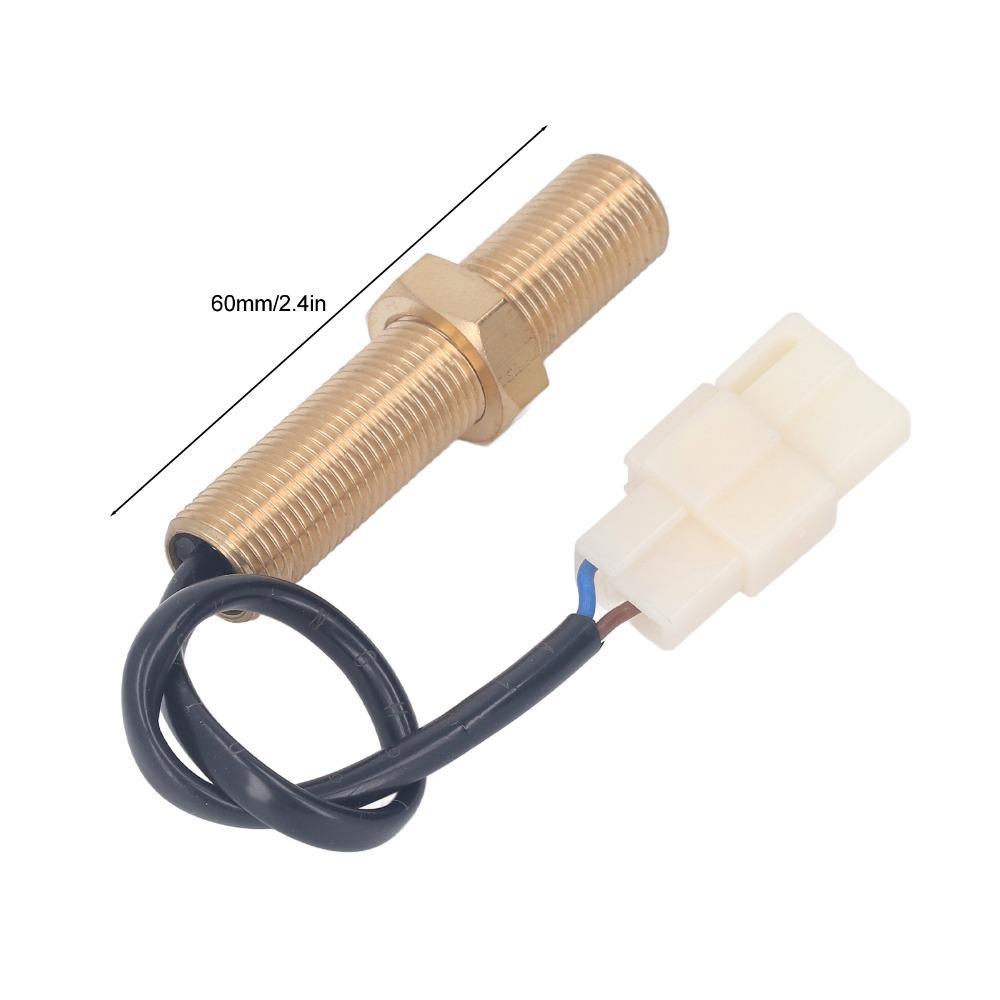

Specifications: Item Type: Magnetic Rotate Speed Sensor Material: Aluminum Alloy Installation Thread: M16 Operating Ambient Temperature: -30℃-120℃ Maximum Induced Voltage: 50V AC Maximum Tightening Torsion: 49Nm Length: 60mm(2.36in) Color: Yellow Output Signal: Switch Type Sensitivity: 100% Protection Grade: IP44 Linearity: 5 (%F.S.) Hysteresis: 5 (%F.S.) Repeatability: 0 (%F.S.) Feature: This product is a Magnetic speed sensor installed next to the flywheel of the engine. When the engine rotates, the speed sensor senses an AC signal, and its frequency is proportional to the engine speed. The speed sensor can be used with tachometer to measure the engine speed.

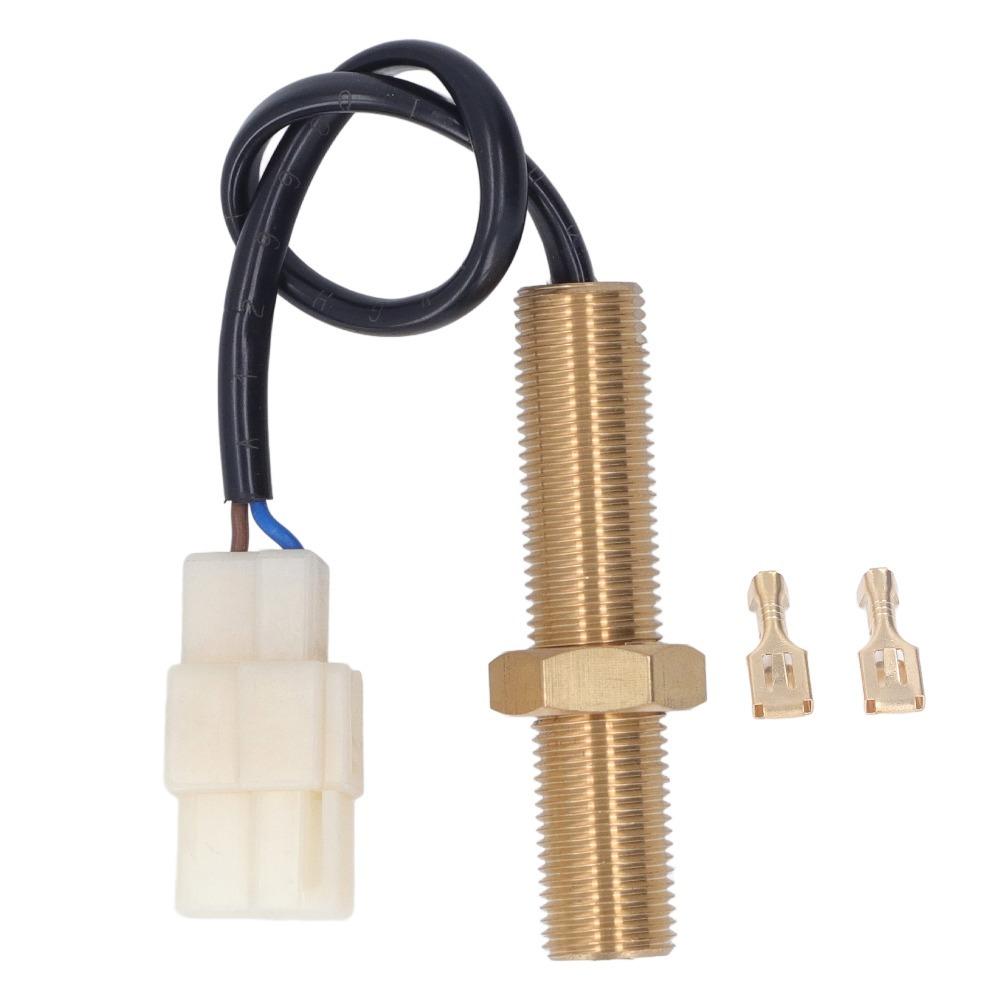

Package List: 1 x Magnetic Rotate Speed Sensor 2 x Terminal

Note: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
