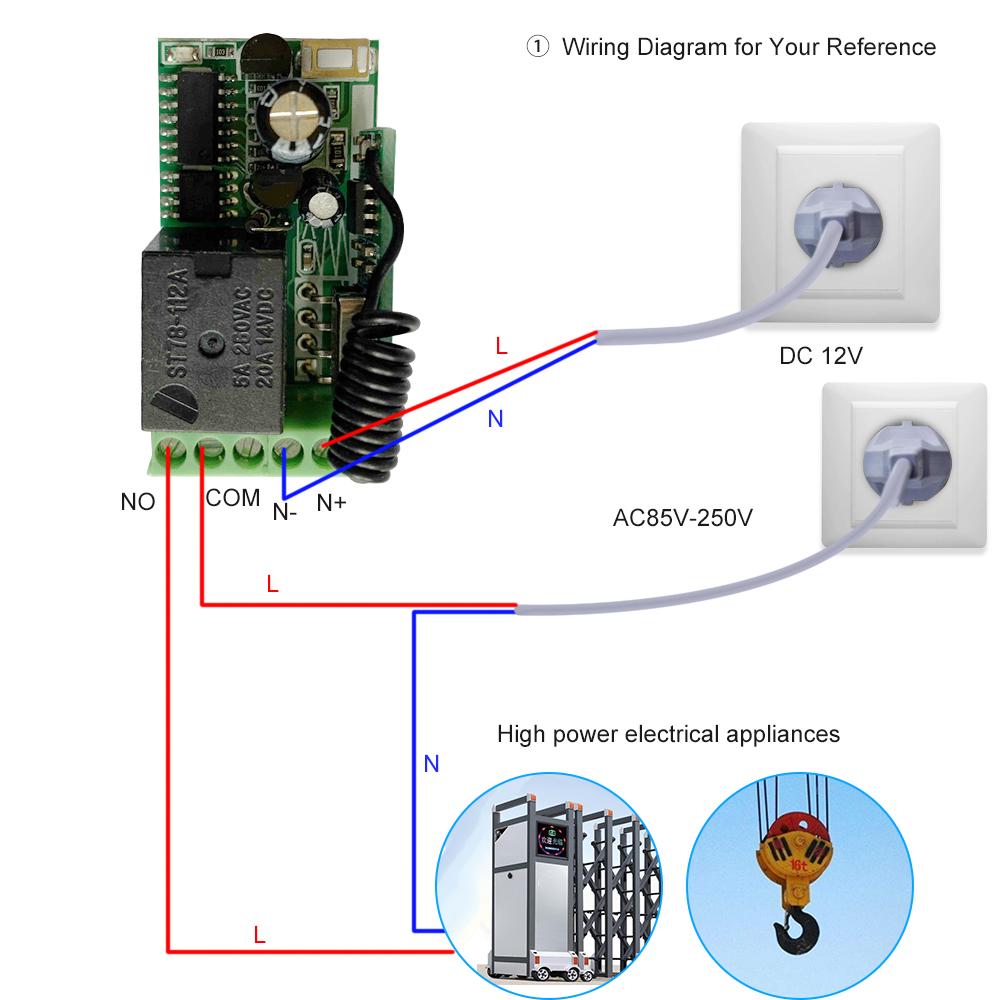

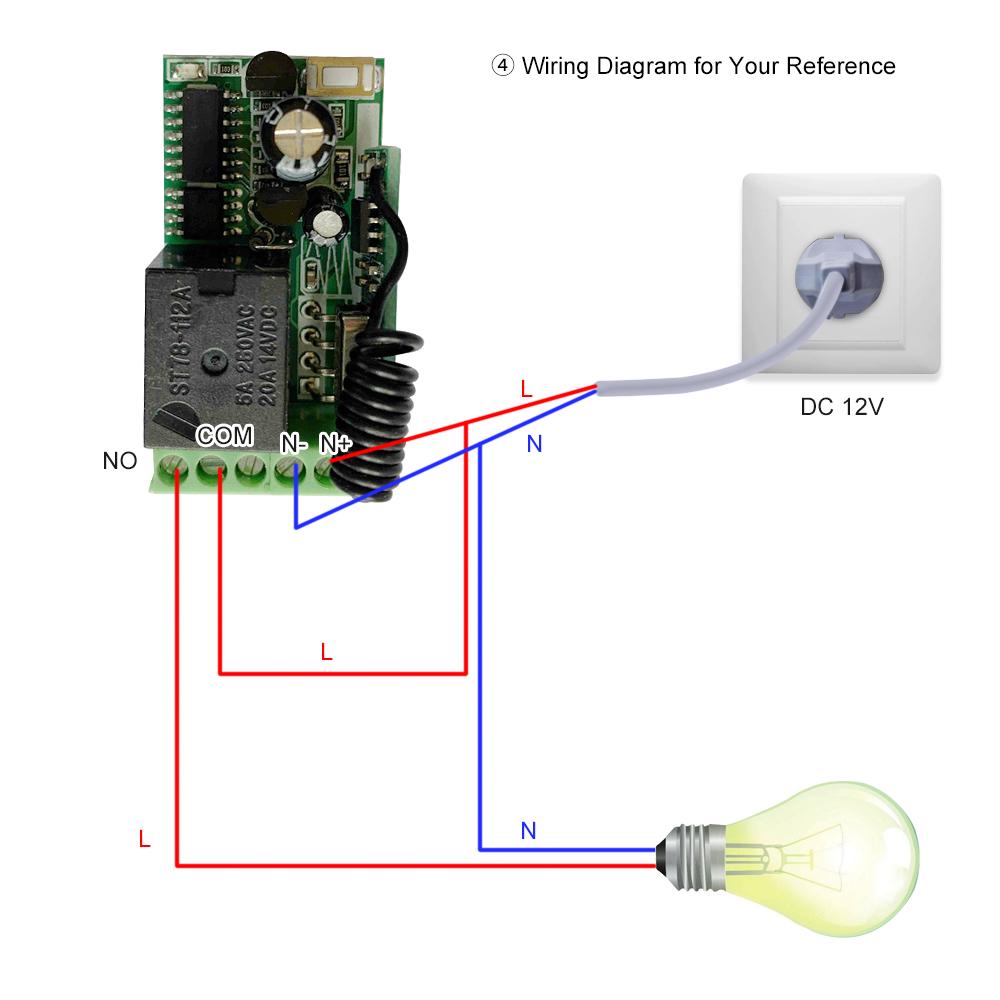

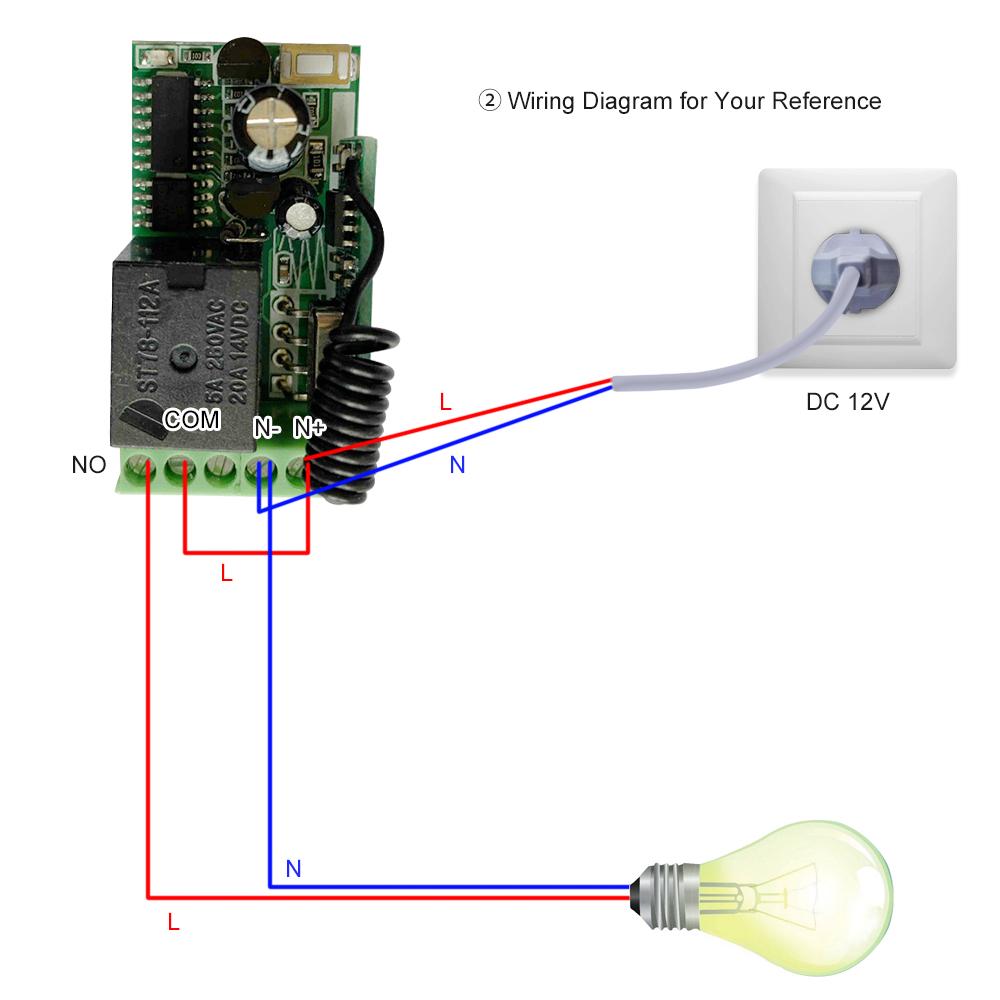

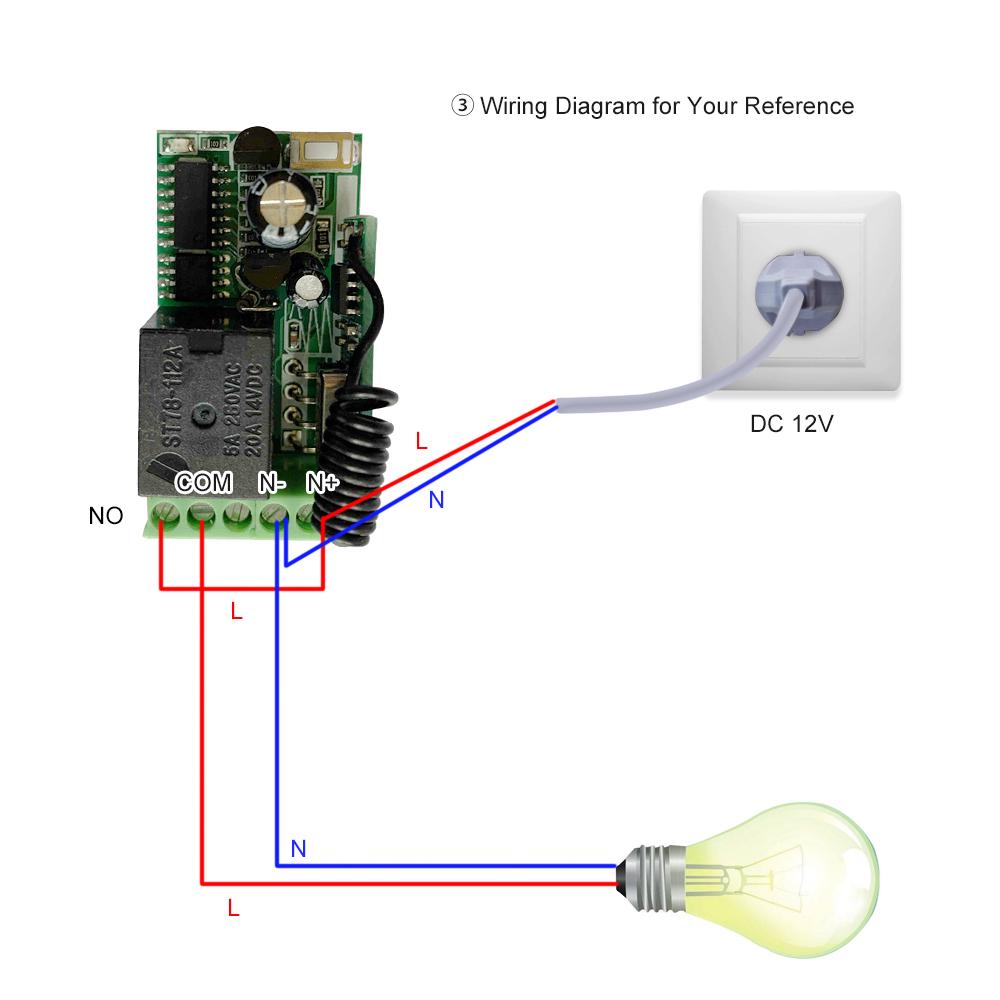

*Very convenient to use, simple wiring diagram connection way. RF Remote Control , can through .
*Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, security system, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.
* low power consumption, stable performance. Super small size, occupying very little space. The receiver board size is NaOnly about 4.3*2.4*1.7cm.
Ftures:
*Very convenient to use, simple wiring diagram connection way. RF Remote Control , can through .
*Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, security system, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.
* low power consumption, stable performance. Super small size, occupying very little space. The receiver board size is NaOnly about 4.3*2.4*1.7cm.
*The working mode can be changed by yourself: you can to momentary, toggle, latching three modes as you need.
*Lrning pair : it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)
Receiver Specifications:
Channels: 1
Input Power: 12V
Standby Current: Less than and equal to8mA
Output Current: Less than and equal to10A
RF Frequency: 43300CMHz
Output Power: /AC Optional
RF working mode: superheterodyne reception
d System: Lrning (1527 Chip) ; Fixed
Receive sensitivity105dbm
Decoding mode: MCU software decoding
Remote control storage: up to 16 PCS

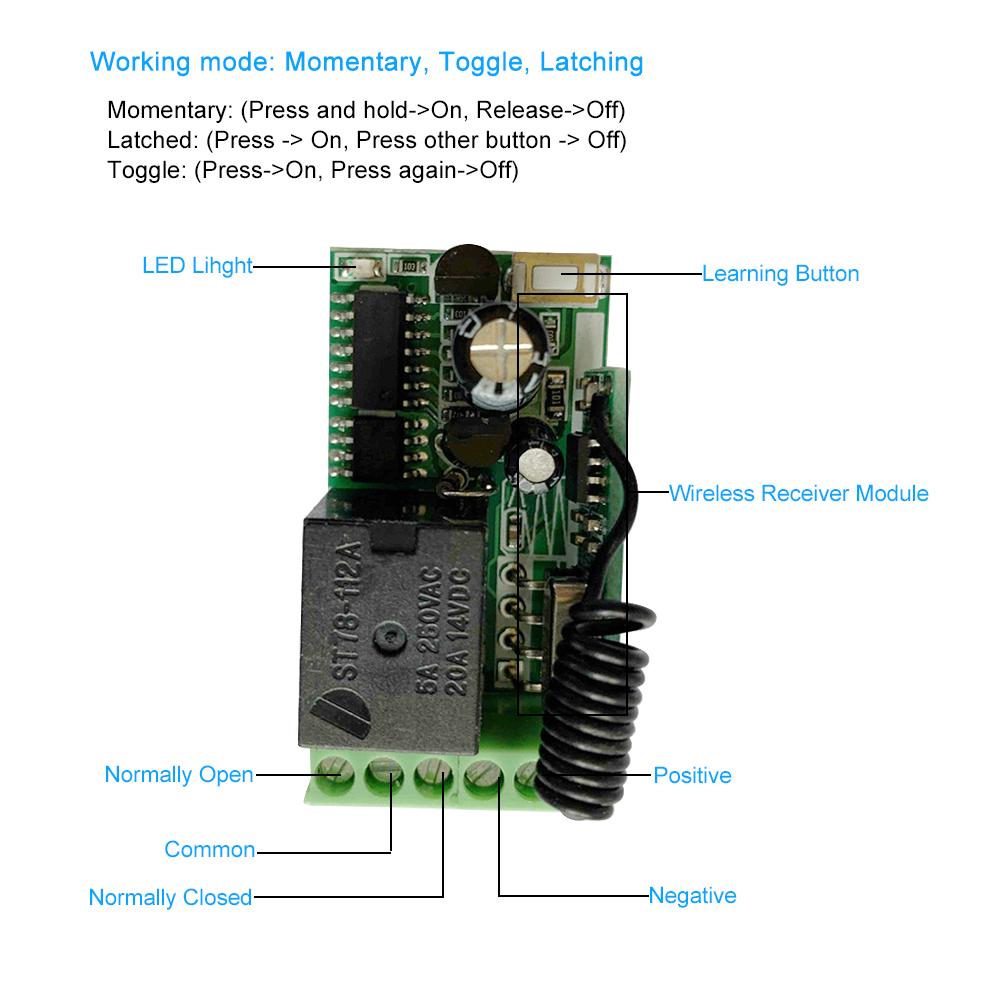

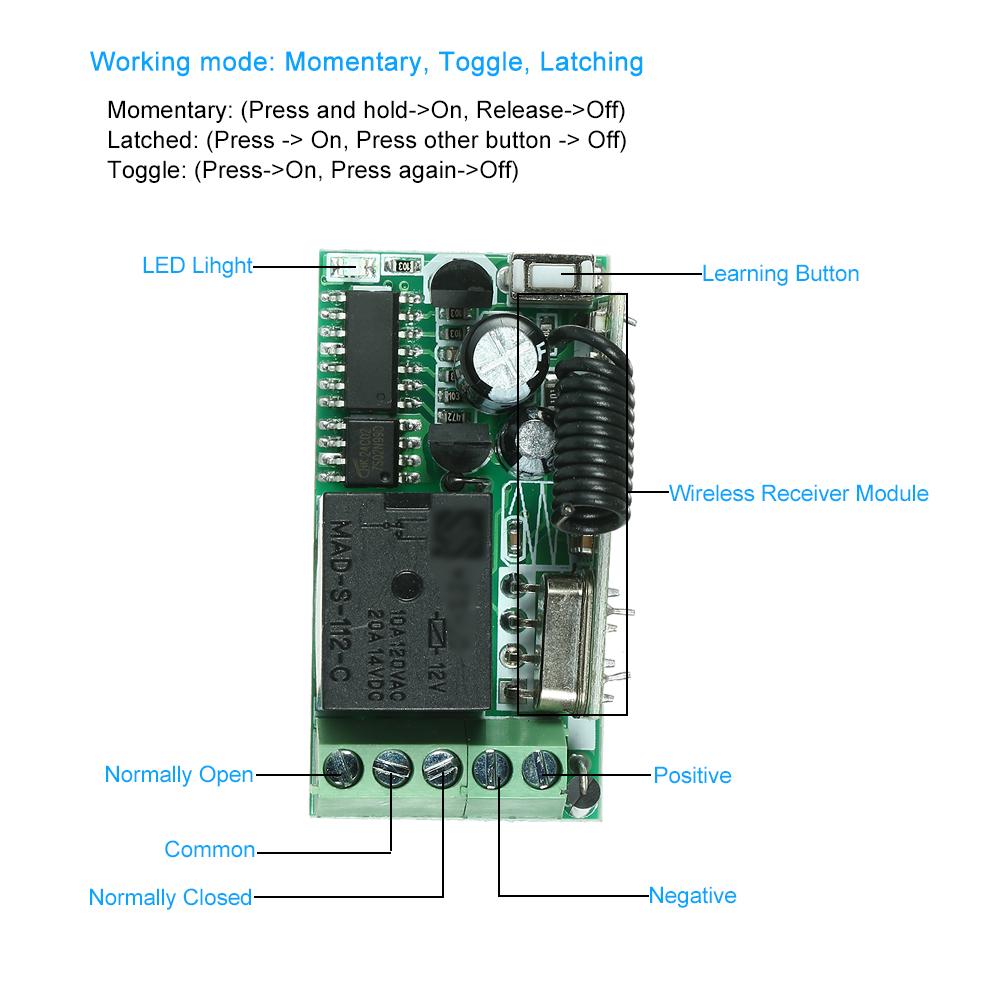

Working mode: Momentary, Toggle, Latching
Wiring type: fixed terminal
Output Terminal: NO , NC , COM
Receiver Board Size: Approx. 4.3 x 2.4 x 1.7cm / (1.7 x 0.9 x 0.7”)
Remote Control Specifications:
Frequency: 43300CMHz

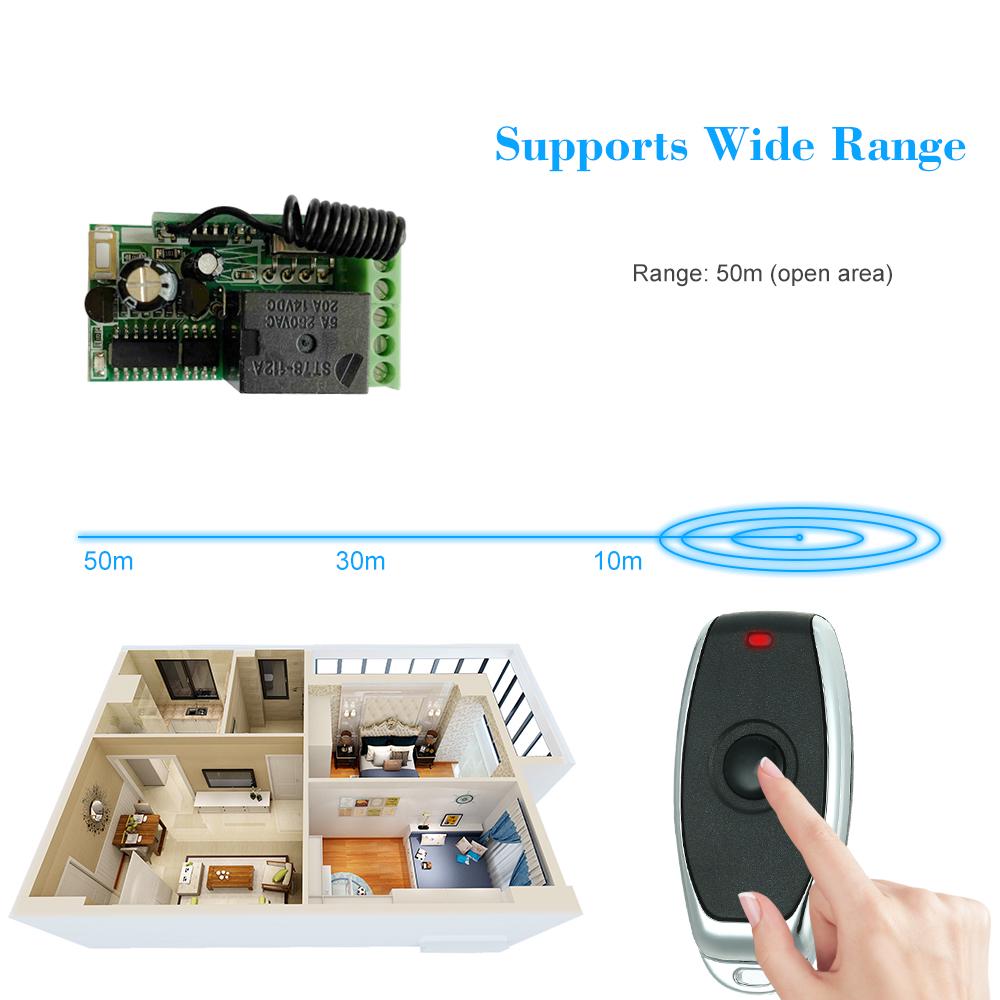

Range: 50m (open ar)
Battery: 2*CR2016 3V (included)
Quantity: 1PCS
Package Information:
Package Size: Approx. 15 * 10 * 5cm / 5.9 * 3.9 * 2in
Package Weight: Approx. 40g / 1.4oz
Package List:
1* Receiver Board
1* Remote Control
