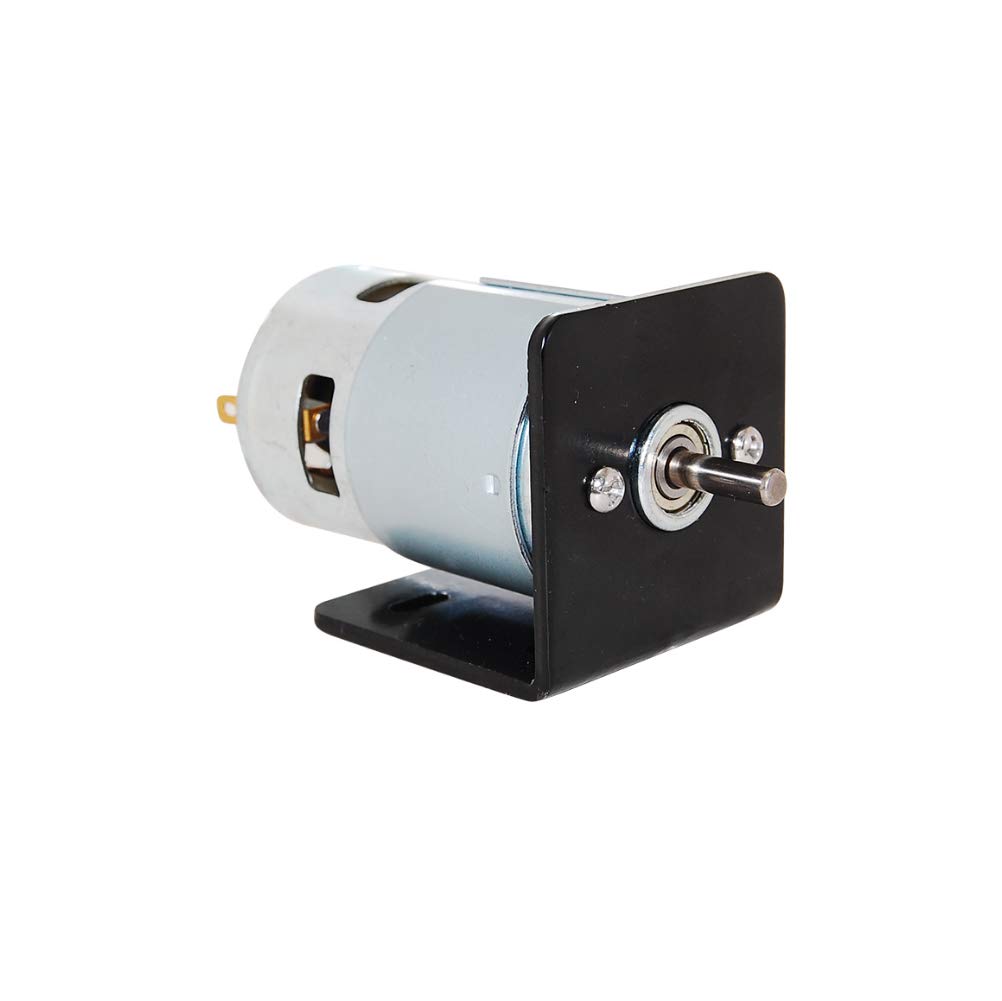

1.This is a 775 DC motor with bracket. Mounting brackets are intended to be used as additional support for the motor or as an alternative mounting option
2. The motor adopts ball bearing, high torque, low noise, built-in cooling fan, durable and long service life
3. Motor Specifications: Rated Voltage: DC , No-Load Speed: 10000RPM, Load Speed: 8800RPM Rated Voltage: DC 24V, No Load Speed: 20000RPM, Load Speed: 17600RPM Starting Current: 4-5A Motor Diameter: 42mm, Motor Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm Bracket Specifications: Length: 50mm, Width: 52mm, Height: 53mm, Mounting Hole Diameter: 4mm, Bracket Thickness: 3mm
4. Applications: Suitable for small cutting machines, polishing machines, lathe tools, milling machines, bench drills, manual electric drills, grinders, electric grinders, carving machines, etc
5. Packing: 1pcs x DC motor, 1pcs x bracket
