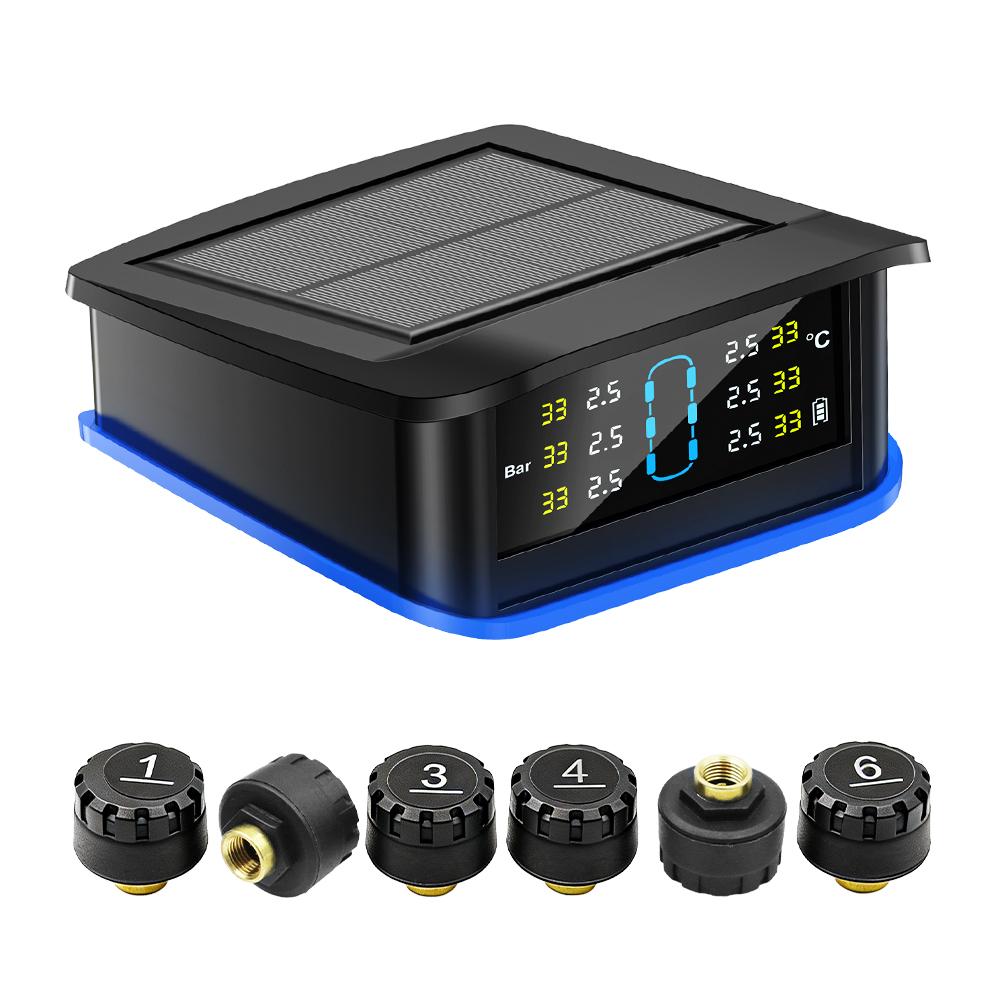

Features:

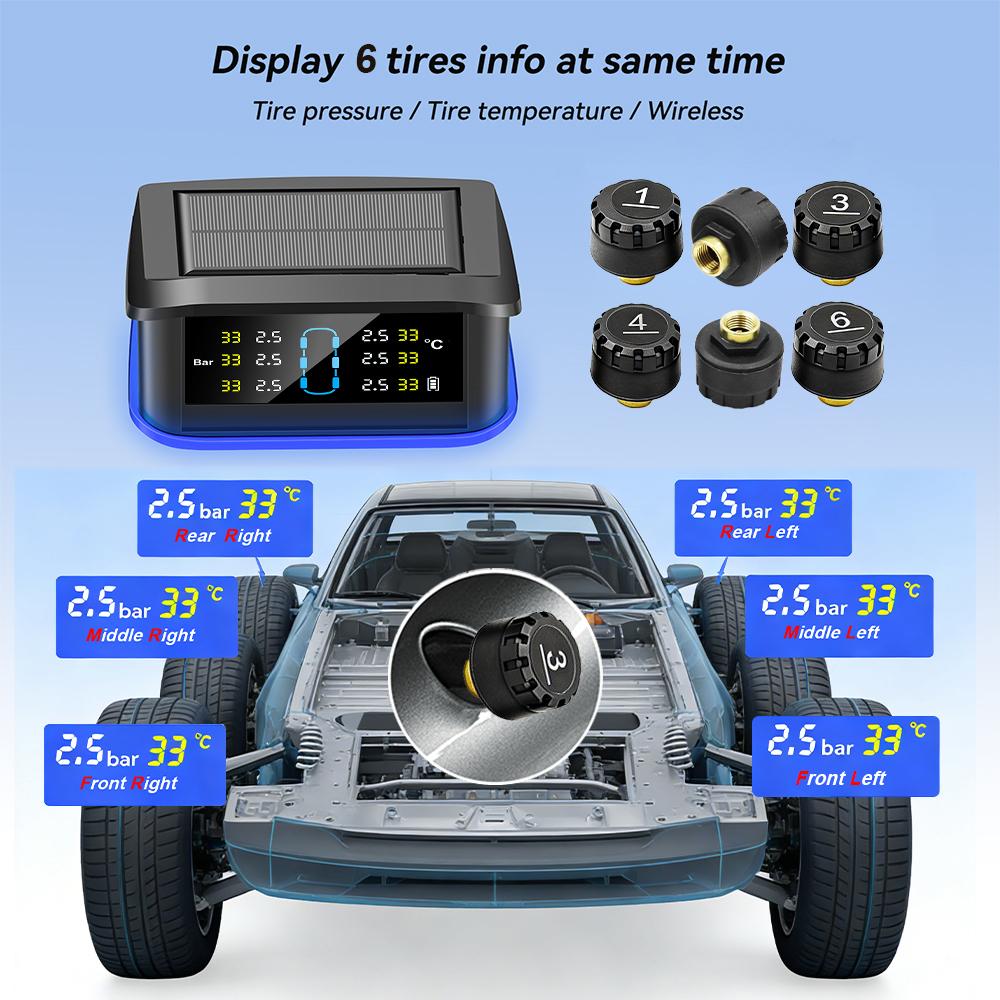

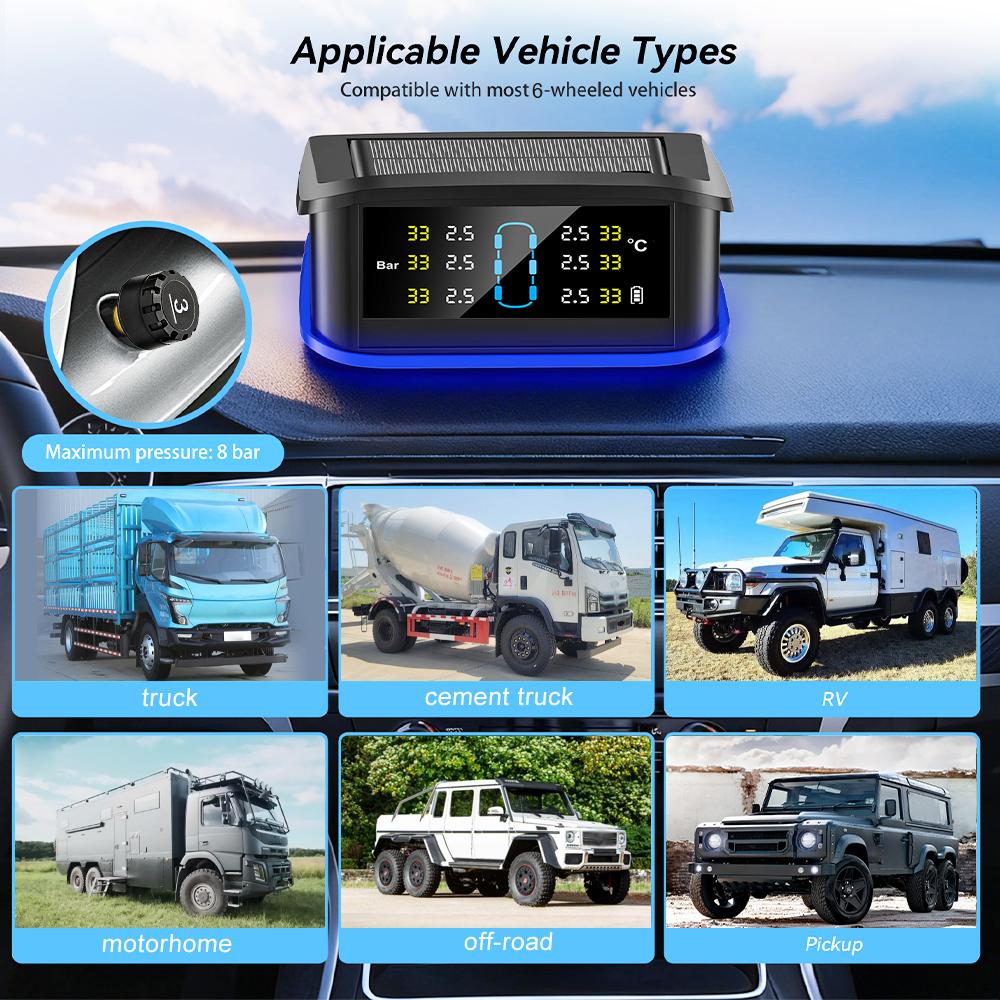

Multi-Axle Vehicle Tire Pressure Monitoring: Our rv tire pressure monitoring system can real-time monitor up to 6 tires, making it ideal for large vehicles such as trailers and heavy trucks.

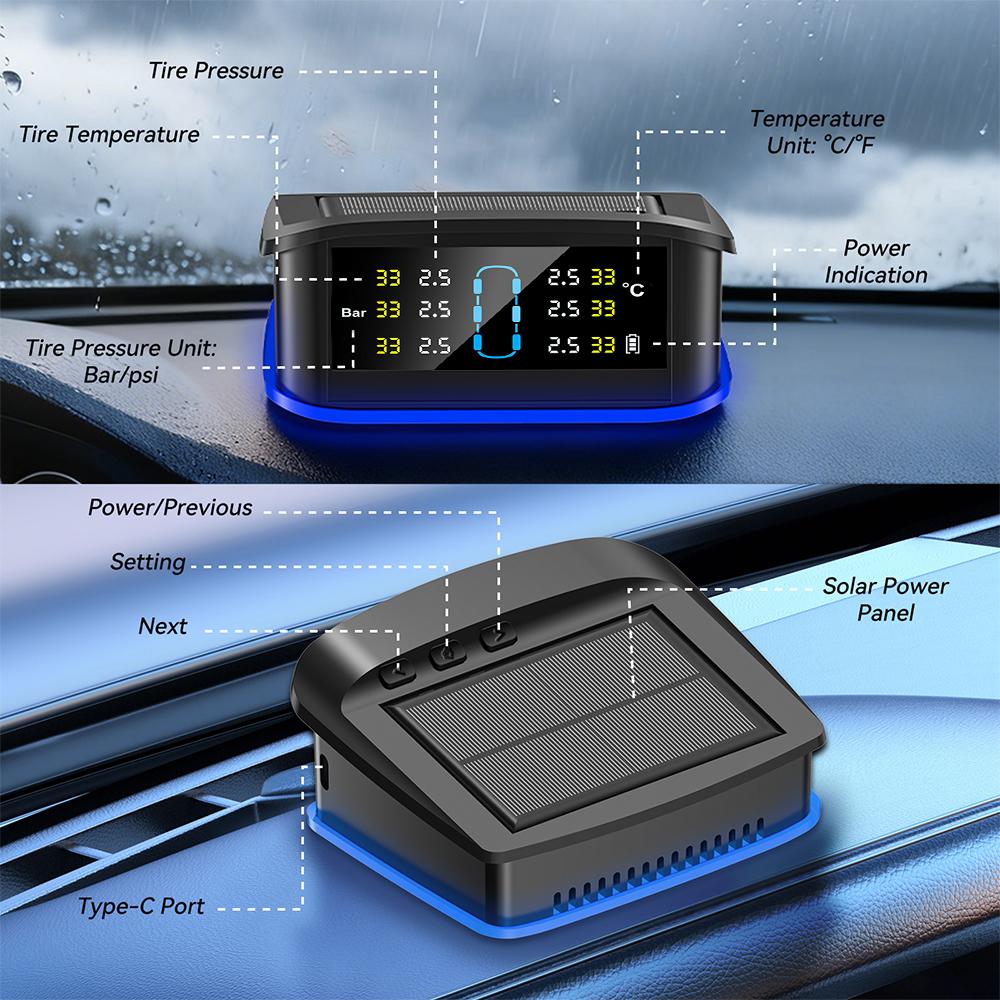

Wide-Range Tire Pressure Detection: Accurately measures tire pressures from 0~8Bar/0~116Psi, with high-precision chips achieving data accuracy of ± 0.1 bar. The high-definition tpms display provides timely data transmission, showing temperature and pressure simultaneously with clear readings in both day and night conditions.

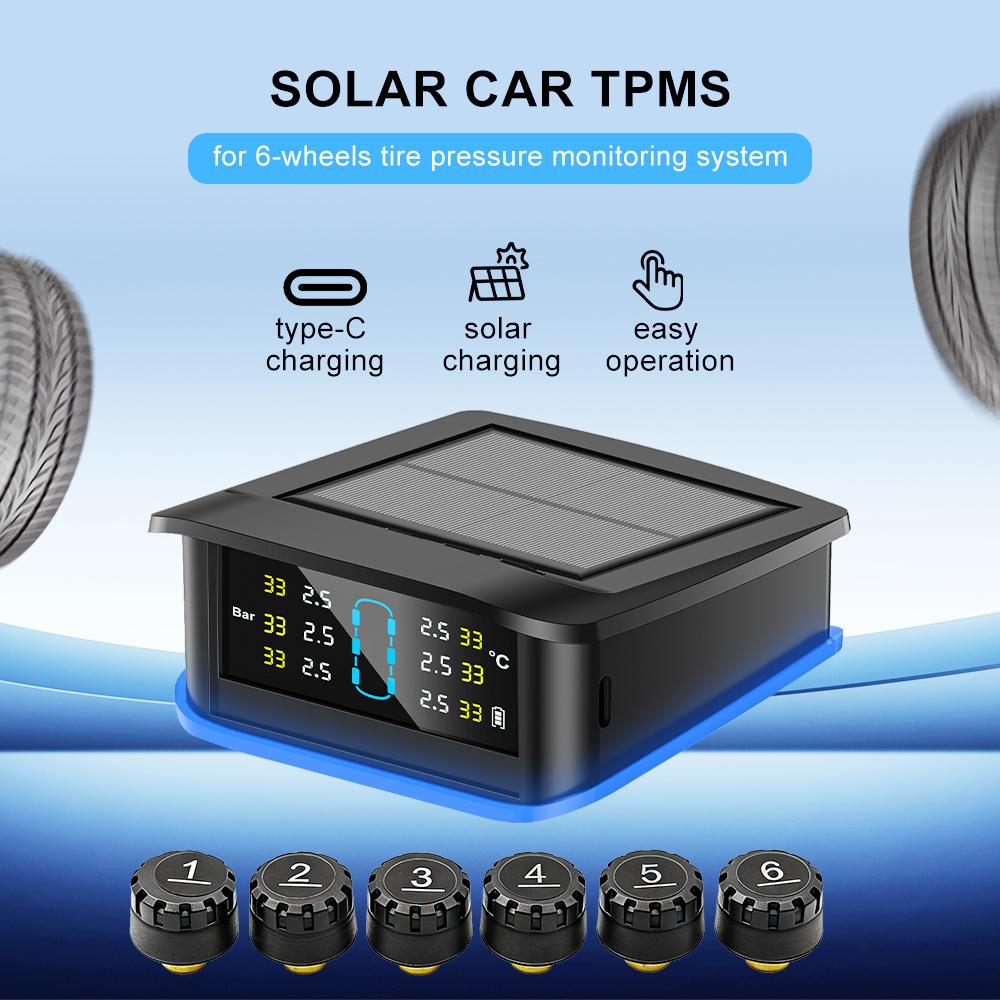

Solar Wireless Charging: The universal wireless car alarm system comes with a large-capacity rechargeable battery that can be charged via solar power or Type-C. It charges automatically in sunny weather and can be supplemented with Type-c charging in the absence of sunlight, ensuring long-lasting performance.

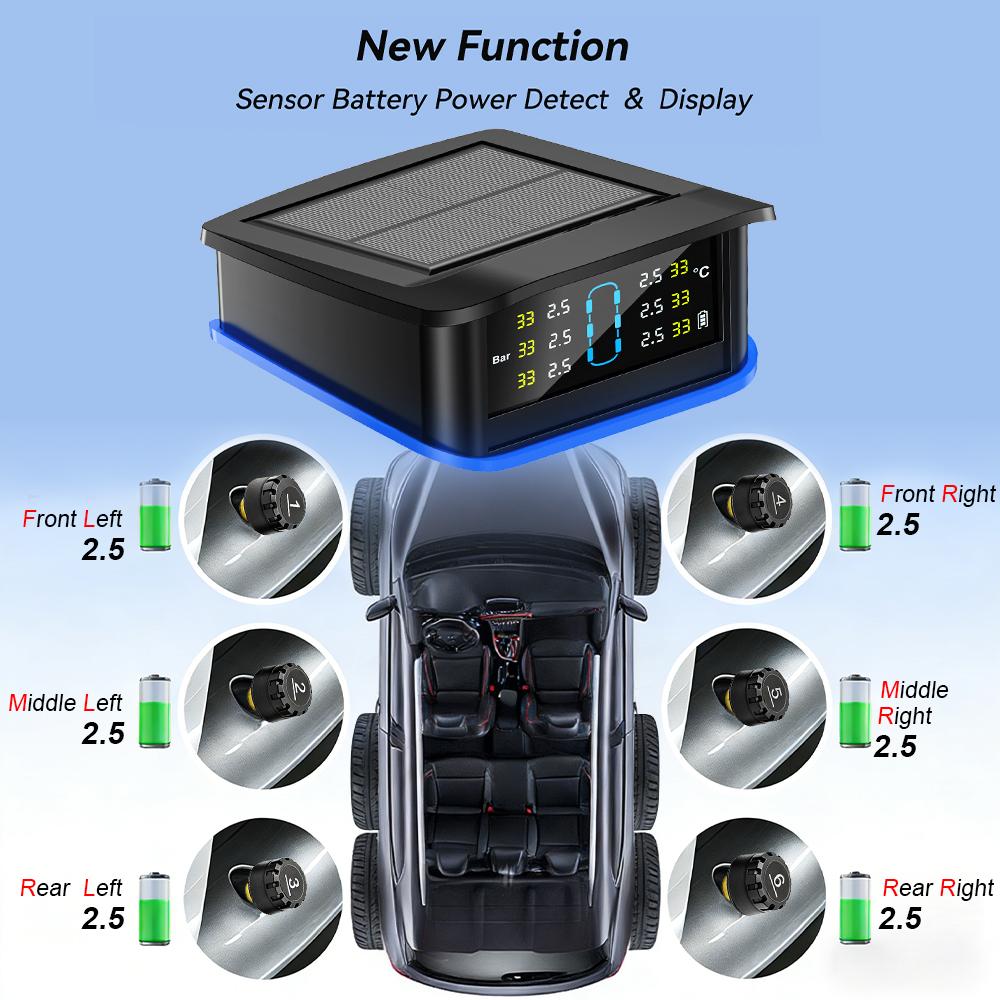

Alert System:Including fast leak warning, low/high pressure warning, high temperature warning, and low battery warning on the display. This waterproof tpms sensors set promptly notifies you of tire conditions to help avoid potential dangers.

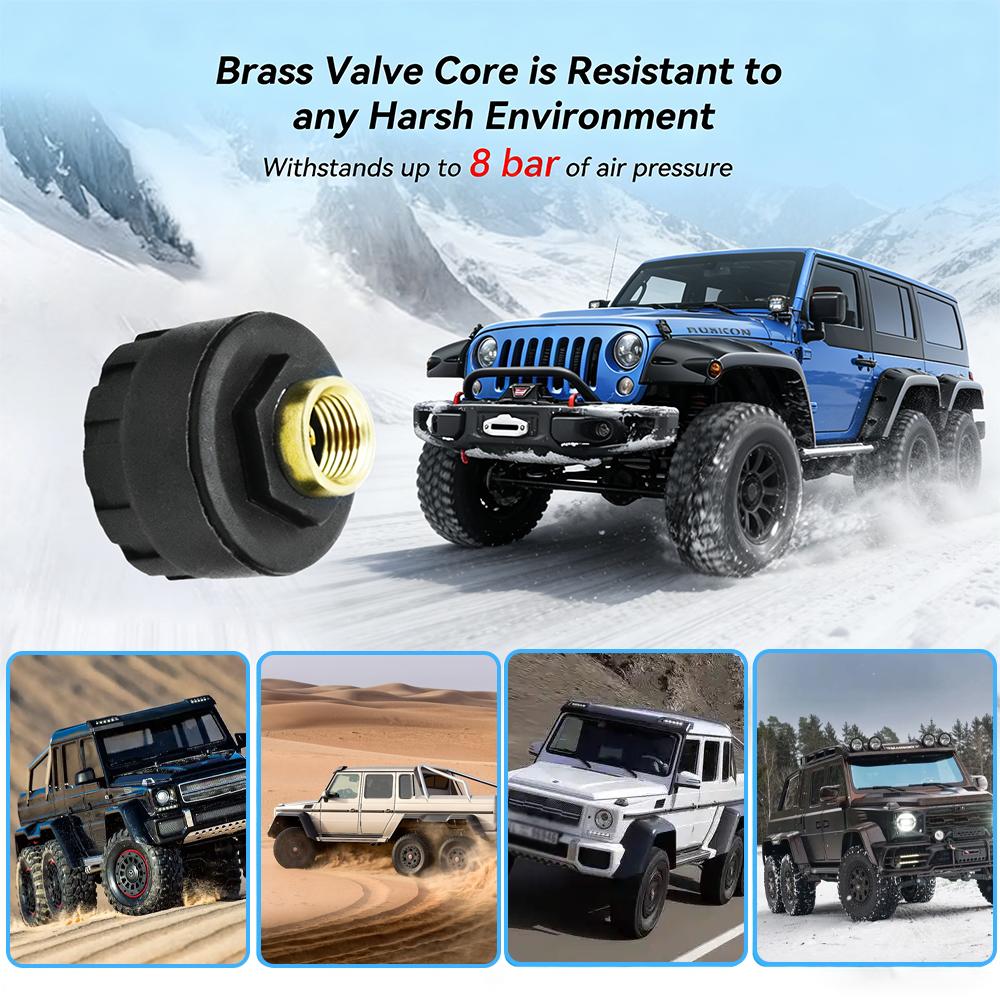

Easy Installation & Durability: The external cover-style sensors require no tire removal for installation and are easily mounted on the tire. The tpms tire pressure monitor is made with high-quality brass valve stems that resist corrosion and rust, they are dustproof, waterproof, and temperature-resistant, ensuring sensitive monitoring across various road and weather conditions.
Specifications:
Material：ABS+PC+Copper
Pressure range:0~8Bar/0~116Psi (take it as standard, the instrution noted value is just for reference)
Default low pressure alarm value: 1.8bar
Default high pressure alarm value: 3.1bar
Accuracy of Measurement: ±0.1 bar / ±1.5 psi
Working voltage: 5V -display, 2.0-3.6V -sensors
Waterproof rating: IPX7
Working temperature: -20 ° C-85 ° C
Storage temperature: -40 ° C-125 ° C
Transmission power:<10dBm
Transmission frequency: 433.92MHz±0.1MHz
Display Battery capacity:300MA
Sensors built-in battery: CR1632 button battery.
Sensors battery life: about 1-2years
Note:
1.the sensor and receiver have been paired at the factory, Only when changing the sensor or receiver do you need to pairthem again!
2.the display automatically turns on when detecting vibration signals in hibernation state, displays tire pressure and temperature data, and automatically sleeps after parking for more than 10 minutes.
3. Press the "-" button for 3 seconds to turn on/off
4. Tires running at a speed of over 20 kilometers per hour, sensor pressure,and temperature automatically update data
5. Alarm Description

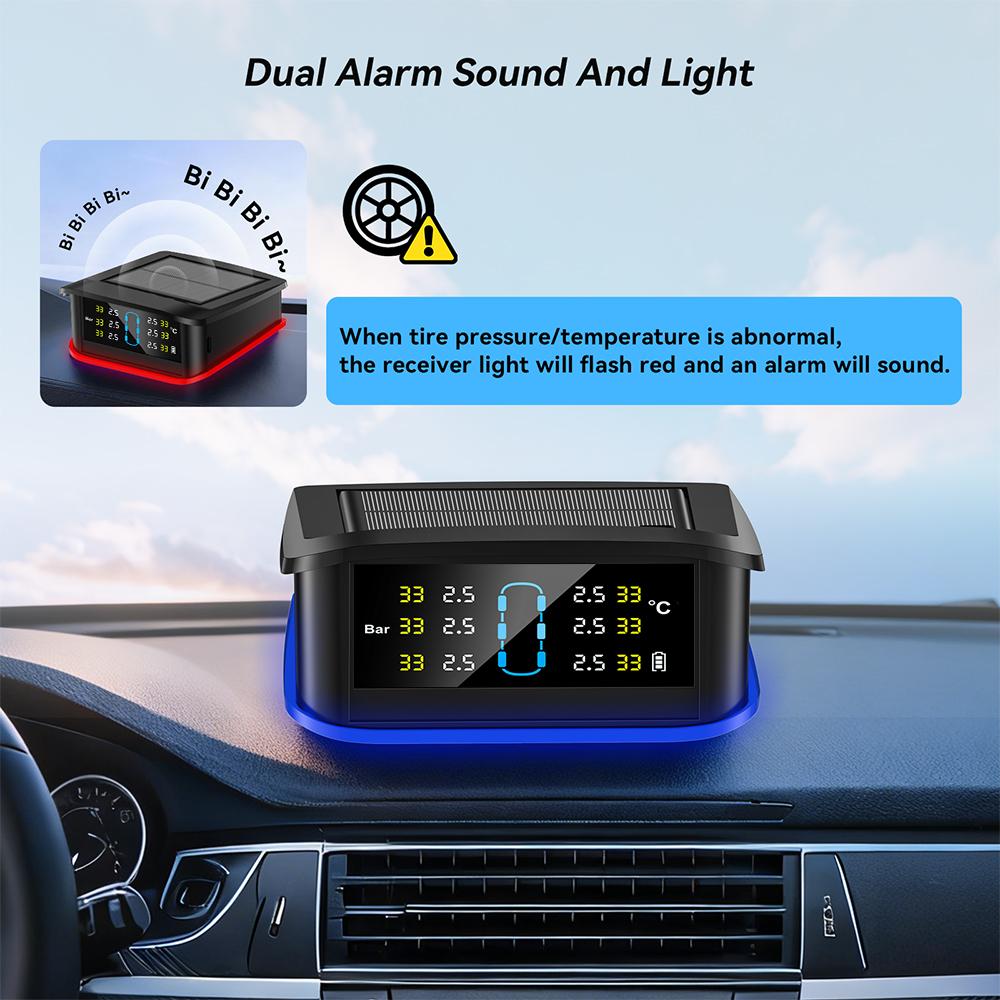

(A) When the tire pressure exceeds the set safety range value or leakage, the corresponding tire position pressure value and alarm symbol flash on the display, while the buzzer sends a continuous bi.bi.bi sound prompt; Press any key to cancel the alarm tone, but the fault icon is still displayed.
(B) When the tire temperature exceeds the set safety range value, the corresponding tire position temperature value and alarm symbol on the display flash, and the buzzer emits a continuous bi.bi.bi. Acoustic cue; Press any key to cancel the alarm tone, but the fault icon is still displayed.(C) When the tire sensor power is insufficient, the corresponding tire symbol on the display and the low electric symbol of the transmitter flash, while the buzzer emits a continuous bi.bi.bi. Acoustic cue; Press any key to cancel the alarm tone, but the fault icon is still displayed.

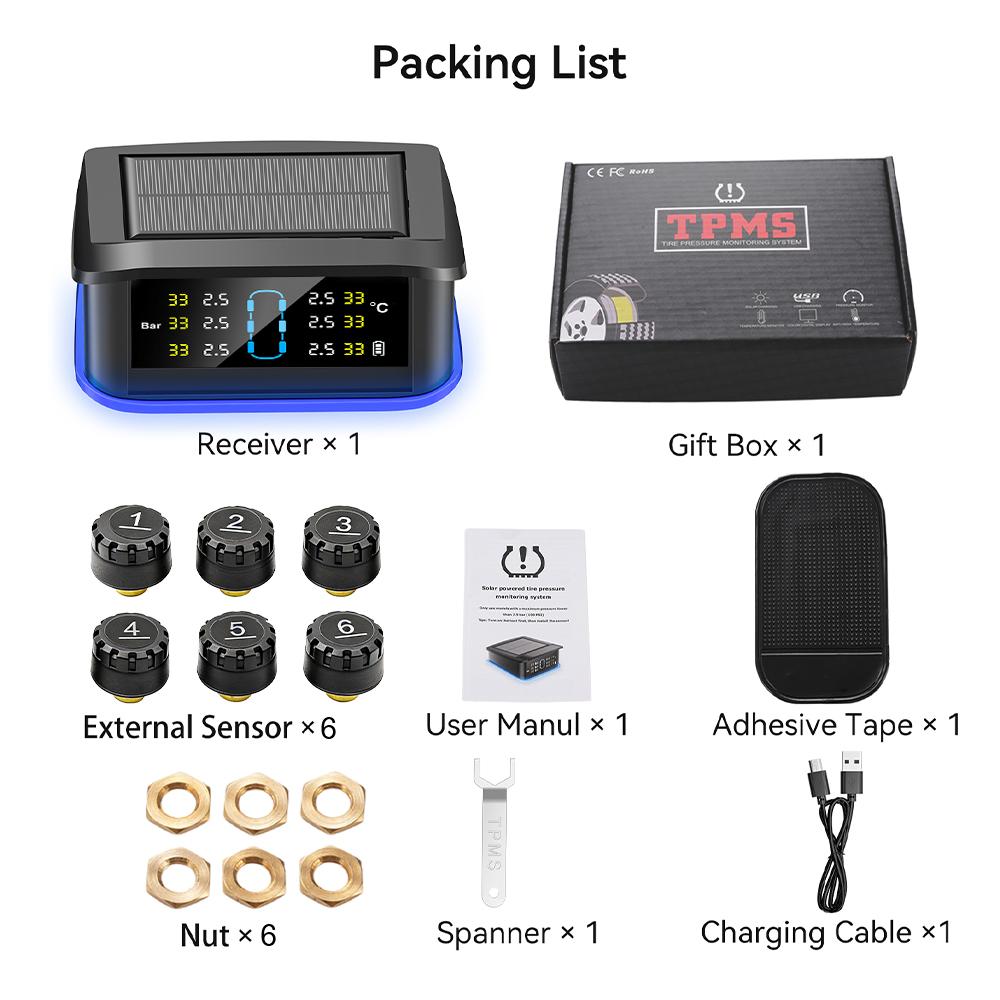

Package included:
1* Tyre Pressure Monitoring System
