Description:

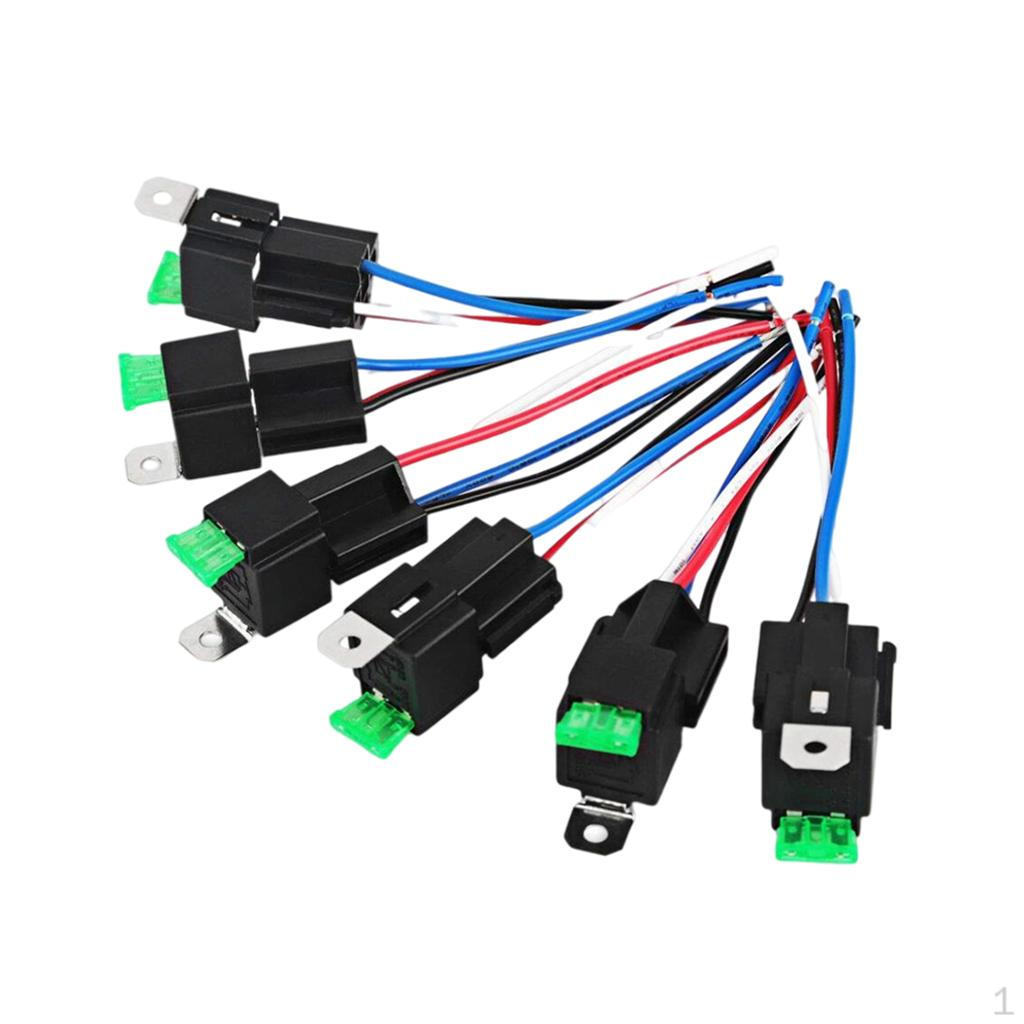

- Built in fuse socket with included 30A blade fuse with heavy duty 14AWG wires for main contact.
- Comes with color-coded wires for loads/accessories Wiring, high quality contact material, it has better resistance to arc erosion, also good conductivity
- Black-Ground (85), Red-VDC (30), White- (86), Blue-Output N/O (87), Green-Output N/C (87a)
- Unique male-female slot on each socket edge, easy to connect all relays together, Clean & Neat Install
- Wide Application-greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control systems, etc.
Specification:

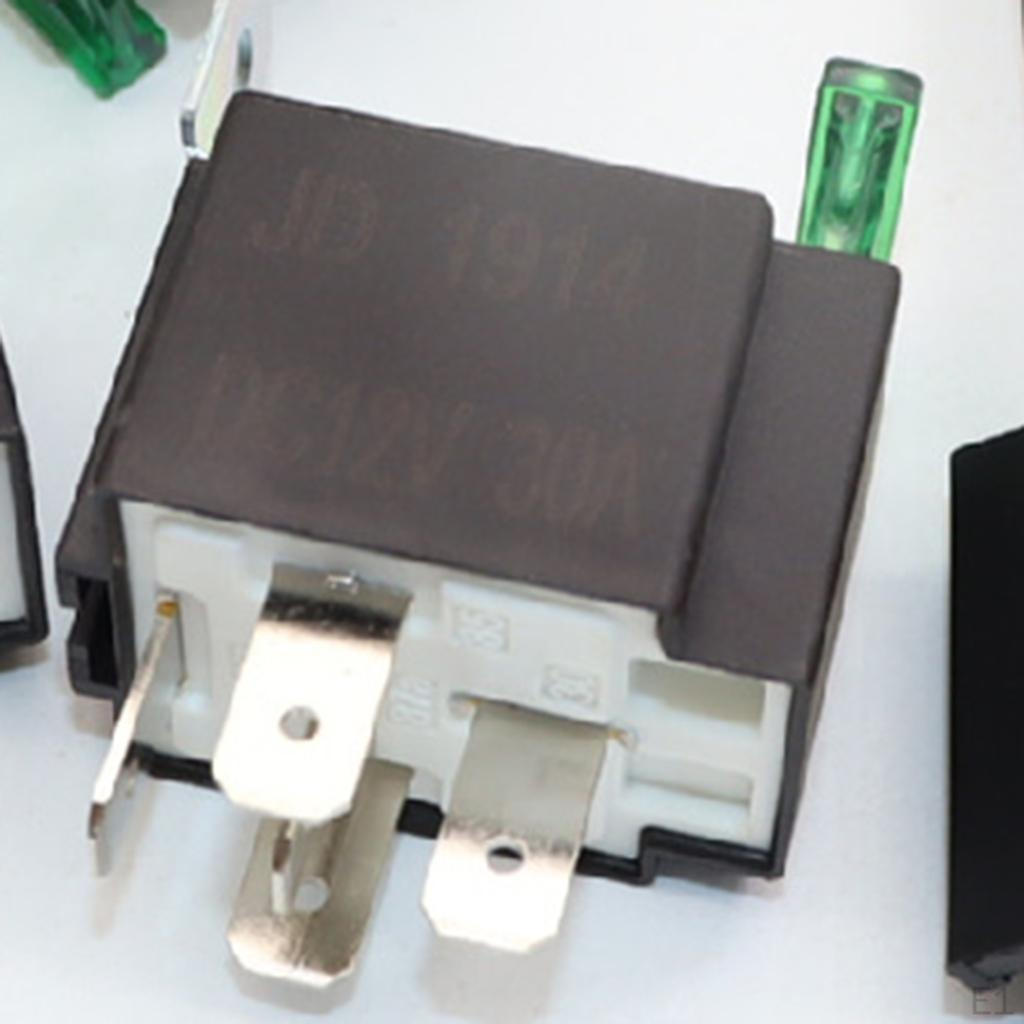

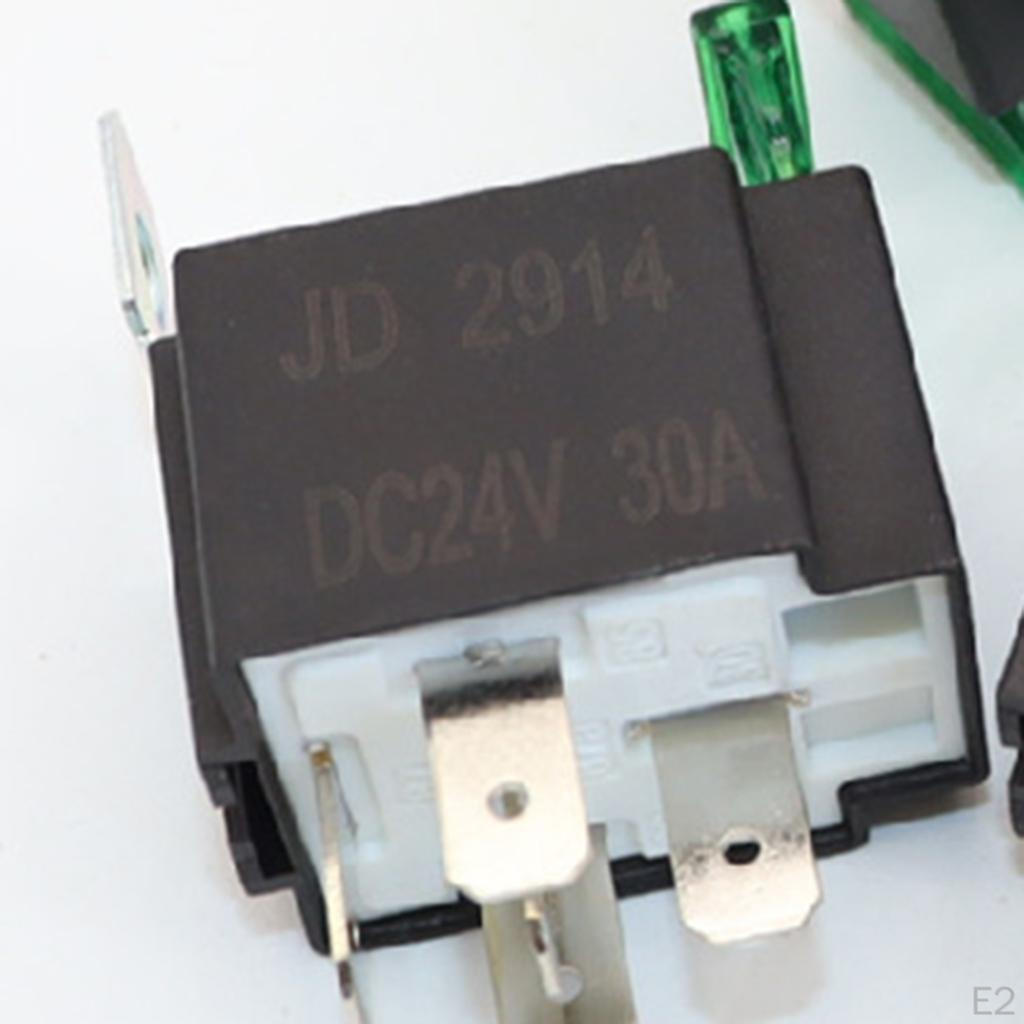

- Type: 5-pin Relay Harness with fuse
- Model: JD2912
- Material: Plastic
- Size:61 x 35 x 25.5mm/2.4 x 1.4 x 1 inch
- Total Length:125 mm/ 4.9 inch
Specification: 5-pin
- Current: ≤30A
- Rated Voltage: DC 12V/DC 24V
- Pull-in Voltage: ≤ 8V DC
- Release Voltage: ≤ 1.2V DC
- Coil Power Consume: 1.8W
- Contact Pole Voltage Drop: 10A≤250mV
- Insulation: 100M (500V DC)
- Dielectric withstand volt: 500VAC/M
- Contact Pole Load: NO:30A/14VDC NC:20A/14VDC
- Working Temperature: -40 to 80°C
- Electrical Durability: 100 thousand times, 1.5s NO / 1.5s OFF
- Mechanical Durability: 1 million, 300 times/min
- Housing Material: PA66 Nylon
- Load Pin Material: H65-Y2
Package Includes:
6 Pieces Relays Set
6 Pieces 30A Fuse
Note:
1.Please allow 1~3 cm error due to manual measurement, thanks.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you.
